Transporto priemonė: 280 SE/C 3.5 USA; VIN numerio dalis: 111027

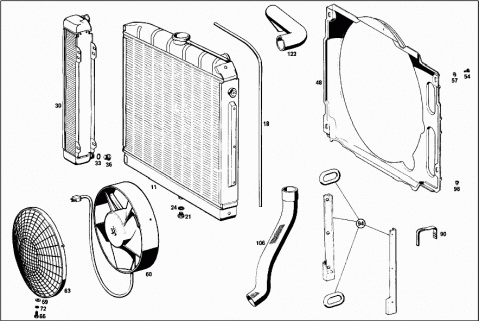

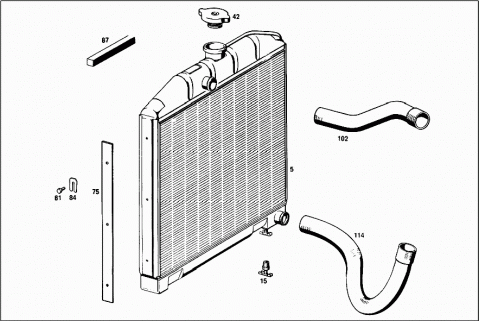

Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| RADIATOR | ||
| 005 | A 1115001003 | RADIATOR |
| A 1115010001 | RADIATOR | |
| A 1085010501 | RADIATOR | |
| 011 | A 1095010301 | RADIATOR |
| 015 | A 0005010065 | VALVE |
| 018 | A 0079972682 | HOSE |
| 021 | N 007604014106 | SCREW PLUG |
| Repalced by: N 007604014110 | ||
| 021 | N 007604014110 | SCREW PLUG |
| 024 | N 007603014405 | SEAL RING |
| A 1081800265 | OIL COOLER | |
| 030 | A 1161800065 | OIL COOLER |
| 033 | N 007603012110 | SEAL RING |
| 036 | N 007604012102 | SCREW PLUG |
| N 000603006047 | SCREW | |
| N 000934006013 | NUT | |
| Repalced by: N 304032006008 | ||
| N 304032006008 | NUT | |
| N 000125006407 | WASHER | |
| 042 | A 0005010015 | RADIATOR CAP |
| 042 | A 1235010215 | RADIATOR CAP |
| A 1115050055 | FAN SHROUD | |
| A 1115050155 | FAN SHROUD | |
| A 1115050255 | FAN SHROUD | |
| 048 | A 1115050455 | FAN SHROUD |
| A 0005050172 | NUT | |
| 054 | N 914006005000 | COMBINATION BOLT |
| 057 | A 0019901840 | WASHER |
| Repalced by: A 1269901440 | ||
| 057 | A 1269901440 | WASHER |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| RADIATOR MOUNTING | ||
| 060 | A 0005004093 | BLOWER |
| 060 | A 0005004093 | BLOWER |
| A 0005030801 | PROTECTIVE GRILL | |
| 063 | A 0005030501 | PROTECTIVE GRILL |
| Repalced by: A 0005030801 | ||
| 063 | A 0005030801 | PROTECTIVE GRILL |
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| 066 | N 000933006122 | SCREW |
| Repalced by: N 304017006034 | ||
| 066 | N 304017006034 | SCREW |
| 069 | N 000125006421 | WASHER |
| 069 | N 000125006421 | WASHER |
| 072 | N 912004006102 | LOCK WASHER |
| 072 | N 912004006102 | LOCK WASHER |
| 075 | A 1105020030 | DAMPING STRIP |
| A 1115020130 | DAMPING STRIP | |
| 081 | A 0029902801 | SCREW |
| 084 | A 1105040084 | SHIM |
| 087 | A 1089870325 | PLASTIC SECTION |
| 090 | A 1085050106 | CLAMP |
| A 1155040082 | RUBBER RING | |
| 094 | A 1085000012 | REPAIR KIT |
| RADIATOR MOUNTING | ||
| 098 | A 1119871215 | PLUG |
| Repalced by: A 0009871840 | ||
| 098 | A 0009871840 | RUBBER BUFFER |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| COOLING WATER LINE | ||
| 102 | A 1085010182 | HOSE |
| A 1085010782 | HOSE | |
| 106 | A 1165010482 | HOSE |
| N 916002041100 | CLAMP | |
| N 916002051100 | CLAMP | |
| N 916002047100 | CLAMP | |
| 114 | A 1085010482 | HOSE |
| A 1145010882 | HOSE | |
| A 1145011082 | HOSE | |
| 122 | A 1165010782 | HOSE |
| N 916002047100 | CLAMP | |
