Transporto priemonė: 280 SE/C 3.5 USA; VIN numerio dalis: 111027

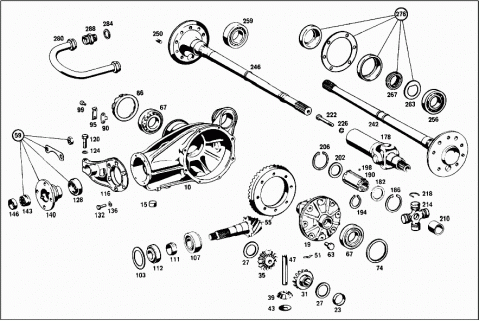

Grupė: 35 REAR AXLE
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| REAR AXLE | ||
| A 1083500600 | REAR AXLE | |
| RATIO: | ||
| 1:4.08 | ||
| A 1083500600 | REAR AXLE | |
| RATIO: | ||
| 1:4.08 | ||
| A 1083504000 | REAR AXLE | |
| RATIO: | ||
| 1:4.08 | ||
| A 1083505500 | REAR AXLE | |
| RATIO: | ||
| 1.3.92 | ||
| A 1083505900 | REAR AXLE | |
| Repalced by: A 1093500803 | ||
| A 1093500803 | AXLE HOUSING | |
| RATIO: | ||
| A 1083500003 | AXLE HOUSING | |
| RATIO 1:4.08 WITH LEFT REAR AXLE TUBE; LESS SLIP UNIVERSAL JOINT, RIGHT REAR AXLE TUBE, AND REAR AX | ||
| A 1083500003 | AXLE HOUSING | |
| RATIO 1:4.08 WITH LEFT REAR AXLE TUBE; LESS SLIP UNIVERSAL JOINT, RIGHT REAR AXLE TUBE, AND REAR AX | ||
| A 1083500503 | AXLE HOUSING | |
| WITH LEFT REAR AXLE TUBE; LESS SLIP UNIVERSAL JOINT, RIGHT REAR AXLE TUBE, AND REAR AXLE SHAFTS RAT | ||
| A 1113500103 | AXLE HOUSING | |
| WITH LEFT REAR AXLE TUBE; LESS SLIP UNIVERSAL JOINT, RIGHT REAR AXLE TUBE, AND REAR AXLE SHAFTS RAT | ||
| 010 | A 1083500020 | AXLE HOUSING |
| A 1083500320 | AXLE HOUSING | |
| 015 | A 1869970032 | SCREW PLUG |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| DIFFERENTIAL GEAR | ||
| 019 | A 1083500223 | DIFFERENTIAL GEAR |
| A 1083530001 | DIFFERENTIAL CASE | |
| A 1123570250 | BUSHING | |
| 023 | A 1083530048 | RING |
| A 1083530148 | RING | |
| REPAIR SIZE | ||
| 027 | A 1843530062 | THRUST WASHER |
| 1.3 MM AS REQUIRED | ||
| A 1843530162 | THRUST WASHER | |
| 1.4 MM AS REQUIRED | ||
| A 1843530262 | THRUST WASHER | |
| 1.5 MM AS REQUIRED | ||
| A 1843530362 | THRUST WASHER | |
| 1.6 MM AS REQUIRED | ||
| A 1843530462 | THRUST WASHER | |
| 1.7 MM AS REQUIRED | ||
| 031 | A 1083530115 | SIDE GEAR |
| Repalced by: A 1083500140 | ||
| 031 | A 1083500140 | DIFFERENTIAL PINION |
| LEFT | ||
| 035 | A 1083500140 | DIFFERENTIAL PINION |
| RIGHT | ||
| 039 | A 1163530214 | DIFFERENTIAL PINION |
| Repalced by: A 1403530514 | ||
| 039 | A 1403530514 | DIFFERENTIAL PINION |
| 043 | A 1123530124 | SPHERICAL WASHER |
| 047 | A 1083530021 | PIN |
| 051 | A 1129930030 | SPRING |
| 055 | A 1083500039 | RING GEAR AND PINION |
| WITH RING GEAR, RATIO 1:4.08 | ||
| 055 | A 1083500039 | RING GEAR AND PINION |
| WITH RING GEAR, RATIO 1:4.08 | ||
| A 1113500839 | RING GEAR AND PINION | |
| WITH RING GEAR, RATIO 1:3.92 | ||
| A 1123500939 | RING GEAR AND PINION | |
| WITH RING GEAR, RATIO 1:3.69 | ||
| 059 | A 1085860135 | REPAIR KIT |
| DRIVE PINION | ||
| 063 | A 1289900001 | SCREW |
| 067 | A 0009801902 | TAPERED ROLLER BEARING |
| 074 | A 1123530852 | SPACER WASHER |
| 1.8 MM AS REQUIRED | ||
| A 1123530952 | SPACER WASHER | |
| 1.9 MM AS REQUIRED | ||
| A 1123531052 | SPACER WASHER | |
| 2.0 MM AS REQUIRED | ||
| A 1123531152 | SPACER WASHER | |
| 2.1 MM AS REQUIRED | ||
| A 1123531252 | SPACER WASHER | |
| Repalced by: A 1123531152 | ||
| A 1123531152 | SPACER WASHER | |
| 2.2 MM AS REQUIRED | ||
| 086 | A 1123530125 | SCREW COLLAR |
| 090 | A 1803530173 | LOCK |
| A 1803530273 | LOCK | |
| A 1803530373 | LOCK | |
| A 1803530573 | LOCK | |
| A 1803530673 | LOCK | |
| 095 | A 1809940030 | LOCK |
| 099 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 099 | N 304017006018 | SCREW |
| 103 | A 1123531452 | SPACER WASHER |
| 1.50 MM AS REQUIRED | ||
| A 1123531652 | SPACER WASHER | |
| 1.60 MM AS REQUIRED | ||
| A 1123531852 | SPACER WASHER | |
| 1.70 MM AS REQUIRED | ||
| A 1123532052 | SPACER WASHER | |
| 1.80 MM AS REQUIRED | ||
| 107 | A 0009801002 | TAPERED ROLLER BEARING |
| 111 | A 1083530042 | SPACER BUSHING |
| 112 | A 0009801802 | TAPERED ROLLER BEARING |
| A 0009801802 | TAPERED ROLLER BEARING | |
| A 0009805202 | TAPERED ROLLER BEARING | |
| 116 | A 1103530308 | COVER |
| 120 | N 070613010000 | SCREW |
| 124 | N 000127010200 | LOCK WASHER |
| 128 | A 0049975646 | SEAL RING |
| A 0049974146 | SEAL RING | |
| 132 | N 304017008023 | SCREW |
| 136 | N 000127008200 | LOCK WASHER |
| 140 | A 1103500145 | FLANGE |
| 143 | A 1113500166 | GROOVED NUT |
| 146 | A 1119940244 | LOCK |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| REAR AXLE TUBE | ||
| 150 | A 1083500219 | REAR AXLE TUBE |
| LEFT | ||
| A 1083500919 | REAR AXLE TUBE | |
| LEFT | ||
| 156 | A 1083500319 | REAR AXLE TUBE |
| RIGHT | ||
| A 1103202443 | BRACKET | |
| LEFT SHOCK ABSORBER | ||
| A 1103202543 | BRACKET | |
| RIGHT SHOCK ABSORBER | ||
| 161 | A 1803510150 | BUSHING |
| 165 | A 1153500290 | VALVE |
| A 1083500090 | VALVE | |
| 169 | A 1083510068 | CAP |
| 169 | A 1083510068 | CAP |
| 174 | N 000933010090 | SCREW |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| SLIP JOINT | ||
| 178 | A 1123500213 | JOINT |
| 182 | A 1803570152 | SPACER WASHER |
| 186 | A 0009942941 | LOCK |
| 190 | A 1083500048 | SLEEVE |
| 194 | A 1889940041 | LOCK |
| 198 | A 1809810086 | ROLLER |
| 202 | A 1883570052 | SPACER WASHER |
| 206 | N 000472048000 | LOCK RING |
| 210 | A 1123570350 | BUSHING |
| 214 | A 1123500128 | UNIVERSAL JOINT |
| 218 | A 1869941235 | SNAP RING |
| 2.15 MM AS REQUIRED | ||
| A 1869940435 | SNAP RING | |
| 2.25 MM AS REQUIRED | ||
| A 1869941535 | SNAP RING | |
| 2.35 MM AS REQUIRED | ||
| A 1869941735 | SNAP RING | |
| 2.45 MM AS REQUIRED | ||
| A 1869941935 | SNAP RING | |
| 2.55 MM AS REQUIRED | ||
| 222 | N 000912010053 | SCREW |
| 226 | N 000127010200 | LOCK WASHER |
| 230 | A 1103570491 | BOOT |
| REPAIR SIZE | ||
| 234 | A 1103570391 | BOOT |
| SPLIT REPAIR SIZE | ||
| 238 | A 0029881078 | CLIP |
| REPAIR SIZE | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| REAR AXLE SHAFT | ||
| 242 | A 1083500310 | AXLE SHAFT |
| LEFT | ||
| 246 | A 1083500710 | AXLE SHAFT |
| RIGHT | ||
| A 1089940035 | SNAP RING | |
| 250 | A 1159910560 | DOWEL PIN |
| 256 | A 0019811525 | BALL BEARING |
| Repalced by: A 0029812301 | ||
| 256 | A 0029812301 | CYLINDR. ROLLER BEARING |
| 259 | A 0009810506 | BARREL-TYPE BEARING |
| 263 | A 1833530373 | LOCK |
| 267 | A 1533570026 | GROOVED NUT |
| N 900288088003 | CLAMP | |
| REAR AXLE TUBE | ||
| N 900288121000 | CLAMP | |
| REAR AXLE HOUSING | ||
| 272 | A 1264230012 | BRAKE DISC |
| 276 | A 1113500068 | REPAIR KIT |
| REAR AXLE SHAFT SEALING | ||
| 280 | A 1083500080 | LINE |
| 284 | N 007603026105 | SEAL RING |
| COOLING PIPE TO DIFFERENTIAL HOUSING | ||
| 288 | N 915013020002 | SCREW FITTING |
| COOLING PIPE TO DIFFERENTIAL HOUSING | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

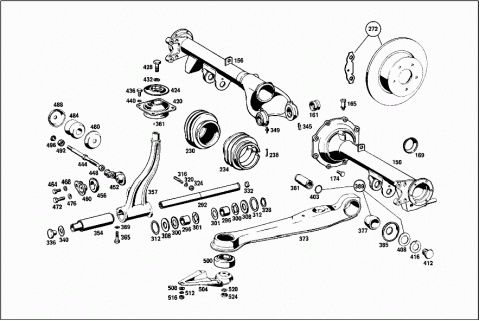

| REAR AXLE SUSPENSION | ||
| 292 | A 1103510074 | PIN |
| 296 | A 1803510153 | SPACER TUBE |
| 26.0 MM AS REQUIRED | ||
| A 1803511853 | SPACER TUBE | |
| 25.8 MM AS REQUIRED | ||
| A 1803511753 | SPACER TUBE | |
| 25.6 MM AS REQUIRED | ||
| A 1803511653 | SPACER TUBE | |
| 25.4 MM AS REQUIRED | ||
| A 1803511553 | SPACER TUBE | |
| Repalced by: A 1803511653 | ||
| A 1803511653 | SPACER TUBE | |
| 25.2 MM AS REQUIRED | ||
| A 1803511453 | SPACER TUBE | |
| 25.0 MM AS REQUIRED | ||
| 300 | A 1803511452 | SPACER WASHER |
| 2.0 MM AS REQUIRED | ||
| 301 | A 1803511352 | SPACER WASHER |
| Repalced by: A 1803511452 | ||
| 301 | A 1803511452 | SPACER WASHER |
| 1.9 MM AS REQUIRED | ||
| A 1803511452 | SPACER WASHER | |
| 2.0 MM AS REQUIRED | ||
| A 1803511552 | SPACER WASHER | |
| 2.1 MM AS REQUIRED | ||
| A 1803511652 | SPACER WASHER | |
| 2.2 MM AS REQUIRED | ||
| A 1803511752 | SPACER WASHER | |
| 2.3 MM AS REQUIRED | ||
| A 1803511852 | SPACER WASHER | |
| 2.4 MM AS REQUIRED | ||
| A 1803511952 | SPACER WASHER | |
| 2.5 MM AS REQUIRED | ||
| A 1803512752 | SPACER WASHER | |
| 2.6 MM AS REQUIRED | ||
| A 1803512852 | SPACER WASHER | |
| 2.7 MM AS REQUIRED | ||
| A 1803512952 | SPACER WASHER | |
| Repalced by: A 1803513052 | ||
| A 1803513052 | SPACER WASHER | |
| 2.8 MM AS REQUIRED | ||
| A 1803513052 | SPACER WASHER | |
| 2.9 MM AS REQUIRED | ||
| A 1803512052 | SPACER WASHER | |
| 3.0 MM AS REQUIRED | ||
| A 1803513152 | SPACER WASHER | |
| 3.1 MM AS REQUIRED | ||
| A 1803513252 | SPACER WASHER | |
| Repalced by: A 1803513152 | ||
| A 1803513152 | SPACER WASHER | |
| 3.2 MM AS REQUIRED | ||
| 308 | A 1803510351 | SPACER RING |
| 312 | A 1803510986 | RUBBER RING |
| 316 | A 1803510074 | PIN |
| 320 | N 000127008200 | LOCK WASHER |
| 324 | N 000934008010 | NUT |
| Repalced by: N 304032008006 | ||
| 324 | N 304032008006 | NUT |
| 328 | A 1809940341 | LOCK |
| 332 | N 000443020000 | EXPANSION PLUG |
| 336 | A 1809970430 | SCREW PLUG |
| 340 | A 1809940112 | LOCK |
| 345 | N 071412006100 | GREASE NIPPLE |
| 349 | N 071412006200 | GREASE NIPPLE |
| 354 | A 1103501275 | RUBBER MOUNTING |
| A 1103501275 | RUBBER MOUNTING | |
| 357 | A 1093500032 | SUPPORT |
| 361 | N 001473003001 | GROOVED PIN |
| 365 | N 070613010000 | SCREW |
| 369 | N 000127010200 | LOCK WASHER |
| 373 | A 1103501029 | THRUST ARM |
| LEFT | ||
| A 1103501129 | THRUST ARM | |
| RIGHT | ||
| 377 | A 1103521865 | RUBBER MOUNTING |
| 381 | A 1113520509 | PIVOT PIN |
| 385 | A 1113521276 | WASHER |
| 389 | A 1103501475 | REPAIR KIT |
| THRUST ARM | ||
| 403 | N 009045032000 | SNAP RING |
| 408 | A 1103520151 | SPACER RING |
| 412 | A 1113520171 | SCREW |
| A 1113520371 | SCREW | |
| 416 | A 1113520173 | LOCK |
| 420 | A 1103500675 | RUBBER MOUNTING |
| WITH CLAMPING PLATE | ||
| 424 | A 1103510045 | PAD |
| TOP | ||
| 428 | N 000961016004 | SCREW |
| 432 | N 912004016101 | LOCK WASHER |
| 436 | N 900161010103 | SCREW |
| 440 | N 000127010202 | LOCK WASHER |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| CROSS STRUT | ||
| 444 | A 1103500493 | ROD |
| 448 | N 000936014008 | NUT |
| 452 | A 1113510340 | BRACKET |
| 456 | A 1113510448 | RUBBER MOUNTING |
| 460 | A 1113510240 | BRACKET |
| 464 | N 000933010106 | SCREW |
| 468 | N 000137010201 | SPRING WASHER |
| 472 | N 000960012163 | SCREW |
| 476 | N 000137012203 | SPRING WASHER |
| Repalced by: N 000137012206 | ||
| 476 | N 000137012206 | SPRING WASHER |
| 480 | A 1103510743 | CUP |
| INSIDE | ||
| 484 | A 1113510444 | RUBBER BUFFER |
| 488 | A 1103510643 | CUP |
| OUTSIDE | ||
| 492 | N 000934012023 | NUT |
| Repalced by: N 308673012002 | ||
| 492 | N 308673012002 | NUT |
| 496 | N 007976012001 | SHEET METAL SCREW |
| 500 | A 1103521065 | RUBBER MOUNTING |
| 504 | A 1103520042 | MOUNTING PLATE |
| WITH RETAINER | ||
| N 000933008108 | SCREW | |
| N 000125008407 | WASHER | |
| 508 | A 1089900340 | WASHER |
| 512 | N 000127008203 | LOCK WASHER |
| 516 | N 000934008013 | NUT |
| 520 | N 912004014100 | LOCK WASHER |
| 524 | N 000934014019 | NUT |
| Repalced by: N 308673014001 | ||
| 524 | N 308673014001 | NUT |
