Transporto priemonė: 280 SE/C 3.5 USA; VIN numerio dalis: 111027

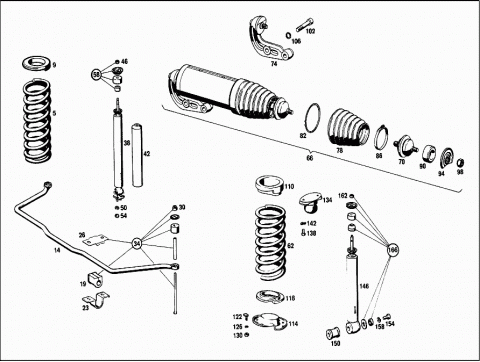

Grupė: 32 SPRINGS AND SUSPENSION

#	Kodas	Pavadinimas
	X XXXXXXXXXXXX	PART NAME MISSING
		FRONT SPRING
005	A 1083210104	FRONT SPRING
	A 1083210204	FRONT SPRING
	A 1083210204	FRONT SPRING
	A 1083210604	FRONT SPRING
009	A 1113220385	RUBBER MOUNTING
		20.0 MM AS REQUIRED
	A 1113220485	RUBBER MOUNTING
		22.5 MM AS REQUIRED
	A 1113220585	RUBBER MOUNTING
		25.0 MM AS REQUIRED
	A 1113220685	RUBBER MOUNTING
		27.5 MM AS REQUIRED
	A 1113220785	RUBBER MOUNTING
		30.0 MM AS REQUIRED
	A 1113220885	RUBBER MOUNTING
		32.5 MM AS REQUIRED
	X XXXXXXXXXXXX	PART NAME MISSING
		FRONT SPRING STABILIZER
014	A 1083230965	TORSION BAR
019	A 1123230285	RUBBER MOUNTING
023	A 1113231140	BRACKET
026	A 1083230073	LOCK
	A 1113230044	RUBBER BUFFER
	A 1113230267	RETAINER
	A 1119900501	SCREW
	A 1119911040	SPACER TUBE
	A 1123230285	RUBBER MOUNTING
	A 1113230044	RUBBER BUFFER
	A 1113230267	RETAINER
	A 1119911040	SPACER TUBE
	A 1119900501	SCREW
030	N 913002008004	NUT
034	A 1103200147	REPAIR KIT
		TORSION BAR
	X XXXXXXXXXXXX	PART NAME MISSING
		FRONT SHOCK ABSORBERS
038	A 1113200030	SHOCK ABSORBER
		FRONT
	A 1153230767	RETAINER
	A 0003231285	RUBBER MOUNTING
	A 1803260168	RUBBER BUFFER
	N 000934010015	NUT
	Repalced by: N 308673010000
	N 308673010000	NUT
042	A 1113230138	DUST CAP
046	N 000934010015	NUT
	Repalced by: N 308673010000
046	N 308673010000	NUT
050	N 000127008203	LOCK WASHER
054	N 000934008010	NUT
	Repalced by: N 304032008006
054	N 304032008006	NUT
058	A 1103200056	REPAIR KIT
		SHOCK ABSORBER
	X XXXXXXXXXXXX	PART NAME MISSING
		REAR SPRING
062	A 1083240204	REAR SPRING
066	A 1113200399	HYD.PNEUM.SPRING LEG ASSY
070	A 0003290630	BALL JOINT
		LEFT
074	A 0003290030	BALL JOINT
		RIGHT
	A 1103290292	BOOT
	Repalced by: A 1103290392
078	A 1103290392	BOOT
078	A 1103290392	BOOT
082	A 0003230377	LOCK WASHER
	A 0009979090	LOOM TIE
	Repalced by: N 916026050000
	N 916026050000	CLAMP
	Repalced by: A 0069972690
	A 0069972690	LOOM TIE
	N 000084002104	SCREW
086	N 900288062000	CLAMP
086	N 900288062000	CLAMP
090	A 1103290143	BEARING RING
094	A 1103290276	WASHER
098	N 000985012003	NUT
102	A 1109900820	SCREW
106	N 000127012201	LOCK WASHER
110	A 1083250385	BUSHING
		18 MM AS REQUIRED
	A 1083250285	BUSHING
		24 MM AS REQUIRED
	A 1083250185	BUSHING
		30 MM AS REQUIRED
114	A 1103250715	SPRING CASE
118	A 1103250185	BUSHING
122	A 1103250175	SCREW
126	N 000127008203	LOCK WASHER
130	N 000934008010	NUT
	Repalced by: N 304032008006
130	N 304032008006	NUT
134	A 1103200544	RUBBER BUFFER
138	N 900161008107	SCREW
142	N 000137008204	SPRING WASHER
	X XXXXXXXXXXXX	PART NAME MISSING
		REAR SHOCK ABSORBERS
146	A 1083200131	SHOCK ABSORBER
		REAR
150	A 1103260281	RUBBER MOUNTING
	A 1153230767	RETAINER
	A 1103230585	RUBBER MOUNTING
	A 1103260067	RETAINER
	A 1803260168	RUBBER BUFFER
	A 1109900240	WASHER
	N 000934010015	NUT
	Repalced by: N 308673010000
	N 308673010000	NUT
154	N 000933010106	SCREW
158	N 000127010202	LOCK WASHER
162	N 000934010015	NUT
	Repalced by: N 308673010000
162	N 308673010000	NUT
166	A 1103200156	REPAIR KIT
		SHOCK ABSORBER
