Transporto priemonė: 280 SE/C; VIN numerio dalis: 111025

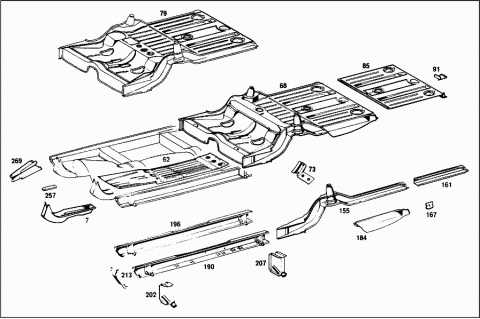

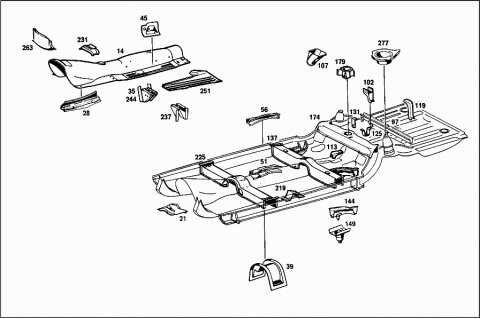

Grupė: 61 FRAME FLOOR UNIT - 001 SUBSTRUCTURE
| # | Kodas | Pavadinimas |
|---|---|---|
| A 1106100713 | SIDE MEMBER | |
| Repalced by: A 1086100113 | ||
| A 1106100713 | SIDE MEMBER | |
| 007 | A 1086100113 | SIDE MEMBER |
| LEFT | ||
| A 1106100813 | SIDE MEMBER | |
| RIGHT | ||
| A 1106160466 | TUNNEL | |
| Repalced by: A 1106160966 | ||
| 014 | A 1106160966 | TUNNEL |
| 014 | A 1106160966 | TUNNEL |
| A 1086160066 | TUNNEL | |
| A 1086160066 | TUNNEL | |
| 021 | A 1106100254 | BRIDGE |
| BELOW FRONT SEATS | ||
| 021 | A 1106100254 | BRIDGE |
| BELOW FRONT SEATS | ||
| A 1086100054 | BRIDGE | |
| Repalced by: A 1086100154 | ||
| A 1086100154 | BRIDGE | |
| BELOW FRONT SEATS | ||
| A 1086100154 | BRIDGE | |
| BELOW FRONT SEATS | ||
| A 1116108054 | BRIDGE | |
| BELOW FRONT SEATS | ||
| A 1116108054 | BRIDGE | |
| BELOW FRONT SEATS | ||
| A 1116108154 | BRIDGE | |
| BELOW FRONT SEATS | ||
| A 1116108154 | BRIDGE | |
| BELOW FRONT SEATS | ||
| 028 | A 1116108131 | CONSOLE |
| ENGINE REAR MOUNTING, LEFT | ||
| 028 | A 1116108131 | CONSOLE |
| ENGINE REAR MOUNTING, LEFT | ||
| A 1116108231 | CONSOLE | |
| RIGHT | ||
| A 1116108231 | CONSOLE | |
| RIGHT | ||
| 035 | A 1106160231 | CONSOLE |
| INSIDE, FRONT SEAT, AT TUNNEL | ||
| 039 | A 1106100352 | TAKE-UP DEVICE |
| PROPELLER SHAFT CENTRAL BEARING | ||
| 039 | A 1106100352 | TAKE-UP DEVICE |
| PROPELLER SHAFT CENTRAL BEARING | ||
| 039 | A 1106100352 | TAKE-UP DEVICE |
| PROPELLER SHAFT CENTRAL BEARING | ||
| A 1106160220 | MOUNTING | |
| Repalced by: A 1086100053 | ||
| 045 | A 1086100053 | MOUNTING |
| HAND BRAKE INTERMEDIATE LEVER TO TUNNEL, INSIDE LEFT | ||
| 051 | A 1106160128 | GUIDE |
| HAND BRAKE INTERMEDIATE LEVER TO TUNNEL, INSIDE TOP | ||
| 056 | A 1106100191 | GUIDE |
| HAND BRAKE INTERMEDIATE LEVER TO TUNNEL, INSIDE RIGHT | ||
| A 1106160367 | FLOOR | |
| LEFT | ||
| A 1106160367 | FLOOR | |
| LEFT | ||
| A 1106160467 | FLOOR | |
| RIGHT | ||
| A 1106160467 | FLOOR | |
| RIGHT | ||
| A 1106160767 | FLOOR | |
| Repalced by: A 1086160167 | ||
| 062 | A 1086160167 | FLOOR |
| LEFT | ||
| 062 | A 1086160167 | FLOOR |
| LEFT | ||
| A 1106160867 | FLOOR | |
| RIGHT | ||
| A 1106160867 | FLOOR | |
| RIGHT | ||
| A 1106100861 | FLOOR | |
| TAIL, REAR | ||
| A 1106100861 | FLOOR | |
| TAIL, REAR | ||
| A 1106101261 | FLOOR | |
| Repalced by: A 1106101661 | ||
| A 1106101061 | FLOOR | |
| Repalced by: A 1106101661 | ||
| A 1116108161 | FLOOR | |
| Repalced by: A 1106101661 | ||
| A 1106101461 | FLOOR | |
| Repalced by: A 1106101661 | ||
| 068 | A 1106101661 | FLOOR |
| TAIL, REAR | ||
| 073 | A 1086100153 | MOUNTING |
| SAFETY BELT AND BRAKE PRESSURE REGULATOR, LEFT | ||
| 073 | A 1086100153 | MOUNTING |
| SAFETY BELT AND BRAKE PRESSURE REGULATOR, LEFT | ||
| A 1086100253 | MOUNTING | |
| SAFETY BELT, RIGHT | ||
| A 1086100253 | MOUNTING | |
| SAFETY BELT, RIGHT | ||
| A 1086100253 | MOUNTING | |
| LEFT AND RIGHT | ||
| A 1106160062 | FLOOR | |
| Repalced by: A 1106160462 | ||
| 079 | A 1106160462 | FLOOR |
| REAR | ||
| 085 | A 1106160162 | FLOOR |
| REAR SEMI-FINISHED | ||
| A 1106100025 | REINFORCEMENT | |
| Repalced by: A 1106100725 | ||
| 091 | A 1106100725 | REINFORCEMENT |
| FUEL TANK | ||
| A 1106100016 | CROSS MEMBER | |
| Repalced by: A 1106100216 | ||
| 097 | A 1106100216 | CROSS MEMBER |
| BELOW LUGGAGE COMPARTMENT | ||
| 102 | A 1106120324 | BRACKET |
| EXHAUST PIPE SUSPENSION | ||
| 107 | A 1106100131 | CONSOLE |
| CROSS MEMBER TO REAR AXLE | ||
| 113 | A 1104271041 | BRACKET |
| HAND BRAKE CABLE | ||
| 119 | A 1106160022 | BRACKET |
| REAR EXHAUST PIPE SUSPENSION | ||
| 125 | A 1104200686 | BRACKET |
| BRAKE HOSE DISTRIBUTOR | ||
| 125 | A 1104200686 | BRACKET |
| BRAKE HOSE DISTRIBUTOR | ||
| 131 | A 1104280340 | BRACKET |
| REAR RIGHT BRAKE HOSE | ||
| A 1106100014 | CROSS MEMBER | |
| A 1106100014 | CROSS MEMBER | |
| A 1106100014 | CROSS MEMBER | |
| 137 | A 1106100114 | CROSS MEMBER |
| BELOW REAR SEAT BENCH | ||
| 137 | A 1106100114 | CROSS MEMBER |
| BELOW REAR SEAT BENCH | ||
| 137 | A 1106100114 | CROSS MEMBER |
| BELOW REAR SEAT BENCH | ||
| 144 | A 1106100127 | DIAGONAL GIRDER |
| LEFT | ||
| A 1106100227 | DIAGONAL GIRDER | |
| RIGHT | ||
| A 1103500433 | BELL HUB | |
| Repalced by: A 1103500633 | ||
| 149 | A 1103500633 | BELL HUB |
| A 1106100510 | SIDE MEMBER | |
| Repalced by: A 1106101510 | ||
| A 1106101110 | SIDE MEMBER | |
| Repalced by: A 1106101510 | ||
| A 1106101310 | SIDE MEMBER | |
| Repalced by: A 1106101510 | ||
| 155 | A 1106101510 | SIDE MEMBER |
| REAR LEFT | ||
| 161 | A 1106110321 | TUBE |
| SEMI-FINISHED | ||
| 167 | A 1106100311 | PLATE |
| Repalced by: A 1269840125 | ||
| 167 | A 1269840125 | THREADED CHUCK |
| Repalced by: A 1269840025 | ||
| 167 | A 1269840025 | THREADED CHUCK |
| A 1106100610 | SIDE MEMBER | |
| Repalced by: A 1106101610 | ||
| A 1106101010 | SIDE MEMBER | |
| Repalced by: A 1106101610 | ||
| A 1106101410 | SIDE MEMBER | |
| Repalced by: A 1106101610 | ||
| A 1106101610 | SIDE MEMBER | |
| REAR RIGHT | ||
| A 1106110821 | TUBE | |
| SEMI-FINISHED | ||
| A 1106100311 | PLATE | |
| Repalced by: A 1269840125 | ||
| A 1269840125 | THREADED CHUCK | |
| Repalced by: A 1269840025 | ||
| A 1269840025 | THREADED CHUCK | |
| A 1106100017 | CROSS MEMBER | |
| Repalced by: A 1106100217 | ||
| A 1106100117 | CROSS MEMBER | |
| Repalced by: A 1106100217 | ||
| 174 | A 1106100217 | CROSS MEMBER |
| ABOVE REAR AXLE | ||
| 179 | A 1106100158 | CUP |
| REAR AXLE SUSPENSION | ||
| 184 | A 1106110140 | END PIECE |
| SPARE WHEEL WELL, INSIDE LEFT | ||
| A 1106110640 | END PIECE | |
| RIGHT | ||
| 190 | A 1106100309 | SUPPORT |
| OUTSIDE LEFT | ||
| 196 | A 1116108109 | SUPPORT |
| OUTSIDE LEFT | ||
| A 1106100409 | SUPPORT | |
| OUTSIDE RIGHT | ||
| A 1116108209 | SUPPORT | |
| OUTSIDE RIGHT | ||
| A 1116108052 | TAKE-UP DEVICE | |
| Repalced by: A 1106100052 | ||
| 202 | A 1106100052 | TAKE-UP DEVICE |
| JACK, FRONT | ||
| A 1116108152 | TAKE-UP DEVICE | |
| Repalced by: A 1106100452 | ||
| 207 | A 1106100452 | TAKE-UP DEVICE |
| JACK, REAR | ||
| 213 | A 1106110340 | END PIECE |
| AT FRONT INSIDE SIDE MEMBER, LEFT | ||
| A 1106110440 | END PIECE | |
| AT FRONT INSIDE SIDE MEMBER, RIGHT | ||
| 219 | A 1106160631 | CONSOLE |
| OUTSIDE (FRONT SEATS) | ||
| A 1084200186 | BRACKET | |
| BRAKE POWER REGULATOR | ||
| 225 | A 1106100220 | CROSS MEMBER |
| BELOW FRONT SEATS | ||
| 225 | A 1106100220 | CROSS MEMBER |
| BELOW FRONT SEATS | ||
| A 1086100020 | CROSS MEMBER | |
| BELOW FRONT SEATS | ||
| A 1086100020 | CROSS MEMBER | |
| BELOW FRONT SEATS | ||
| A 0019895985 | ADHESIVE TAPE | |
| 231 | A 1096100636 | BRACKET |
| EXHAUST PIPE TO BRIDGE BELOW FRONT SEAT | ||
| 231 | A 1096100636 | BRACKET |
| EXHAUST PIPE TO BRIDGE BELOW FRONT SEAT | ||
| 237 | A 1106160331 | CONSOLE |
| OUTSIDE | ||
| 244 | A 1116168131 | CONSOLE |
| INSIDE, AT TUNNEL, LEFT FRONT SEAT | ||
| 244 | A 1116168131 | CONSOLE |
| INSIDE, AT TUNNEL, LEFT FRONT SEAT | ||
| A 1116168231 | CONSOLE | |
| INSIDE, AT TUNNEL, RIGHT FRONT SEAT | ||
| A 1116168231 | CONSOLE | |
| INSIDE, AT TUNNEL, RIGHT FRONT SEAT | ||
| 251 | A 1116118111 | PLATE |
| LEFT | ||
| A 1116118211 | PLATE | |
| RIGHT | ||
| 257 | A 1106110411 | PLATE |
| ENGINE MOUNTING TO FRONT SIDE MEMBER | ||
| 257 | A 1106110411 | PLATE |
| ENGINE MOUNTING TO FRONT SIDE MEMBER | ||
| 263 | A 1116118511 | PLATE |
| LEFT | ||
| A 1116118611 | PLATE | |
| RIGHT | ||
| 269 | A 1116110227 | MOUNTING |
| CROSS BRACING | ||
| 269 | A 1116110227 | MOUNTING |
| CROSS BRACING | ||
| A 1086100553 | MOUNTING | |
| CROSS BRACING | ||
| A 1086100553 | MOUNTING | |
| CROSS BRACING | ||
| A 1086100653 | MOUNTING | |
| CROSS BRACING | ||
| A 1086100653 | MOUNTING | |
| CROSS BRACING | ||
| 277 | A 1103250915 | SPRING CASE |
| REAR SPRING, TOP | ||
