Transporto priemonė: 280 SE/C; VIN numerio dalis: 111025

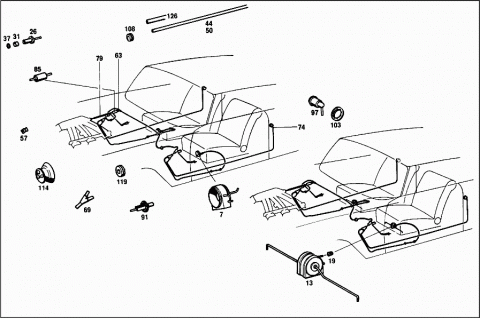

Grupė: 80 HYDRAULIC SYSTEM - 001 VACUUM SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 007 | A 1118005375 | ELEMENT |
| FRONT SEAT BACKREST DETENT | ||
| 007 | A 1118005375 | ELEMENT |
| FRONT SEAT BACKREST DETENT | ||
| 013 | A 1118005575 | ELEMENT |
| FRONT SEAT BACKREST DETENT | ||
| 013 | A 1118005575 | ELEMENT |
| FRONT SEAT BACKREST DETENT | ||
| 019 | A 1118055090 | CAP |
| 019 | A 1118055090 | CAP |
| A 1002700072 | SCREW | |
| Repalced by: A 1009900663 | ||
| 026 | A 1009900663 | HOLLOW SCREW |
| 026 | A 1009900663 | HOLLOW SCREW |
| 031 | A 1869912740 | SPACER TUBE |
| 031 | A 1869912740 | SPACER TUBE |
| 037 | N 007603010100 | SEAL RING |
| 037 | N 007603010100 | SEAL RING |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FROM CHECK VALVE TO DISTRIBUTOR AT FRONT PANEL PILLAR, RIGHT | ||
| 044 | A 0059975982 | HOSE |
| RED | ||
| 520 MM | ||
| 044 | A 0059975982 | HOSE |
| WHITE | ||
| 044 | A 0059975982 | HOSE |
| WHITE | ||
| 044 | A 0059975982 | HOSE |
| WHITE | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FROM CHECK VALVE TO DISTRIBUTOR AT FRONT PANEL PILLAR, LEFT | ||
| 044 | A 0059975982 | HOSE |
| WHITE | ||
| 044 | A 0059975982 | HOSE |
| WHITE | ||
| 044 | A 0059975982 | HOSE |
| WHITE | ||
| 044 | A 0059975982 | HOSE |
| WHITE | ||
| 044 | A 0059975982 | HOSE |
| WHITE | ||
| 044 | A 0059975982 | HOSE |
| WHITE | ||
| 044 | A 0059975982 | HOSE |
| WHITE | ||
| 044 | A 0059975982 | HOSE |
| WHITE | ||
| 044 | A 0059975982 | HOSE |
| WHITE | ||
| 044 | A 0059975982 | HOSE |
| WHITE | ||
| 044 | A 0059975982 | HOSE |
| WHITE | ||
| 044 | A 0059975982 | HOSE |
| WHITE | ||
| 044 | A 0059975982 | HOSE |
| WHITE | ||
| 044 | A 0059975982 | HOSE |
| WHITE | ||
| 044 | A 0059975982 | HOSE |
| WHITE | ||
| 044 | A 0059975982 | HOSE |
| WHITE | ||
| 050 | A 0089978682 | HOSE |
| LIGHT BLUE | ||
| 050 | A 0089978682 | HOSE |
| LIGHT BLUE | ||
| 050 | A 0089978682 | HOSE |
| LIGHT BLUE | ||
| 050 | A 0089978682 | HOSE |
| LIGHT BLUE | ||
| 050 | A 0089978682 | HOSE |
| LIGHT BLUE | ||
| 050 | A 0089978682 | HOSE |
| LIGHT BLUE | ||
| 050 | A 0089978682 | HOSE |
| LIGHT BLUE | ||
| 050 | A 0089978682 | HOSE |
| LIGHT BLUE | ||
| 050 | A 0089978682 | HOSE |
| LIGHT BLUE | ||
| 050 | A 0089978682 | HOSE |
| LIGHT BLUE | ||
| N 072571002015 | CLAMP | |
| N 072571002015 | CLAMP | |
| 057 | A 1869950220 | CLAMP |
| Repalced by: N 072571001035 | ||
| 057 | N 072571001035 | CLAMP |
| Repalced by: A 1279950020 | ||
| 057 | A 1279950020 | CLAMP |
| 057 | A 1279950020 | CLAMP |
| N 007976004212 | SHEET METAL SCREW | |
| N 007976004212 | SHEET METAL SCREW | |
| A 0029880178 | CLIP | |
| HOSE LINE TO FRONT PANEL PILLAR | ||
| A 0029880178 | CLIP | |
| HOSE LINE TO FRONT PANEL PILLAR | ||
| A 1128050022 | DISTRIBUTOR | |
| Repalced by: A 1158050422 | ||
| A 1158050422 | DISTRIBUTOR | |
| Repalced by: A 1170780145 | ||
| 063 | A 1170780145 | BRANCH-OFF FITTING |
| T-SHAPE | ||
| 063 | A 1170780145 | BRANCH-OFF FITTING |
| T-SHAPE | ||
| 063 | A 1170780145 | BRANCH-OFF FITTING |
| T-SHAPE | ||
| A 1008050022 | DISTRIBUTOR | |
| Repalced by: A 1158050322 | ||
| A 1158050322 | DISTRIBUTOR | |
| Repalced by: A 1170780145 | ||
| 069 | A 1170780145 | BRANCH-OFF FITTING |
| Y-SHAPE | ||
| 069 | A 1170780145 | BRANCH-OFF FITTING |
| Y-SHAPE | ||
| 069 | A 1170780145 | BRANCH-OFF FITTING |
| Y-SHAPE | ||
| 074 | A 1128050303 | CONNECTOR |
| Repalced by: A 1128050203 | ||
| 074 | A 1128050203 | CONNECTOR |
| HOSE TO VACUUM SWITCH AND TO ELEMENT AT FRONT SEAT | ||
| 074 | A 1128050203 | CONNECTOR |
| HOSE TO VACUUM SWITCH AND TO ELEMENT AT FRONT SEAT | ||
| A 1118005062 | THROTTLE | |
| Repalced by: A 1118005162 | ||
| 079 | A 1118005162 | THROTTLE |
| Repalced by: A 1118005462 | ||
| 079 | A 1118005462 | THROTTLE |
| 079 | A 1118005462 | THROTTLE |
| A 1128000178 | VALVE | |
| Repalced by: A 1158000078 | ||
| A 1158000078 | VALVE | |
| Repalced by: A 1168000378 | ||
| 085 | A 1168000378 | VALVE |
| CHECK | ||
| 085 | A 1168000378 | VALVE |
| CHECK | ||
| 091 | A 1118055173 | SWITCH |
| DOOR FRAME MOUNTED | ||
| 091 | A 1118055173 | SWITCH |
| DOOR FRAME MOUNTED | ||
| A 1118055073 | SWITCH | |
| Repalced by: A 1148050073 | ||
| 097 | A 1148050073 | SWITCH |
| VACUUM | ||
| 097 | A 1148050073 | SWITCH |
| VACUUM | ||
| 103 | A 1148050036 | SPRING |
| N 000433021002 | WASHER | |
| VACUUM SWITCH TO CENTRAL PILLAR | ||
| N 000433021002 | WASHER | |
| VACUUM SWITCH TO CENTRAL PILLAR | ||
| 108 | A 0009973181 | GROMMET |
| TO PLUG THE HOLES IN RIGHT FRONT SEAT CROSS MEMBER | ||
| 108 | A 0009973181 | GROMMET |
| TO PLUG THE HOLES IN RIGHT FRONT SEAT CROSS MEMBER | ||
| 114 | A 1109971281 | GROMMET |
| VACUUM LINE PASSAGE THRU FIRE WALL, LEFT | ||
| 114 | A 1109971281 | GROMMET |
| VACUUM LINE PASSAGE THRU FIRE WALL, LEFT | ||
| 119 | A 1869970681 | GROMMET |
| VACUUM LINE PASSAGE THRU FIRE WALL, RIGHT | ||
| 119 | A 1869970681 | GROMMET |
| VACUUM LINE PASSAGE THRU FIRE WALL, RIGHT | ||
| 119 | A 1869970681 | GROMMET |
| VACUUM LINE PASSAGE THRU FIRE WALL, RIGHT | ||
| 119 | A 1869970681 | GROMMET |
| VACUUM LINE PASSAGE THRU FIRE WALL, RIGHT | ||
| A 1118065278 | HOSE | |
| Repalced by: A 0079976182 | ||
| 126 | A 0079976182 | HOSE |
| 126 | A 0079976182 | HOSE |
| 126 | A 0079976182 | HOSE |
| 126 | A 0079976182 | HOSE |
| 126 | A 0079976182 | HOSE |
| 126 | A 0079976182 | HOSE |
| 126 | A 0079976182 | HOSE |
| 126 | A 0079976182 | HOSE |
| 126 | A 0079976182 | HOSE |
| 126 | A 0079976182 | HOSE |
| 126 | A 0079976182 | HOSE |
| 126 | A 0079976182 | HOSE |
| 126 | A 0079976182 | HOSE |
