Transporto priemonė: 280 SE/C USA; VIN numerio dalis: 111025

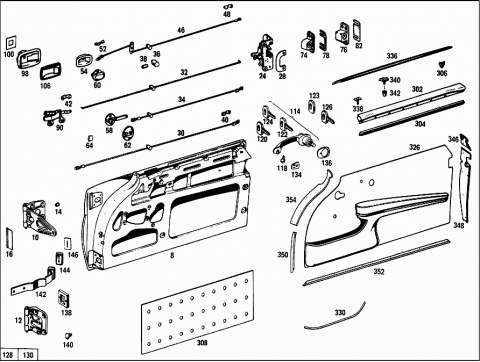

Grupė: 72 DOORS
| # | Kodas | Pavadinimas |
|---|---|---|
| A 1117205905 | DOOR SHELL | |
| Repalced by: A 1117206105 | ||
| A 1117206105 | DOOR SHELL | |
| LEFT | ||
| A 1117206005 | DOOR SHELL | |
| Repalced by: A 1117206205 | ||
| 008 | A 1117206205 | DOOR SHELL |
| RIGHT | ||
| A 1117205137 | HINGE | |
| TOP LEFT | ||
| 010 | A 1117205237 | HINGE |
| Repalced by: A 1117205137 | ||
| 010 | A 1117205137 | HINGE |
| TOP RIGHT | ||
| A 1117205138 | HINGE | |
| BOTTOM LEFT | ||
| 012 | A 1117205238 | HINGE |
| Repalced by: A 1117205138 | ||
| 012 | A 1117205138 | HINGE |
| BOTTOM RIGHT | ||
| 014 | A 0009970488 | GREASE NIPPLE |
| N 007987008119 | SCREW | |
| 016 | A 1107210180 | SEAL |
| N 000933008108 | SCREW | |
| A 1369903940 | WASHER | |
| Repalced by: A 1809900640 | ||
| A 1809900640 | WASHER | |
| N 000127008203 | LOCK WASHER | |
| A 1107201535 | LOCK | |
| LEFT (WITH INTERIOR LOCKING MECHANISM) | ||
| A 1157200135 | LOCK | |
| LEFT (WITH INTERIOR LOCKING MECHANISM) | ||
| A 1157200135 | LOCK | |
| LEFT (WITH INTERIOR LOCKING MECHANISM) | ||
| A 1107301235 | DOOR LOCK | |
| RIGHT (LESS INTERIOR LOCKING MECHANISM) | ||
| 024 | A 1157200435 | LOCK |
| RIGHT (LESS INTERIOR LOCKING MECHANISM) | ||
| 024 | A 1157200435 | LOCK |
| RIGHT (LESS INTERIOR LOCKING MECHANISM) | ||
| A 0009903330 | SCREW | |
| A 1117235124 | EDGING | |
| LEFT | ||
| 028 | A 1117235224 | EDGING |
| RIGHT | ||
| N 007988004125 | SCREW | |
| 030 | A 1117205092 | ROD |
| 032 | A 1117205392 | ROD |
| 032 | A 1117205392 | ROD |
| 034 | A 1117205093 | DOOR LOCKING DEVICE |
| 036 | A 1219870237 | MOLDED PIECE |
| 038 | A 1119920025 | SLEEVE |
| 040 | A 1009940160 | LOCK |
| 042 | A 1009940160 | LOCK |
| 042 | A 1009940160 | LOCK |
| A 1117205193 | DOOR LOCKING DEVICE | |
| LEFT | ||
| A 1117205193 | DOOR LOCKING DEVICE | |
| LEFT | ||
| 046 | A 1117205293 | DOOR LOCKING DEVICE |
| RIGHT | ||
| 046 | A 1117205293 | DOOR LOCKING DEVICE |
| RIGHT | ||
| 048 | A 1009940160 | LOCK |
| 048 | A 1009940160 | LOCK |
| A 1009940160 | LOCK | |
| A 1009940160 | LOCK | |
| 052 | A 1139940160 | LOCK |
| 052 | A 1139940160 | LOCK |
| 054 | A 1137660011 | ESCUTCHEON |
| 054 | A 1137660011 | ESCUTCHEON |
| N 007987003107 | SCREW | |
| N 007987003107 | SCREW | |
| H 301807200393 | DOOR LOCKING DEVICE | |
| Repalced by: A 1807200393 | ||
| A 1807200393 | DOOR LOCKING DEVICE | |
| LEFT | ||
| H 301807200493 | DOOR LOCKING DEVICE | |
| Repalced by: A 1807200493 | ||
| 058 | A 1807200493 | DOOR LOCKING DEVICE |
| RIGHT | ||
| 060 | A 1137200693 | DOOR LOCKING DEVICE |
| 060 | A 1137200693 | DOOR LOCKING DEVICE |
| H 301807230161 | ESCUTCHEON | |
| Repalced by: A 1807230161 | ||
| 062 | A 1807230161 | ESCUTCHEON |
| H 301807230224 | EDGING | |
| Repalced by: A 1807230224 | ||
| 064 | A 1807230524 | EDGING |
| N 007987003108 | SCREW | |
| N 007981003246 | SHEET METAL SCREW | |
| INTERIOR LOCK TO DOOR | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| INTERIOR LOCK TO DOOR | ||
| N 000125004311 | WASHER | |
| Repalced by: N 000125004319 | ||
| N 000125004319 | WASHER | |
| INTERIOR LOCK TO DOOR | ||
| A 1107201104 | LOCKING EYE | |
| WITH RUBBER-CUSHIONED CATCH, LEFT | ||
| A 1107201204 | LOCKING EYE | |
| WITH RUBBER-CUSHIONED CATCH, RIGHT | ||
| A 1107201504 | LOCKING EYE | |
| LEFT | ||
| A 1107201504 | LOCKING EYE | |
| LEFT | ||
| A 1157200504 | LOCKING EYE | |
| LEFT | ||
| A 1157200504 | LOCKING EYE | |
| LEFT | ||
| 074 | A 1107201604 | LOCKING EYE |
| RIGHT | ||
| 074 | A 1107201604 | LOCKING EYE |
| RIGHT | ||
| 076 | A 1157200604 | LOCKING EYE |
| RIGHT | ||
| 076 | A 1157200604 | LOCKING EYE |
| RIGHT | ||
| 078 | A 1107230211 | PLATE |
| Repalced by: A 1007230211 | ||
| 078 | A 1007230211 | PLATE |
| 2.0 MM AS REQUIRED | ||
| 2.0 MM | ||
| 078 | A 1007230211 | PLATE |
| 2.0 MM AS REQUIRED | ||
| 2.0 MM | ||
| A 1107230311 | PLATE | |
| 2.6 MM AS REQUIRED | ||
| 2.6 MM | ||
| A 1107230311 | PLATE | |
| 2.6 MM AS REQUIRED | ||
| 2.6 MM | ||
| A 1157230211 | PLATE | |
| Repalced by: A 1157230511 | ||
| 082 | A 1157230511 | PLATE |
| 1.0 MM AS REQUIRED | ||
| 1.0 MM | ||
| 082 | A 1157230511 | PLATE |
| 1.0 MM AS REQUIRED | ||
| 1.0 MM | ||
| A 1157230311 | PLATE | |
| Repalced by: A 1157230611 | ||
| A 1157230611 | PLATE | |
| 2.6 MM AS REQUIRED | ||
| 2.6 MM | ||
| N 007987006130 | SCREW | |
| A 1107600961 | INTERIOR HANDLE ASSEMBLY | |
| LEFT | ||
| A 1087600561 | INTERIOR HANDLE ASSEMBLY | |
| LEFT | ||
| A 1087600561 | INTERIOR HANDLE ASSEMBLY | |
| LEFT | ||
| A 1107601061 | INTERIOR HANDLE ASSEMBLY | |
| RIGHT | ||
| 090 | A 1087600661 | INTERIOR HANDLE ASSEMBLY |
| RIGHT | ||
| 090 | A 1087600661 | INTERIOR HANDLE ASSEMBLY |
| RIGHT | ||
| N 007985006132 | SCREW | |
| A 0009841755 | WASHER | |
| N 006797006145 | TOOTHED WASHER | |
| A 1107660511 | ESCUTCHEON | |
| LEFT | ||
| A 1087660511 | ESCUTCHEON | |
| LEFT | ||
| A 1087660511 | ESCUTCHEON | |
| LEFT | ||
| A 1107660611 | ESCUTCHEON | |
| RIGHT | ||
| 098 | A 1087660611 | ESCUTCHEON |
| RIGHT | ||
| 098 | A 1087660611 | ESCUTCHEON |
| RIGHT | ||
| 100 | A 1157660098 | SEAL |
| 100 | A 1157660098 | SEAL |
| N 006797004333 | TOOTHED WASHER | |
| N 007987004119 | SCREW | |
| RECESS PLATE TO INTERIOR HANDLE MOUNTING PLATE | ||
| A 1107660690 | INSERT | |
| INTERIOR HANDLE RECESS PLATE | ||
| A 1087660390 | INSERT | |
| LEFT | ||
| A 1087660390 | INSERT | |
| LEFT | ||
| 106 | A 1087660490 | INSERT |
| RIGHT | ||
| 106 | A 1087660490 | INSERT |
| RIGHT | ||
| A 1107660701 | DOOR HANDLE | |
| OUTSIDE LEFT | ||
| A 1107661501 | DOOR HANDLE | |
| OUTSIDE LEFT | ||
| A 1107661501 | DOOR HANDLE | |
| OUTSIDE LEFT | ||
| A 1107660801 | DOOR HANDLE | |
| OUTSIDE RIGHT | ||
| 114 | A 1107661601 | DOOR HANDLE |
| OUTSIDE RIGHT | ||
| 114 | A 1107661601 | DOOR HANDLE |
| OUTSIDE RIGHT | ||
| A 1117605359 | DOOR HANDLE | |
| LEFT;WORKSHOP VERSION,WITH KEY;ANY LOCK | ||
| A 1117605359 | DOOR HANDLE | |
| LEFT;WORKSHOP VERSION,WITH KEY;ANY LOCK | ||
| A 1117605459 | DOOR HANDLE | |
| RIGHT;WORKSHOP VERSION,WITH KEY; ANY LOCK | ||
| A 1117605459 | DOOR HANDLE | |
| RIGHT;WORKSHOP VERSION,WITH KEY; ANY LOCK | ||
| A 1117605159 | DOOR HANDLE | |
| LESS KEY,LEFT | ||
| A 1117605159 | DOOR HANDLE | |
| LESS KEY,LEFT | ||
| A 1117605259 | DOOR HANDLE | |
| LESS KEY,RIGHT | ||
| A 1117605259 | DOOR HANDLE | |
| LESS KEY,RIGHT | ||
| 118 | A 1207660015 | PIN |
| 120 | A 0007661106 | KEY |
| MARKED WITH THE LETTER "I" | ||
| 120 | A 0007661106 | KEY |
| MARKED WITH THE LETTER "I" | ||
| A 0007663506 | KEY | |
| Repalced by: A 0007600006 | ||
| 122 | A 0007600006 | KEY |
| MASTER KEY | ||
| 122 | A 0007600006 | KEY |
| MASTER KEY | ||
| A 0007663706 | KEY | |
| 123 | A 0007664406 | KEY HEAD |
| A 0007663606 | KEY | |
| Repalced by: A 0007600106 | ||
| 124 | A 0007600106 | KEY |
| SECONDARY KEY | ||
| 124 | A 0007600106 | KEY |
| SECONDARY KEY | ||
| A 0007663906 | KEY | |
| 126 | A 0007661906 | KEY |
| 126 | A 0007661906 | KEY |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 123 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 125 | ||
| 130 | A 0007664506 | KEY HEAD |
| A 1117665305 | PAD | |
| LEFT FRONT UNDER DOOR HANDLE | ||
| A 1117665105 | PAD | |
| LEFT REAR UNDER DOOR HANDLE | ||
| 134 | A 1117665405 | PAD |
| RIGHT FRONT UNDER DOOR HANDLE | ||
| 136 | A 1117665205 | PAD |
| RIGHT REAR UNDER DOOR HANDLE | ||
| N 007985006157 | SCREW | |
| N 000137006204 | SPRING WASHER | |
| 138 | A 1117205043 | PLATE |
| N 007988006141 | SCREW | |
| A 1119871640 | RUBBER BUFFER | |
| Repalced by: A 1159870740 | ||
| 140 | A 1159870740 | RUBBER BUFFER |
| 140 | A 1159870740 | RUBBER BUFFER |
| 140 | A 1159870740 | RUBBER BUFFER |
| 142 | A 1117205116 | DOOR CHECK |
| 144 | A 0009879140 | RUBBER BUFFER |
| H 101867230019 | PLATE | |
| Repalced by: A 1867230019 | ||
| 146 | A 1867230019 | PLATE |
| N 000094004011 | COTTER PIN | |
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| N 912004006102 | LOCK WASHER | |

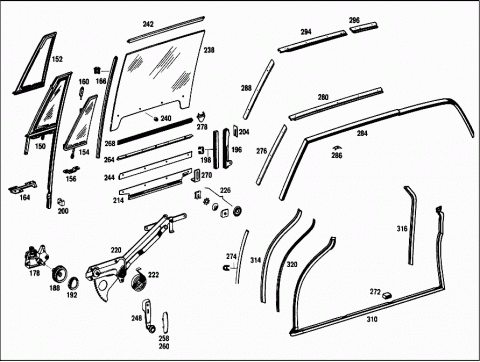

| A 1117206555 | VENTILATOR WINDOW | |
| LEFT | ||
| 150 | A 1117206655 | VENTILATOR WINDOW |
| RIGHT | ||
| A 1117255324 | SEAL | |
| IN RETAINING FRAME,LEFT | ||
| 152 | A 1117255424 | SEAL |
| IN RETAINING FRAME, RIGHT | ||
| A 1117205755 | VENTILATOR WINDOW | |
| LEFT | ||
| 154 | A 1117205855 | VENTILATOR WINDOW |
| RIGHT | ||
| 156 | A 1117255353 | MOUNTING |
| N 007513005110 | TAPPING SCREW | |
| N 000137005203 | SPRING WASHER | |
| A 1369901340 | WASHER | |
| N 006799008005 | LOCK PLATE | |
| 160 | A 1117205029 | PIVOT PIN |
| N 001472004002 | GROOVED PIN | |
| N 000091005106 | SCREW | |
| A 1117255787 | CONNECTION | |
| LEFT | ||
| 164 | A 1117255887 | CONNECTION |
| RIGHT | ||
| 166 | A 0009851830 | SEALING SECTION |
| 885 MM | ||
| N 007981004212 | SHEET METAL SCREW | |
| SWIVEL WINDOW TO DOOR, TOP | ||
| N 006797005132 | TOOTHED WASHER | |
| SWIVEL WINDOW TO DOOR, TOP | ||
| N 000933006091 | SCREW | |
| SWIVEL WINDOW TO DOOR, BOTTOM | ||
| N 000933006096 | SCREW | |
| SWIVEL WINDOW TO DOOR, BOTTOM | ||
| N 912004006102 | LOCK WASHER | |
| SWIVEL WINDOW TO DOOR, BOTTOM | ||
| N 000440006162 | WASHER | |
| SWIVEL WINDOW TO DOOR, BOTTOM | ||
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| SWIVEL WINDOW TO DOOR, BOTTOM | ||
| N 000934006007 | NUT | |
| SWIVEL WINDOW TO DOOR, BOTTOM | ||
| A 1107200166 | FASTENER | |
| LEFT | ||
| A 1107200366 | FASTENER | |
| LEFT | ||
| A 1107200366 | FASTENER | |
| LEFT | ||
| 178 | A 1107200266 | FASTENER |
| RIGHT | ||
| A 1107200466 | FASTENER | |
| RIGHT | ||
| A 1107200466 | FASTENER | |
| RIGHT | ||
| N 000933006026 | SCREW | |
| SWIVEL WINDOW LOCK TO DOOR | ||
| N 006797006145 | TOOTHED WASHER | |
| SWIVEL WINDOW LOCK TO DOOR | ||
| A 1205450176 | WASHER | |
| Repalced by: A 1205450076 | ||
| A 1205450076 | WASHER | |
| SWIVEL WINDOW LOCK TO DOOR | ||
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| SWIVEL WINDOW LOCK TO DOOR | ||
| A 0009841755 | WASHER | |
| SWIVEL WINDOW LOCK TO DOOR | ||
| N 000933006121 | SCREW | |
| Repalced by: N 304017006020 | ||
| N 304017006020 | SCREW | |
| SWIVEL WINDOW LOCK TO SWIVEL WINDOW | ||
| N 000137006204 | SPRING WASHER | |
| SWIVEL WINDOW LOCK TO SWIVEL WINDOW | ||
| 188 | A 1117605066 | KNOB |
| A 1117605266 | KNOB | |
| A 1117605266 | KNOB | |
| N 007985004167 | SCREW | |
| N 000137004202 | SPRING WASHER | |
| 192 | A 1107600367 | CAP |
| A 1107600567 | CAP | |
| A 1107600567 | CAP | |
| A 1117255730 | WINDOW GUIDE | |
| LEFT REAR | ||
| 196 | A 1117255830 | WINDOW GUIDE |
| RIGHT REAR | ||
| 198 | A 0009851830 | SEALING SECTION |
| 150 MM | ||
| 200 | A 1117255032 | GUIDE JAW |
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| N 006797006145 | TOOTHED WASHER | |
| WINDOW GUIDE TO DOOR,TOP | ||
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| WINDOW GUIDE TO DOOR,TOP | ||
| 204 | A 1117255147 | ADAPTER |
| 0.5 MM AS REQUIRED | ||
| A 1117255247 | ADAPTER | |
| 1.0 MM AS REQUIRED | ||
| N 000933006091 | SCREW | |
| WINDOW GUIDE TO DOOR,BOTTOM | ||
| N 912004006102 | LOCK WASHER | |
| WINDOW GUIDE TO DOOR,BOTTOM | ||
| N 000440006162 | WASHER | |
| WINDOW GUIDE TO DOOR,BOTTOM | ||
| N 000934006007 | NUT | |
| WINDOW GUIDE TO DOOR,BOTTOM | ||
| A 1117205545 | WINDOW REGULATOR RAIL | |
| Repalced by: A 1117206145 | ||
| A 1117206145 | WINDOW REGULATOR RAIL | |
| LEFT | ||
| A 1117205645 | WINDOW REGULATOR RAIL | |
| Repalced by: A 1117206245 | ||
| 214 | A 1117206245 | WINDOW REGULATOR RAIL |
| RIGHT | ||
| A 1117255048 | STOP | |
| A 1117255302 | WINDOW REGULATOR | |
| Repalced by: A 1117256302 | ||
| A 1117255902 | WINDOW REGULATOR | |
| Repalced by: A 1117256302 | ||
| A 1117256302 | WINDOW REGULATOR | |
| LEFT | ||
| A 1117255402 | WINDOW REGULATOR | |
| Repalced by: A 1117256402 | ||
| A 1117256002 | WINDOW REGULATOR | |
| Repalced by: A 1117256402 | ||
| 220 | A 1117256402 | WINDOW REGULATOR |
| RIGHT | ||
| 222 | A 0007680505 | SPRING |
| A 1209840137 | SLIDE | |
| Repalced by: A 1155860072 | ||
| A 1155860072 | REPAIR KIT | |
| Repalced by: A 1237200114 | ||
| A 1237200114 | REPAIR KIT | |
| A 0009842456 | WASHER | |
| A 0009900548 | WASHER | |
| N 912002010001 | LOCK | |
| 226 | A 1155860072 | REPAIR KIT |
| Repalced by: A 1237200114 | ||
| 226 | A 1237200114 | REPAIR KIT |
| A 0009978782 | HOSE | |
| Repalced by: A 0009978482 | ||
| A 0009978482 | HOSE | |
| 26 MM WINDOW BOTTOM STOP AT DOOR | ||
| A 0009978482 | HOSE | |
| 26 MM WINDOW BOTTOM STOP AT DOOR | ||
| A 0009978482 | HOSE | |
| 26 MM WINDOW BOTTOM STOP AT DOOR | ||
| N 000933006026 | SCREW | |
| WINDOW REGULATOR TO DOOR SHELL | ||
| N 000137006142 | SPRING WASHER | |
| WINDOW REGULATOR TO DOOR SHELL | ||
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| WINDOW REGULATOR TO DOOR SHELL | ||
| A 1117205423 | ANGLE | |
| A 1117205423 | ANGLE | |
| A 1117255110 | GLASS PANE | |
| LEFT | ||
| 238 | A 1117255210 | GLASS PANE |
| RIGHT | ||
| 240 | A 0009870842 | SPACER |
| A 1117205530 | FRAME | |
| TOP LEFT | ||
| 242 | A 1117205630 | FRAME |
| TOP RIGHT | ||
| A 0009879857 | RUBBER MOULDING | |
| Repalced by: A 1116735521 | ||
| A 1116735521 | RUBBER MOULDING | |
| 560 MM | ||
| 244 | A 1117205047 | RETAINING RAIL |
| N 000933005031 | SCREW | |
| N 006797005132 | TOOTHED WASHER | |
| A 1107600402 | CRANK | |
| A 1087600102 | CRANK | |
| Repalced by: A 1237600102 | ||
| 248 | A 1237600102 | CRANK |
| A 1087600202 | CRANK | |
| Repalced by: A 1237600102 | ||
| A 1237600102 | CRANK | |
| N 007987004135 | SCREW | |
| CRANK ARM TO WINDOW LIFTER | ||
| N 007987004135 | SCREW | |
| CRANK ARM TO WINDOW LIFTER | ||
| N 007987004135 | SCREW | |
| CRANK ARM TO WINDOW LIFTER | ||
| N 006797004333 | TOOTHED WASHER | |
| CRANK ARM TO WINDOW LIFTER | ||
| N 006797004333 | TOOTHED WASHER | |
| CRANK ARM TO WINDOW LIFTER | ||
| N 006797004333 | TOOTHED WASHER | |
| CRANK ARM TO WINDOW LIFTER | ||
| A 1107680195 | PAD | |
| Repalced by: A 1087680095 | ||
| 258 | A 1087680102 | CRANK |
| CRANK ARM | ||
| 260 | A 1087680095 | PAD |
| Repalced by: A 1237600020 | ||
| 260 | A 1237600020 | COVERING |
| Repalced by: A 1237600120 | ||
| 260 | A 1237600120 | COVERING |
| CRANK ARM | ||
| A 1107680013 | WASHER | |
| Repalced by: A 1087680113 | ||
| A 1087680113 | WASHER | |
| CRANK ARM | ||
| 264 | A 1117255045 | MOUNTING RAIL |
| N 007981003214 | SHEET METAL SCREW | |
| N 006797004132 | TOOTHED WASHER | |
| A 0009850330 | SEALING SECTION | |
| Repalced by: A 1157250965 | ||
| A 1217250166 | SEAL | |
| Repalced by: A 1157250965 | ||
| 268 | A 1157250965 | SEALING RAIL |
| INSIDE AND OUTSIDE | ||
| 2000 MM | ||
| N 007982002222 | SHEET METAL SCREW | |
| INSIDE | ||
| N 007982002219 | SHEET METAL SCREW | |
| Repalced by: N 007982002212 | ||
| N 007982002212 | SHEET METAL SCREW | |
| OUTSIDE | ||
| 270 | A 1117255148 | STOP |
| Repalced by: A 1117205423 | ||
| 270 | A 1117205423 | ANGLE |
| A 0009979782 | HOSE | |
| 13 MM | ||
| 272 | A 1119870640 | RUBBER BUFFER |
| 274 | A 0019877625 | PLASTIC SECTION |
| 200 MM | ||
| A 1117255765 | SEALING RAIL | |
| Repalced by: A 1117255165 | ||
| A 1117255165 | SEALING RAIL | |
| AT WINDSHIELD PILLAR,LEFT | ||
| 276 | A 1117255865 | SEALING RAIL |
| Repalced by: A 1117255265 | ||
| 276 | A 1117255265 | SEALING RAIL |
| AT WINDSHIELD PILLAR, RIGHT | ||
| N 007982003215 | SHEET METAL SCREW | |
| 278 | A 1137250141 | BRACKET |
| A 1117255365 | SEALING RAIL | |
| ABOVE THE DOORS,LEFT | ||
| 280 | A 1117255465 | SEALING RAIL |
| ABOVE THE DOORS, RIGHT | ||
| N 007982003215 | SHEET METAL SCREW | |
| A 1117255966 | SEAL | |
| ROOF RAIL,LEFT | ||
| A 1117255766 | SEAL | |
| LEFT ROOF RAIL | ||
| 284 | A 1117256066 | SEAL |
| RIGHT ROOF RAIL | ||
| A 1117255866 | SEAL | |
| RIGHT ROOF RAIL | ||
| 286 | A 1119880578 | CLIP |
| A 1117258765 | SEALING RAIL | |
| Repalced by: A 1117258165 | ||
| A 1117258165 | SEALING RAIL | |
| LEFT WINDSHIELD PILLAR | ||
| A 1117258865 | SEALING RAIL | |
| Repalced by: A 1117258265 | ||
| 288 | A 1117258265 | SEALING RAIL |
| RIGHT WINDSHIELD PILLAR | ||
| N 007982003215 | SHEET METAL SCREW | |
| A 0009872856 | WINDOW RUBBER SEAL | |
| Repalced by: A 1117258766 | ||
| A 1117258766 | SEAL | |
| 3200 MM AT WINDSHIELD PILLARS | ||
| A 1119880578 | CLIP | |
| RUBBER SEAL TO WINDSHIELD PILLAR RAIL | ||
| A 1117258365 | SEALING RAIL | |
| LEFT FOLDING TOP FRAME, FRONT | ||
| 294 | A 1117258465 | SEALING RAIL |
| RIGHT FOLDING TOP FRAME, FRONT | ||
| A 1117258565 | SEALING RAIL | |
| LEFT FOLDING TOP FRAME, CENTER | ||
| 296 | A 1117258665 | SEALING RAIL |
| RIGHT FOLDING TOP FRAME, CENTER | ||
| N 007982003215 | SHEET METAL SCREW | |
| SEAL RAILS TO FOLDING TOP FRAME | ||
| N 007982003216 | SHEET METAL SCREW | |
| Repalced by: N 007982003209 | ||
| N 007982003209 | SHEET METAL SCREW | |
| SEAL RAILS TO FOLDING TOP FRAME | ||
| A 1117205751 | PANELLING | |
| Repalced by: A 1117205951 | ||
| A 1117205951 | PANELLING | |
| A 1117205851 | PANELLING | |
| Repalced by: A 1117206051 | ||
| 302 | A 1117206051 | PANELLING |
| A 1117275122 | GARNISH MOULDING | |
| LEFT | ||
| 304 | A 1117275222 | GARNISH MOULDING |
| RIGHT | ||
| 306 | A 0019883178 | CLIP |
| Repalced by: A 0029884578 | ||
| 306 | A 0029884578 | CLIP |
| 308 | A 1117275290 | INSULATION |
| Repalced by: A 1237270090 | ||
| 308 | A 1237270090 | INSULATION |
| Repalced by: A 1107270390 | ||
| 308 | A 1107270390 | INSULATION |
| Repalced by: A 2106820008 | ||
| 308 | A 2106820008 | INSULATION |
| A 1117206378 | WEATHERSTRIP | |
| LEFT | ||
| 310 | A 1117206478 | WEATHERSTRIP |
| RIGHT | ||
| A 1117270098 | SEAL | |
| A 0009899271 | CLEANER | |
| N 007982003218 | SHEET METAL SCREW | |
| N 009021004202 | WASHER | |
| Repalced by: N 009021004207 | ||
| N 009021004207 | WASHER | |
| 314 | A 1117205385 | WELT |
| 316 | A 1117205285 | WELT |
| N 900046020113 | NAIL | |
| A 1117275172 | RAIL | |
| LEFT | ||
| 320 | A 1117275272 | RAIL |
| RIGHT | ||
| N 007983002303 | SHEET METAL SCREW | |
| A 1117208570 | PANELLING | |
| LEFT | ||
| A 1117208570 | PANELLING | |
| LEFT | ||
| A 1117207770 | PANELLING | |
| LEFT | ||
| A 1117207770 | PANELLING | |
| LEFT | ||
| 326 | A 1117208670 | PANELLING |
| RIGHT | ||
| 326 | A 1117208670 | PANELLING |
| RIGHT | ||
| A 1117207870 | PANELLING | |
| RIGHT | ||
| A 1117207870 | PANELLING | |
| RIGHT | ||
| A 1117275782 | GARNISH MOULDING | |
| LEFT | ||
| 330 | A 1117275882 | GARNISH MOULDING |
| RIGHT | ||
| N 000439005201 | NUT | |
| A 0009841755 | WASHER | |
| N 007331003109 | RIVET | |
| N 007982002213 | SHEET METAL SCREW | |
| A 0009850562 | WASHER | |
| A 1117285130 | GARNISH MOULDING | |
| DOOR EDGE,LEFT | ||
| 336 | A 1117285230 | GARNISH MOULDING |
| DOOR EDGE, RIGHT | ||
| H 101806900071 | SCREW | |
| Repalced by: A 1806900071 | ||
| 338 | A 1806900071 | SCREW |
| 340 | A 0009881781 | FASTENER BUTTON |
| 342 | A 0009881581 | FASTENER BUTTON |
| Repalced by: A 0019882081 | ||
| 342 | A 0019882081 | FASTENER BUTTON |
| Repalced by: A 0089970381 | ||
| 342 | A 0089970381 | GROMMET |
| Repalced by: A 0019882081 | ||
| 342 | A 0019882081 | FASTENER BUTTON |
| Repalced by: A 0019887681 | ||
| 342 | A 0019887681 | FASTENER BUTTON |
| N 007981004200 | SHEET METAL SCREW | |
| N 000137004202 | SPRING WASHER | |
| N 000934004004 | NUT | |
| A 1117285921 | ORNAMENTAL COVER | |
| TOP LEFT | ||
| 346 | A 1117286021 | ORNAMENTAL COVER |
| TOP RIGHT | ||
| A 1117286321 | ORNAMENTAL COVER | |
| BOTTOM LEFT | ||
| 348 | A 1117286221 | ORNAMENTAL COVER |
| BOTTOM RIGHT | ||
| N 007983002203 | SHEET METAL SCREW | |
| A 1117285124 | COVER RAIL | |
| LEFT | ||
| 350 | A 1117285224 | COVER RAIL |
| RIGHT | ||
| A 1117285324 | COVER RAIL | |
| BOTTOM LEFT | ||
| 352 | A 1117285424 | COVER RAIL |
| BOTTOM RIGHT | ||
| N 007982002312 | SHEET METAL SCREW | |
| A 1117285521 | ORNAMENTAL COVER | |
| LEFT | ||
| 354 | A 1117285621 | ORNAMENTAL COVER |
| RIGHT | ||
| N 007983002203 | SHEET METAL SCREW | |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
