Transporto priemonė: 280 SE/C USA; VIN numerio dalis: 111025
Grupė: 47 FUEL SYSTEM

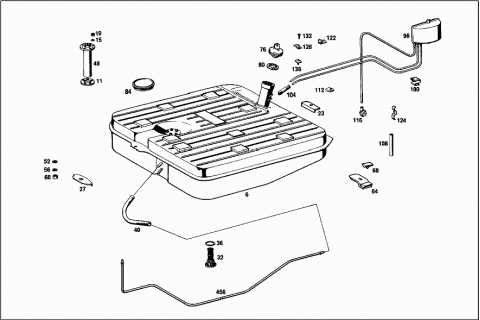

56493

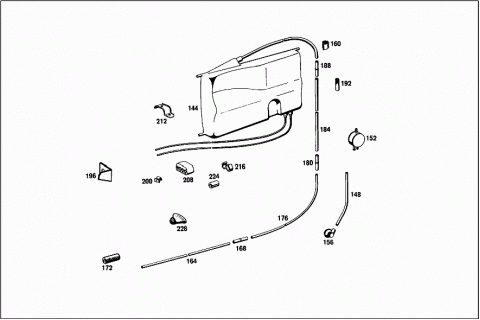

56494

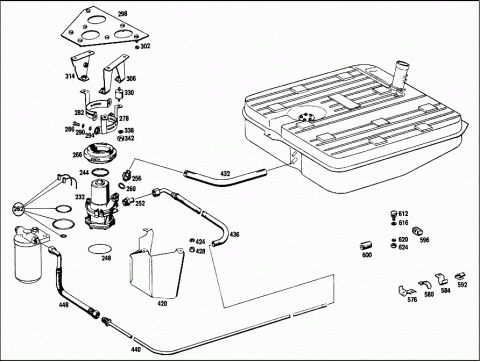

56495

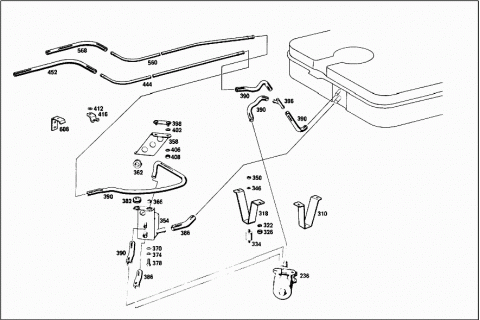

56496
# Kodas Pavadinimas
X XXXXXXXXXXXX PART NAME MISSING
FUEL TANK
006 A 1094700301 FUEL TANK
82 L.
011 A 1104710180 GASKET
015 N 000137005203 SPRING WASHER
019 N 000934005008 NUT
023 A 1304710222 REINFORCEMENT
REAR
027 A 1304710122 REINFORCEMENT
FRONT
032 A 1114700686 FUEL STRAINER
036 A 1109970145 SEAL RING
A 1104760326 HOSE
Repalced by: A 1149971882
040 A 1149971882 HOSE
FROM RETURN PIPE TO FUEL TANK
040 A 1149971882 HOSE
FROM RETURN PIPE TO FUEL TANK
N 900269012102 CLAMP
FROM RETURN PIPE TO FUEL TANK
N 900269012102 CLAMP
FROM RETURN PIPE TO FUEL TANK
N 900269012101 CLAMP
FROM RETURN PIPE TO FUEL TANK
N 900269012101 CLAMP
FROM RETURN PIPE TO FUEL TANK
A 0019976990 LOOM TIE
TO 114 997 18 82
A 0019976990 LOOM TIE
TO 114 997 18 82
048 A 1105421204 GAUGE SENDER UNIT
052 A 1089900340 WASHER
056 N 000127008203 LOCK WASHER
060 N 000934008010 NUT
Repalced by: N 304032008006
060 N 304032008006 NUT
064 A 1124700781 BRACKET
068 A 1249870740 RUBBER BUFFER
N 000933006102 SCREW
Repalced by: N 304017006016
N 304017006016 SCREW
TANK REAR BRACING
N 009021006103 WASHER
Repalced by: N 009021006208
N 009021006208 WASHER
TANK REAR BRACING
N 912004006102 LOCK WASHER
TANK REAR BRACING
A 0009909991 NUT RETAINER
TANK REAR BRACING
076 A 0004712030 FILLER CAP
MAKE YMOS
YMOS
A 0004711830 FILLER CAP
MAKE HUF
HUF
A 0004716230 FILLER CAP
MAKE YMOS
YMOS
A 0004716130 FILLER CAP
MAKE HUF
HUF
080 A 1104710280 GASKET
A 1154710079 SEAL RING
A 1234710230 FILLER CAP
A 1154710079 SEAL RING
084 A 1109870145 LOCKING CAP
A 1114710168 TANK
Repalced by: A 1154710268
A 1114710268 TANK
Repalced by: A 1154710268
096 A 1154710268 TANK
100 A 0039888178 CLIP
104 A 2014761126 HOSE
104 A 2014761126 HOSE
108 A 1074763726 HOSE
110 MM
N 900269008100 CLAMP
HOSE & VENT PIPE TO RESERVOIR
N 900269010100 CLAMP
HOSE & VENT PIPE TO RESERVOIR
112 A 1119972281 GROMMET
116 A 1084710081 BOOT
N 900269010100 CLAMP
122 A 0029884678 CLIP
124 A 1109950332 CLAMP
128 N 072571002015 CLAMP
132 N 007981004243 SHEET METAL SCREW
Repalced by: N 000000002062
132 N 000000002062 SCREW
VENT PIPES TO BODY
A 1134710240 CLIP
VENT PIPES TO BODY
136 A 0009903533 SCREW
VENT PIPES TO BODY
A 1109950332 CLAMP
VENT PIPES TO BODY
N 000934004004 NUT
VENT PIPES TO BODY
N 000127004203 LOCK WASHER
Repalced by: N 912004004102
N 912004004102 LOCK WASHER
VENT PIPES TO BODY
A 0009870415 PLUG
TO PLUG SQUARE HOLE IN FLOOR
144 A 1154711668 TANK
148 A 0089979082 HOSE
Repalced by: A 0009872727
148 A 0009872727 PLASTIC PIPE
152 A 1234700193 VALVE
156 A 1084710081 BOOT
N 916033012100 CLAMP
N 916002008100 CLAMP
160 A 0039888178 CLIP
EXPANSION TANK TO CARDBOARD WALL
A 0009881878 CLIP
LINE TO CARDBOARD WALL
164 A 0089979082 HOSE
Repalced by: A 0009872727
164 A 0009872727 PLASTIC PIPE
FRONT
168 A 1144710223 LINE
FROM EXPANSION TANK TO ENGINE
172 A 1149971882 HOSE
40 MM, FROM EXPANSION TANK TO ENGINE
N 916033012100 CLAMP
FROM EXPANSION TANK TO ENGINE
176 A 0089979082 HOSE
Repalced by: A 0009872727
176 A 0009872727 PLASTIC PIPE
CENTRAL
180 A 1144710223 LINE
FROM EXPANSION TANK TO ENGINE
A 1149971882 HOSE
40 MM, FROM EXPANSION TANK TO ENGINE
N 912002012100 LOCK
FROM EXPANSION TANK TO ENGINE
184 A 0089979082 HOSE
Repalced by: A 0009872727
184 A 0009872727 PLASTIC PIPE
REAR
188 A 1144710223 LINE
FROM EXPANSION TANK TO ENGINE
192 A 1149971882 HOSE
40 MM, FROM EXPANSION TANK TO ENGINE
N 916033012100 CLAMP
FROM EXPANSION TANK TO ENGINE
N 916033012100 CLAMP
BREATHER LINE TO VALVE UNIT
196 A 1080780041 BRACKET
AT CYLINDER HEAD
200 A 0029887778 CLIP
PIPE LINE MOUNTING
208 A 1104760084 DAMPING STRIP
PIPE LINE MOUNTING
208 A 1004760381 RUBBER PAD
Repalced by: A 1104760084
208 A 1104760084 DAMPING STRIP
PIPE LINE MOUNTING
A 0009877770 RUBBER SECTION
PIPE LINE MOUNTING
20 MM
212 A 1099950022 CLAMP
PIPE LINE MOUNTING
216 A 0009950068 CLAMP
PIPE LINE MOUNTING
A 1109950022 CLAMP
PIPE LINE MOUNTING
A 1099950015 CLAMP
PIPE LINE MOUNTING
A 1084760040 CLAMP
PIPE LINE MOUNTING
N 072571001025 CLAMP
PIPE LINE MOUNTING
N 072571002015 CLAMP
PIPE LINE MOUNTING
N 007976004205 SHEET METAL SCREW
PIPE LINE MOUNTING
N 007976005203 SHEET METAL SCREW
PIPE LINE MOUNTING
N 007976006203 SHEET METAL SCREW
PIPE LINE MOUNTING
N 007981004243 SHEET METAL SCREW
Repalced by: N 000000002062
N 000000002062 SCREW
PIPE LINE MOUNTING
224 N 073379008100 HOSE
20 MM, PIPE LINE MOUNTING
228 A 0079975881 GROMMET
PIPE LINE MOUNTING
A 0009972881 GROMMET
PIPE LINE MOUNTING
A 0019970140 SEAL RING
PIPE LINE MOUNTING
A 0029887778 CLIP
PIPE LINE MOUNTING
X XXXXXXXXXXXX PART NAME MISSING
FUEL PUMP
A 0010913401 FUEL PUMP
Repalced by: A 0010915201
A 0010914601 FUEL PUMP
Repalced by: A 0010915201
232 A 0010915201 FUEL PUMP
ELECTRIC
236 A 0010917401 FUEL PUMP
ELECTRIC
A 0010917101 FUEL PUMP
ELECTRIC
A 0005480242 CARBON BRUSH
2 PIECES
A 0005480242 CARBON BRUSH
2 PIECES
A 0005450197 SPRING
A 0005450197 SPRING
244 A 0009979145 SEAL RING
244 A 0009979145 SEAL RING
248 A 0049970445 SEAL RING
248 A 0049970445 SEAL RING
252 A 0009975972 FITTING
252 A 0009975972 FITTING
256 A 0000910710 VALVE
256 A 0000910710 VALVE
260 N 007603018101 SEAL RING
260 N 007603018101 SEAL RING
262 A 0005860147 REPAIR KIT
ELECTRIC FUEL PUMP
266 A 1284780082 RUBBER RING
266 A 1284780082 RUBBER RING
A 0000927101 FILTER
Repalced by: A 0000927601
A 0000927601 FILTER
N 916026060000 CLAMP
Repalced by: A 0069972790
A 0069972790 LOOM TIE
N 007603014100 SEAL RING
AT FILTER, INLET SIDE
A 1074700279 INTERMEDIATE PIECE
AT FILTER, INLET SIDE
A 1074700081 BRACKET
N 007985005165 SCREW
PUMP AND FILTER TO BRACKET
N 912004005100 LOCK WASHER
PUMP AND FILTER TO BRACKET
N 000934005008 NUT
PUMP AND FILTER TO BRACKET
278 A 1084700134 CLAMP
278 A 1084700134 CLAMP
A 1004700434 CLAMP
282 A 1084700034 CLAMP
282 A 1084700034 CLAMP
A 1004700534 CLAMP
286 N 000933006103 SCREW
Repalced by: N 304017006018
286 N 304017006018 SCREW
286 N 304017006018 SCREW
290 N 000127006200 LOCK WASHER
290 N 000127006200 LOCK WASHER
294 N 000125006407 WASHER
294 N 000125006407 WASHER
298 A 1124700033 REINFORCEMENT
302 A 0009873841 RUBBER RING
306 A 1124700481 BRACKET
LEFT
306 A 1124700481 BRACKET
LEFT
A 1084780640 BRACKET
REAR
310 A 1084780240 BRACKET
REAR
A 1084780740 BRACKET
LEFT
A 1084780840 BRACKET
RIGHT
314 A 1124700581 BRACKET
RIGHT
314 A 1124700581 BRACKET
RIGHT
A 1084700381 BRACKET
FRONT
318 A 1084780140 BRACKET
FRONT
322 N 912004006102 LOCK WASHER
326 N 000934006007 NUT
330 A 1169880511 BUFFER
330 A 1169880511 BUFFER
334 A 1269880011 BUFFER
334 A 1269880011 BUFFER
338 N 000127006200 LOCK WASHER
338 N 000127006200 LOCK WASHER
342 N 000934006007 NUT
342 N 000934006007 NUT
346 N 912004005100 LOCK WASHER
346 N 912004005100 LOCK WASHER
350 N 000934005008 NUT
350 N 000934005008 NUT
354 A 1144700216 DAMPER CAGE
358 A 1094700281 BRACKET
362 A 0009972281 GROMMET
366 A 1144760053 SPACER TUBE
370 N 009021006205 WASHER
Repalced by: N 009021006208
370 N 009021006208 WASHER
374 N 912004006102 LOCK WASHER
378 N 000933006130 SCREW
382 A 0009972881 GROMMET
386 A 1124761226 HOSE
100 MM AT FUEL PUMP SUCTION SIDE AND AT DASHPOT
N 900269017101 CLAMP
390 A 1104760326 HOSE
Repalced by: A 1149971882
A 1149971882 HOSE
A 1149971882 HOSE
A 1149971882 HOSE
A 1149971882 HOSE
A 1149971882 HOSE
A 1149971882 HOSE
A 1149971882 HOSE
A 1149971882 HOSE
A 1149971882 HOSE
A 1149971882 HOSE
A 1149971882 HOSE
396 A 1144760125 INTERMEDIATE PIECE
396 A 1144760125 INTERMEDIATE PIECE
N 900269012101 CLAMP
N 900269012101 CLAMP
N 900269012102 CLAMP
N 900269012102 CLAMP
A 0019976990 LOOM TIE
TO FUEL HOSE 114 997 18 82
A 1124761226 HOSE
AT PUMP SUCTION FITTING, 220 MM
N 916002017100 CLAMP
398 A 1094700381 BRACKET
402 A 0009873841 RUBBER RING
406 N 912004006102 LOCK WASHER
408 N 000934006007 NUT
412 A 0009873841 RUBBER RING
416 A 1089950520 CLAMP
N 912004006102 LOCK WASHER
N 000934006013 NUT
Repalced by: N 304032006008
N 304032006008 NUT
420 A 1084700083 PROTECTIVE PLATE
424 N 000127006200 LOCK WASHER
428 N 000934006007 NUT
A 1085460185 PROTECTIVE TUBE
FUEL PUMP CABLE HARNESS THRU REAR CROSS MEMBER
A 1239971681 GROMMET
CABLE TO FUEL PUMP
A 0009941010 LOCK
CABLE TO FUEL PUMP
N 000127004203 LOCK WASHER
Repalced by: N 912004004102
N 912004004102 LOCK WASHER
CABLE TO FUEL PUMP
N 000934004004 NUT
CABLE TO FUEL PUMP
N 006797004132 TOOTHED WASHER
CABLE TO FUEL PUMP
N 006797005132 TOOTHED WASHER
CABLE TO FUEL PUMP
N 000934005008 NUT
CABLE TO FUEL PUMP
X XXXXXXXXXXXX PART NAME MISSING
FUEL LINES
432 A 1004761226 HOSE
290 MM FROM FUEL TANK TO FUEL PUMP
432 A 1004761226 HOSE
290 MM FROM FUEL TANK TO FUEL PUMP
N 900269017101 CLAMP
FROM FUEL TANK TO FUEL PUMP
436 A 1114760926 HOSE
FROM FUEL PUMP TO FEED LINE
N 900269016101 CLAMP
FROM FUEL PUMP TO FEED LINE
A 1369950037 CLAMP
N 007976005203 SHEET METAL SCREW
440 A 1084700070 LINE
440 A 1084700070 LINE
A 1084700570 LINE
Repalced by: A 1084761801
A 1084761801 LINE
A 1114700770 LINE
Repalced by: A 1114763001
A 1114700670 LINE
Repalced by: A 1114763001
A 1114763001 LINE
A 1114763001 LINE
444 A 1114762501 LINE
A 1084762101 LINE
A 1114762701 LINE
A 1114763101 LINE
448 A 1084760026 HOSE
FROM FEED LINE TO FUEL FILTER
A 1104760326 HOSE
Repalced by: A 1149971882
452 A 1149971882 HOSE
355 MM
A 0019976990 LOOM TIE
456 A 1084700170 LINE
456 A 1084700170 LINE
A 1084700370 LINE
Repalced by: A 1084761401
A 1084761401 LINE
A 1112700870 REGULATOR VALVE
Repalced by: A 1114762901
A 1114762901 LINE
A 1114762901 LINE
560 A 1114762601 LINE
Repalced by: A 1084761701
A 1084761701 LINE
FRONT
A 1084762001 LINE
Repalced by: A 1084762501
A 1084762501 LINE
REAR
A 1114762801 LINE
A 1144762026 HOSE
Repalced by: A 1149971882
A 1149971882 HOSE
160 MM
N 916033012100 CLAMP
A 0019976990 LOOM TIE
TO 114 997 18 82
A 1104760326 HOSE
Repalced by: A 1149971882
568 A 1149971882 HOSE
568 A 1149971882 HOSE
N 900269012101 CLAMP
N 900269015101 CLAMP
A 0019976990 LOOM TIE
TO 114 997 18 82
576 A 1109950022 CLAMP
FUEL AND BRAKE LINES TO FRAME FLOOR UNIT
580 A 1539950120 CLAMP
FUEL AND BRAKE LINES TO FRAME FLOOR UNIT
584 A 1879950037 CLAMP
FUEL AND BRAKE LINES TO FRAME FLOOR UNIT
A 1109950015 CLAMP
FUEL AND BRAKE LINES TO FRAME FLOOR UNIT
A 1089950520 CLAMP
FUEL AND BRAKE LINES TO FRAME FLOOR UNIT
A 1369950037 CLAMP
FUEL AND BRAKE LINES TO FRAME FLOOR UNIT
592 A 0019881078 CLIP
FUEL AND BRAKE LINES TO FRAME FLOOR UNIT
596 A 1114760384 DAMPING STRIP
FUEL AND BRAKE LINES TO FRAME FLOOR UNIT
A 1124760284 DAMPING STRIP
FUEL AND BRAKE LINES TO FRAME FLOOR UNIT
A 1104760084 DAMPING STRIP
FUEL AND BRAKE LINES TO FRAME FLOOR UNIT
A 0009877770 RUBBER SECTION
20 MM FUEL AND BRAKE LINES TO FRAME FLOOR UNIT
20 MM
A 1124760184 DAMPING STRIP
FUEL AND BRAKE LINES TO FRAME FLOOR UNIT
A 1809950022 CLAMP
FUEL AND BRAKE LINES TO FRAME FLOOR UNIT
N 007976005203 SHEET METAL SCREW
FUEL AND BRAKE LINES TO FRAME FLOOR UNIT
A 1009950042 CLAMP
FUEL AND BRAKE LINES TO FRAME FLOOR UNIT
A 1123270084 SHIM
FUEL AND BRAKE LINES TO FRAME FLOOR UNIT
600 A 0029979682 HOSE
Repalced by: A 1289970182
600 A 1289970182 HOSE
28 MM FUEL AND BRAKE LINES TO FRAME FLOOR UNIT
N 073379008200 HOSE
20 MM FUEL AND BRAKE LINES TO FRAME FLOOR UNIT
N 073379008100 HOSE
30 MM FUEL AND BRAKE LINES TO FRAME FLOOR UNIT
N 007976005203 SHEET METAL SCREW
FUEL AND BRAKE LINES TO FRAME FLOOR UNIT
N 007976006203 SHEET METAL SCREW
FUEL AND BRAKE LINES TO FRAME FLOOR UNIT
N 007985006190 SCREW
FUEL AND BRAKE LINES TO FRAME FLOOR UNIT
608 A 1104280141 CLAMP
FUEL AND BRAKE LINES TO FRAME FLOOR UNIT
612 A 1204200227 SCREW
WITH LOCK PLATE FUEL AND BRAKE LINES TO FRAME FLOOR UNIT
616 A 0009873841 RUBBER RING
FUEL AND BRAKE LINES TO FRAME FLOOR UNIT
620 N 912004006102 LOCK WASHER
FUEL AND BRAKE LINES TO FRAME FLOOR UNIT
624 N 000934006007 NUT
FUEL AND BRAKE LINES TO FRAME FLOOR UNIT
N 073379006101 HOSE
OVER LINES
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
