Transporto priemonė: 280 SE/C USA; VIN numerio dalis: 111025

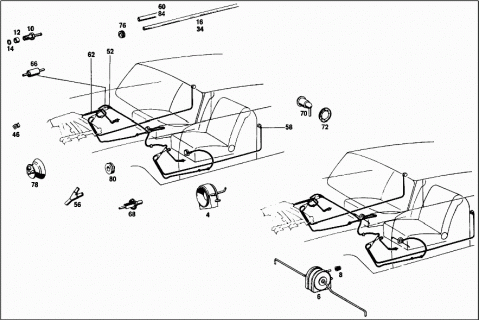

Grupė: 80 HYDRAULIC SYSTEM - 001 VACUUM SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 004 | A 1118005375 | ELEMENT |
| 004 | A 1118005375 | ELEMENT |
| 006 | A 1118005575 | ELEMENT |
| 006 | A 1118005575 | ELEMENT |
| 008 | A 1118055090 | CAP |
| 008 | A 1118055090 | CAP |
| A 1002700072 | SCREW | |
| Repalced by: A 1009900663 | ||
| 010 | A 1009900663 | HOLLOW SCREW |
| 010 | A 1009900663 | HOLLOW SCREW |
| 012 | A 1869912740 | SPACER TUBE |
| 012 | A 1869912740 | SPACER TUBE |
| 014 | N 007603010100 | SEAL RING |
| 014 | N 007603010100 | SEAL RING |
| 016 | A 0059975982 | HOSE |
| FROM CHECK VALVE TO DISTRIBUTOR AT FRONT PANEL PILLAR,RIGHT | ||
| 016 | A 0059975982 | HOSE |
| FROM CHECK VALVE TO DISTRIBUTOR AT FRONT PANEL PILLAR,RIGHT | ||
| 016 | A 0059975982 | HOSE |
| FROM CHECK VALVE TO DISTRIBUTOR AT FRONT PANEL PILLAR,RIGHT | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| LEFT | ||
| 016 | A 0059975982 | HOSE |
| FROM CHECK VALVE TO DISTRIBUTOR AT FRONT PANEL PILLAR,RIGHT | ||
| 016 | A 0059975982 | HOSE |
| FROM CHECK VALVE TO DISTRIBUTOR AT FRONT PANEL PILLAR,RIGHT | ||
| 016 | A 0059975982 | HOSE |
| FROM CHECK VALVE TO DISTRIBUTOR AT FRONT PANEL PILLAR,RIGHT | ||
| 016 | A 0059975982 | HOSE |
| FROM CHECK VALVE TO DISTRIBUTOR AT FRONT PANEL PILLAR,RIGHT | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FROM Y-SHAPE DISTRIBUTOR TO T-SHAPE DISTRIBUTOR AT FRONT PANEL PILLAR,LEFT AND RIGHT | ||
| 016 | A 0059975982 | HOSE |
| FROM CHECK VALVE TO DISTRIBUTOR AT FRONT PANEL PILLAR,RIGHT | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FROM DISTRUBOTOR AT FRONT PANEL PILLAR TO SWITCH AT REAR SIDE,LEFT AND RIGHT | ||
| 016 | A 0059975982 | HOSE |
| FROM CHECK VALVE TO DISTRIBUTOR AT FRONT PANEL PILLAR,RIGHT | ||
| 016 | A 0059975982 | HOSE |
| FROM CHECK VALVE TO DISTRIBUTOR AT FRONT PANEL PILLAR,RIGHT | ||
| 016 | A 0059975982 | HOSE |
| FROM CHECK VALVE TO DISTRIBUTOR AT FRONT PANEL PILLAR,RIGHT | ||
| 016 | A 0059975982 | HOSE |
| FROM CHECK VALVE TO DISTRIBUTOR AT FRONT PANEL PILLAR,RIGHT | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FROM DISTRIBUTOR AT FRONT PANEL PILLAR TO SWITCH AT REAR SIDE,LEFT AND RIGHT | ||
| 016 | A 0059975982 | HOSE |
| FROM CHECK VALVE TO DISTRIBUTOR AT FRONT PANEL PILLAR,RIGHT | ||
| 016 | A 0059975982 | HOSE |
| FROM CHECK VALVE TO DISTRIBUTOR AT FRONT PANEL PILLAR,RIGHT | ||
| 016 | A 0059975982 | HOSE |
| FROM CHECK VALVE TO DISTRIBUTOR AT FRONT PANEL PILLAR,RIGHT | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FROM DISTRUBOTOR AT FRONT PANEL PILLAR TO DOOR FRAME MOUNTED SWITCH,LEFT AND RIGHT | ||
| 016 | A 0059975982 | HOSE |
| FROM CHECK VALVE TO DISTRIBUTOR AT FRONT PANEL PILLAR,RIGHT | ||
| 016 | A 0059975982 | HOSE |
| FROM CHECK VALVE TO DISTRIBUTOR AT FRONT PANEL PILLAR,RIGHT | ||
| 016 | A 0059975982 | HOSE |
| FROM CHECK VALVE TO DISTRIBUTOR AT FRONT PANEL PILLAR,RIGHT | ||
| 034 | A 0089978682 | HOSE |
| 034 | A 0089978682 | HOSE |
| 034 | A 0089978682 | HOSE |
| 034 | A 0089978682 | HOSE |
| 034 | A 0089978682 | HOSE |
| 034 | A 0089978682 | HOSE |
| 034 | A 0089978682 | HOSE |
| 034 | A 0089978682 | HOSE |
| 034 | A 0089978682 | HOSE |
| 034 | A 0089978682 | HOSE |
| N 072571002015 | CLAMP | |
| N 072571002015 | CLAMP | |
| 046 | A 1869950220 | CLAMP |
| 046 | A 1869950220 | CLAMP |
| N 007976004212 | SHEET METAL SCREW | |
| N 007976004212 | SHEET METAL SCREW | |
| A 0029880178 | CLIP | |
| HOSE LINE TO FRONT PANEL PILLAR | ||
| A 0029880178 | CLIP | |
| HOSE LINE TO FRONT PANEL PILLAR | ||
| A 1128050022 | DISTRIBUTOR | |
| Repalced by: A 1158050422 | ||
| A 1158050422 | DISTRIBUTOR | |
| Repalced by: A 1170780145 | ||
| 052 | A 1170780145 | BRANCH-OFF FITTING |
| 052 | A 1170780145 | BRANCH-OFF FITTING |
| 052 | A 1170780145 | BRANCH-OFF FITTING |
| A 1008050022 | DISTRIBUTOR | |
| Repalced by: A 1158050322 | ||
| A 1158050322 | DISTRIBUTOR | |
| Repalced by: A 1170780145 | ||
| 056 | A 1170780145 | BRANCH-OFF FITTING |
| 056 | A 1170780145 | BRANCH-OFF FITTING |
| 058 | A 1128050303 | CONNECTOR |
| Repalced by: A 1128050203 | ||
| 058 | A 1128050203 | CONNECTOR |
| 058 | A 1128050203 | CONNECTOR |
| 058 | A 1128050203 | CONNECTOR |
| 060 | A 0079976182 | HOSE |
| 060 | A 0079976182 | HOSE |
| A 1118005062 | THROTTLE | |
| Repalced by: A 1118005162 | ||
| 062 | A 1118005162 | THROTTLE |
| Repalced by: A 1118005462 | ||
| 062 | A 1118005462 | THROTTLE |
| 062 | A 1118005462 | THROTTLE |
| A 1128000178 | VALVE | |
| Repalced by: A 1168000378 | ||
| A 1158000078 | VALVE | |
| Repalced by: A 1168000378 | ||
| 066 | A 1168000378 | VALVE |
| 066 | A 1168000378 | VALVE |
| 068 | A 1118055173 | SWITCH |
| 068 | A 1118055173 | SWITCH |
| A 1118055073 | SWITCH | |
| Repalced by: A 1148050073 | ||
| A 1118055073 | SWITCH | |
| Repalced by: A 1148050073 | ||
| A 1118055073 | SWITCH | |
| Repalced by: A 1148050073 | ||
| 070 | A 1148050073 | SWITCH |
| 070 | A 1148050073 | SWITCH |
| 072 | A 1148050036 | SPRING |
| 072 | A 1148050036 | SPRING |
| N 000433021002 | WASHER | |
| N 000433021002 | WASHER | |
| 076 | A 0009973181 | GROMMET |
| 076 | A 0009973181 | GROMMET |
| 078 | A 1109971281 | GROMMET |
| 078 | A 1109971281 | GROMMET |
| 080 | A 1869970681 | GROMMET |
| 080 | A 1869970681 | GROMMET |
| 080 | A 1869970681 | GROMMET |
| 080 | A 1869970681 | GROMMET |
| A 1118065278 | HOSE | |
| Repalced by: A 0079976182 | ||
| 084 | A 0079976182 | HOSE |
| 084 | A 0079976182 | HOSE |
| 084 | A 0079976182 | HOSE |
| 084 | A 0079976182 | HOSE |
| 084 | A 0079976182 | HOSE |
| 084 | A 0079976182 | HOSE |
| 084 | A 0079976182 | HOSE |
| 084 | A 0079976182 | HOSE |
| 30 MM | ||
| 084 | A 0079976182 | HOSE |
| 084 | A 0079976182 | HOSE |
| 30 MM | ||
| 084 | A 0079976182 | HOSE |
| 084 | A 0079976182 | HOSE |
| 30 MM | ||
| 084 | A 0079976182 | HOSE |
| 084 | A 0079976182 | HOSE |
| 180 MM | ||
