Transporto priemonė: 280 SE/C USA; VIN numerio dalis: 111025
Grupė: 26 TRANSMISSION
| # | Kodas | Pavadinimas |
|---|---|---|
| A 1112601904 | TRANSMISSION | |
| WITH BELL HOUSING | ||
| A 1112602004 | TRANSMISSION | |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR AUTOMATIC TRANSMISSION, SEE SEPARATE SPARE PARTS LIST | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

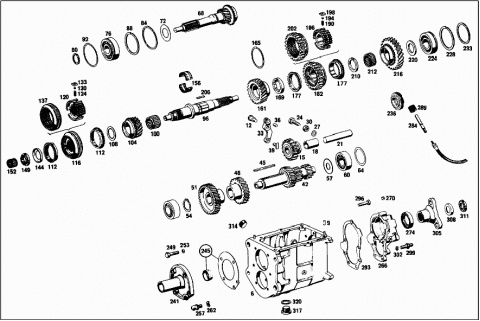

| TRANSMISSION CASE | ||
| 006 | A 1112600211 | TRANSMISSION CASE |
| Repalced by: A 1112600411 | ||
| A 1112600411 | TRANSMISSION CASE | |
| A 1112600411 | TRANSMISSION CASE | |
| 009 | N 000007006205 | CYLINDRICAL PIN |
| 012 | A 1112620074 | PIN |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| TRANSMISSION GEARS | ||
| 015 | A 1202600325 | GEAR |
| 018 | A 1202630350 | BUSHING |
| 021 | A 1862630030 | REVERSE IDLER SHAFT |
| N 000417010006 | HEADLESS SETSCREW | |
| Repalced by: A 1109900110 | ||
| 024 | A 1109900110 | SCREW |
| 027 | N 000137010201 | SPRING WASHER |
| 030 | N 000934010005 | NUT |
| 033 | A 1362600037 | LEVER |
| REVERSE SPEED | ||
| 036 | N 900037008104 | DOWEL PIN |
| 039 | A 1212630123 | COLLAR |
| REVERSE IDLER GEAR | ||
| A 1102630402 | COUNTERSHAFT | |
| Repalced by: A 1102630702 | ||
| A 1102630702 | COUNTERSHAFT | |
| 042 | A 1112630502 | COUNTERSHAFT |
| 042 | A 1112630502 | COUNTERSHAFT |
| A 1102630902 | COUNTERSHAFT | |
| A 1102630902 | COUNTERSHAFT | |
| 045 | A 1869910368 | KEY |
| 048 | A 1112630013 | GEAR |
| 38 TEETH; 3RD SPEED | ||
| 051 | A 1112630010 | GEAR |
| 43 TEETH, 4TH SPEED | ||
| 054 | N 900055035300 | LOCK RING |
| 057 | A 1869901840 | WASHER |
| 060 | A 0019817125 | BALL BEARING |
| Repalced by: A 0049814201 | ||
| 060 | A 0049814201 | CYLINDR. ROLLER BEARING |
| 064 | A 1202630852 | SPACER WASHER |
| AS REQUIRED | ||
| 1.0 MM | ||
| A 6022630252 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.1 MM | ||
| A 6022630352 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.25 MM | ||
| A 6022630452 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.5 MM | ||
| 068 | A 1112601320 | DRIVE SHAFT |
| 072 | A 1862620066 | OIL RING |
| 076 | A 0029810625 | BALL BEARING |
| 076 | A 0029810725 | BALL BEARING |
| 080 | A 1232620494 | SNAP RING |
| 084 | A 1862620451 | SPACER RING |
| 088 | A 1369940635 | SNAP RING |
| AS REQUIRED | ||
| 1.9 MM | ||
| A 1369940935 | SNAP RING | |
| AS REQUIRED | ||
| 2.00 MM | ||
| A 1369940735 | SNAP RING | |
| Repalced by: A 1369940935 | ||
| A 1369940935 | SNAP RING | |
| AS REQUIRED | ||
| 2.05 MM | ||
| A 1159942235 | SNAP RING | |
| AS REQUIRED | ||
| 2.1 MM | ||
| 092 | A 1362620652 | SPACER WASHER |
| AS REQUIRED | ||
| 0.1 MM | ||
| A 1362620752 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.2 MM | ||
| A 1362620852 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.3 MM | ||
| 096 | A 1802620105 | MAIN SHAFT |
| 100 | A 0019816810 | NEEDLE BEARING |
| 3RD SPEED GEAR | ||
| 104 | A 1112600344 | GEAR |
| WITH SYNCHRONIZING CONE 31 TEETH | ||
| 104 | A 1112600344 | GEAR |
| WITH SYNCHRONIZING CONE 31 TEETH | ||
| A 1112600444 | GEAR | |
| WITH SYNCHRONIZING CONE 31 TEETH | ||
| 108 | A 1202622362 | THRUST WASHER |
| 3RD SPEED GEAR | ||
| 112 | A 1132620034 | SYNCHRONIZER RING |
| 3RD AND 4TH SPEED | ||
| 116 | A 1112600845 | SYNCHRONIZER BODY |
| 3RD AND 4TH SPEED | ||
| 116 | A 1112600845 | SYNCHRONIZER BODY |
| 3RD AND 4TH SPEED | ||
| A 1112601045 | SYNCHRONIZER BODY | |
| 3RD AND 4TH SPEED | ||
| 120 | A 1112620435 | SYNCHRONIZER BODY |
| 3RD AND 4TH SPEED | ||
| 120 | A 1112620435 | SYNCHRONIZER BODY |
| 3RD AND 4TH SPEED | ||
| A 1112620735 | SYNCHRONIZER BODY | |
| 3RD AND 4TH SPEED | ||
| 124 | A 1809934101 | SPRING |
| 130 | N 005401306500 | BALL |
| 133 | A 1212620040 | FOLLOWER |
| 137 | A 1112620423 | SLIDING COLLAR |
| 3RD AND 4TH SPEED | ||
| 137 | A 1112620423 | SLIDING COLLAR |
| 3RD AND 4TH SPEED | ||
| A 1112620723 | SLIDING COLLAR | |
| 3RD AND 4TH SPEED | ||
| 144 | A 1209940115 | LOCK |
| AS REQUIRED | ||
| 3.8 MM | ||
| 149 | A 1202620326 | GROOVED NUT |
| 152 | A 0009816312 | ROLLER ASSEMBLY |
| Repalced by: A 0029813412 | ||
| 152 | A 0029813412 | ROLLER ASSEMBLY |
| 156 | A 1209810312 | ROLLER ASSEMBLY |
| SPLIT | ||
| 161 | A 1102600119 | GEAR |
| 35 TEETH | ||
| A 1102600219 | GEAR | |
| 35 TEETH | ||
| 165 | N 005417065000 | SNAP RING |
| 169 | A 1202621662 | THRUST WASHER |
| AS REQUIRED | ||
| 7.9 MM | ||
| A 1202621962 | THRUST WASHER | |
| AS REQUIRED | ||
| 8.0 MM | ||
| A 1202622062 | THRUST WASHER | |
| AS REQUIRED | ||
| 8.10 MM | ||
| 177 | A 1132620034 | SYNCHRONIZER RING |
| 1ST AND 2ND SPEED | ||
| 182 | A 1112600945 | SYNCHRONIZER BODY |
| 1ST AND 2ND SPEED | ||
| 186 | A 1112620635 | SYNCHRONIZER BODY |
| 190 | A 1809934101 | SPRING |
| 194 | N 005401306500 | BALL |
| 198 | A 1212620040 | FOLLOWER |
| 202 | A 1112620623 | SLIDING COLLAR |
| 206 | A 1202620081 | KEY |
| 210 | A 1202621162 | THRUST WASHER |
| AS REQUIRED | ||
| 4.40 MM | ||
| A 1202621362 | THRUST WASHER | |
| AS REQUIRED | ||
| 4.50 MM | ||
| A 1202621562 | THRUST WASHER | |
| AS REQUIRED | ||
| 4.60 MM | ||
| 212 | A 0019816910 | NEEDLE BEARING |
| 1ST SPEED GEAR | ||
| A 1132620111 | GEAR | |
| 1ST SPEED | ||
| 216 | A 1102600019 | GEAR |
| 1ST SPEED | ||
| 216 | A 1102600019 | GEAR |
| 1ST SPEED | ||
| N 005417065000 | SNAP RING | |
| 220 | A 1862620162 | THRUST WASHER |
| AS REQUIRED | ||
| 3.80 MM | ||
| A 1862620262 | THRUST WASHER | |
| AS REQUIRED | ||
| 3.90 MM | ||
| A 1862620362 | THRUST WASHER | |
| AS REQUIRED | ||
| 4.00 MM | ||
| A 1862620462 | THRUST WASHER | |
| AS REQUIRED | ||
| 4.10 MM | ||
| A 1862620562 | THRUST WASHER | |
| AS REQUIRED | ||
| 4.20 MM | ||
| A 1862620662 | THRUST WASHER | |
| AS REQUIRED | ||
| 4.30 MM | ||
| A 1862620762 | THRUST WASHER | |
| AS REQUIRED | ||
| 4.40 MM | ||
| A 1862620862 | THRUST WASHER | |
| AS REQUIRED | ||
| 4.50 MM | ||
| 224 | A 0029810625 | BALL BEARING |
| A 0029810725 | BALL BEARING | |
| 228 | A 0009941640 | SNAP RING |
| 233 | A 1362620452 | SPACER WASHER |
| AS REQUIRED | ||
| 0.1 MM | ||
| A 1362620552 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.2 MM | ||
| A 1362620952 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.3 MM | ||
| 236 | A 1102640030 | DRIVE GEAR |
| SPEEDOMETER DRIVE | ||
| 241 | A 1112600821 | TRANSMISSION CASE COVER |
| FRONT | ||
| A 1082600021 | TRANSMISSION CASE COVER | |
| FRONT | ||
| 245 | A 1115860126 | REPAIR KIT |
| A 1085860226 | REPAIR KIT | |
| 249 | N 000931008046 | SCREW |
| Repalced by: N 304017008018 | ||
| 249 | N 304017008018 | SCREW |
| 253 | N 000137008204 | SPRING WASHER |
| 257 | A 1119910015 | BALL PIVOT |
| RELEASE YOKE | ||
| 262 | N 000137010201 | SPRING WASHER |
| 266 | A 1112600416 | TRANSMISSION CASE COVER |
| REAR | ||
| 270 | A 1532640055 | PLUG |
| 274 | A 0009971746 | SEAL RING |
| 284 | A 1112640032 | SHAFT |
| 289 | A 1202640231 | DRIVE GEAR |
| 293 | A 1112610079 | GASKET |
| 296 | N 000931008046 | SCREW |
| Repalced by: N 304017008018 | ||
| 296 | N 304017008018 | SCREW |
| 299 | A 1109900010 | SCREW |
| 302 | N 000137008204 | SPRING WASHER |
| N 000931006021 | SCREW | |
| FLEXIBLE SHAFT TO TRANSMISSION CASE REAR COVER | ||
| N 000137006204 | SPRING WASHER | |
| FLEXIBLE SHAFT TO TRANSMISSION CASE REAR COVER | ||
| 305 | A 1112620045 | FLANGE |
| 308 | A 1862620173 | LOCK |
| 311 | A 1862620226 | GROOVED NUT |
| 314 | A 1869970032 | SCREW PLUG |
| 317 | A 1159970032 | SCREW PLUG |
| Repalced by: A 2109970132 | ||
| 317 | A 2109970132 | SCREW PLUG |
| 320 | N 007603024105 | SEAL RING |
| N 000931010236 | SCREW | |
| BELL HOUSING WITH TRANSMISSION TO INTERMEDIATE FLANGE | ||
| N 000125010504 | WASHER | |
| BELL HOUSING WITH TRANSMISSION TO INTERMEDIATE FLANGE | ||
| N 000137010201 | SPRING WASHER | |
| BELL HOUSING WITH TRANSMISSION TO INTERMEDIATE FLANGE | ||
| N 000934010005 | NUT | |
| BELL HOUSING WITH TRANSMISSION TO INTERMEDIATE FLANGE | ||
| A 1135860026 | REPAIR KIT | |
| A 1862610060 | SEAL RING | |
| A 1112610079 | GASKET | |
| A 1112610179 | GASKET | |
| A 1112610279 | GASKET | |
| A 1112610379 | GASKET | |
| A 1122610079 | GASKET | |
| A 1152740060 | SEAL RING | |
| A 0009874046 | SEALING CORD | |
| A 0009971746 | SEAL RING | |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| TRANSMISSION (SIDE SHIFT TRANSMISSION) | ||
| A 1172602701 | TRANSMISSION | |
| A 1172603401 | TRANSMISSION | |

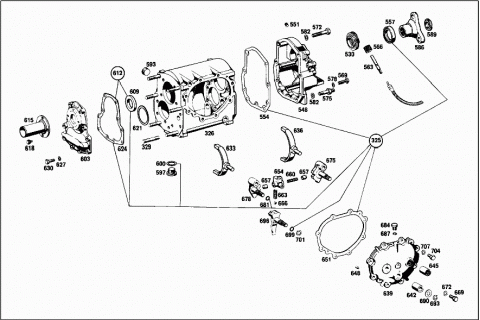

| 325 | A 1152600168 | GASKET KIT |
| 326 | A 1172601211 | TRANSMISSION CASE |
| 329 | N 000939010012 | STUD BOLT |
| 332 | A 1152631330 | REVERSE IDLER SHAFT |
| A 1172630430 | REVERSE IDLER SHAFT | |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| TRANSMISSION GEARS | ||

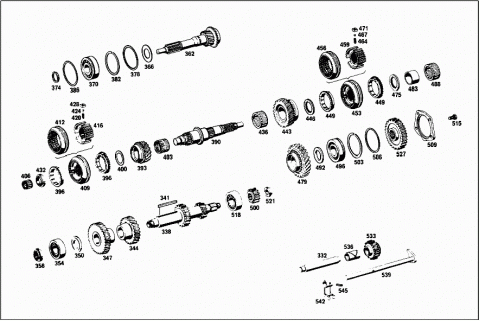

| 338 | A 1172631502 | COUNTERSHAFT |
| 341 | A 1179910768 | KEY |
| 344 | A 1172630313 | GEAR |
| 3RD SPEED | ||
| 347 | A 1172630810 | GEAR |
| 4TH SPEED | ||
| 350 | A 1152630752 | SPACER WASHER |
| 354 | A 0019817125 | BALL BEARING |
| Repalced by: A 0049814201 | ||
| 354 | A 0049814201 | CYLINDR. ROLLER BEARING |
| 358 | A 1159900851 | NUT |
| 362 | A 1172601420 | DRIVE SHAFT |
| 366 | A 1862620066 | OIL RING |
| 370 | N 000625006306 | GROOVED BALL BEARING |
| 374 | A 1232620494 | SNAP RING |
| 378 | A 1862620451 | SPACER RING |
| 382 | A 1369940635 | SNAP RING |
| AS REQUIRED | ||
| 1.9 MM | ||
| A 1369940935 | SNAP RING | |
| AS REQUIRED | ||
| 2.0 MM | ||
| A 1159942235 | SNAP RING | |
| AS REQUIRED | ||
| 2.1 MM | ||
| 386 | A 1362620652 | SPACER WASHER |
| AS REQUIRED | ||
| 0.1 MM | ||
| A 1362620752 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.2 MM | ||
| A 1362620852 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.3 MM | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| MAIN SHAFT | ||
| 390 | A 3092620905 | MAIN SHAFT |
| 393 | A 1172601144 | GEAR |
| 3RD SPEED | ||
| 396 | A 1152621634 | SYNCHRONIZER RING |
| 3RD AND 4TH SPEED | ||
| A 1152623234 | SYNCHRONIZER RING | |
| 3RD AND 4TH SPEED | ||
| 400 | A 1202622362 | THRUST WASHER |
| 403 | A 0049810710 | NEEDLE BEARING |
| 3RD SPEED | ||
| A 0029810010 | NEEDLE BEARING | |
| 3RD SPEED | ||
| A 0039810410 | NEEDLE BEARING | |
| 3RD SPEED | ||
| A 0039811210 | NEEDLE BEARING | |
| Repalced by: A 0049810710 | ||
| A 0049810710 | NEEDLE BEARING | |
| 3RD SPEED | ||
| 406 | A 0059815410 | NEEDLE BEARING |
| DRIVE SHAFT AND MAIN SHAFT | ||
| A 0029818110 | NEEDLE BEARING | |
| DRIVE SHAFT AND MAIN SHAFT | ||
| A 1152601845 | SYNCHRONIZER BODY | |
| Repalced by: A 1152604945 | ||
| 409 | A 1152604945 | SYNCHRONIZER BODY |
| 3RD AND 4TH SPEED | ||
| 412 | A 1152621823 | SLIDING COLLAR |
| 3RD AND 4TH SPEED | ||
| 416 | A 1152621235 | SYNCHRONIZER BODY |
| 3RD AND 4TH SPEED | ||
| 420 | A 1809934101 | SPRING |
| 424 | N 005401306500 | BALL |
| 428 | A 1152620140 | FOLLOWER |
| 432 | A 1159901051 | NUT |
| 436 | A 0049810810 | NEEDLE BEARING |
| 1ST SPEED | ||
| 436 | A 0039811310 | NEEDLE BEARING |
| 1ST SPEED | ||
| 436 | A 0049810810 | NEEDLE BEARING |
| 1ST SPEED | ||
| 443 | A 1172600744 | GEAR |
| 446 | A 1152620962 | THRUST WASHER |
| 4.0 MM | ||
| 449 | A 1152621534 | SYNCHRONIZER RING |
| 1ST AND 2ND SPEED | ||
| A 1152623134 | SYNCHRONIZER RING | |
| 1ST AND 2ND SPEED | ||
| A 1172601645 | SYNCHRONIZER BODY | |
| Repalced by: A 1172603345 | ||
| 453 | A 1172603345 | SYNCHRONIZER BODY |
| 1ST AND 2ND SPEED | ||
| 456 | A 1152621423 | SLIDING COLLAR |
| 1ST AND 2ND SPEED | ||
| 459 | A 1172620435 | SYNCHRONIZER BODY |
| Repalced by: A 1172603345 | ||
| 459 | A 1172603345 | SYNCHRONIZER BODY |
| 1ST AND 2ND SPEED | ||
| 464 | A 1809934101 | SPRING |
| 467 | N 005401306500 | BALL |
| 471 | A 1152620240 | FOLLOWER |
| 475 | A 1152620962 | THRUST WASHER |
| 4.0 MM | ||
| 479 | A 1172620411 | GEAR |
| Repalced by: A 1172621011 | ||
| 479 | A 1172621011 | GEAR |
| 483 | A 1172620251 | SPACER RING |
| 488 | A 0049810810 | NEEDLE BEARING |
| 1ST SPEED | ||
| A 0039811310 | NEEDLE BEARING | |
| 1ST SPEED | ||
| A 0049810810 | NEEDLE BEARING | |
| 1ST SPEED | ||
| 492 | A 1152622562 | THRUST WASHER |
| AS REQUIRED | ||
| 3.8 MM | ||
| A 1152622662 | THRUST WASHER | |
| AS REQUIRED | ||
| 3.9 MM | ||
| A 1152622762 | THRUST WASHER | |
| AS REQUIRED | ||
| 4.0 MM | ||
| A 1152622862 | THRUST WASHER | |
| AS REQUIRED | ||
| 4.1 MM | ||
| A 1152622962 | THRUST WASHER | |
| AS REQUIRED | ||
| 4.2 MM | ||
| 496 | N 000625506306 | GROOVED BALL BEARING |
| 500 | A 1152630932 | REVERSE IDLER GEAR |
| COUNTERSHAFT | ||
| 503 | A 1369940635 | SNAP RING |
| AS REQUIRED | ||
| 4.2 MM | ||
| A 1369940935 | SNAP RING | |
| 2.0 MM AS REQUIRED MAINSHAFT REAR BEARING | ||
| A 1159942235 | SNAP RING | |
| 2.1 MM AS REQUIRED MAINSHAFT REAR BEARING | ||
| 506 | A 1362620652 | SPACER WASHER |
| AS REQUIRED | ||
| 0.1 MM | ||
| A 1362620752 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.2 MM | ||
| A 1362620852 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.3 MM | ||
| 509 | A 1152622639 | RETAINING RING |
| N 000137007201 | SPRING WASHER | |
| REAR RETAINING PLATE TO TRANSMISSION CASE | ||
| 515 | A 1159900601 | SCREW |
| REAR RETAINING PLATE TO TRANSMISSION CASE | ||
| 518 | A 0019817125 | BALL BEARING |
| Repalced by: A 0049814201 | ||
| 518 | A 0049814201 | CYLINDR. ROLLER BEARING |
| 521 | A 1159900951 | NUT |
| 527 | A 1172620721 | GEAR |
| MAIN SHAFT | ||
| 530 | A 1152640730 | DRIVE GEAR |
| Repalced by: A 1152600648 | ||
| 530 | A 1152600648 | DRIVE GEAR |
| SPEEDOMETER | ||
| 533 | A 1152601025 | GEAR |
| 536 | A 1172630150 | BUSHING |
| 539 | A 1172600931 | SHIFTING ROD |
| REVERSE SPEED | ||
| 542 | A 1152650219 | FOLLOWER |
| REVERSE SPEED | ||
| 545 | N 001481006005 | CLAMPING SLEEVE |
| 548 | A 1152602216 | TRANSMISSION CASE COVER |
| 551 | A 1532640055 | PLUG |
| A 0019812185 | BALL | |
| Repalced by: A 0019813385 | ||
| A 0019813385 | BALL | |
| 554 | A 1152610279 | GASKET |
| 557 | A 0059972046 | SEAL RING |
| Repalced by: A 0059978747 | ||
| 557 | A 0059978747 | SEAL RING |
| 563 | A 1152640132 | SHAFT |
| SPEEDOMETER | ||
| 566 | A 1202640231 | DRIVE GEAR |
| SPEEDOMETER | ||
| N 000931006083 | SCREW | |
| FLEXIBLE SHAFT TO TRANSMISSION CASE REAR COVER | ||
| N 000137006204 | SPRING WASHER | |
| FLEXIBLE SHAFT TO TRANSMISSION CASE REAR COVER | ||
| 569 | N 000933007019 | SCREW |
| COVER TO TRANSMISSION CASE, REAR | ||
| 572 | N 000931010232 | SCREW |
| COVER TO TRANSMISSION CASE, REAR | ||
| N 000931010300 | SCREW | |
| COVER TO TRANSMISSION CASE, REAR | ||
| 575 | A 1159901310 | SCREW |
| COVER TO TRANSMISSION CASE, REAR | ||
| 578 | N 000125007408 | WASHER |
| Repalced by: N 006902007100 | ||
| 578 | N 006902007100 | WASHER |
| COVER TO TRANSMISSION CASE, REAR | ||
| 582 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 582 | N 000125010532 | WASHER |
| COVER TO TRANSMISSION CASE, REAR | ||
| 586 | A 1152621145 | FLANGE |
| 589 | A 1239900060 | NUT |
| 593 | A 1869970032 | SCREW PLUG |
| OIL FILLING | ||
| 597 | A 1159970032 | SCREW PLUG |
| Repalced by: A 2109970132 | ||
| 597 | A 2109970132 | SCREW PLUG |
| 600 | N 007603024105 | SEAL RING |
| 603 | A 1152601121 | TRANSMISSION CASE COVER |
| Repalced by: A 1152611618 | ||
| 603 | A 1152611618 | TRANSMISSION CASE COVER |
| Repalced by: A 6022610218 | ||
| 603 | A 6022610218 | TRANSMISSION CASE COVER |
| FRONT | ||
| 609 | A 0049973246 | SEAL RING |
| 612 | A 1152600068 | GASKET KIT |
| TRANSMISSION CASE FRONT COVER | ||
| 615 | A 1152610243 | GUIDE TUBE |
| 618 | N 914005006002 | COMBINATION BOLT |
| Repalced by: N 914005006042 | ||
| 618 | N 914005006042 | COMBINATION BOLT |
| 621 | A 6022630252 | SPACER WASHER |
| AS REQUIRED | ||
| 0.1 MM | ||
| A 6022630352 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.25 MM | ||
| A 6022630452 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.5 MM | ||
| 624 | A 1152610079 | GASKET |
| 627 | N 000125007408 | WASHER |
| Repalced by: N 006902007100 | ||
| 627 | N 006902007100 | WASHER |
| 630 | N 000933007032 | SCREW |
| 633 | A 6022650102 | SHIFTING FORK |
| 3RD AND 4TH SPEED | ||
| 636 | A 3092650201 | SHIFTING FORK |
| 1ST AND 2ND SPEED | ||
| 639 | A 1172600813 | TRANSMISSION CASE COVER |
| Repalced by: A 1172603113 | ||
| 639 | A 1172603113 | TRANSMISSION CASE COVER |
| 642 | A 1152620450 | BUSHING |
| Repalced by: A 1152620550 | ||
| 642 | A 1152620550 | BUSHING |
| 645 | A 0149816710 | NEEDLE BEARING |
| Repalced by: A 0109816010 | ||
| 645 | A 0109816010 | NEEDLE BEARING |
| A 0099978248 | SEAL RING | |
| 648 | N 000007006203 | CYLINDRICAL PIN |
| 651 | A 1172610079 | GASKET |
| A 1152610080 | GASKET | |
| 654 | A 1172600973 | DETENT |
| 657 | A 1172650474 | PIN |
| 660 | A 1159933304 | SPRING |
| 663 | A 1159936102 | SPRING |
| 666 | N 005401999008 | BALL |
| 669 | N 000933008114 | SCREW |
| Repalced by: N 304017008021 | ||
| 669 | N 304017008021 | SCREW |
| 672 | N 000125008418 | WASHER |
| 675 | A 1152601973 | DETENT |
| 1ST AND 2ND SPEED | ||
| 678 | A 1152602073 | DETENT |
| Repalced by: A 1152603873 | ||
| 678 | A 1152603873 | DETENT |
| 3RD AND 4TH SPEED | ||
| 681 | A 0079970348 | SEAL RING |
| 684 | A 1152610066 | BREATHER |
| 687 | N 009045012000 | SNAP RING |
| 690 | A 1159901640 | WASHER |
| 693 | N 006799010001 | LOCK PLATE |
| 696 | A 1172600638 | SHAFT |
| Repalced by: A 1152601238 | ||
| 696 | A 1152601238 | SHAFT |
| REVERSE SPEED | ||
| 699 | A 0079970348 | SEAL RING |
| 701 | N 006799010001 | LOCK PLATE |
| 704 | N 000933007027 | SCREW |
| 707 | N 000125007408 | WASHER |
| Repalced by: N 006902007100 | ||
| 707 | N 006902007100 | WASHER |
| X XXXXXXXXXXXX | PART NAME MISSING | |

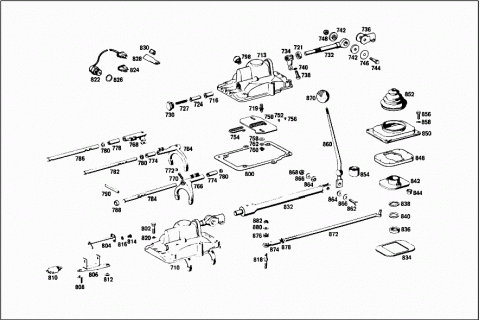

| FLOOR SHIFT USED WITH MECHANICAL TRANSMISSION | ||
| 710 | A 1112603414 | TRANSMISSION CASE COVER |
| TOP | ||
| 713 | A 1982600914 | TRANSMISSION CASE COVER |
| TOP | ||
| 716 | A 1539920005 | BUSHING |
| 719 | A 1362650247 | INTERLOCK PLUG |
| 721 | N 006503014100 | SEAL RING |
| 724 | A 1362650048 | INTERLOCK PIN |
| 727 | A 1362650093 | PRESSURE SPRING |
| 730 | A 1369970830 | SCREW PLUG |
| 732 | A 1112600038 | SHAFT |
| 734 | A 1982680033 | SHIFTING FINGER |
| 736 | A 1982680523 | YOKE |
| 738 | A 1209901320 | SCREW |
| 740 | N 000127007201 | LOCK WASHER |
| 742 | A 1112670083 | SEAL |
| 744 | A 1112670074 | PIN |
| 746 | A 1119903240 | WASHER |
| AS REQUIRED | ||
| 0.2 MM | ||
| A 1119903340 | WASHER | |
| AS REQUIRED | ||
| 0.3 MM | ||
| 748 | A 0019900151 | NUT |
| 750 | A 1982600028 | GUIDE PLATE |
| 752 | A 1362650074 | PIN |
| 754 | A 1362650293 | PRESSURE SPRING |
| 756 | N 000660004002 | RIVET |
| 758 | A 1369908240 | WASHER |
| 760 | A 1362650272 | NUT |
| 8 MM | ||
| 762 | N 900055008000 | SPRING WASHER |
| 764 | A 1862650001 | SHIFTING FORK |
| 1ST AND 2ND SPEED | ||
| A 1862650701 | SHIFTING FORK | |
| 1ST AND 2ND SPEED | ||
| 766 | A 3092650102 | SHIFTING FORK |
| 3RD AND 4TH SPEED | ||
| 768 | A 1802650107 | LEVER |
| REVERSE SPEED | ||
| 770 | A 1869931301 | SPRING |
| 772 | N 005401308000 | BALL |
| 774 | A 1362650053 | SPACER TUBE |
| 778 | A 1362650153 | SPACER TUBE |
| 780 | A 1119903440 | WASHER |
| AS REQUIRED | ||
| 0.3 MM | ||
| A 1119900940 | WASHER | |
| AS REQUIRED | ||
| 0.5 MM | ||
| A 1119900840 | WASHER | |
| AS REQUIRED | ||
| 1.0 MM | ||
| 782 | A 1362650404 | SHIFTING ROD |
| 1ST AND 2ND SPEED | ||
| 784 | A 1362650504 | SHIFTING ROD |
| 3RD AND 4TH SPEED | ||
| 786 | A 1362650204 | SHIFTING ROD |
| REVERSE SPEED | ||
| 788 | A 1842650053 | SPACER TUBE |
| 790 | A 1362650081 | KEY |
| 798 | A 1112600058 | BREATHER |
| 800 | A 1112610179 | GASKET |
| 802 | N 000931008171 | SCREW |
| TRANSMISSION CASE TOP COVER TO TRANSMISSION CASE | ||
| N 000931008327 | SCREW | |
| Repalced by: N 304017008043 | ||
| N 304017008043 | SCREW | |
| TRANSMISSION CASE TOP COVER TO TRANSMISSION CASE | ||
| 804 | A 1135400084 | LEVER |
| 806 | A 1135400673 | BRACKET |
| 808 | A 1135450053 | SPACER TUBE |
| 810 | A 0005458411 | SWITCH |
| Repalced by: A 0045450414 | ||
| 810 | A 0045450414 | SWITCH |
| Repalced by: A 0045451814 | ||
| 810 | A 0045451814 | SWITCH |
| 812 | A 1539900640 | WASHER |
| 814 | N 000084005402 | SCREW |
| 816 | N 006797005231 | TOOTHED WASHER |
| 818 | A 1112681074 | PIN |
| TRANSMISSION CASE TOP COVER TO TRANSMISSION CASE | ||
| 820 | N 000137008204 | SPRING WASHER |
| TRANSMISSION CASE TOP COVER TO TRANSMISSION CASE | ||
| 822 | A 0005451206 | SWITCH |
| 824 | A 0005452428 | PLUG |
| DOUBLE | ||
| 826 | N 007603018104 | SEAL RING |
| 828 | A 1115460143 | BRACKET |
| 830 | A 0009881678 | CLIP |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| SHIFT LEVER | ||
| 832 | A 1112603182 | SHIFTING TUBE |
| 834 | A 1112680934 | BEARING COVER |
| BOTTOM | ||
| 836 | A 1112670086 | RUBBER RING |
| 838 | A 1989900048 | WASHER |
| 840 | A 0009947041 | LOCK |
| 842 | A 1112600595 | BEARING |
| 844 | A 1119920310 | BUSHING |
| A 1112681150 | BUSHING | |
| 848 | A 1112680834 | BEARING COVER |
| TOP | ||
| 850 | A 1112680398 | COVER PLATE |
| 852 | A 1112680497 | BOOT |
| TOP | ||
| 854 | A 1112680797 | BOOT |
| BOTTOM | ||
| 856 | N 000933006130 | SCREW |
| 858 | N 000137006204 | SPRING WASHER |
| N 000125007408 | WASHER | |
| Repalced by: N 006902007100 | ||
| N 006902007100 | WASHER | |
| N 000931008172 | SCREW | |
| YOKE TO SHIFTING TUBE | ||
| N 000127008203 | LOCK WASHER | |
| YOKE TO SHIFTING TUBE | ||
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
| YOKE TO SHIFTING TUBE | ||
| 860 | A 1112680324 | SHIFT LEVER |
| 862 | A 1119901001 | SCREW |
| 864 | A 1982680150 | BUSHING |
| 866 | A 1119903540 | WASHER |
| 868 | A 0019900151 | NUT |
| 870 | A 1112680942 | KNOB |
| 872 | A 1082600189 | PULL ROD |
| 874 | A 1112600453 | END PIECE |
| 876 | A 1119920410 | BUSHING |
| A 1119920510 | BUSHING | |
| 878 | N 070616010004 | NUT |
| 880 | N 000125007408 | WASHER |
| Repalced by: N 006902007100 | ||
| 880 | N 006902007100 | WASHER |
| THRUST ROD TO TRANSMISSION CASE COVER AND TO GEARSHIFT LEVER SUPPORT | ||
| A 1119903740 | WASHER | |
| THRUST ROD TO TRANSMISSION CASE COVER AND TO GEARSHIFT LEVER SUPPORT | ||
| N 000985006000 | NUT | |
| THRUST ROD TO TRANSMISSION CASE COVER AND TO GEARSHIFT LEVER SUPPORT | ||
| 882 | A 0019900151 | NUT |
| THRUST ROD TO TRANSMISSION CASE COVER AND TO GEARSHIFT LEVER SUPPORT | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

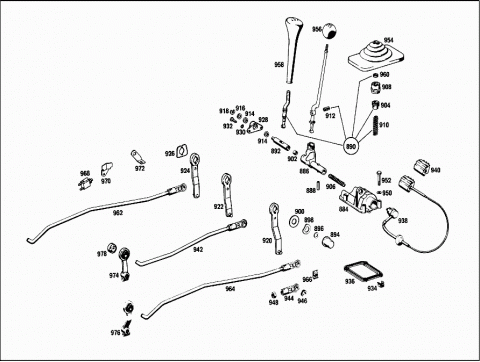

| FLOOR SHIFT USED WITH MECHANICAL TRANSMISSION | ||
| 884 | A 1152671405 | BEARING |
| Repalced by: A 1152673605 | ||
| 884 | A 1152673605 | BEARING |
| 886 | A 1152606382 | SHIFTING TUBE |
| Repalced by: A 1152607282 | ||
| A 1152607282 | SHIFTING TUBE | |
| 888 | A 1159910301 | PIN |
| A 1152670701 | SHIFT LEVER | |
| Repalced by: A 1232602239 | ||
| A 1152600539 | SHIFT LEVER | |
| Repalced by: A 1232602239 | ||
| 890 | A 1232602239 | SHIFT LEVER |
| RANGE OF DELIVERY | ||
| 892 | A 1152680439 | GUIDE PIVOT |
| 894 | A 1152670750 | BUSHING |
| 896 | A 1159902640 | WASHER |
| 898 | N 900055018001 | SPRING WASHER |
| 900 | A 1232670252 | SPACER WASHER |
| 902 | A 1152671050 | BUSHING |
| 904 | A 1152680550 | BUSHING |
| A 1152680950 | BUSHING | |
| 906 | A 1829930801 | SPRING |
| 908 | A 1152680257 | COVER |
| Repalced by: A 1152670114 | ||
| 908 | A 1152670114 | CAP |
| 910 | A 1159939902 | SPRING |
| 912 | N 007346005000 | CLAMPING SLEEVE |
| Repalced by: N 001481005017 | ||
| 912 | N 001481005017 | CLAMPING SLEEVE |
| A 1159920225 | SLEEVE | |
| 914 | A 1119971240 | SEAL RING |
| 916 | A 1869906940 | WASHER |
| 918 | A 1862680273 | LOCK |
| A 1152608337 | LEVER | |
| Repalced by: A 1152609537 | ||
| A 1152609537 | LEVER | |
| Repalced by: A 1152601939 | ||
| A 1152601939 | SHIFT LEVER | |
| Repalced by: A 1152603839 | ||
| A 1152603839 | SHIFT LEVER | |
| Repalced by: A 1152604139 | ||
| 920 | A 1152604139 | SHIFT LEVER |
| REVERSE SPEED | ||
| A 1152608437 | LEVER | |
| Repalced by: A 1152609637 | ||
| A 1152609637 | LEVER | |
| Repalced by: A 1152601739 | ||
| A 1152601739 | SHIFT LEVER | |
| Repalced by: A 1152603639 | ||
| A 1152603639 | SHIFT LEVER | |
| Repalced by: A 1152604339 | ||
| 922 | A 1152604339 | SHIFT LEVER |
| 1ST AND 2ND SPEED | ||
| A 1152608537 | LEVER | |
| Repalced by: A 1152609737 | ||
| A 1152609737 | LEVER | |
| Repalced by: A 1152601839 | ||
| A 1152601839 | SHIFT LEVER | |
| Repalced by: A 1152603739 | ||
| A 1152603739 | SHIFT LEVER | |
| Repalced by: A 1152604239 | ||
| 924 | A 1152604239 | SHIFT LEVER |
| 3RD AND 4TH SPEED | ||
| 926 | A 1152670676 | WASHER |
| 928 | A 1152670805 | BEARING |
| Repalced by: A 1152600376 | ||
| 928 | A 1152600376 | GUIDE |
| 930 | N 000137006204 | SPRING WASHER |
| BEARING COVER TO BEARING BRACKET | ||
| 932 | N 000933006130 | SCREW |
| BEARING COVER TO BEARING BRACKET | ||
| 934 | A 0009902791 | NUT RETAINER |
| Repalced by: A 0009902291 | ||
| 934 | A 0009902291 | NUT RETAINER |
| BEARING BRACKET TO TUNNEL | ||
| A 0009908191 | NUT RETAINER | |
| Repalced by: A 0009902291 | ||
| A 0009902291 | NUT RETAINER | |
| 936 | A 1152670380 | GASKET |
| 938 | A 0005453006 | SWITCH |
| Repalced by: A 0005452406 | ||
| 938 | A 0005452406 | SWITCH |
| BACK-UP LIGHT | ||
| A 0035457128 | PLUG | |
| Repalced by: A 0065457828 | ||
| 940 | A 0065457828 | PLUG HOUSING |
| QUADRUPLE | ||
| 942 | A 1112607233 | SHIFTING ROD |
| Repalced by: A 1162600333 | ||
| 942 | A 1162600333 | SHIFTING ROD |
| 1ST AND 2ND SPEED | ||
| 944 | A 1152600353 | END PIECE |
| 946 | A 1159920110 | BUSHING |
| Repalced by: A 2109920010 | ||
| 946 | A 2109920010 | BUSHING |
| 948 | N 070616010004 | NUT |
| 950 | N 000125006421 | WASHER |
| 952 | N 000931006137 | SCREW |
| 954 | A 1152670197 | BOOT |
| A 1152670497 | BOOT | |
| Repalced by: A 1232670097 | ||
| A 1232670097 | BOOT | |
| 956 | A 1112680942 | KNOB |
| 958 | A 1262670410 | HANDLE |
| 960 | N 070616010003 | NUT |
| 962 | A 1112607333 | SHIFTING ROD |
| 3RD AND 4TH SPEED | ||
| A 1152600353 | END PIECE | |
| A 1159920110 | BUSHING | |
| Repalced by: A 2109920010 | ||
| A 2109920010 | BUSHING | |
| N 070616010004 | NUT | |
| 964 | A 1112607433 | SHIFTING ROD |
| REVERSE SPEED | ||
| A 1152600353 | END PIECE | |
| A 1159920110 | BUSHING | |
| Repalced by: A 2109920010 | ||
| A 2109920010 | BUSHING | |
| N 070616010004 | NUT | |
| 966 | A 0009942960 | LOCK |
| 9 MM SHIFTING ROD TO INTERMEDIATE LEVER, AND LEVER TO TRANSMISSION | ||
| 968 | A 0005458411 | SWITCH |
| Repalced by: A 0045450414 | ||
| 968 | A 0045450414 | SWITCH |
| Repalced by: A 0045451814 | ||
| 968 | A 0045451814 | SWITCH |
| 970 | A 1152670638 | THRUST PIECE |
| 972 | A 1152670440 | BRACKET |
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| N 000934006007 | NUT | |
| 974 | A 1152607537 | LEVER |
| Repalced by: A 1152682530 | ||
| 974 | A 1152682530 | SHIFT LEVER |
| 1ST THRU 4TH SPEED | ||
| 976 | A 1152607737 | LEVER |
| REVERSE SPEED | ||
| 978 | A 0009920510 | BUSHING |
| N 000933006089 | SCREW | |
| SHIFT LEVER TO TRANSMISSION | ||
| N 912004006102 | LOCK WASHER | |
| SHIFT LEVER TO TRANSMISSION | ||
| N 000934006007 | NUT | |
| SHIFT LEVER TO TRANSMISSION | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
