Transporto priemonė: 280 SL; VIN numerio dalis: 113044

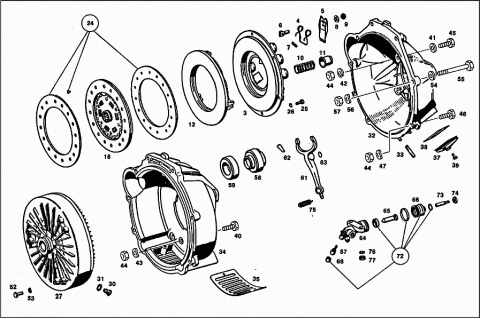

Grupė: 25 CLUTCH
| # | Kodas | Pavadinimas |
|---|---|---|
| 003 | A 0002502704 | CLUTCH PRESSURE PLATE |
| Repalced by: A 0002509604 | ||
| 003 | A 0002506804 | CLUTCH PRESSURE PLATE |
| Repalced by: A 0002506904 | ||
| 003 | A 0002509604 | CLUTCH PRESSURE PLATE |
| A 0012504204 | CLUTCH PRESSURE PLATE | |
| Repalced by: A 0032509104 | ||
| A 0032509104 | CLUTCH PRESSURE PLATE | |
| 004 | A 0002520427 | SPRING |
| 005 | A 0002521513 | RELEASE LEVER |
| Repalced by: A 0002524213 | ||
| 005 | A 0002524213 | RELEASE LEVER |
| 006 | A 0002520374 | PIN |
| 007 | N 001481006002 | CLAMPING SLEEVE |
| 008 | A 0002520151 | SPACER RING |
| 009 | A 0002521472 | NUT |
| Repalced by: A 0002522772 | ||
| 009 | A 0002522772 | NUT |
| 010 | A 0002521820 | PRESSURE SPRING |
| 011 | A 0002520335 | SLEEVE |
| 012 | A 0002521806 | CLUTCH PRESSURE PLATE |
| Repalced by: A 0002522106 | ||
| 012 | A 0002522106 | CLUTCH PRESSURE PLATE |
| 016 | A 0002508703 | CLUTCH DISC |
| Repalced by: A 0012501103 | ||
| 016 | A 0002505503 | CLUTCH DISC |
| Repalced by: A 0012501103 | ||
| 016 | A 0002507203 | CLUTCH DISC |
| Repalced by: A 0012501103 | ||
| 016 | A 0012501103 | CLUTCH DISC |
| Repalced by: A 0042501703 | ||
| 016 | A 0042501703 | CLUTCH DISC |
| 016 | A 0102502603 | CLUTCH DISC |
| A 0002521610 | CLUTCH LINING | |
| A 0002521910 | CLUTCH LINING | |
| Repalced by: A 1085860025 | ||
| A 1085860025 | REPAIR KIT | |
| ON CLUTCH END | ||
| A 1085860025 | REPAIR KIT | |
| ON CLUTCH END | ||
| A 0002527110 | CLUTCH LINING | |
| A 0002522110 | CLUTCH LINING | |
| ON FLYWHEEL END | ||
| A 0002522110 | CLUTCH LINING | |
| ON FLYWHEEL END | ||
| A 0002526210 | CLUTCH LINING | |
| A 0002520375 | RIVET | |
| Repalced by: A 0002521275 | ||
| A 0002521275 | RIVET | |
| Repalced by: A 0002524375 | ||
| A 0002524375 | RIVET | |
| A 0002521075 | RIVET | |
| A 0002521075 | RIVET | |
| 024 | A 1085860025 | REPAIR KIT |
| 024 | A 1085860025 | REPAIR KIT |
| 024 | A 1145860025 | REPAIR KIT |
| 025 | N 000933008036 | SCREW |
| Repalced by: N 000933008147 | ||
| 025 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 025 | N 304017008021 | SCREW |
| CLUTCH PRESSURE PLATE TO FLYWHEEL | ||
| 025 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 025 | N 304017008034 | SCREW |
| CLUTCH PRESSURE PLATE TO FLYWHEEL | ||
| 026 | N 000127008200 | LOCK WASHER |
| Repalced by: N 912004008102 | ||
| 026 | N 912004008102 | LOCK WASHER |
| CLUTCH PRESSURE PLATE TO FLYWHEEL | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| HYDRAULIC CLUTCH USED WITH DB AUTOMATIC TRANSMISSION (SPECIAL VERSION) | ||
| 027 | A 1112501502 | HYDRAULIC CLUTCH |
| 027 | A 1112501502 | HYDRAULIC CLUTCH |
| 027 | A 1302500902 | HYDRAULIC CLUTCH |
| 027 | A 1112500902 | HYDRAULIC CLUTCH |
| Repalced by: A 1112501602 | ||
| 027 | A 1112501602 | HYDRAULIC CLUTCH |
| 030 | A 1809970530 | SCREW PLUG |
| 031 | N 007603012104 | SEAL RING |
| N 007603010100 | SEAL RING | |
| 032 | A 1112500505 | HOUSING |
| Repalced by: A 1112502005 | ||
| 032 | A 1112501605 | HOUSING |
| Repalced by: A 1112502005 | ||
| 032 | A 1112502005 | HOUSING |
| 032 | A 1112502005 | HOUSING |
| A 1119910120 | BALL PIVOT | |
| 033 | N 000835008062 | STUD |
| 034 | A 1112501305 | HOUSING |
| Repalced by: A 1112502205 | ||
| 034 | A 1112502205 | HOUSING |
| 035 | A 1122570390 | COVER PLATE |
| Repalced by: A 1122500590 | ||
| 035 | A 1122570590 | COVER PLATE |
| N 000933006026 | SCREW | |
| Repalced by: N 000933006102 | ||
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| COVER PLATE TO BELL HOUSING | ||
| N 000137006203 | SPRING WASHER | |
| Repalced by: N 000137006204 | ||
| N 000137006204 | SPRING WASHER | |
| COVER PLATE TO BELL HOUSING | ||
| 037 | A 1202540097 | BOOT |
| 038 | A 1202540058 | SEAL HOLDER |
| 039 | N 000933006016 | SCREW |
| Repalced by: N 000933006103 | ||
| 039 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 039 | N 304017006018 | SCREW |
| 040 | N 000931012132 | SCREW |
| BELL HOUSING TO TRANSMISSION CASE | ||
| 040 | N 000931012132 | SCREW |
| BELL HOUSING TO TRANSMISSION CASE | ||
| 040 | N 000933012050 | SCREW |
| Repalced by: N 304017012002 | ||
| 040 | N 304017012002 | SCREW |
| BELL HOUSING TO TRANSMISSION CASE | ||
| 041 | N 000125013003 | WASHER |
| Repalced by: N 000125013008 | ||
| 041 | N 000125013008 | WASHER |
| BELL HOUSING TO TRANSMISSION CASE | ||
| 041 | N 000125013008 | WASHER |
| BELL HOUSING TO TRANSMISSION CASE | ||
| 042 | N 000127012201 | LOCK WASHER |
| Repalced by: N 912004012100 | ||
| 042 | N 912004012100 | LOCK WASHER |
| BELL HOUSING TO TRANSMISSION CASE | ||
| 043 | N 000137012200 | SPRING WASHER |
| Repalced by: N 000137012203 | ||
| 043 | N 000137012203 | SPRING WASHER |
| Repalced by: N 000137012206 | ||
| 043 | N 000137012206 | SPRING WASHER |
| BELL HOUSING TO TRANSMISSION CASE | ||
| 044 | N 000934012008 | NUT |
| Repalced by: N 000934012021 | ||
| 044 | N 000934012021 | NUT |
| BELL HOUSING TO TRANSMISSION CASE | ||
| 044 | N 000934012021 | NUT |
| BELL HOUSING TO TRANSMISSION CASE | ||
| 044 | N 000934012021 | NUT |
| 044 | N 000934012021 | NUT |
| BELL HOUSING TO TRANSMISSION CASE | ||
| 044 | N 000934012021 | NUT |
| BELL HOUSING TO TRANSMISSION CASE | ||
| 045 | N 000933012071 | SCREW |
| BELL HOUSING TO TRANSMISSION CASE | ||
| 046 | N 000933008114 | SCREW |
| Repalced by: N 000933008154 | ||
| 046 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 046 | N 304017008021 | SCREW |
| BELL HOUSING TO TRANSMISSION CASE | ||
| 047 | N 000137008202 | SPRING WASHER |
| Repalced by: N 000137008204 | ||
| 047 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 047 | N 000137008212 | SPRING WASHER |
| BELL HOUSING TO TRANSMISSION CASE | ||
| 052 | N 000933008031 | SCREW |
| Repalced by: A 1249902201 | ||
| 052 | A 1249902201 | SCREW |
| M 8X18 | ||
| 052 | N 000933008325 | SCREW |
| Repalced by: A 1249902101 | ||
| 052 | A 1249902101 | SCREW |
| 053 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 053 | N 000137008212 | SPRING WASHER |
| 054 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 054 | N 000125010532 | WASHER |
| BELL HOUSING WITH TRANSMISSION TO INTERMEDIATE FLANGE | ||
| 055 | N 000931010268 | SCREW |
| Repalced by: N 304017010050 | ||
| 055 | N 304017010050 | SCREW |
| BELL HOUSING WITH TRANSMISSION TO INTERMEDIATE FLANGE | ||
| 056 | N 000137010201 | SPRING WASHER |
| BELL HOUSING WITH TRANSMISSION TO INTERMEDIATE FLANGE | ||
| 057 | N 000934010014 | NUT |
| BELL HOUSING WITH TRANSMISSION TO INTERMEDIATE FLANGE | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| RELEASE PARTS | ||
| 058 | A 1282500015 | RELEASE BEARING |
| Repalced by: A 1112500115 | ||
| 058 | A 1112500115 | RELEASE BEARING |
| WITH RELEASE BODY | ||
| 058 | A 1112500215 | RELEASE BEARING |
| 059 | A 1272540120 | RELEASE BEARING |
| 059 | A 0009814325 | BALL BEARING |
| 059 | A 0009814325 | BALL BEARING |
| 059 | A 0019815225 | BALL BEARING |
| 059 | A 0019815225 | BALL BEARING |
| A 0002500515 | RELEASE BEARING | |
| 061 | A 1112930211 | RELEASE YOKE |
| 062 | A 1209930125 | SPRING |
| Repalced by: A 3199930025 | ||
| 062 | A 3199930025 | SPRING |
| RELEASE YOKE TO RELEASE BEARING | ||
| 063 | N 071805016301 | SNAP RING |
| RELEASE YOKE TO BEARING BRACKET | ||
| 064 | A 0002950807 | SLAVE CYLINDER |
| Repalced by: A 0002951907 | ||
| 064 | A 0002951607 | SLAVE CYLINDER |
| Repalced by: A 0002951907 | ||
| 064 | A 0002951907 | SLAVE CYLINDER |
| 065 | A 0002950374 | PIN |
| 066 | A 0002950583 | BOOT |
| 066 | A 0002950583 | BOOT |
| 066 | A 0002951683 | BOOT |
| 067 | A 0002950120 | VALVE |
| Repalced by: A 0004201055 | ||
| 067 | A 0004201055 | BLEEDER VALVE |
| 068 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 068 | A 0004210887 | PROTECTIVE CAP |
| A 0002954207 | SLAVE CYLINDER | |
| A 0002951683 | BOOT | |
| A 0002950473 | LOCK | |
| Repalced by: A 0005862029 | ||
| A 0005862029 | REPAIR KIT | |
| A 0002950573 | LOCK | |
| A 0004201055 | BLEEDER VALVE | |
| A 0004217187 | PROTECTIVE CAP | |
| Repalced by: A 0004210887 | ||
| A 0004210887 | PROTECTIVE CAP | |
| 072 | A 0005860929 | REPAIR KIT |
| 072 | A 0005860929 | REPAIR KIT |
| 072 | A 0005861329 | REPAIR KIT |
| A 0005862029 | REPAIR KIT | |
| 073 | A 1112950733 | ROD |
| 074 | N 000439008201 | NUT |
| Repalced by: N 000439008211 | ||
| 074 | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 074 | N 304035008001 | NUT |
| 075 | A 1119931010 | SPRING |
| Repalced by: A 1119931110 | ||
| 075 | A 1119931110 | SPRING |
| 076 | N 000127008203 | LOCK WASHER |
| Repalced by: N 912004008102 | ||
| 076 | N 912004008102 | LOCK WASHER |
| 077 | N 000934008008 | NUT |
| Repalced by: N 304032008006 | ||
| 077 | N 304032008006 | NUT |
| 077 | N 000934008013 | NUT |
