Transporto priemonė: 280 SL; VIN numerio dalis: 113044
Grupė: 30 CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |

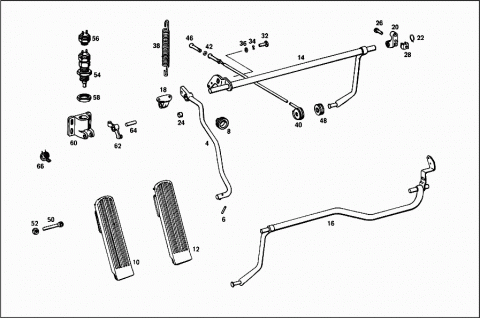

| ACCELERATOR PEDAL ASSEMBLY | ||
| 004 | A 1133000004 | ACCELERATOR PEDAL |
| 004 | A 1133000204 | ACCELERATOR PEDAL |
| A 1133000104 | ACCELERATOR PEDAL | |
| 006 | A 1109970010 | PIN |
| 008 | A 1839970081 | GROMMET |
| 010 | A 1113010002 | PEDAL PLATE |
| Repalced by: A 1103010002 | ||
| 010 | A 1103010002 | PEDAL PLATE |
| Repalced by: A 1103010102 | ||
| 010 | A 1103010102 | PEDAL PLATE |
| Repalced by: A 1103000002 | ||
| 010 | A 1103000002 | PLATE |
| 012 | A 1103000002 | PLATE |
| 014 | A 1133000020 | SHAFT |
| Repalced by: A 1133000520 | ||
| 014 | A 1133000520 | SHAFT |
| 016 | A 1133000120 | SHAFT |
| Repalced by: A 1133000420 | ||
| 016 | A 1133000420 | SHAFT |
| 018 | A 1213010118 | BEARING |
| Repalced by: A 1213010018 | ||
| 018 | A 1213010018 | BEARING |
| LEFT CONTROL SHAFT | ||
| 020 | A 1103010018 | BEARING |
| RIGHT CONTROL SHAFT | ||
| 020 | A 1863010318 | BEARING |
| RIGHT CONTROL SHAFT | ||
| 022 | N 900055012401 | RETAINING RING |
| Repalced by: N 000471012001 | ||
| 022 | N 000471012001 | LOCK RING |
| 022 | N 900055012402 | RETAINING RING |
| CONTROL SHAFT | ||
| 024 | A 1083010053 | SPACER TUBE |
| CONTROL SHAFT | ||
| 024 | A 1083010053 | SPACER TUBE |
| 026 | N 007985006135 | SCREW |
| Repalced by: N 000000001147 | ||
| 026 | N 000000001147 | SCREW |
| BEARING TO FIRE WALL | ||
| M 6X20 | ||
| 026 | N 007985006131 | SCREW |
| Repalced by: N 007985006193 | ||
| 026 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 026 | N 000000001146 | SCREW |
| BEARING TO FIRE WALL | ||
| M 6X16 | ||
| 028 | A 0009902791 | NUT RETAINER |
| Repalced by: A 0009902291 | ||
| 028 | A 0009902291 | NUT RETAINER |
| Repalced by: A 0019906791 | ||
| 028 | A 0019906791 | NUT RETAINER |
| BEARING TO FIRE WALL | ||
| N 000931006096 | SCREW | |
| Repalced by: N 000933006127 | ||
| N 000933006127 | SCREW | |
| BEARING TO FIRE WALL | ||
| N 000931006097 | SCREW | |
| Repalced by: N 000931006118 | ||
| N 000931006118 | SCREW | |
| BEARING TO FIRE WALL | ||
| N 000137006203 | SPRING WASHER | |
| Repalced by: N 000137006204 | ||
| N 000137006204 | SPRING WASHER | |
| BEARING TO FIRE WALL | ||
| N 000933008016 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| 032 | N 000933008131 | SCREW |
| Repalced by: N 304017008016 | ||
| 032 | N 304017008016 | SCREW |
| 034 | N 000137008202 | SPRING WASHER |
| Repalced by: N 000137008204 | ||
| 034 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 034 | N 000137008212 | SPRING WASHER |
| 036 | N 000125008407 | WASHER |
| Repalced by: N 000125008418 | ||
| 036 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 036 | N 000125008443 | WASHER |
| 038 | A 1869931810 | SPRING |
| 040 | A 1113001215 | ROD |
| 040 | A 1133000015 | ROD |
| 040 | A 1133000015 | ROD |
| 042 | N 000934005004 | NUT |
| Repalced by: N 000934005008 | ||
| 042 | N 000934005008 | NUT |
| 046 | A 0009910220 | BALL PIVOT |
| Repalced by: A 0009911622 | ||
| 046 | A 0009911622 | BALL SOCKET |
| Repalced by: A 0009918922 | ||
| 046 | A 0009918922 | BALL SOCKET |
| Repalced by: A 0009930461 | ||
| 046 | A 0009930461 | CONICAL CUP |
| 048 | A 1213010097 | BOOT |
| Repalced by: A 1803010097 | ||
| 048 | A 1803010097 | BOOT |
| 050 | N 000084008220 | SCREW |
| 052 | N 000934008008 | NUT |
| Repalced by: N 304032008006 | ||
| 052 | N 304032008006 | NUT |
| 052 | N 000934008013 | NUT |
| 054 | A 1123000241 | STOP |
| 054 | A 1123000341 | STOP |
| 056 | A 0005451706 | SWITCH |
| 058 | A 1129900151 | NUT |
| 060 | A 1133040027 | HOUSING |
| 062 | A 1123040120 | LEVER |
| 064 | A 1129970010 | PIN |
| 066 | A 1129930020 | SPRING |
| N 007985006131 | SCREW | |
| SPRING-LOADED STOP TO TOEBOARD | ||
| N 000127006203 | LOCK WASHER | |
| Repalced by: N 912004006102 | ||
| N 912004006102 | LOCK WASHER | |
| SPRING-LOADED STOP TO TOEBOARD | ||
| N 000125006407 | WASHER | |
| Repalced by: N 000125006421 | ||
| N 000125006421 | WASHER | |
| SPRING-LOADED STOP TO TOEBOARD | ||
| Repalced by: N 000125006449 | ||
| N 000125006449 | WASHER | |
| SPRING-LOADED STOP TO TOEBOARD | ||
