Transporto priemonė: 280 SL; VIN numerio dalis: 113044

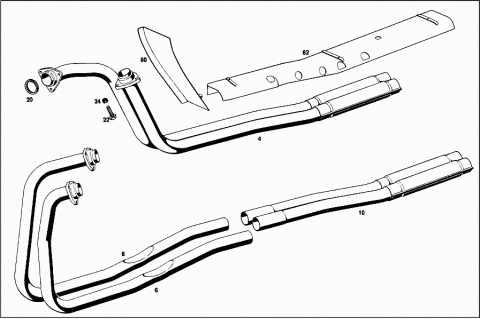

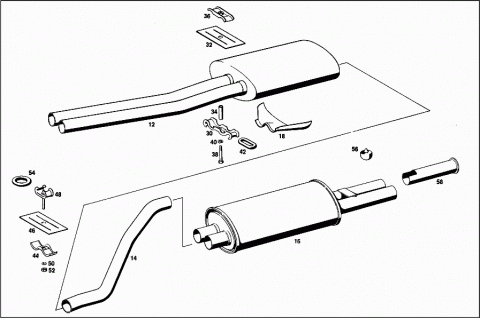

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 004 | A 1134900219 | EXHAUST PIPE |
| 004 | A 1134900920 | EXHAUST PIPE |
| FRONT | ||
| 006 | A 1134900220 | EXHAUST PIPE |
| 006 | A 1134900720 | EXHAUST PIPE |
| FRONT | ||
| 008 | A 1134900820 | EXHAUST PIPE |
| FRONT, REAR | ||
| A 1814920011 | FLANGE | |
| 010 | A 1134901020 | EXHAUST PIPE |
| FRONT | ||
| 012 | A 1134900022 | EXHAUST PIPE |
| CENTRAL | ||
| 014 | A 1134920304 | REAR EXHAUST PIPE |
| 016 | A 1134910801 | MUFFLER |
| Repalced by: A 1134911101 | ||
| 016 | A 1134911101 | MUFFLER |
| Repalced by: A 1134911301 | ||
| 016 | A 1134911301 | MUFFLER |
| 018 | A 1134910092 | BAFFLE PLATE |
| 020 | N 007603042301 | SEAL RING |
| Repalced by: N 915035000023 | ||
| 020 | N 915035000023 | SEAL RING |
| 022 | N 000931008217 | SCREW |
| Repalced by: N 000931008246 | ||
| 022 | N 000931008246 | SCREW |
| Repalced by: N 304017008028 | ||
| 022 | N 304017008028 | SCREW |
| 024 | N 999901008002 | NUT |
| Repalced by: N 999901008005 | ||
| 024 | N 999901008005 | NUT |
| Repalced by: A 0009903250 | ||
| 024 | A 0009903250 | NUT |
| A 1204910240 | CLAMP | |
| A 1144920040 | CLAMP | |
| FRONT EXHAUST PIPE TO CENTRAL EXHAUST PIPE | ||
| N 000931008228 | SCREW | |
| Repalced by: N 000933008134 | ||
| N 000933008134 | SCREW | |
| FRONT EXHAUST PIPE TO CENTRAL EXHAUST PIPE | ||
| N 000125008407 | WASHER | |
| Repalced by: N 000125008408 | ||
| N 000125008408 | WASHER | |
| FRONT EXHAUST PIPE TO CENTRAL EXHAUST PIPE | ||
| N 000127008203 | LOCK WASHER | |
| Repalced by: N 912004008102 | ||
| N 912004008102 | LOCK WASHER | |
| FRONT EXHAUST PIPE TO CENTRAL EXHAUST PIPE | ||
| N 000934008008 | NUT | |
| Repalced by: N 000934008013 | ||
| N 000934008013 | NUT | |
| FRONT EXHAUST PIPE TO CENTRAL EXHAUST PIPE | ||
| 030 | A 1134920143 | CLAMP |
| BOTTOM | ||
| 030 | A 1134920143 | CLAMP |
| 030 | A 1134920143 | CLAMP |
| 032 | A 1134920083 | INSULATION |
| Repalced by: A 0004920183 | ||
| 032 | A 0004920183 | INSULATION |
| Repalced by: A 0004920983 | ||
| 032 | A 0004920983 | INSULATION |
| 032 | A 0004920983 | INSULATION |
| 032 | A 0004920983 | INSULATION |
| 034 | A 1134920053 | SPACER TUBE |
| 036 | A 1134900043 | BRACKET |
| TOP | ||
| 036 | A 1134900043 | BRACKET |
| TOP | ||
| 036 | A 1134900043 | BRACKET |
| TOP | ||
| 038 | N 000931008227 | SCREW |
| Repalced by: N 000931008327 | ||
| 038 | N 000931008327 | SCREW |
| Repalced by: N 304017008043 | ||
| 038 | N 304017008043 | SCREW |
| 038 | N 304017008043 | SCREW |
| 038 | N 304017008043 | SCREW |
| 040 | N 000127008203 | LOCK WASHER |
| Repalced by: N 912004008102 | ||
| 040 | N 912004008102 | LOCK WASHER |
| 040 | N 912004008102 | LOCK WASHER |
| 040 | N 912004008102 | LOCK WASHER |
| 042 | A 1134920082 | DAMPING PAD |
| 042 | A 1134920082 | DAMPING PAD |
| 042 | A 1134920082 | DAMPING PAD |
| 044 | A 0004920343 | CLAMP |
| BOTTOM | ||
| 046 | A 0004920183 | INSULATION |
| Repalced by: A 0004920983 | ||
| 046 | A 0004920983 | INSULATION |
| A 0004920053 | SPACER TUBE | |
| 048 | A 0004920243 | CLAMP |
| TOP | ||
| 050 | N 000127008203 | LOCK WASHER |
| Repalced by: N 912004008102 | ||
| 050 | N 912004008102 | LOCK WASHER |
| 052 | N 000934008008 | NUT |
| Repalced by: N 000934008013 | ||
| 052 | N 000934008013 | NUT |
| 054 | A 1124920282 | DAMPING PAD |
| Repalced by: A 1074920082 | ||
| 054 | A 1074920082 | DAMPING PAD |
| 056 | A 1139870040 | RUBBER BUFFER |
| Repalced by: A 1129870140 | ||
| 056 | A 1129870140 | RUBBER BUFFER |
| 058 | A 1134920114 | END PIECE |
| Repalced by: A 1134920214 | ||
| 058 | A 1134920214 | END PIECE |
| 058 | A 1094920014 | END PIECE |
| 060 | A 1134900030 | PROTECTIVE PLATE |
| TOEBOARD | ||
| N 000063006145 | SCREW | |
| Repalced by: N 000963006001 | ||
| N 000963006001 | SCREW | |
| 062 | A 1114920230 | PROTECTIVE PLATE |
| 062 | A 1134920330 | PROTECTIVE PLATE |
| N 007981004233 | SHEET METAL SCREW | |
| Repalced by: N 000000000460 | ||
| N 000000000460 | SHEET METAL SCREW | |
| N 009021005202 | WASHER | |
| Repalced by: N 009021005205 | ||
| N 009021005205 | WASHER | |
| A 1134900230 | PROTECTIVE PLATE | |
| LUGGAGE COMPARTMENT | ||
| N 000063006156 | SCREW | |
| LUGGAGE COMPARTMENT | ||
