Transporto priemonė: 280 SL; VIN numerio dalis: 113044

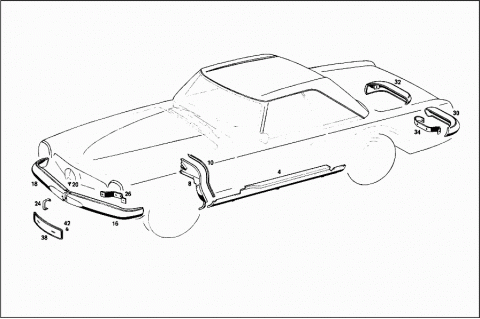

Grupė: 88 FRONT AND REAR END SHEET METAL - 001 ATTACHMENT PARTS
| # | Kodas | Pavadinimas |
|---|---|---|
| 004 | A 1138330101 | PART NAME MISSING |
| Repalced by: A 1138830301 | ||
| 004 | A 1138830301 | ROCKER PANEL |
| LEFT | ||
| 004 | A 1138830201 | ROCKER PANEL |
| RIGHT | ||
| 004 | A 1138830401 | ROCKER PANEL |
| RIGHT | ||
| A 0009909236 | SHEET METAL SCREW | |
| A 0009909236 | SCREW | |
| Repalced by: N 007981002306 | ||
| N 007981002306 | SHEET METAL SCREW | |
| ROCKER PANELS TO SIDE MEMBERS | ||
| N 007981003245 | SHEET METAL SCREW | |
| Repalced by: N 007981003203 | ||
| N 007981003203 | SHEET METAL SCREW | |
| ROCKER PANELS TO SIDE MEMBERS | ||
| N 007982002211 | SHEET METAL SCREW | |
| Repalced by: N 007982002212 | ||
| N 007982002212 | SHEET METAL SCREW | |
| ROCKER PANELS TO SIDE MEMBERS | ||
| 008 | A 1138840135 | PARTITION PANEL |
| LEFT | ||
| 008 | A 1138840235 | PARTITION PANEL |
| RIGHT | ||
| 010 | A 0009871651 | RUBBER SEAL |
| Repalced by: A 1108840098 | ||
| 010 | A 1108840098 | SEAL |
| 770 MM AT PARTITION PANELS | ||
| N 007976005202 | SHEET METAL SCREW | |
| PARTITION PANELS TO BODY FRONT END | ||
| A 0009900148 | WASHER | |
| Repalced by: N 009021006103 | ||
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| PARTITION PANELS TO BODY FRONT END | ||
| A 0009894585 | ADHESIVE TAPE | |
| Repalced by: A 0019875646 | ||
| A 0029894185 | ADHESIVE TAPE | |
| Repalced by: A 0019875646 | ||
| A 0019875646 | SEALING CORD | |
| 15 X 2 MM PARTITION PANELS TO BODY FRONT END | ||
| N 007981002224 | SHEET METAL SCREW | |
| Repalced by: A 0009909236 | ||
| A 0009909236 | SCREW | |
| Repalced by: N 007981002306 | ||
| N 007981002306 | SHEET METAL SCREW | |
| PARTITION PANELS TO BODY FRONT END | ||
| A 1138840091 | SEAL | |
| AT PARTITION PANELS BELOW FRONT FENDERS | ||
| 016 | A 1138800170 | FRONT BUMPER FACE BAR |
| LEFT | ||
| 018 | A 1138800270 | FRONT BUMPER FACE BAR |
| RIGHT | ||
| 020 | A 1119900029 | SCREW |
| LEFT BUMPER TO RIGHT BUMPER | ||
| N 000125008407 | WASHER | |
| LEFT BUMPER TO RIGHT BUMPER | ||
| N 000127008203 | LOCK WASHER | |
| LEFT BUMPER TO RIGHT BUMPER | ||
| N 000934008008 | NUT | |
| Repalced by: N 000934008010 | ||
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
| LEFT BUMPER TO RIGHT BUMPER | ||
| 024 | A 1138850023 | BUMPER JOINT COVER |
| 026 | A 1138850140 | BRACKET |
| N 000933010035 | SCREW | |
| Repalced by: N 000933010105 | ||
| N 000933010105 | SCREW | |
| BRACKETS TO FRONT BUMPER AND BUMPER TO FRAME | ||
| N 000125010504 | WASHER | |
| BRACKETS TO FRONT BUMPER AND BUMPER TO FRAME | ||
| N 000127010202 | LOCK WASHER | |
| Repalced by: N 912004010102 | ||
| N 912004010102 | LOCK WASHER | |
| BRACKETS TO FRONT BUMPER AND BUMPER TO FRAME | ||
| N 009021010202 | WASHER | |
| Repalced by: N 009021010209 | ||
| N 009021010209 | WASHER | |
| FRONT BUMPER TO FRAME | ||
| 030 | A 1138800371 | REAR BUMPER FACE BAR |
| LEFT | ||
| 032 | A 1138800471 | REAR BUMPER FACE BAR |
| RIGHT | ||
| 034 | A 1138850040 | BRACKET |
| N 000933010035 | SCREW | |
| Repalced by: N 000933010105 | ||
| N 000933010105 | SCREW | |
| BRACKETS TO REAR BUMPER AND BUMPER TO FRAME | ||
| N 000125010504 | WASHER | |
| BRACKETS TO REAR BUMPER AND BUMPER TO FRAME | ||
| N 000127010202 | LOCK WASHER | |
| Repalced by: N 912004010102 | ||
| N 912004010102 | LOCK WASHER | |
| BRACKETS TO REAR BUMPER AND BUMPER TO FRAME | ||
| 038 | A 1138850081 | LICENSE PLATE MOULDING |
| Repalced by: A 1168170078 | ||
| 038 | A 1168170078 | LICENSE PLATE MOULDING |
| FRONT | ||
| N 000085005129 | SCREW | |
| LICENSE PLATE MOULDING AND LICENSE PLATE TO BUMPER AND TO BODY | ||
| N 009021005102 | WASHER | |
| Repalced by: N 009021005202 | ||
| N 009021005202 | WASHER | |
| Repalced by: N 009021005205 | ||
| N 009021005205 | WASHER | |
| LICENSE PLATE MOULDING AND LICENSE PLATE TO BUMPER AND TO BODY | ||
| N 000934005004 | NUT | |
| Repalced by: N 000934005008 | ||
| N 000934005008 | NUT | |
| LICENSE PLATE MOULDING AND LICENSE PLATE TO BUMPER AND TO BODY | ||
| 042 | A 0009872441 | RUBBER RING |
| Repalced by: A 0009872541 | ||
| 042 | A 0009872541 | RUBBER RING |
| LICENSE PLATE MOULDING AND LICENSE PLATE TO BUMPER AND TO BODY | ||

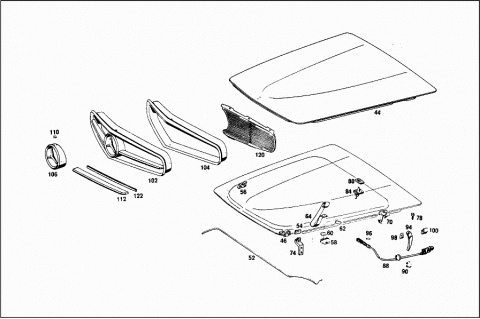

| 044 | A 1138800056 | ENGINE HOOD |
| 046 | A 1138800176 | MOUNTING |
| LEFT | ||
| 046 | A 1138800276 | MOUNTING |
| RIGHT | ||
| N 000933006026 | SCREW | |
| Repalced by: N 000933006102 | ||
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| HINGE MOUNTINGS TO ENGINE HOOD | ||
| N 000127006203 | LOCK WASHER | |
| Repalced by: N 912004006102 | ||
| N 912004006102 | LOCK WASHER | |
| HINGE MOUNTINGS TO ENGINE HOOD | ||
| N 000125006407 | WASHER | |
| HINGE MOUNTINGS TO ENGINE HOOD | ||
| 052 | A 1138870163 | TORSION BAR |
| Repalced by: A 1138870263 | ||
| 052 | A 1138870263 | TORSION BAR |
| 054 | A 1138870111 | PLATE |
| LEFT | ||
| 056 | A 1138870211 | PLATE |
| RIGHT | ||
| N 007987005123 | SCREW | |
| PLATES TO ENGINE HOOD INNER PLATE | ||
| 058 | A 1138800078 | MOUNTING |
| Repalced by: A 1138870519 | ||
| 058 | A 1138800178 | MOUNTING |
| Repalced by: A 1138870519 | ||
| 058 | A 1138870519 | SUPPORTING PLATE |
| 060 | A 1138870114 | FASTENER |
| BOTTOM | ||
| 062 | A 1138870214 | FASTENER |
| TOP | ||
| 064 | A 1138870136 | FASTENER |
| Repalced by: A 0009831412 | ||
| 064 | A 0009831412 | BELT |
| N 007981004226 | SHEET METAL SCREW | |
| Repalced by: N 007981004233 | ||
| N 007981004233 | SHEET METAL SCREW | |
| Repalced by: N 000000000460 | ||
| N 000000000460 | SHEET METAL SCREW | |
| N 000127005203 | LOCK WASHER | |
| N 007985006134 | SCREW | |
| Repalced by: N 007985006538 | ||
| N 007985006538 | SCREW | |
| SUPPORTING PLATE TO WHEELHOUSE CONSOLE | ||
| N 000125006407 | WASHER | |
| SUPPORTING PLATE TO WHEELHOUSE CONSOLE | ||
| N 000127006203 | LOCK WASHER | |
| Repalced by: N 912004006102 | ||
| N 912004006102 | LOCK WASHER | |
| SUPPORTING PLATE TO WHEELHOUSE CONSOLE | ||
| A 1139870440 | RUBBER BUFFER | |
| 070 | A 1138800064 | SAFETY HOOK |
| N 000933005037 | SCREW | |
| Repalced by: N 000933005059 | ||
| N 000933005059 | SCREW | |
| Repalced by: N 304017005007 | ||
| N 304017005007 | SCREW | |
| Repalced by: N 000000002035 | ||
| N 000000002035 | SCREW | |
| SAFETY HOOK TO ENGINE HOOD | ||
| N 000127005203 | LOCK WASHER | |
| SAFETY HOOK TO ENGINE HOOD | ||
| N 000125005306 | WASHER | |
| SAFETY HOOK TO ENGINE HOOD | ||
| 074 | A 1138800181 | MOUNTING |
| 074 | A 1138800281 | MOUNTING |
| N 000933006026 | SCREW | |
| Repalced by: N 000933006102 | ||
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| MOUNTINGS TO WHEELHOUSES | ||
| N 000127006203 | LOCK WASHER | |
| Repalced by: N 912004006102 | ||
| N 912004006102 | LOCK WASHER | |
| MOUNTINGS TO WHEELHOUSES | ||
| N 000125006407 | WASHER | |
| MOUNTINGS TO WHEELHOUSES | ||
| 078 | A 1108800017 | STOP SCREW |
| Repalced by: A 1269900015 | ||
| 078 | A 1269900015 | SCREW |
| Repalced by: A 2019880211 | ||
| 078 | A 2019880211 | BUFFER |
| Repalced by: A 2019880511 | ||
| 078 | A 2019880511 | BUFFER |
| N 000934006006 | NUT | |
| Repalced by: N 304032006004 | ||
| N 304032006004 | NUT | |
| STOP SCREW TO ENGINE HOOD | ||
| 080 | A 1108800560 | ENGINE HOOD CATCH |
| Repalced by: A 1158870006 | ||
| 080 | A 1158870006 | ENGINE HOOD CATCH |
| Repalced by: A 1078800060 | ||
| 080 | A 1078800060 | ENGINE HOOD CATCH |
| UPPER PART | ||
| N 000433006402 | WASHER | |
| Repalced by: N 000433006405 | ||
| N 000433006405 | WASHER | |
| ENGINE HOOD CATCH UPPER PART TO ENGINE HOOD FRONT BRACKET | ||
| A 1109840056 | WASHER | |
| N 000127006203 | LOCK WASHER | |
| Repalced by: N 912004006102 | ||
| N 912004006102 | LOCK WASHER | |
| ENGINE HOOD CATCH UPPER PART TO ENGINE HOOD FRONT BRACKET | ||
| N 000933006088 | SCREW | |
| Repalced by: N 000933006121 | ||
| N 000933006121 | SCREW | |
| Repalced by: N 304017006020 | ||
| N 304017006020 | SCREW | |
| ENGINE HOOD CATCH UPPER PART TO ENGINE HOOD FRONT BRACKET | ||
| 098 | A 1108800660 | ENGINE HOOD CATCH |
| Repalced by: A 1108800860 | ||
| 084 | A 1108800860 | ENGINE HOOD CATCH |
| Repalced by: A 1158800160 | ||
| 084 | A 1158800160 | ENGINE HOOD CATCH |
| LOWER PART | ||
| N 007987006165 | SCREW | |
| ENGINE HOOD CATCH LOWER PART TO BODY FRONT END | ||
| 088 | A 1138800159 | ENGINE HOOD RELEASE CABLE |
| Repalced by: A 1138800759 | ||
| 088 | A 1138800359 | ENGINE HOOD RELEASE CABLE |
| Repalced by: A 1138800759 | ||
| 088 | A 1138800559 | ENGINE HOOD RELEASE CABLE |
| Repalced by: A 1138800759 | ||
| 088 | A 1138800759 | ENGINE HOOD RELEASE CABLE |
| 088 | A 1138800259 | ENGINE HOOD RELEASE CABLE |
| Repalced by: A 1138800459 | ||
| 088 | A 1138800459 | ENGINE HOOD RELEASE CABLE |
| 090 | A 1109970381 | GROMMET |
| 090 | A 1109970381 | GROMMET |
| 090 | A 1109970381 | GROMMET |
| 090 | A 1109971081 | GROMMET |
| 094 | A 1108800020 | HANDLE |
| Repalced by: A 9703100173 | ||
| 094 | A 9703100173 | LEVER |
| 096 | A 0009910307 | PIN |
| Repalced by: N 918001005001 | ||
| 096 | N 918001005001 | PIN |
| N 007976004207 | SHEET METAL SCREW | |
| ENGINE HOOD RELEASE CABLE TO FRONT PANEL, LATERAL BOTTOM LEFT | ||
| N 006797005132 | TOOTHED WASHER | |
| ENGINE HOOD RELEASE CABLE TO FRONT PANEL, LATERAL BOTTOM LEFT | ||
| 098 | A 0009883378 | CLIP |
| 100 | A 0019889878 | CLIP |
| 102 | A 1138800023 | FRONT ORNAMENT |
| 104 | A 1138880222 | GARNISH MOULDING |
| FRONT END | ||
| 106 | A 1138800186 | MERCEDES STAR |
| N 007985005125 | SCREW | |
| Repalced by: N 007985005157 | ||
| N 007985005157 | SCREW | |
| MERCEDES STAR TO ORNAMENTAL FRAME | ||
| N 000127005203 | LOCK WASHER | |
| MERCEDES STAR TO ORNAMENTAL FRAME | ||
| N 009021005102 | WASHER | |
| Repalced by: N 009021005202 | ||
| N 009021005202 | WASHER | |
| Repalced by: N 009021005205 | ||
| N 009021005205 | WASHER | |
| MERCEDES STAR TO ORNAMENTAL FRAME | ||
| 110 | H 401218880249 | SHIM |
| 112 | A 1138880121 | GARNISH MOULDING |
| LEFT | ||
| 112 | A 1138880221 | GARNISH MOULDING |
| RIGHT | ||
| N 000933005036 | SCREW | |
| GARNISH MOULDINGS TO MERCEDES STAR | ||
| N 000137005203 | SPRING WASHER | |
| GARNISH MOULDINGS TO MERCEDES STAR | ||
| N 000933005036 | SCREW | |
| GARNISH MOULDINGS TO ORNAMENTAL FRAME | ||
| N 000137005201 | SPRING WASHER | |
| Repalced by: N 000137005203 | ||
| N 000137005203 | SPRING WASHER | |
| GARNISH MOULDINGS TO ORNAMENTAL FRAME | ||
| N 000934005004 | NUT | |
| Repalced by: N 000934005008 | ||
| N 000934005008 | NUT | |
| GARNISH MOULDINGS TO ORNAMENTAL FRAME | ||
| N 007983003216 | SHEET METAL SCREW | |
| FRONT ORNAMENT TO FRONT OPENING | ||
| N 900056003507 | COUNTERSUNK WASHER | |
| FRONT ORNAMENT TO FRONT OPENING | ||
| 120 | A 1138800385 | RADIATOR GRILLE |
| LEFT | ||
| 120 | A 1138800485 | RADIATOR GRILLE |
| RIGHT | ||
| 122 | A 1138880097 | INSERT |
| Repalced by: A 0009831292 | ||
| 122 | A 0009831292 | FELT |
| 2 X 15 X 50 MM, RADIATOR GRILLE, AT INSIDE PANEL | ||
| N 007976004203 | SHEET METAL SCREW | |
| RADIATOR GRILLE | ||
| A 0009900348 | WASHER | |
| RADIATOR GRILLE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
