Transporto priemonė: 280 SL; VIN numerio dalis: 113044

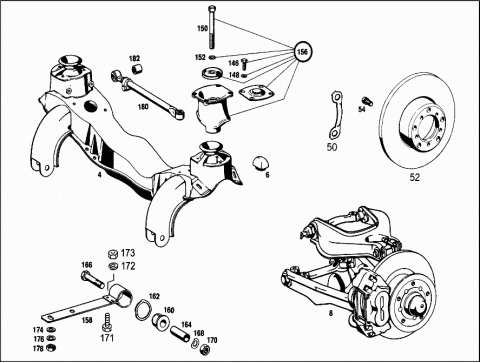

Grupė: 33 FRONT AXLE
| # | Kodas | Pavadinimas |
|---|---|---|
| 004 | A 1113303042 | FRONT SUBFRAME |
| 006 | A 1123330165 | RUBBER BUFFER |
| 008 | A 1113302498 | HALF FRONT AXLE |
| Repalced by: A 1113303098 | ||
| 008 | A 1113303098 | HALF FRONT AXLE |
| Repalced by: A 1103301498 | ||
| 008 | A 1103301498 | HALF FRONT AXLE |
| LEFT | ||
| 008 | A 1113302598 | HALF FRONT AXLE |
| Repalced by: A 1113303198 | ||
| 008 | A 1113303198 | HALF FRONT AXLE |
| Repalced by: A 1103301598 | ||
| 008 | A 1103301598 | HALF FRONT AXLE |
| RIGHT | ||
| 008 | A 1083300298 | HALF FRONT AXLE |
| LEFT | ||
| 008 | A 1083300398 | HALF FRONT AXLE |
| RIGHT | ||
| 010 | A 1113303820 | STEERING KNUCKLE |
| LEFT | ||
| 010 | A 1083300020 | STEERING KNUCKLE |
| LEFT | ||
| 010 | A 1113303920 | STEERING KNUCKLE |
| RIGHT | ||
| 010 | A 1083300120 | STEERING KNUCKLE |
| RIGHT | ||
| A 1803320148 | BUSHING | |
| TOP | ||
| A 1113320148 | BUSHING | |
| BOTTOM | ||
| 014 | N 000007002208 | CYLINDRICAL PIN |
| 016 | N 071412008100 | GREASE NIPPLE |
| Repalced by: N 071412008101 | ||
| 016 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 016 | N 071412008102 | GREASE NIPPLE |
| A 1113320106 | KINGPIN | |
| 018 | A 0009901788 | BANJO UNION |
| Repalced by: N 071412008200 | ||
| 018 | N 071412008200 | GREASE NIPPLE |
| A 1203320051 | SPACER RING | |
| A 1203320162 | THRUST WASHER | |
| BOTTOM | ||
| A 1203320262 | THRUST WASHER | |
| TOP | ||
| A 1203320260 | DUST CAP | |
| 022 | A 1363320852 | SPACER WASHER |
| AS REQUIRED | ||
| 1.7 MM | ||
| 022 | A 1363320952 | SPACER WASHER |
| AS REQUIRED | ||
| 1.9 MM | ||
| 022 | A 1363321052 | SPACER WASHER |
| AS REQUIRED | ||
| 2.1 MM | ||
| 022 | A 1363320052 | SPACER WASHER |
| AS REQUIRED | ||
| 2.3 MM | ||
| 022 | A 1363320152 | SPACER WASHER |
| AS REQUIRED | ||
| 2.5 MM | ||
| 022 | A 1363320252 | SPACER WASHER |
| AS REQUIRED | ||
| 2.7 MM | ||
| A 1803330009 | STEERING KNUCKLE SUPPORT | |
| 028 | N 071412008100 | GREASE NIPPLE |
| Repalced by: N 071412008101 | ||
| 028 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 028 | N 071412008102 | GREASE NIPPLE |
| 030 | A 1819940015 | LOCK |
| 032 | N 000934014006 | NUT |
| Repalced by: N 000934014019 | ||
| 032 | N 000934014019 | NUT |
| Repalced by: N 308673014001 | ||
| 032 | N 308673014001 | HEXAGON NUT |
| 034 | A 1115860033 | REPAIR KIT |
| STEERING KNUCKLE | ||
| 036 | A 1123340501 | WHEEL HUB |
| A 0009815805 | TAPERED ROLLER BEARING | |
| FRONT WHEEL BEARING | ||
| 038 | A 1113340064 | RETAINER |
| 040 | A 0029978246 | SEAL RING |
| Repalced by: A 0039979346 | ||
| 040 | A 0039979346 | SEAL RING |
| A 0009815905 | TAPERED ROLLER BEARING | |
| FRONT WHEEL BEARING | ||
| A 1153340315 | RING | |
| 044 | A 1203340772 | NUT |
| A 1209901320 | SCREW | |
| 046 | A 1123300057 | HUB CAP |
| Repalced by: A 1083340025 | ||
| 046 | A 1083340025 | HUB CAP |
| 048 | A 2015470085 | CONTACT SPRING |
| A 1159940732 | LOCK | |
| 050 | A 1159940732 | LOCK |
| 052 | A 1124210412 | BRAKE DISC |
| Repalced by: A 1104210112 | ||
| 052 | A 1104210112 | BRAKE DISC |
| 052 | A 1154211112 | BRAKE DISC |
| A 1235860042 | REPAIR KIT | |
| BRAKE DISC TO WHEEL HUB | ||
| 054 | N 000912012005 | SCREW |
| Repalced by: N 000912012122 | ||
| 054 | N 000912012122 | SCREW |
| 054 | A 0009907212 | SCREW |
| N 007980012000 | LOCK WASHER | |
| 056 | A 1115860433 | REPAIR KIT |
| Repalced by: A 1113300051 | ||
| 056 | A 1113300051 | REPAIR KIT |
| Repalced by: A 1073300051 | ||
| 056 | A 1073300051 | REPAIR KIT |
| FRONT WHEEL BEARING | ||
| 058 | A 1113302507 | TRANSVERSE CONTROL ARM |
| Repalced by: A 1113302907 | ||
| 058 | A 1113302907 | TRANSVERSE CONTROL ARM |
| BOTTOM LEFT | ||
| 058 | A 1113302607 | TRANSVERSE CONTROL ARM |
| Repalced by: A 1113303007 | ||
| A 1113303007 | TRANSVERSE CONTROL ARM | |
| BOTTOM RIGHT | ||
| A 1113330030 | PIN | |
| Repalced by: A 1113330330 | ||
| A 1103300030 | GUIDE ROD | |
| Repalced by: A 1113330330 | ||
| A 1113330330 | PIN | |
| LOWER CONTROL ARMS | ||
| 060 | A 1203330180 | SEAL RING |
| 062 | A 1113330548 | SCREW COLLAR |
| THREAD O. D. 29.9 MM | ||
| 064 | A 1113330448 | SCREW COLLAR |
| THREAD O. D. 30.9 MM | ||
| 066 | A 1119900701 | SCREW |
| Repalced by: A 1089900801 | ||
| 066 | A 1089900801 | SCREW |
| 068 | N 000127012201 | LOCK WASHER |
| Repalced by: N 912004012100 | ||
| 068 | N 912004012100 | LOCK WASHER |
| 070 | A 0009901651 | NUT |
| Repalced by: N 000934012013 | ||
| 070 | N 000934012013 | NUT |
| Repalced by: N 000934012023 | ||
| 070 | N 000934012023 | NUT |
| Repalced by: N 308673012002 | ||
| 070 | N 308673012002 | HEXAGON NUT |
| A 1089900840 | WASHER | |
| 072 | N 071412008100 | GREASE NIPPLE |
| Repalced by: N 071412008101 | ||
| 072 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 072 | N 071412008102 | GREASE NIPPLE |
| 074 | A 1203330474 | PIN |
| 076 | A 1813330180 | SEAL RING |
| 078 | A 1819900055 | NUT |
| N 000094003007 | COTTER PIN | |
| Repalced by: N 000094003227 | ||
| N 000094003227 | COTTER PIN | |
| 080 | A 1105860233 | REPAIR KIT |
| Repalced by: A 1103300118 | ||
| 080 | A 1103300118 | REPAIR KIT |
| LOWER CONTROL ARM PIVOT PIN | ||
| 082 | A 1103300318 | REPAIR KIT |
| LOWER CONTROL ARM | ||
| 084 | A 1123303107 | TRANSVERSE CONTROL ARM |
| TOP | ||
| A 1113330230 | PIN | |
| 086 | A 1119900701 | SCREW |
| Repalced by: A 1089900801 | ||
| 086 | A 1089900801 | SCREW |
| 088 | A 1109940010 | LOCK |
| 090 | N 000433013004 | WASHER |
| Repalced by: N 000433013005 | ||
| 090 | N 000433013005 | WASHER |
| 090 | N 000433013005 | WASHER |
| Repalced by: N 000433013010 | ||
| 090 | N 000433013010 | WASHER |
| 092 | A 1203330180 | SEAL RING |
| 094 | A 1203330248 | SCREW COLLAR |
| THREAD O. D. 29.9 MM | ||
| 096 | A 1203330348 | SCREW COLLAR |
| THREAD O. D. 30.9 MM | ||
| 098 | N 071412008200 | GREASE NIPPLE |
| 100 | A 1203330548 | SCREW COLLAR |
| 102 | A 1203330374 | PIN |
| 104 | A 1209903240 | WASHER |
| 106 | A 1813330180 | SEAL RING |
| 108 | A 1209901340 | WASHER |
| 110 | A 1203300187 | ECCENTRIC BUSHING |
| 112 | N 000127010200 | LOCK WASHER |
| Repalced by: N 912004010102 | ||
| 112 | N 912004010102 | LOCK WASHER |
| 114 | N 000934010000 | NUT |
| Repalced by: N 000934010014 | ||
| 114 | N 000934010014 | NUT |
| 116 | A 1203330073 | LOCK |
| 118 | N 000933006010 | SCREW |
| Repalced by: N 000933006122 | ||
| 118 | N 000933006122 | SCREW |
| Repalced by: N 304017006034 | ||
| 118 | N 304017006034 | SCREW |
| 120 | N 000127006200 | LOCK WASHER |
| Repalced by: N 912004006102 | ||
| 120 | N 912004006102 | LOCK WASHER |
| 122 | A 1103300218 | REPAIR KIT |
| UPPER TRANSVERSE CONTROL ARM | ||
| 124 | A 1103300018 | REPAIR KIT |
| UPPER CONTROL ARM PIVOT PIN | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| TIE RODS | ||
| 126 | A 1103300003 | TIE ROD |
| Repalced by: A 1153300703 | ||
| 126 | A 1153300703 | TIE ROD |
| Repalced by: A 1073300103 | ||
| A 1153300803 | TIE ROD | |
| Repalced by: A 1073300103 | ||
| 126 | A 1073300103 | TIE ROD |
| A 0003381515 | TIE ROD | |
| Repalced by: A 1153300703 | ||
| A 1153300703 | TIE ROD | |
| 128 | A 0009951844 | CLAMP |
| Repalced by: A 0003384245 | ||
| 128 | A 0003384245 | CLAMP |
| N 000960008011 | SCREW | |
| CLAMP | ||
| N 000127008200 | LOCK WASHER | |
| Repalced by: N 912004008102 | ||
| N 912004008102 | LOCK WASHER | |
| CLAMP | ||
| N 000934008007 | NUT | |
| Repalced by: N 000934008020 | ||
| N 000934008020 | NUT | |
| CLAMP | ||
| 132 | A 0003380710 | BALL JOINT |
| Repalced by: A 0003381910 | ||
| 132 | A 0003381910 | BALL JOINT |
| Repalced by: A 0003385210 | ||
| 132 | A 0003385210 | BALL JOINT |
| R.H. THREAD | ||
| 132 | A 0003385510 | BALL JOINT |
| R.H. THREAD | ||
| 134 | A 0003380810 | BALL JOINT |
| Repalced by: A 0003382010 | ||
| 134 | A 0003382010 | BALL JOINT |
| Repalced by: A 0003385010 | ||
| 134 | A 0003385010 | BALL JOINT |
| L.H. THREAD | ||
| 134 | A 0003385310 | BALL JOINT |
| L.H. THREAD | ||
| A 1803380397 | BOOT | |
| Repalced by: A 1803380297 | ||
| A 1803380297 | BOOT | |
| Repalced by: A 0003381397 | ||
| A 0003381397 | BOOT | |
| A 0019971140 | SEAL RING | |
| Repalced by: A 0003380963 | ||
| A 0003380963 | CLAMPING RING | |
| BOTTOM | ||
| A 0003381063 | CLAMPING RING | |
| TOP | ||
| 138 | A 1209900155 | NUT |
| TIE RODS TO STEERING KNUCKLES | ||
| TO 115 330 07 03,08 03 | ||
| N 913002010010 | NUT | |
| TO 107 330 01 03 | ||
| 140 | N 000094002008 | COTTER PIN |
| Repalced by: N 000094002077 | ||
| 140 | N 000094002077 | COTTER PIN |
| TIE RODS TO STEERING KNUCKLES | ||
| 142 | A 0003300485 | REPAIR KIT |
| TIE ROD BOOT AND DRAG LINK BOOT,RESP. | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FRONT AXLE SUSPENSION | ||
| A 1113301475 | RUBBER MOUNTING | |
| Repalced by: A 1113301575 | ||
| A 1113301575 | RUBBER MOUNTING | |
| A 1133300077 | STOP | |
| 146 | N 000933008114 | SCREW |
| Repalced by: N 000933008154 | ||
| 146 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 146 | N 304017008021 | SCREW |
| 148 | N 000127008203 | LOCK WASHER |
| Repalced by: N 912004008102 | ||
| 148 | N 912004008102 | LOCK WASHER |
| A 1113310645 | RETAINER | |
| 150 | N 000960012095 | SCREW |
| 152 | N 000127012200 | LOCK WASHER |
| Repalced by: N 912004012100 | ||
| 152 | N 912004012100 | LOCK WASHER |
| 154 | A 1113330265 | RUBBER BUFFER |
| 156 | A 1135860033 | REPAIR KIT |
| FRONT SUBFRAME | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FRONT AXLE SUPPORT | ||
| 158 | A 1113311112 | LEAF SPRING |
| 160 | A 1103221585 | RUBBER MOUNTING |
| 162 | A 1103220276 | WASHER |
| 164 | A 1113320053 | SPACER TUBE |
| 166 | N 000960016105 | SCREW |
| LEAF SPRING TO FRONT SUBFRAME | ||
| 168 | N 000137016202 | SPRING WASHER |
| LEAF SPRING TO FRONT SUBFRAME | ||
| 170 | N 000985016007 | NUT |
| Repalced by: N 000934016011 | ||
| 170 | N 000934016011 | NUT |
| Repalced by: N 308673016001 | ||
| 170 | N 308673016001 | NUT |
| LEAF SPRING TO FRONT SUBFRAME | ||
| 171 | N 000933008028 | SCREW |
| Repalced by: N 000933008145 | ||
| 171 | N 000933008145 | SCREW |
| RUBBER MOUNTING TO LEAF SPRING | ||
| 172 | N 000127008203 | LOCK WASHER |
| RUBBER MOUNTING TO LEAF SPRING | ||
| Repalced by: N 912004008102 | ||
| 172 | N 912004008102 | LOCK WASHER |
| RUBBER MOUNTING TO LEAF SPRING | ||
| 173 | N 000934008008 | NUT |
| RUBBER MOUNTING TO LEAF SPRING | ||
| Repalced by: N 000934008013 | ||
| 173 | N 000934008013 | NUT |
| RUBBER MOUNTING TO LEAF SPRING | ||
| 174 | N 000125015004 | WASHER |
| Repalced by: N 000125015013 | ||
| 174 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 174 | N 000125015019 | WASHER |
| LEAF SPRING AND TORSION BAR TO FRAME FLOOR UNIT | ||
| 176 | N 000127014201 | LOCK WASHER |
| Repalced by: N 912004014100 | ||
| 176 | N 912004014100 | LOCK WASHER |
| LEAF SPRING AND TORSION BAR TO FRAME FLOOR UNIT | ||
| 178 | N 000934014006 | NUT |
| Repalced by: N 000934014019 | ||
| 178 | N 000934014019 | NUT |
| Repalced by: N 308673014001 | ||
| 178 | N 308673014001 | HEXAGON NUT |
| LEAF SPRING AND TORSION BAR TO FRAME FLOOR UNIT | ||
| 180 | A 1113300330 | GUIDE ROD |
| 182 | A 0009883310 | RUBBER MOUNTING |
| N 000960012157 | SCREW | |
| Repalced by: N 000960012225 | ||
| N 000960012225 | SCREW | |
| GUIDE ROD TO BODY FLOOR AND TO FRONT SUBFRAME | ||
| N 000127012201 | LOCK WASHER | |
| Repalced by: N 912004012100 | ||
| N 912004012100 | LOCK WASHER | |
| GUIDE ROD TO BODY FLOOR AND TO FRONT SUBFRAME | ||
| N 000934012009 | NUT | |
| Repalced by: N 000934012023 | ||
| N 000934012023 | NUT | |
| Repalced by: N 308673012002 | ||
| N 308673012002 | HEXAGON NUT | |
| GUIDE ROD TO BODY FLOOR AND TO FRONT SUBFRAME | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
