Transporto priemonė: 280 SL; VIN numerio dalis: 113044
Grupė: 27 MERCEDES-BENZ AUTOMATIC TRANSMISSION - 001 AUTOMATIC TRANSMISSION
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| MERCEDES-BENZ AUTOMATIC TRANSMISSION | ||
| A 1132700101 | AUTOMATIC TRANSMISSION | |
| A 1132700901 | AUTOMATIC TRANSMISSION | |

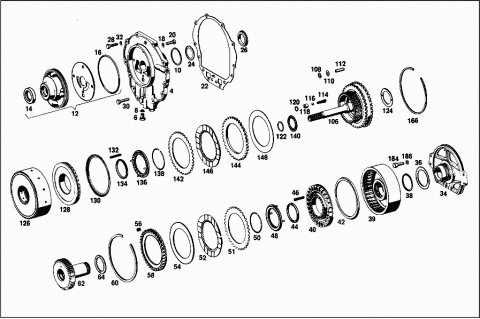

| 004 | A 1122700705 | COVER |
| A 1122710550 | BUSHING | |
| 006 | A 1129970530 | SCREW PLUG |
| 006 | A 1129970530 | SCREW PLUG |
| 008 | N 007603010404 | SEAL RING |
| 008 | N 007603010404 | SEAL RING |
| 010 | A 1002720155 | SEAL RING |
| 012 | A 1122701490 | HOUSING |
| A 1122774350 | BUSHING | |
| 014 | A 0089979146 | SEAL RING |
| 016 | A 0049970548 | SEAL RING |
| 018 | N 000137008100 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 018 | N 000137008212 | SPRING WASHER |
| 020 | N 006912008000 | SCREW |
| Repalced by: N 007984008018 | ||
| 020 | N 007984008018 | SCREW |
| 020 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 020 | N 304017008034 | SCREW |
| 022 | A 1122710480 | GASKET |
| Repalced by: A 1122711380 | ||
| 022 | A 1122711380 | GASKET |
| 024 | A 1122710052 | SPACER WASHER |
| 0.1 MM | ||
| 024 | A 1122710152 | SPACER WASHER |
| 0.2 MM | ||
| Repalced by: A 1122710052 | ||
| 024 | A 1122710052 | SPACER WASHER |
| 0.1 MM | ||
| 024 | A 1122710252 | SPACER WASHER |
| 0.5 MM | ||
| 026 | A 1122710062 | THRUST WASHER |
| 028 | N 000933007019 | SCREW |
| 030 | N 000933007020 | SCREW |
| 032 | N 000137007201 | SPRING WASHER |
| 034 | A 1122700320 | FLANGE |
| 036 | A 1122720762 | GUARD PLATE |
| 038 | A 1002720155 | SEAL RING |
| 039 | A 1122703420 | FLANGE |
| 040 | A 1122722331 | PISTON |
| REVERSE SPEED | ||
| 042 | A 1152721292 | BOOT |
| Repalced by: A 3162720792 | ||
| 042 | A 3162720792 | BOOT |
| 044 | A 1152721492 | BOOT |
| 046 | A 1129935001 | SPRING |
| 046 | A 1129930802 | SPRING |
| 048 | A 1122720764 | SPRING RETAINER |
| 050 | A 1129940035 | SNAP RING |
| 051 | A 1092721526 | OUTER DISC |
| 052 | A 1122720225 | INNER DISC |
| 054 | A 1122721462 | GUARD PLATE |
| 056 | A 1129934801 | SPRING |
| 058 | A 1122723162 | GUARD PLATE |
| 058 | A 1122723362 | GUARD PLATE |
| 060 | A 1122720173 | LOCK |
| 062 | A 1122700325 | DRIVE SHAFT |
| 062 | A 1122702925 | DRIVE SHAFT |
| 064 | A 1122720062 | GUARD PLATE |
| 066 | A 1122703720 | FLANGE |
| 068 | A 1122722631 | PISTON |
| 070 | A 1122721192 | BOOT |
| 072 | A 1152721492 | BOOT |
| 074 | A 1129933102 | SPRING |
| 076 | A 1122720664 | SPRING RETAINER |
| 078 | A 1129940035 | SNAP RING |
| 080 | A 1122721824 | DISC SUPPORT |
| 082 | A 1122720173 | LOCK |
| 084 | A 1122720826 | OUTER DISC |
| Repalced by: A 1122720726 | ||
| 084 | A 1122720726 | OUTER DISC |
| 086 | A 1122720225 | INNER DISC |
| 088 | A 1092721526 | OUTER DISC |
| 088 | A 1092721526 | OUTER DISC |
| 088 | A 1092721526 | OUTER DISC |
| 088 | A 1092721826 | OUTER DISC |
| 090 | A 1122721126 | OUTER DISC |
| 092 | A 1122721462 | GUARD PLATE |
| 094 | A 1122720073 | LOCK |
| 096 | A 1129940039 | WIRE RING |
| 098 | A 1122720052 | SPACER WASHER |
| AS REQUIRED | ||
| 0.5 MM | ||
| 098 | A 1122720152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.7 MM | ||
| 098 | A 1122720252 | SPACER WASHER |
| Repalced by: A 1122720052 | ||
| 098 | A 1122720052 | SPACER WASHER |
| AS REQUIRED | ||
| 1.0 MM | ||
| 098 | A 1122721052 | SPACER WASHER |
| AS REQUIRED | ||
| 0.1 MM | ||
| 102 | N 900055040301 | LOCK RING |
| 104 | A 1122703025 | DRIVE SHAFT |
| 106 | A 1122701643 | PLANETARY CARRIER |
| FRONT PLANETARY GEAR TRAIN | ||
| 108 | A 1122723762 | GUARD PLATE |
| 110 | A 1122723562 | GUARD PLATE |
| 112 | A 1122720074 | PIN |
| 114 | A 1129930005 | SPRING |
| 116 | N 005401307000 | BALL |
| 118 | A 1122720067 | RING |
| 120 | N 000472012000 | LOCK RING |
| 122 | A 3072720255 | SEAL RING |
| 124 | A 1122720062 | GUARD PLATE |
| 126 | A 1122703920 | FLANGE |
| 128 | A 1122722231 | PISTON |
| 130 | A 1152721292 | BOOT |
| Repalced by: A 3162720792 | ||
| 130 | A 3162720792 | BOOT |
| 132 | A 1129933102 | SPRING |
| 134 | A 1152721492 | BOOT |
| 136 | A 1122720664 | SPRING RETAINER |
| 138 | A 1129940035 | SNAP RING |
| 140 | A 0009814710 | NEEDLE BEARING |
| 142 | A 1092721526 | OUTER DISC |
| 144 | A 1122720626 | OUTER DISC |
| Repalced by: A 1122721126 | ||
| 144 | A 1122721126 | OUTER DISC |
| 146 | A 1122720225 | INNER DISC |
| 148 | A 1122721462 | GUARD PLATE |
| 150 | A 1122701743 | PLANETARY CARRIER |
| 152 | A 1122723662 | GUARD PLATE |
| 154 | A 1122723862 | GUARD PLATE |
| 156 | A 1122720174 | PIN |
| 158 | A 1152720273 | LOCK |
| 160 | A 1129940735 | SNAP RING |
| 162 | A 0009819910 | NEEDLE BEARING |
| 164 | A 0009814810 | NEEDLE BEARING |
| 166 | A 1122720173 | LOCK |
| 168 | A 1009810010 | NEEDLE BEARING |
| 170 | A 0002721062 | GUARD PLATE |
| 172 | A 1002720152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.1 MM | ||
| 172 | A 1002720252 | SPACER WASHER |
| AS REQUIRED | ||
| 0.2 MM | ||
| Repalced by: A 1002720152 | ||
| 174 | A 1122721962 | GUARD PLATE |
| 176 | N 000625506207 | GROOVED BALL BEARING |
| 178 | A 1122720952 | SPACER WASHER |
| 180 | A 1122720652 | SPACER WASHER |
| 0.1 MM | ||
| 180 | A 1122720752 | SPACER WASHER |
| 0.15 MM | ||
| 180 | A 1122720852 | SPACER WASHER |
| Repalced by: A 1122720652 | ||
| 180 | A 1122720652 | SPACER WASHER |
| 0.20 MM | ||
| 182 | A 0009941640 | SNAP RING |
| 184 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 184 | N 304017008034 | SCREW |
| 186 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 186 | N 000137008212 | SPRING WASHER |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| TRANSMISSION CASE | ||

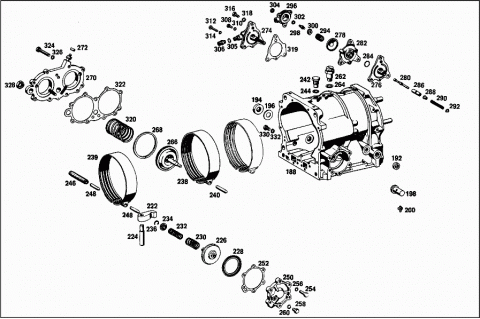

| 188 | A 1122703611 | TRANSMISSION CASE |
| N 900421006001 | THREADED INSERT | |
| N 900421007000 | THREADED INSERT | |
| N 900421008003 | THREADED INSERT | |
| 192 | N 006503010100 | SEAL RING |
| 194 | A 0019972346 | SEAL RING |
| 196 | A 1129900240 | WASHER |
| A 1129970032 | SCREW PLUG | |
| A 1129970335 | PLUG | |
| 198 | A 1122701389 | VALVE |
| 200 | A 1122770747 | TUBE |
| 202 | A 1122700556 | LEVER |
| RANGE SELECTOR | ||
| 204 | A 1122700357 | DETENT |
| WITH OPERATING LEVER | ||
| 206 | N 000125006421 | WASHER |
| Repalced by: N 000125006449 | ||
| 206 | N 000125006449 | WASHER |
| 208 | N 000093006400 | LOCK PLATE |
| 210 | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 210 | N 304032006008 | NUT |
| 212 | A 1122700064 | SHIFTING FORK |
| 214 | A 1122700065 | LINKAGE |
| 216 | N 071805010200 | BALL SOCKET |
| Repalced by: N 071805010204 | ||
| 216 | N 071805010204 | BALL SOCKET |
| 218 | N 000439006100 | NUT |
| 220 | N 071805010400 | CIRCLIP |
| Repalced by: N 071805010403 | ||
| 220 | N 071805010403 | CIRCLIP |
| 222 | A 1122770624 | LEVER |
| 224 | A 1122771074 | PIN |
| 226 | A 1122700132 | PISTON |
| 228 | A 1122770192 | BOOT |
| 230 | A 1129937201 | SPRING |
| 232 | A 1129937101 | SPRING |
| 234 | A 1122770853 | SPACER TUBE |
| 236 | A 0009942741 | LOCK |
| 238 | A 1122702062 | BRAKE BAND |
| Repalced by: A 1122702562 | ||
| 238 | A 1122702562 | BRAKE BAND |
| FORWARD SPEED | ||
| 239 | A 1122702362 | BRAKE BAND |
| Repalced by: A 1122702662 | ||
| 239 | A 1122702662 | BRAKE BAND |
| Repalced by: A 1122702362 | ||
| 239 | A 1122702362 | BRAKE BAND |
| 240 | A 1122770475 | PIN |
| AS REQUIRED | ||
| 35 MM | ||
| 240 | A 1122770575 | PIN |
| AS REQUIRED | ||
| 36 MM | ||
| 240 | A 1122770675 | PIN |
| AS REQUIRED | ||
| 37 MM | ||
| 242 | A 1129970130 | SCREW PLUG |
| 244 | N 007603016401 | SEAL RING |
| 246 | A 1122770171 | SCREW |
| 248 | A 1122773175 | PIN |
| 250 | A 1122770003 | COVER |
| 252 | A 1122770080 | GASKET |
| Repalced by: A 1122771780 | ||
| 252 | A 1122771780 | GASKET |
| 254 | N 000933007019 | SCREW |
| 256 | N 000137007201 | SPRING WASHER |
| 258 | A 1129970030 | SCREW PLUG |
| 260 | N 007603008100 | SEAL RING |
| Repalced by: N 007603008109 | ||
| 260 | N 007603008109 | SEAL RING |
| 262 | A 1112600058 | BREATHER |
| 262 | A 1122700382 | BREATHER |
| REPAIR SIZE | ||
| 262 | A 1122700182 | BREATHER |
| 264 | N 007603010101 | SEAL RING |
| Repalced by: N 007603010100 | ||
| 264 | N 007603010100 | SEAL RING |
| 264 | N 007603010404 | SEAL RING |
| 264 | N 007603014100 | SEAL RING |
| 266 | A 1122700932 | PISTON |
| 268 | A 1122770055 | SEAL RING |
| 270 | A 1122700814 | BEARING COVER |
| WITH SHIFTING SHAFT | ||
| 272 | A 0009976041 | SEAL RING |
| 274 | A 1112700071 | HOUSING |
| 276 | A 1122700188 | INSULATING PLATE |
| 278 | A 1122700079 | DIAPHRAGM |
| 280 | A 1122772475 | PIN |
| AS REQUIRED | ||
| 80 MM | ||
| 280 | A 1122772575 | PIN |
| AS REQUIRED | ||
| 81 MM | ||
| 280 | A 1122772675 | PIN |
| AS REQUIRED | ||
| 82 MM | ||
| 282 | A 1122770514 | INTERMEDIATE PLATE |
| 284 | A 0009976845 | SEAL RING |
| 286 | A 1122770753 | SPACER TUBE |
| 288 | A 1122770977 | GUIDE |
| 290 | A 1129932402 | SPRING |
| 292 | N 006799003202 | LOCK PLATE |
| 294 | A 1129934002 | SPRING |
| 294 | A 1129935202 | SPRING |
| 296 | A 1112770003 | COVER |
| 298 | A 1122770271 | SCREW |
| 300 | A 1122771046 | SPRING RETAINER |
| 302 | N 007603006100 | SEAL RING |
| Repalced by: A 0009973944 | ||
| 302 | A 0009973944 | SEAL RING |
| 304 | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 304 | N 304032006008 | NUT |
| 305 | N 007603010100 | SEAL RING |
| 306 | N 915013004002 | SCREW FITTING |
| Repalced by: N 915023006000 | ||
| 306 | N 915023006000 | FITTING |
| 308 | N 000933005057 | SCREW |
| Repalced by: N 304017005002 | ||
| 308 | N 304017005002 | SCREW |
| 310 | N 000137005203 | SPRING WASHER |
| 312 | N 000933005103 | SCREW |
| 314 | N 000137005203 | SPRING WASHER |
| A 1122770157 | INSULATING RING | |
| 316 | A 1129970030 | SCREW PLUG |
| 318 | N 007603008109 | SEAL RING |
| 319 | A 1122771380 | GASKET |
| Repalced by: A 1122771580 | ||
| 319 | A 1122771580 | GASKET |
| Repalced by: A 1102770180 | ||
| 319 | A 1102770180 | GASKET |
| 320 | A 1129931401 | SPRING |
| 322 | A 1122770380 | GASKET |
| Repalced by: A 1122771980 | ||
| 322 | A 1122771980 | GASKET |
| 324 | N 000933007017 | SCREW |
| 324 | N 000933007021 | SCREW |
| 324 | N 000933007019 | SCREW |
| 326 | N 000137007201 | SPRING WASHER |
| A 1122770257 | INSULATING RING | |
| 328 | N 000936014010 | NUT |
| Repalced by: N 308675014000 | ||
| 328 | N 308675014000 | NUT |
| Repalced by: N 308675014002 | ||
| 328 | N 308675014002 | NUT |
| 330 | A 1129970030 | SCREW PLUG |
| FOR CHECK BORE | ||
| 332 | N 007603008109 | SEAL RING |
| FOR CHECK BORE | ||
| 334 | A 1122701116 | CASE COVER |
| LESS GOVERNOR, PUMP, AND DRIVE GEAR | ||
| N 900421005000 | THREADED INSERT | |
| REPAIR SIZE | ||
| 336 | A 1122772731 | PISTON |
| 338 | A 1129937601 | SPRING |
| INSIDE | ||
| 340 | A 1129937701 | SPRING |
| OUTSIDE | ||
| 340 | A 1129935402 | SPRING |
| OUTSIDE | ||
| 342 | A 1122770852 | SPACER WASHER |
| MAXIMUM,4 PIECES | ||
| 344 | A 1122775531 | PISTON |
| 346 | A 1129936801 | SPRING |
| 348 | A 1122770752 | SPACER WASHER |
| MAXIMUM,2 PIECES | ||
| 350 | A 1122770180 | GASKET |
| Repalced by: A 1122771680 | ||
| 350 | A 1122771680 | GASKET |
| 352 | A 1122770083 | LOCKING SHEET |
| 353 | N 000084005131 | SCREW |
| 354 | N 000137005203 | SPRING WASHER |
| 356 | A 1092700193 | DRIVE SHAFT |
| Repalced by: A 1092700293 | ||
| 356 | A 1092700293 | DRIVE SHAFT |
| 356 | A 1092700042 | GEAR |
| 358 | A 1862770055 | SEAL RING |
| 360 | A 1129910201 | PIN |
| REPAIR SIZE | ||
| 5.4 MM | ||
| 360 | A 1129910301 | PIN |
| REPAIR SIZE | ||
| 5.5 MM | ||
| 362 | A 1122700950 | BUSHING |
| 364 | A 1129930102 | SPRING |
| 366 | A 1122700097 | OIL PUMP |
| 368 | A 1122700187 | GASKET KIT |
| 370 | A 1122770453 | SPACER TUBE |
| FOLLOWER TO DRIVE SHAFT | ||
| 372 | N 000931006084 | SCREW |
| Repalced by: N 304017006027 | ||
| 372 | N 304017006027 | SCREW |
| 374 | N 000137006204 | SPRING WASHER |
| 376 | A 1122770980 | GASKET |
| Repalced by: A 1122771880 | ||
| 376 | A 1122771880 | GASKET |
| 378 | A 1132700069 | SENDER UNIT |
| 380 | A 0009977845 | SEAL RING |
| 382 | N 000912005004 | SCREW |
| Repalced by: N 000912005042 | ||
| 382 | N 000912005042 | SCREW |
| 384 | N 000137005203 | SPRING WASHER |
| 386 | A 1122770480 | GASKET |
| Repalced by: A 1122771480 | ||
| 386 | A 1122771480 | GASKET |
| 388 | N 000933006123 | SCREW |
| 390 | N 000931006087 | SCREW |
| Repalced by: N 304014006004 | ||
| 390 | N 304014006004 | SCREW |
| 392 | N 000137006204 | SPRING WASHER |
| 394 | A 1122701211 | TRANSMISSION CASE |
| REAR, WITH DOWEL PINS AND STUDS | ||
| 396 | N 007603008100 | SEAL RING |
| Repalced by: N 007603008109 | ||
| 396 | N 007603008109 | SEAL RING |
| 396 | N 007603008100 | SEAL RING |
| Repalced by: N 007603008109 | ||
| 396 | N 007603008109 | SEAL RING |
| 398 | A 1129970030 | SCREW PLUG |
| 398 | A 1129970030 | SCREW PLUG |
| 400 | A 1122780221 | PAWL |
| 402 | A 1129939001 | SPRING |
| 404 | A 1122780069 | SCREW |
| 406 | N 007603016401 | SEAL RING |
| 408 | A 1129939901 | SPRING |
| 410 | A 1122780374 | PIN |
| 412 | N 000625900201 | GROOVED BALL BEARING |
| 414 | A 0039974746 | SEAL RING |
| 416 | A 1002720017 | GEAR |
| MAIN SHAFT | ||
| 418 | A 1002720074 | PIN |
| 420 | A 1122710680 | GASKET |
| Repalced by: A 1122711480 | ||
| 420 | A 1122711480 | GASKET |
| 422 | N 000933007022 | SCREW |
| 424 | N 000933007021 | SCREW |
| 426 | N 000137007201 | SPRING WASHER |
| 428 | A 1112620045 | FLANGE |
| 430 | A 1862620226 | GROOVED NUT |
| 432 | A 1862620173 | LOCK |
| 434 | A 1122700527 | SPEEDOMETER DRIVE |
| 436 | A 1122740032 | DRIVE SHAFT |
| 438 | A 1122700627 | SPEEDOMETER DRIVE |
| 440 | A 1122700113 | BEARING BODY |
| 442 | A 0009976845 | SEAL RING |
| 444 | A 1122700008 | COVER |
| 446 | A 1122740180 | GASKET |
| 448 | N 000933006024 | SCREW |
| Repalced by: N 000933006102 | ||
| 448 | N 000933006102 | SCREW |
| Repalced by: N 304017006016 | ||
| 448 | N 304017006016 | SCREW |
| 450 | N 000137006200 | SPRING WASHER |
| Repalced by: N 000137006204 | ||
| 450 | N 000137006204 | SPRING WASHER |
| N 000912006042 | SCREW | |
| Repalced by: A 0019907212 | ||
| A 0019907212 | SCREW | |
| N 000137006200 | SPRING WASHER | |
| Repalced by: N 000137006204 | ||
| N 000137006204 | SPRING WASHER | |
| X XXXXXXXXXXXX | PART NAME MISSING | |

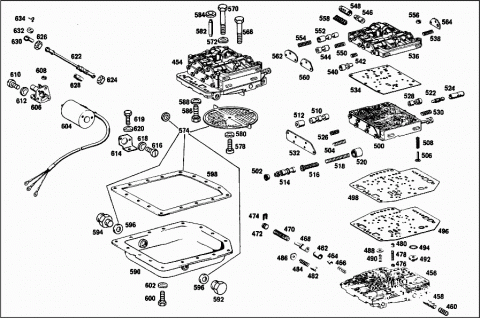

| VALVE BODY ASSEMBLY | ||
| A 1132700307 | VALVE BODY ASSEMBLY | |
| 454 | A 1122702307 | VALVE BODY ASSEMBLY |
| 456 | A 1122702207 | VALVE BODY ASSEMBLY |
| 458 | A 1122775329 | SHIFT VALVE |
| 460 | A 1129932701 | SPRING |
| 462 | A 1122773550 | BUSHING |
| 464 | A 1122774531 | PISTON |
| 466 | A 1129933502 | SPRING |
| 468 | A 1122774631 | PISTON |
| 470 | A 1129933702 | SPRING |
| 472 | A 1122771174 | PIN |
| 474 | A 1122770073 | LOCK |
| 476 | A 1122773750 | BUSHING |
| 478 | A 1129933802 | SPRING |
| 480 | A 1122774731 | PISTON |
| 482 | A 1122775031 | PISTON |
| 484 | A 1129934402 | SPRING |
| 486 | A 1122770583 | LOCKING SHEET |
| 488 | A 1152772936 | VALVE PART |
| 490 | A 1129934802 | SPRING |
| 492 | A 1122701489 | VALVE |
| 494 | A 0059974145 | SEAL RING |
| 496 | A 1122771314 | INTERMEDIATE PLATE |
| 498 | A 1122771280 | GASKET |
| Repalced by: A 1122772380 | ||
| 498 | A 1122772380 | GASKET |
| A 1132700107 | VALVE BODY ASSEMBLY | |
| LOWER PART | ||
| 500 | A 1122701707 | VALVE BODY ASSEMBLY |
| 502 | A 1122773150 | BUSHING |
| 504 | A 1129930902 | SPRING |
| 506 | A 1122770436 | VALVE PART |
| 508 | A 1129930301 | SPRING |
| 510 | A 1122775629 | SHIFT VALVE |
| 512 | A 1122774031 | PISTON |
| 514 | A 1122700870 | REGULATOR VALVE |
| 516 | A 1122700677 | THRUST PIN |
| 518 | A 1129938501 | SPRING |
| 518 | A 1129934202 | SPRING |
| 518 | A 1129935702 | SPRING |
| 518 | A 1132770031 | PISTON |
| 520 | A 1122774931 | PISTON |
| 522 | A 1122774729 | SHIFT VALVE |
| 524 | A 1122772950 | BUSHING |
| 526 | A 1129933902 | SPRING |
| 528 | A 1122775429 | SHIFT VALVE |
| 530 | A 1129931901 | SPRING |
| 532 | A 1122771783 | LOCKING SHEET |
| N 000084005131 | SCREW | |
| N 000137005100 | SPRING WASHER | |
| Repalced by: N 000137005203 | ||
| N 000137005203 | SPRING WASHER | |
| 534 | A 1122771114 | INTERMEDIATE PLATE |
| 536 | A 1122702107 | VALVE BODY ASSEMBLY |
| UPPER PART | ||
| 538 | A 1129931502 | SPRING |
| A 1129934302 | SPRING | |
| A 1122775131 | PISTON | |
| 540 | A 1122775231 | PISTON |
| 542 | A 1129934402 | SPRING |
| 544 | A 1122772929 | SHIFT VALVE |
| 546 | A 1122775529 | SHIFT VALVE |
| 548 | A 1122773650 | BUSHING |
| 550 | A 1129931901 | SPRING |
| 552 | A 1122771530 | SHIFT VALVE |
| 4TH SPEED | ||
| 554 | A 1129935002 | SPRING |
| 556 | A 1122770392 | BOOT |
| A 1122774050 | BUSHING | |
| 558 | A 1129933602 | SPRING |
| 560 | A 1122770883 | LOCKING SHEET |
| 562 | A 1122770983 | LOCKING SHEET |
| 564 | A 1122770483 | LOCKING SHEET |
| N 000084005131 | SCREW | |
| N 000137005203 | SPRING WASHER | |
| N 900421005000 | THREADED INSERT | |
| 568 | N 000931006086 | SCREW |
| Repalced by: N 304014006001 | ||
| 568 | N 304014006001 | SCREW |
| 570 | N 000931006138 | SCREW |
| Repalced by: N 000933006176 | ||
| 570 | N 000933006176 | SCREW |
| 572 | N 000137006100 | SPRING WASHER |
| Repalced by: N 000137006204 | ||
| 572 | N 000137006204 | SPRING WASHER |
| 574 | A 1122700098 | FILTER |
| RANGE OF DELIVERY COMPRISES: | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 1 GASKET 112 271 09 80 OIL PAN | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 3 SEAL 007603 014100 OIL FILLER TO OIL PAN | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 1 SEAL 007603 012104 OIL DRAN HYDRAULIC CLUTCH | ||
| A 1132700098 | FILTER | |
| RANGE OF DELIVERY COMPRISES: | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 1 GASKET 112 271 09 80 OIL PAN | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 3 SEAL 007603 014100 OIL FILLER TO OIL PAN | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 1 SEAL 007603 012113 OIL DRAN HYDRAULIC CLUTCH | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 1 SEAL 007603 010100 OIL DRAN HYDRAULIC CLUTCH | ||
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| 578 | N 000084006134 | SCREW |
| 580 | N 000137006204 | SPRING WASHER |
| 582 | A 1122770647 | TUBE |
| 584 | A 0009976345 | SEAL RING |
| 586 | N 000933007019 | SCREW |
| 588 | N 000137007201 | SPRING WASHER |
| 590 | A 1122700112 | OIL PAN |
| Repalced by: A 1122700412 | ||
| 590 | A 1122700412 | OIL PAN |
| 592 | N 007604014102 | SCREW PLUG |
| Repalced by: N 007604014106 | ||
| 592 | N 007604014106 | SCREW PLUG |
| Repalced by: N 007604014110 | ||
| 592 | N 007604014110 | SCREW PLUG |
| OIL DRAIN | ||
| 594 | A 1129970372 | FITTING |
| 596 | N 007603014100 | SEAL RING |
| 598 | A 1122710380 | GASKET |
| Repalced by: A 1122710980 | ||
| 598 | A 1122710980 | GASKET |
| 600 | N 000933007023 | SCREW |
| Repalced by: N 000933007028 | ||
| 600 | N 000933007028 | SCREW |
| 600 | N 000933007027 | SCREW |
| Repalced by: N 914146007100 | ||
| 600 | N 914146007100 | SCREW |
| 602 | N 000137007200 | SPRING WASHER |
| Repalced by: N 000137007201 | ||
| 602 | N 000137007201 | SPRING WASHER |
| 604 | A 0003040090 | SOLENOID |
| Repalced by: A 0003040290 | ||
| 604 | A 0003040290 | SOLENOID |
| 606 | A 1123000636 | BEARING BRACKET |
| 608 | A 1123040060 | SEAL RING |
| 610 | N 000084005131 | SCREW |
| 612 | N 000137005100 | SPRING WASHER |
| Repalced by: N 000137005203 | ||
| 612 | N 000137005203 | SPRING WASHER |
| 614 | A 1123040040 | BRACKET |
| 616 | N 000084005149 | SCREW |
| Repalced by: N 000084005402 | ||
| 616 | N 000084005402 | SCREW |
| 618 | N 000137005100 | SPRING WASHER |
| Repalced by: N 000137005203 | ||
| 618 | N 000137005203 | SPRING WASHER |
| 619 | N 000933007023 | SCREW |
| Repalced by: N 000933007028 | ||
| 619 | N 000933007028 | SCREW |
| 620 | N 000137007200 | SPRING WASHER |
| Repalced by: N 000137007201 | ||
| 620 | N 000137007201 | SPRING WASHER |
| 622 | A 1123000515 | ROD |
| Repalced by: A 1123001015 | ||
| 622 | A 1123001015 | ROD |
| 624 | N 000934005004 | NUT |
| Repalced by: N 000934005008 | ||
| 624 | N 000934005008 | NUT |
| 626 | N 000934005010 | NUT |
| L.H. THREAD | ||
| 628 | N 900333005001 | TURNBUCKLE |
| 630 | N 071805008204 | BALL SOCKET |
| 632 | A 0009976041 | SEAL RING |
| 634 | N 071805008400 | CIRCLIP |
| Repalced by: N 071805008403 | ||
| 634 | N 071805008403 | CIRCLIP |
| A 1122700080 | GASKET KIT | |
| Repalced by: A 1122701800 | ||
| A 1122701800 | GASKET KIT | |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| CONNECTING PARTS | ||
| 638 | N 000912006025 | SCREW |
| Repalced by: N 000912006175 | ||
| 638 | N 000912006175 | SCREW |
| Repalced by: A 0019907212 | ||
| 638 | A 0019907212 | SCREW |
| FLEXIBLE SHAFT TO BEARING BODY | ||
| 640 | N 000137006204 | SPRING WASHER |
| FLEXIBLE SHAFT TO BEARING BODY | ||
| N 000912008047 | SCREW | |
| M 8X18 | ||
| N 000933008030 | SCREW | |
| M 8X18 | ||
| N 000933008030 | SCREW | |
| M 8X18 | ||

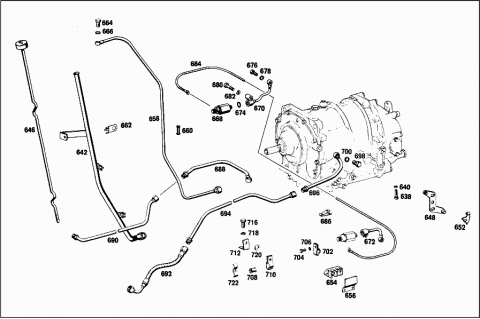

| 642 | A 1132700084 | OIL FILLER PIPE |
| Repalced by: A 1132700284 | ||
| 642 | A 1132700284 | OIL FILLER PIPE |
| 642 | A 1132700184 | OIL FILLER PIPE |
| Repalced by: A 1132700384 | ||
| A 1132700384 | OIL FILLER PIPE | |
| A 1132700584 | OIL FILLER PIPE | |
| 646 | A 1122700083 | OIL DIPSTICK |
| 646 | A 1162700083 | OIL DIPSTICK |
| 648 | A 1132600339 | SHIFT LEVER |
| RANGE SELECTOR | ||
| N 000933006026 | SCREW | |
| Repalced by: N 000933006102 | ||
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| N 000933006130 | SCREW | |
| N 000137006200 | SPRING WASHER | |
| Repalced by: N 000137006204 | ||
| N 000137006204 | SPRING WASHER | |
| N 000125006407 | WASHER | |
| Repalced by: N 000125006421 | ||
| N 000125006421 | WASHER | |
| Repalced by: N 000125006449 | ||
| N 000125006449 | WASHER | |
| N 000934006006 | NUT | |
| Repalced by: N 304032006004 | ||
| N 304032006004 | NUT | |
| N 000934006013 | NUT | |
| Repalced by: N 304032006008 | ||
| N 304032006008 | NUT | |
| 652 | A 1132600162 | BRACKET |
| 654 | A 0005466541 | CABLE CONNECTOR |
| 656 | A 1122570490 | COVER PLATE |
| N 000084004164 | SCREW | |
| Repalced by: N 000084004438 | ||
| N 000084004438 | SCREW | |
| N 000137004100 | SPRING WASHER | |
| Repalced by: N 000137004202 | ||
| N 000137004202 | SPRING WASHER | |
| 658 | A 1132700147 | LINE |
| Repalced by: A 1142702247 | ||
| 658 | A 1142702247 | LINE |
| 660 | A 1129970381 | GROMMET |
| 662 | A 1112760040 | BRACKET |
| 664 | N 007623004302 | HOLLOW SCREW |
| Repalced by: N 000000004896 | ||
| 664 | N 000000004896 | BANJO BOLT |
| 664 | N 915036006102 | HOLLOW SCREW |
| Repalced by: N 915036006106 | ||
| 664 | N 915036006106 | HOLLOW SCREW |
| 666 | N 007603010100 | SEAL RING |
| 668 | A 0015421317 | SENDER UNIT |
| 670 | A 1125400173 | BRACKET |
| 672 | A 1125400273 | BRACKET |
| 674 | N 007603012100 | SEAL RING |
| 674 | N 007603012405 | SEAL RING |
| 676 | A 1129900263 | HOLLOW SCREW |
| 678 | N 007603008101 | SEAL RING |
| Repalced by: N 007603008109 | ||
| 678 | N 007603008109 | SEAL RING |
| 680 | N 000931006084 | SCREW |
| Repalced by: N 304017006027 | ||
| 680 | N 304017006027 | SCREW |
| 682 | N 000137006200 | SPRING WASHER |
| Repalced by: N 000137006204 | ||
| 682 | N 000137006204 | SPRING WASHER |
| 684 | A 1115400438 | ELECTRIC CABLE |
| 686 | A 1119950101 | CLAMP |
| 688 | A 1112700896 | LINE |
| 690 | A 1112700496 | LINE |
| Repalced by: A 1142700996 | ||
| 690 | A 1142700996 | LINE |
| Repalced by: A 1232700396 | ||
| 690 | A 1232700396 | LINE |
| 692 | A 0049977782 | HOSE |
| Repalced by: A 0019971852 | ||
| 692 | A 0019971852 | HOSE |
| Repalced by: A 0199978182 | ||
| 692 | A 0199978182 | HOSE |
| 694 | A 1132700096 | LINE |
| Repalced by: A 1132700396 | ||
| 694 | A 1132700396 | LINE |
| 696 | A 1112700796 | LINE |
| 698 | N 007623006302 | HOLLOW SCREW |
| Repalced by: N 915036008104 | ||
| 698 | N 915036008104 | HOLLOW SCREW |
| 700 | N 007603012100 | SEAL RING |
| 700 | N 007603012405 | SEAL RING |
| 702 | A 1209950005 | CLAMP |
| 704 | N 000933006024 | SCREW |
| Repalced by: N 000933006102 | ||
| 704 | N 000933006102 | SCREW |
| Repalced by: N 304017006016 | ||
| 704 | N 304017006016 | SCREW |
| 706 | N 000127006200 | LOCK WASHER |
| Repalced by: N 912004006102 | ||
| 706 | N 912004006102 | LOCK WASHER |
| 708 | A 1129970281 | GROMMET |
| 710 | A 1209950005 | CLAMP |
| A 1129970281 | GROMMET | |
| 712 | A 1112770440 | BRACKET |
| N 000933006074 | SCREW | |
| Repalced by: N 000933006122 | ||
| N 000933006122 | SCREW | |
| Repalced by: N 304017006034 | ||
| N 304017006034 | SCREW | |
| CLAMP TO BRACKET | ||
| N 000137006200 | SPRING WASHER | |
| Repalced by: N 000137006204 | ||
| N 000137006204 | SPRING WASHER | |
| CLAMP TO BRACKET | ||
| N 000934006006 | NUT | |
| Repalced by: N 000934006007 | ||
| N 000934006007 | NUT | |
| CLAMP TO BRACKET | ||
| 716 | N 000933008108 | SCREW |
| Repalced by: N 000933008147 | ||
| 716 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 716 | N 304017008021 | SCREW |
| 718 | N 000127008200 | LOCK WASHER |
| Repalced by: N 912004008102 | ||
| 718 | N 912004008102 | LOCK WASHER |
| 720 | A 1801550851 | SPACER RING |
| 722 | A 1119951232 | CLAMP |
| N 000084004164 | SCREW | |
| CLAMP TO OIL PIPE | ||
| Repalced by: N 000084004438 | ||
| N 000084004438 | SCREW | |
| CLAMP TO OIL PIPE | ||
| N 000127004200 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| CLAMP TO OIL PIPE | ||
| N 000934004004 | NUT | |
| Repalced by: N 000934004006 | ||
| N 000934004006 | NUT | |
| CLAMP TO OIL PIPE | ||
| Repalced by: N 304032004002 | ||
| N 304032004002 | NUT | |
| CLAMP TO OIL PIPE | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| GEARSHIFT, TRANSMISSION | ||
| 726 | A 1132670220 | CASE |
| 726 | A 1122670120 | CASE |
| 726 | A 1122670020 | CASE |
| 728 | A 1132670750 | BUSHING |
| LEFT | ||
| 728 | A 1132670850 | BUSHING |
| RIGHT | ||
| 728 | A 1122670050 | BUSHING |
| 730 | A 1879900840 | WASHER |
| Repalced by: A 0008242282 | ||
| 730 | A 0008242282 | WASHER |
| 732 | N 900055016300 | LOCK RING |
| Repalced by: N 900055016301 | ||
| 732 | N 900055016301 | LOCK RING |
| A 1132670503 | SHIFTING SHAFT | |
| A 1132600239 | SHIFT LEVER | |
| N 000125008407 | WASHER | |
| Repalced by: N 000125008445 | ||
| N 000125008445 | WASHER | |
| N 070618008000 | NUT | |
| Repalced by: N 000979008003 | ||
| N 000979008003 | NUT | |
| N 000094002005 | COTTER PIN | |
| 734 | A 1132600439 | SHIFT LEVER |
| 736 | A 1132670101 | SHIFT LEVER |
| 736 | A 1122670001 | SHIFT LEVER |
| 738 | A 1132670174 | PIN |
| 738 | A 1122670074 | PIN |
| 740 | A 1132670950 | BUSHING |
| 740 | A 1122670150 | BUSHING |
| 742 | A 1139930120 | SPRING |
| 742 | A 1129930120 | SPRING |
| 744 | N 006799004000 | LOCK PLATE |
| Repalced by: N 006799004001 | ||
| 744 | N 006799004001 | LOCK PLATE |
| 744 | A 0029940260 | LOCK |
| Repalced by: N 912002006001 | ||
| 744 | N 912002006001 | LOCK |
| 744 | N 912002006002 | LOCK |
| Repalced by: N 912002006001 | ||
| 744 | N 912002006001 | LOCK |
| 746 | A 1132670640 | BRACKET |
| 748 | N 000933005004 | SCREW |
| Repalced by: N 000933005036 | ||
| 748 | N 000933005036 | SCREW |
| Repalced by: N 304017005006 | ||
| 748 | N 304017005006 | SCREW |
| 750 | N 000127005200 | LOCK WASHER |
| Repalced by: N 912004005103 | ||
| 750 | N 912004005103 | LOCK WASHER |
| 750 | N 912004005100 | LOCK WASHER |
| Repalced by: N 912004005103 | ||
| 750 | N 912004005103 | LOCK WASHER |
| A 1132670088 | COVERING | |
| 752 | A 1132770184 | SHIM |
| Repalced by: A 1122670084 | ||
| 752 | A 1122670084 | SHIM |
| 752 | A 1112670084 | SHIM |
| 754 | A 1132670296 | BOOT |
| 756 | A 1132600228 | GUIDE PLATE |
| Repalced by: A 1112600028 | ||
| 756 | A 1112600028 | GUIDE PLATE |
| 758 | A 0005420039 | PLATE |
| N 072601012140 | BULB | |
| 760 | A 1122670084 | SHIM |
| 762 | N 000933006016 | SCREW |
| Repalced by: N 000933006103 | ||
| 762 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 762 | N 304017006018 | SCREW |
| 764 | N 000137006203 | SPRING WASHER |
| Repalced by: N 000137006204 | ||
| 764 | N 000137006204 | SPRING WASHER |
| 766 | A 1132670010 | HANDLE |
| 768 | A 1132600533 | SHIFTING ROD |
| Repalced by: A 1132600733 | ||
| 768 | A 1132600733 | SHIFTING ROD |
| Repalced by: A 1132670059 | ||
| 768 | A 1132670059 | GUIDE |
| 770 | A 1132670183 | SEAL |
| 772 | A 1132670059 | GUIDE |
| 774 | N 007341004105 | RIVET |
| 776 | A 1132671032 | END PIECE |
| Repalced by: A 1132671132 | ||
| 776 | A 1132671132 | END PIECE |
| 778 | N 070616010000 | NUT |
| Repalced by: N 070616010004 | ||
| 778 | N 070616010004 | NUT |
| 780 | A 1122680150 | BUSHING |
| A 1132680073 | LOCK | |
| 782 | A 1132600051 | WIRE CABLE |
| 784 | N 040621005200 | INSULATING HOSE |
| 519 MM | ||
| 786 | A 1139970141 | SEAL RING |
| 788 | N 000137006100 | SPRING WASHER |
| Repalced by: N 000137006204 | ||
| 788 | N 000137006204 | SPRING WASHER |
| 790 | N 006799004000 | LOCK PLATE |
| Repalced by: N 006799004001 | ||
| 790 | N 006799004001 | LOCK PLATE |
| 792 | A 1132670253 | SPACER TUBE |
| 794 | N 070616010001 | NUT |
| Repalced by: N 070616010003 | ||
| 794 | N 070616010003 | NUT |
| 796 | A 0015455424 | SWITCH,AUTOMATIC |
| Repalced by: A 0015458724 | ||
| 796 | A 0015457424 | SWITCH,AUTOMATIC |
| Repalced by: A 0015458724 | ||
| 796 | A 0015458724 | SWITCH,AUTOMATIC |
| STARTER NON-REPEAT AND BACK-UP LIGHT | ||
| 798 | N 000127006200 | LOCK WASHER |
| Repalced by: N 912004006102 | ||
| 798 | N 912004006102 | LOCK WASHER |
| 800 | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 800 | N 304032006008 | NUT |
| N 000934006000 | NUT | |
| Repalced by: N 304032006004 | ||
| N 304032006004 | NUT | |
| 800 | N 000439005200 | NUT |
| Repalced by: N 000439005201 | ||
| 800 | N 000439005201 | NUT |
| A 0009910822 | BALL SOCKET | |
| Repalced by: A 6089910022 | ||
| A 6089910022 | BALL SOCKET | |
| N 071805008100 | BALL SOCKET | |
| Repalced by: N 071805008207 | ||
| N 071805008207 | BALL SOCKET | |
| N 000439005201 | NUT | |
| Repalced by: N 304035005001 | ||
| N 304035005001 | NUT | |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
