Transporto priemonė: 280 SL; VIN numerio dalis: 113044

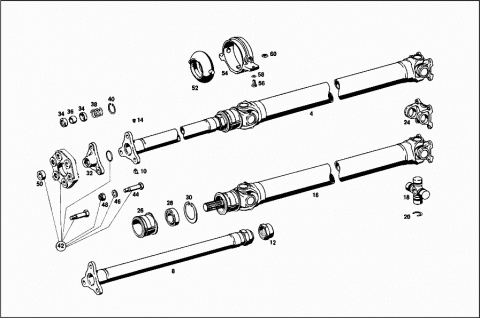

Grupė: 41 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| PROPELLER SHAFT | ||
| 004 | A 1134100003 | PROPELLER SHAFT |
| Repalced by: A 1134100103 | ||
| 004 | A 1134100103 | PROPELLER SHAFT |
| Repalced by: A 1134101003 | ||
| 004 | A 1134100903 | PROPELLER SHAFT |
| Repalced by: A 1134101003 | ||
| 004 | A 1134101003 | PROPELLER SHAFT |
| 004 | A 1134100303 | PROPELLER SHAFT |
| Repalced by: A 1134101103 | ||
| 004 | A 1134100703 | PROPELLER SHAFT |
| Repalced by: A 1134101103 | ||
| 004 | A 1134101103 | PROPELLER SHAFT |
| SPLIT | ||
| 008 | A 1134100101 | PROPELLER SHAFT |
| Repalced by: A 1134100201 | ||
| 008 | A 1134100201 | PROPELLER SHAFT |
| 008 | A 1134101201 | PROPELLER SHAFT |
| Repalced by: A 1134101301 | ||
| 008 | A 1134101301 | PROPELLER SHAFT |
| FRONT | ||
| 008 | A 1134100601 | PROPELLER SHAFT |
| Repalced by: A 1134101401 | ||
| 008 | A 1134101001 | PROPELLER SHAFT |
| Repalced by: A 1134101401 | ||
| 008 | A 1134101401 | PROPELLER SHAFT |
| FRONT | ||
| 010 | A 0009871688 | PART NAME MISSING |
| Repalced by: N 071412006200 | ||
| 010 | N 071412006200 | GREASE NIPPLE |
| 012 | A 1104110072 | NUT |
| Repalced by: A 1104110172 | ||
| 012 | A 1104110172 | NUT |
| 014 | A 1229970087 | VALVE |
| 016 | A 1114100202 | PROPELLER SHAFT |
| 016 | A 1104101702 | PROPELLER SHAFT |
| Repalced by: A 1134100002 | ||
| 016 | A 1134100002 | PROPELLER SHAFT |
| 016 | A 1134100002 | PROPELLER SHAFT |
| REAR | ||
| 018 | A 1114100031 | UNIVERSAL JOINT CROSS |
| WITH NEEDLE BEARING BUSHINGS AND NEEDLES | ||
| 018 | A 1114100031 | UNIVERSAL JOINT CROSS |
| WITH NEEDLE BEARING BUSHINGS AND NEEDLES | ||
| 020 | A 1889940534 | SNAP RING |
| 1.45 MM | ||
| 020 | A 1889940534 | SNAP RING |
| 1.45 MM | ||
| 020 | A 1889940034 | SNAP RING |
| 1.50 MM | ||
| 020 | A 1889940034 | SNAP RING |
| 1.50 MM | ||
| 020 | A 1889940234 | SNAP RING |
| 1.60 MM | ||
| 020 | A 1889940234 | SNAP RING |
| 1.60 MM | ||
| 020 | A 1889940334 | SNAP RING |
| 1.65 MM | ||
| 020 | A 1889940334 | SNAP RING |
| 1.65 MM | ||
| 020 | A 1889940434 | SNAP RING |
| 1.70 MM | ||
| 020 | A 1889940434 | SNAP RING |
| 1.70 MM | ||
| A 1114100228 | UNIVERSAL JOINT | |
| 024 | A 1114110044 | DRIVE FLANGE |
| 026 | A 1804130201 | HOUSING |
| 026 | A 1104130301 | HOUSING |
| Repalced by: A 1104130401 | ||
| 026 | A 1104130401 | HOUSING |
| Repalced by: A 1104100422 | ||
| 026 | A 1104100422 | INTERMEDIATE BEARING |
| 028 | N 000625036006 | GROOVED BALL BEARING |
| Repalced by: A 0029816625 | ||
| 028 | A 0029816625 | BALL BEARING |
| 028 | N 000625436006 | GROOVED BALL BEARING |
| Repalced by: A 0039812325 | ||
| 028 | A 0039812325 | BALL BEARING |
| A 1104130051 | SPACER RING | |
| A 1809970340 | SEAL RING | |
| 030 | N 000472055000 | LOCK RING |
| 030 | N 000472055000 | LOCK RING |
| N 071412006100 | GREASE NIPPLE | |
| A 1114110045 | FLANGE | |
| A 1114110245 | FLANGE | |
| A 1104130080 | SEAL RING | |
| A 1119940043 | LOCK | |
| A 1119900060 | NUT | |
| A 1114110044 | DRIVE FLANGE | |
| A 1114110031 | UNIVERSAL JOINT CROSS | |
| A 1889940534 | SNAP RING | |
| 1.45 MM | ||
| A 1889940034 | SNAP RING | |
| 1.50 MM | ||
| A 1889940234 | SNAP RING | |
| 1.60 MM | ||
| A 1889940334 | SNAP RING | |
| 1.65 MM | ||
| A 1889940434 | SNAP RING | |
| 1.70 MM | ||
| N 071412006100 | GREASE NIPPLE | |
| A 1119900020 | SCREW | |
| PROPELLER SHAFT TO PROPELLER SHAFT | ||
| A 1119940209 | LOCK | |
| PROPELLER SHAFT TO PROPELLER SHAFT | ||
| A 0009907741 | WASHER | |
| Repalced by: N 000936010014 | ||
| N 000936010014 | NUT | |
| PROPELLER SHAFT TO PROPELLER SHAFT | ||
| A 1809971040 | SEAL RING | |
| BETWEEN PROPELLER SHAFT AND CENTERING CROSS | ||
| 032 | A 1114100130 | CENTERING FLANGE |
| 034 | A 1364110118 | BALL SOCKET |
| 036 | A 1844110017 | CENTERING BALL |
| 038 | A 1849930401 | SPRING |
| Repalced by: A 1109933201 | ||
| 038 | A 1109933201 | SPRING |
| Repalced by: A 1109933701 | ||
| 038 | A 1109933701 | SPRING |
| N 000472030000 | LOCK RING | |
| 040 | N 900055030110 | LOCK RING |
| Repalced by: N 000984030000 | ||
| 040 | N 000984030000 | LOCK RING |
| A 1114110076 | WASHER | |
| A 1894110015 | FLEXIBLE JOINT DISC | |
| Repalced by: A 1804110615 | ||
| A 1804110615 | FLEXIBLE JOINT DISC | |
| 042 | A 1084100115 | FLEXIBLE JOINT DISC |
| PARTS KIT | ||
| 044 | A 1864110571 | SCREW |
| Repalced by: A 1104110171 | ||
| 044 | A 1104110171 | SCREW |
| 044 | A 1104110171 | SCREW |
| 044 | A 1864110171 | SCREW |
| Repalced by: A 1104110071 | ||
| 044 | A 1104110071 | SCREW |
| 044 | A 1104110071 | SCREW |
| 046 | A 1879901440 | WASHER |
| 048 | N 000985012005 | NUT |
| Repalced by: N 913002012002 | ||
| 048 | N 913002012002 | NUT |
| 050 | A 1204110060 | RUBBER RING |
| 052 | A 1114130012 | RUBBER MOUNTING |
| 054 | A 1104130329 | BEARING BRACKET |
| Repalced by: A 1104130429 | ||
| 054 | A 1104130429 | BEARING BRACKET |
| 056 | N 000933008114 | SCREW |
| Repalced by: N 000933008154 | ||
| 056 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 056 | N 304017008021 | SCREW |
| 058 | N 000127008203 | LOCK WASHER |
| Repalced by: N 912004008102 | ||
| 058 | N 912004008102 | LOCK WASHER |
| 060 | A 1109900052 | NUT |
| A 1119900020 | SCREW | |
| PROPELLER SHAFT TO REAR AXLE | ||
| A 1119940209 | LOCK | |
| PROPELLER SHAFT TO REAR AXLE | ||
| A 0009907751 | NUT | |
| Repalced by: N 000936010014 | ||
| N 000936010014 | NUT | |
| Repalced by: N 913021010001 | ||
| N 913021010001 | NUT | |
| Repalced by: N 304035010001 | ||
| N 304035010001 | NUT | |
| PROPELLER SHAFT TO REAR AXLE | ||
