Transporto priemonė: 280 SL USA; VIN numerio dalis: 113044
Grupė: 42 BRAKES
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |

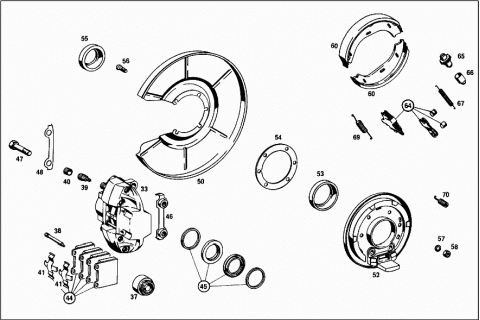

| FRONT WHEEL BRAKE | ||
| A 0004217198 | CALIPER | |
| Repalced by: A 0014210298 | ||
| A 0014210098 | CALIPER | |
| Repalced by: A 0014210298 | ||
| 003 | A 0014210298 | CALIPER |
| Repalced by: A 0014218198 | ||
| A 0014218198 | CALIPER | |
| LEFT, LESS LINING, MAKE TEVES | ||
| A 0004217298 | CALIPER | |
| Repalced by: A 0014210398 | ||
| A 0014210198 | CALIPER | |
| Repalced by: A 0014210398 | ||
| A 0014210398 | CALIPER | |
| Repalced by: A 0014218298 | ||
| A 0014218298 | CALIPER | |
| RIGHT, LESS LINING, MAKE TEVES | ||
| 010 | A 0004213583 | PISTON |
| 011 | A 0009910360 | DOWEL PIN |
| 012 | A 0004210220 | PROTECTIVE PLATE |
| 013 | A 0004201755 | BLEEDER VALVE |
| 014 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 014 | A 0004210887 | PROTECTIVE CAP |
| 015 | A 0004210291 | SPRING |
| A 0014217398 | CALIPER | |
| LEFT, LESS LINING, MAKE BENDIX | ||
| A 0014217498 | CALIPER | |
| RIGHT, LESS LINING, MAKE BENDIX | ||
| A 0004214498 | CALIPER | |
| A 0009911860 | DOWEL PIN | |
| Repalced by: A 0009912660 | ||
| A 0009912660 | DOWEL PIN | |
| A 0004211291 | SPRING | |
| A 0004210273 | LOCK | |
| Repalced by: A 0004210573 | ||
| A 0004210573 | LOCK | |
| A 0004210373 | LOCK | |
| Repalced by: A 0004210573 | ||
| A 0004210573 | LOCK | |
| A 0004210520 | PROTECTIVE PLATE | |
| A 0004204655 | BLEEDER VALVE | |
| 017 | A 0004206620 | BRAKE PAD |
| Repalced by: A 0014207720 | ||
| 017 | A 0014207720 | BRAKE PAD |
| PARTS KIT | ||
| 019 | A 0005866442 | REPAIR KIT |
| GASKET KIT | ||
| A 0015860042 | REPAIR KIT | |
| FRONT, MAKE BENDIX | ||
| 020 | A 1114210371 | SCREW |
| 021 | A 1159940732 | LOCK |
| 022 | A 1084200244 | PROTECTIVE PLATE |
| LEFT | ||
| A 1084200344 | PROTECTIVE PLATE | |
| RIGHT | ||
| 025 | N 000912006040 | SCREW |
| 026 | N 007980006000 | LOCK WASHER |
| 027 | A 1084200028 | LINE |
| LEFT FROM WHEEL CYLINDER TO CONNECTOR | ||
| 028 | A 1084200128 | LINE |
| RIGHT FROM WHEEL CYLINDER TO CONNECTOR | ||
| 029 | N 000912006063 | SCREW |
| Repalced by: N 000912006170 | ||
| 029 | N 000912006170 | SCREW |
| BRAKE LINE TO STEERING KNUCKLE | ||
| N 000912006039 | SCREW | |
| Repalced by: N 000912006064 | ||
| N 000912006064 | SCREW | |
| BRAKE LINE TO STEERING KNUCKLE | ||
| 030 | N 007980006000 | LOCK WASHER |
| BRAKE LINE TO STEERING KNUCKLE | ||
| A 0004202983 | CALIPER | |
| Repalced by: A 0004204683 | ||
| 033 | A 0004203883 | CALIPER |
| Repalced by: A 0004204683 | ||
| A 0004204683 | CALIPER | |
| LEFT,TEVES,LESS LINING | ||
| A 0004203083 | CALIPER | |
| Repalced by: A 0004204783 | ||
| A 0004203983 | CALIPER | |
| Repalced by: A 0004204783 | ||
| A 0004204783 | CALIPER | |
| RIGHT,TEVES,LESS LINING | ||
| 037 | A 0004232983 | PISTON |
| 038 | A 0009910360 | DOWEL PIN |
| 039 | A 0004201655 | BLEEDER VALVE |
| 040 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 040 | A 0004210887 | PROTECTIVE CAP |
| 041 | A 0004210391 | SPRING |
| Repalced by: A 0004211791 | ||
| 041 | A 0004211791 | SPRING |
| A 0004207120 | BRAKE PAD | |
| PARTS KIT | ||
| 044 | A 0004207020 | BRAKE PAD |
| Repalced by: A 0014207920 | ||
| 044 | A 0014207920 | BRAKE PAD |
| PARTS KIT | ||
| 045 | A 0005861543 | REPAIR KIT |
| GASKET KIT | ||
| 046 | A 1084200286 | BRACKET |
| 047 | N 000960012043 | SCREW |
| 048 | A 1154230273 | LOCK |
| 050 | A 1084230020 | PROTECTIVE PLATE |
| A 0004200217 | BRAKE ANCHOR PLATE | |
| Repalced by: A 1084200117 | ||
| 052 | A 1084200117 | BRAKE ANCHOR PLATE |
| 053 | A 0019973446 | SEAL RING |
| BRAKE ANCHOR PLATE TO AXLE TUBE | ||
| 054 | A 1104230079 | GASKET |
| BRAKE ANCHOR PLATE TO AXLE TUBE | ||
| 055 | A 0019974746 | SEAL RING |
| BRAKE ANCHOR PLATE TO AXLE TUBE | ||
| 056 | A 1083570071 | SCREW |
| BRAKE ANCHOR PLATE TO AXLE TUBE | ||
| 057 | N 006797008120 | TOOTHED WASHER |
| BRAKE ANCHOR PLATE TO AXLE TUBE | ||
| 058 | N 000934008010 | NUT |
| Repalced by: N 304032008006 | ||
| 058 | N 304032008006 | NUT |
| BRAKE ANCHOR PLATE TO AXLE TUBE | ||
| A 1083570071 | SCREW | |
| BRAKE ANCHOR PLATE AND BRAKE ANCHOR TO AXLE TUBE | ||
| N 006797008120 | TOOTHED WASHER | |
| BRAKE ANCHOR PLATE AND BRAKE ANCHOR TO AXLE TUBE | ||
| 060 | A 1264200120 | BRAKE SHOE |
| A 1084200081 | LEVER | |
| A 1084270089 | CONNECTOR | |
| A 1084270174 | PIN | |
| 064 | A 1145860142 | REPAIR KIT |
| TURNBUCKLE | ||
| A 1154201189 | SHACKLE | |
| A 1084270074 | PIN | |
| 065 | A 1234200073 | SCREW |
| 066 | A 1164230050 | BUSHING |
| 067 | A 1084230192 | SPRING |
| Repalced by: A 9019931310 | ||
| 067 | A 9019931310 | SPRING |
| A 0004230692 | SPRING | |
| 069 | A 1084230792 | SPRING |
| A 0004232193 | SPRING | |
| 070 | A 1084230092 | SPRING |
| X XXXXXXXXXXXX | PART NAME MISSING | |

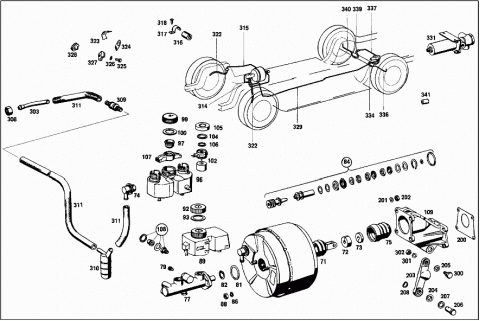

| ATE BRAKE BOOSTER | ||
| 071 | A 0004305530 | BRAKE BOOSTER ASSEMBLY |
| A 0014308430 | BRAKE BOOSTER ASSEMBLY | |
| Repalced by: A 0024306830 | ||
| A 0024306830 | BRAKE BOOSTER ASSEMBLY | |
| 072 | A 0004350912 | FILTER |
| 073 | A 0015864143 | REPAIR KIT |
| 074 | A 0004303681 | CONNECTION HOUSING |
| WITH SEAL RING | ||
| 075 | A 0004312987 | PROTECTIVE CAP |
| A 0004314387 | PROTECTIVE CAP | |
| A 0014308901 | BRAKE MASTER CYLINDER | |
| 077 | A 0024302801 | BRAKE MASTER CYLINDER |
| TEVES | ||
| A 0034302201 | BRAKE MASTER CYLINDER | |
| BENDIX | ||
| 079 | A 0004303881 | VALVE |
| 081 | A 0049973245 | SEAL RING |
| 082 | N 000472028000 | LOCK RING |
| A 0005861043 | REPAIR KIT | |
| Repalced by: A 0005869143 | ||
| A 0005869143 | REPAIR KIT | |
| 084 | A 0015869343 | REPAIR KIT |
| BRAKE MASTER CYLINDER | ||
| TEVES | ||
| A 0015865543 | REPAIR KIT | |
| BRAKE MASTER CYLINDER | ||
| BENDIX | ||
| 086 | N 000127008200 | LOCK WASHER |
| 088 | N 000934008005 | NUT |
| 089 | A 0004314502 | RESERVOIR |
| A 0004314334 | STRAINER | |
| 092 | A 0004313233 | FILLER CAP |
| Repalced by: A 0004315133 | ||
| 092 | A 0004315133 | FILLER CAP |
| 093 | A 0009972940 | SEAL RING |
| A 0009870345 | LOCKING CAP | |
| N 900288010001 | CLAMP | |
| 096 | A 0004316402 | RESERVOIR |
| A 0014314202 | RESERVOIR | |
| WITH SENDER UNIT | ||
| A 0004314334 | STRAINER | |
| A 0004315433 | FILLER CAP | |
| A 0004319760 | SEAL RING | |
| 097 | A 0004314334 | STRAINER |
| A 0004310935 | CONNECTOR | |
| 099 | A 0004315433 | FILLER CAP |
| 100 | A 0009972940 | SEAL RING |
| 102 | A 0015426317 | SENDER UNIT |
| FRONT | ||
| A 0025429917 | SENDER UNIT | |
| FOR REAR SUPPLY CHAMBER | ||
| A 0025420917 | SENDER UNIT | |
| REAR | ||
| 104 | A 0004317560 | SEAL RING |
| 105 | A 0004311633 | FILLER CAP |
| 106 | A 0004318260 | SEAL RING |
| 107 | A 0004310062 | COVERING |
| 108 | A 0005860143 | REPAIR KIT |
| CONNECTION FITTINGS, RESERVOIR TO BRAKE MASTER CYLINDER | ||
| 109 | A 1134350440 | BRACKET |
| 200 | A 1134310380 | GASKET |
| 201 | N 000137008204 | SPRING WASHER |
| BEARING BRACKET TO FIRE WALL, AND BRAKE BOOSTER TO BEARING BRACKET | ||
| 202 | N 000934008010 | NUT |
| Repalced by: N 304032008006 | ||
| 202 | N 304032008006 | NUT |
| BEARING BRACKET TO FIRE WALL, AND BRAKE BOOSTER TO BEARING BRACKET | ||
| 203 | A 1134300023 | LEVER |
| 204 | A 1132920150 | BUSHING |
| 205 | A 1102920150 | BUSHING |
| 206 | N 001434014018 | PIN |
| INTERMEDIATE LEVER TO BEARING BRACKET | ||
| 207 | A 1535010252 | SPACER WASHER |
| INTERMEDIATE LEVER TO BEARING BRACKET | ||
| 208 | N 900055014000 | SPRING WASHER |
| INTERMEDIATE LEVER TO BEARING BRACKET | ||
| N 000094004002 | COTTER PIN | |
| INTERMEDIATE LEVER TO BEARING BRACKET | ||
| A 1134350174 | PIN | |
| INTERMEDIATE LEVER TO BEARING BRACKET | ||
| 300 | A 1102950571 | SCREW |
| Repalced by: A 1152950172 | ||
| 300 | A 1152950172 | NUT |
| INTERMEDIATE LEVER TO BRAKE BOOSTER PUSH ROD | ||
| 301 | N 000127008200 | LOCK WASHER |
| INTERMEDIATE LEVER TO BRAKE BOOSTER PUSH ROD | ||
| 302 | N 000936008003 | NUT |
| INTERMEDIATE LEVER TO BRAKE BOOSTER PUSH ROD | ||
| 303 | A 1114300729 | LINE |
| AT INTAKE MANIFOLD | ||
| A 1084301929 | LINE | |
| AT INTAKE MANIFOLD | ||
| A 1134300629 | LINE | |
| AT INTAKE MANIFOLD | ||
| 308 | N 915017012200 | UNION NUT |
| 309 | A 0004313507 | VALVE |
| 310 | A 1114350227 | TRAP |
| 311 | A 0004352182 | HOSE |
| N 900262005100 | LOOM TIE | |
| N 900263005003 | STRAP | |
| 170 MM | ||
| 314 | A 1234205828 | LINE |
| FROM BRAKE MASTER CYLINDER TO LEFT FRONT WHEEL | ||
| 315 | A 1234207228 | LINE |
| FROM BRAKE MASTER CYLINDER TO RIGHT FRONT WHEEL | ||
| A 1234207228 | LINE | |
| 316 | A 1109970182 | HOSE |
| Repalced by: A 2014761126 | ||
| 316 | A 2014761126 | HOSE |
| LINE TO RIGHT FRONT WHEEL TO BODY | ||
| 317 | A 1159950101 | CLAMP |
| LINE TO RIGHT FRONT WHEEL TO BODY | ||
| 318 | N 007981004243 | SHEET METAL SCREW |
| Repalced by: N 000000002062 | ||
| 318 | N 000000002062 | SCREW |
| LINE TO RIGHT FRONT WHEEL TO BODY | ||
| 322 | A 1234280535 | BRAKE HOSE |
| FRONT | ||
| 323 | A 0004280673 | RETAINING SPRING |
| BRAKE HOSES TO FRONT BRACKETS | ||
| 324 | A 1104280073 | LOCK |
| BRAKE HOSES TO FRONT BRACKETS | ||
| 325 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 325 | N 304017006018 | SCREW |
| BRAKE HOSES TO FRONT BRACKETS | ||
| 326 | N 000137006204 | SPRING WASHER |
| BRAKE HOSES TO FRONT BRACKETS | ||
| 327 | A 0009902291 | NUT RETAINER |
| BRAKE HOSES TO FRONT BRACKETS | ||
| 328 | A 1869970681 | GROMMET |
| 329 | A 1234208128 | LINE |
| FROM MASTER CYLINDER TO BRAKE PRESSURE REGULATOR | ||
| 331 | A 0004313612 | BRAKE PRESSURE REGULATOR |
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
| BRAKE PRESSURE REGULATOR TO BODY | ||
| N 912004008102 | LOCK WASHER | |
| BRAKE PRESSURE REGULATOR TO BODY | ||
| 334 | A 0004282535 | BRAKE HOSE |
| Repalced by: A 0004289335 | ||
| 334 | A 0004289335 | BRAKE HOSE |
| REAR LEFT | ||
| A 0004289335 | BRAKE HOSE | |
| REAR LEFT | ||
| A 0004280673 | RETAINING SPRING | |
| 336 | A 1234206028 | LINE |
| FROM BRAKE HOSE TO LEFT REAR WHEEL | ||
| 337 | A 1234206028 | LINE |
| FROM BRAKE PRESSURE REGULATOR TO RIGHT BRACKET | ||
| A 0004280673 | RETAINING SPRING | |
| 339 | A 0004283135 | BRAKE HOSE |
| Repalced by: A 0004282635 | ||
| 339 | A 0004282635 | BRAKE HOSE |
| REAR RIGHT | ||
| 340 | A 1234205928 | LINE |
| FROM BRAKE HOSE TO RIGHT REAR WHEEL | ||
| 341 | A 1263280181 | BUFFER |
| N 900262009100 | LOOM TIE | |
| N 900263009000 | STRAP | |
| 285 MM | ||

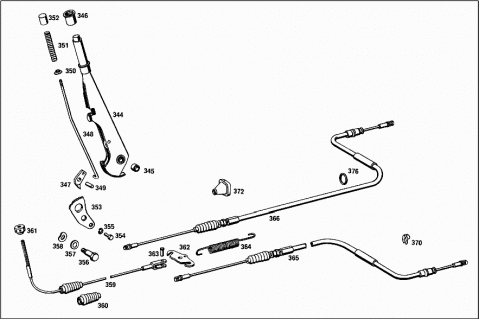

| 344 | A 1134200312 | BRAKE LEVER |
| WITH PAWL ROD | ||
| 345 | A 1984270050 | BUSHING |
| 346 | A 1984270096 | CUP |
| 347 | A 1984270015 | PAWL |
| 348 | A 1134270030 | PAWL ROD |
| N 000094001501 | COTTER PIN | |
| 349 | N 007341008101 | RIVET |
| 350 | A 1984270076 | WASHER |
| 351 | A 1989930001 | SPRING |
| 352 | A 1134270022 | FASTENER BUTTON |
| 353 | A 1134270124 | TOOTHED SEGMENT |
| 354 | N 000933008131 | SCREW |
| Repalced by: N 304017008016 | ||
| 354 | N 304017008016 | SCREW |
| 355 | N 912004008102 | LOCK WASHER |
| 356 | A 1134270074 | PIN |
| HAND BRAKE LEVER TO FRAME FLOOR UNIT | ||
| 357 | A 1539900740 | WASHER |
| HAND BRAKE LEVER TO FRAME FLOOR UNIT | ||
| 358 | N 900055014000 | SPRING WASHER |
| HAND BRAKE LEVER TO FRAME FLOOR UNIT | ||
| 359 | A 1134200085 | BRAKE CABLE |
| FRONT | ||
| 360 | A 1804270096 | CUP |
| 361 | A 1134270072 | NUT |
| 362 | A 1104270113 | LEVER |
| 363 | N 001434008031 | PIN |
| N 000094002059 | COTTER PIN | |
| 364 | A 1989930210 | SPRING |
| A 1134200385 | BRAKE CABLE | |
| Repalced by: A 1134200785 | ||
| 365 | A 1134200785 | BRAKE CABLE |
| REAR LEFT | ||
| A 1134200485 | BRAKE CABLE | |
| Repalced by: A 1134200885 | ||
| 366 | A 1134200885 | BRAKE CABLE |
| REAR RIGHT | ||
| N 000931006027 | SCREW | |
| BRAKE CABLES TO BRAKE CABLE PULLEY CASES | ||
| N 000137006204 | SPRING WASHER | |
| BRAKE CABLES TO BRAKE CABLE PULLEY CASES | ||
| N 000934006007 | NUT | |
| BRAKE CABLES TO BRAKE CABLE PULLEY CASES | ||
| 370 | N 912001016000 | LOCK |
| BRAKE CABLE TO AXLE TUBE | ||
| A 1084270396 | CUP | |
| LEFT BRAKE CABLE TO AXLE TUBE | ||
| 372 | A 1084270596 | CUP |
| BRAKE CABLE TO AXLE TUBE | ||
| A 1084270496 | CUP | |
| RIGHT BRAKE CABLE TO AXLE TUBE | ||
| A 1084270696 | CUP | |
| BRAKE CABLE TO AXLE TUBE | ||
| N 900262009100 | LOOM TIE | |
| BRAKE CABLE TO AXLE TUBE | ||
| N 900263009000 | STRAP | |
| BRAKE CABLE TO AXLE TUBE | ||
| 376 | A 1139970241 | SEAL RING |
| RIGHT REAR BRAKE CABLE TO FRAME FLOOR UNIT | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
