Transporto priemonė: 280 SL USA; VIN numerio dalis: 113044

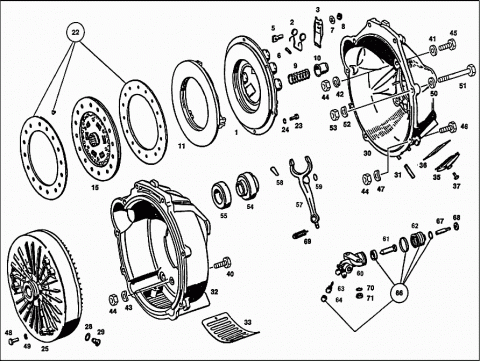

Grupė: 25 CLUTCH
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 0002509604 | CLUTCH PRESSURE PLATE |
| A 0012504204 | CLUTCH PRESSURE PLATE | |
| Repalced by: A 0032509104 | ||
| A 0032509104 | CLUTCH PRESSURE PLATE | |
| 002 | A 0002520427 | SPRING |
| 003 | A 0002524213 | RELEASE LEVER |
| 005 | A 0002520374 | PIN |
| 006 | N 001481006002 | CLAMPING SLEEVE |
| 007 | A 0002520151 | SPACER RING |
| 008 | A 0002521472 | NUT |
| Repalced by: A 0002522772 | ||
| 008 | A 0002522772 | NUT |
| 009 | A 0002521820 | PRESSURE SPRING |
| 010 | A 0002520335 | SLEEVE |
| 011 | A 0002522106 | CLUTCH PRESSURE PLATE |
| 015 | A 0102502603 | CLUTCH DISC |
| A 0002521910 | CLUTCH LINING | |
| Repalced by: A 1085860025 | ||
| A 1085860025 | REPAIR KIT | |
| ON CLUTCH END | ||
| A 0002527110 | CLUTCH LINING | |
| ON CLUTCH END | ||
| A 0002522110 | CLUTCH LINING | |
| ON FLYWHEEL END | ||
| A 0002526210 | CLUTCH LINING | |
| ON FLYWHEEL END | ||
| A 0002521075 | RIVET | |
| A 1085860025 | REPAIR KIT | |
| TO 002 250 16 03 | ||
| 022 | A 1145860025 | REPAIR KIT |
| TO 002 250 16 03 | ||
| 023 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 023 | N 304017008021 | SCREW |
| N 000933008057 | SCREW | |
| Repalced by: N 304017008034 | ||
| N 304017008034 | SCREW | |
| 024 | N 912004008101 | LOCK WASHER |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| HYDRAULIC CLUTCH USED WITH MERCEDES-BENZ AUTOMATIC TRANSMISSION (SPECIAL VERSION) | ||
| 025 | A 1112501502 | HYDRAULIC CLUTCH |
| A 1302500902 | HYDRAULIC CLUTCH | |
| 028 | A 1809970530 | SCREW PLUG |
| OIL FILLING OR OIL DRAIN, RESP. | ||
| 029 | N 007603012104 | SEAL RING |
| OIL FILLING OR OIL DRAIN, RESP. | ||
| N 007603010100 | SEAL RING | |
| 030 | A 1112502005 | HOUSING |
| 031 | N 000835008062 | STUD |
| 032 | A 1112502205 | HOUSING |
| 033 | A 1122570590 | COVER PLATE |
| AIR OUT LET | ||
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| COVER PLATE TO BELL HOUSING | ||
| N 000137006204 | SPRING WASHER | |
| COVER PLATE TO BELL HOUSING | ||
| 035 | A 1202540097 | BOOT |
| 036 | A 1202540058 | SEAL HOLDER |
| 037 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 037 | N 304017006018 | SCREW |
| N 000931012132 | SCREW | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| 040 | N 000933012050 | SCREW |
| BELL HOUSING TO TRANSMISSION CASE | ||
| 041 | N 000125013003 | WASHER |
| BELL HOUSING TO TRANSMISSION CASE | ||
| 042 | N 000127012201 | LOCK WASHER |
| BELL HOUSING TO TRANSMISSION CASE | ||
| 043 | N 000137012200 | SPRING WASHER |
| BELL HOUSING TO TRANSMISSION CASE | ||
| 044 | N 000934012021 | NUT |
| BELL HOUSING TO TRANSMISSION CASE | ||
| 044 | N 000934012021 | NUT |
| BELL HOUSING TO TRANSMISSION CASE | ||
| 045 | N 000933012071 | SCREW |
| BELL HOUSING TO TRANSMISSION CASE | ||
| 046 | N 000933008114 | SCREW |
| Repalced by: N 304017008021 | ||
| 046 | N 304017008021 | SCREW |
| BELL HOUSING TO TRANSMISSION CASE | ||
| 047 | N 000137008204 | SPRING WASHER |
| BELL HOUSING TO TRANSMISSION CASE | ||
| 048 | N 000933008316 | SCREW |
| Repalced by: A 0089907401 | ||
| 048 | A 0089907401 | SCREW |
| 048 | N 000933008325 | SCREW |
| 049 | N 000137008200 | SPRING WASHER |
| 050 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 050 | N 000125010532 | WASHER |
| BELL HOUSING WITH TRANSMISSION TO INTERMEDIATE FLANGE | ||
| 051 | N 000931010268 | SCREW |
| BELL HOUSING WITH TRANSMISSION TO INTERMEDIATE FLANGE | ||
| 052 | N 000137010201 | SPRING WASHER |
| BELL HOUSING WITH TRANSMISSION TO INTERMEDIATE FLANGE | ||
| 053 | N 000934010014 | NUT |
| BELL HOUSING WITH TRANSMISSION TO INTERMEDIATE FLANGE | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| RELEASE PARTS | ||
| 054 | A 1112500115 | RELEASE BEARING |
| WITH RELEASE BODY | ||
| 054 | A 1112500215 | RELEASE BEARING |
| WITH RELEASE BODY | ||
| 055 | A 0009814325 | BALL BEARING |
| 055 | A 0019815225 | BALL BEARING |
| A 0002500515 | RELEASE BEARING | |
| WITH RELEASE BODY | ||
| 057 | A 1112930211 | RELEASE YOKE |
| 058 | A 3199930025 | SPRING |
| 059 | N 071805016301 | SNAP RING |
| 060 | A 0002951907 | SLAVE CYLINDER |
| 25.4 MM DURCHMESSER, 26 MM HUB | ||
| 061 | A 0002950374 | PIN |
| 062 | A 0002950583 | BOOT |
| 062 | A 0002951683 | BOOT |
| 063 | A 0004201055 | BLEEDER VALVE |
| 064 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 064 | A 0004210887 | PROTECTIVE CAP |
| A 0002954207 | SLAVE CYLINDER | |
| 15/16" DIA., 18 MM STROKE | ||
| A 0002951683 | BOOT | |
| A 0002950473 | LOCK | |
| Repalced by: A 0005862029 | ||
| A 0005862029 | REPAIR KIT | |
| A 0002950573 | LOCK | |
| A 0004201055 | BLEEDER VALVE | |
| A 0004217187 | PROTECTIVE CAP | |
| Repalced by: A 0004210887 | ||
| A 0004210887 | PROTECTIVE CAP | |
| A 0005860929 | REPAIR KIT | |
| 066 | A 0005861329 | REPAIR KIT |
| A 0005862029 | REPAIR KIT | |
| 067 | A 1112950733 | ROD |
| 068 | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 068 | N 304035008001 | NUT |
| 069 | A 1119931110 | SPRING |
| 070 | N 912004008102 | LOCK WASHER |
| 071 | N 000934008010 | NUT |
| Repalced by: N 304032008006 | ||
| 071 | N 304032008006 | NUT |
