Transporto priemonė: 280 SL USA; VIN numerio dalis: 113044
Grupė: 30 CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |

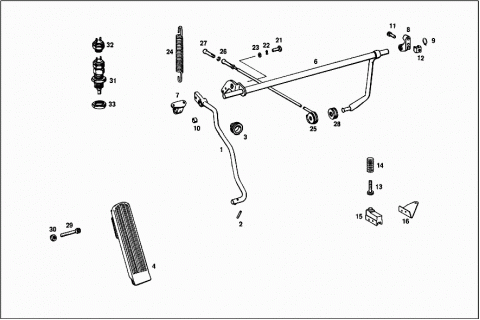

| ACCELERATOR PEDAL ASSEMBLY | ||
| 001 | A 1133000204 | ACCELERATOR PEDAL |
| 002 | A 1109970010 | PIN |
| 003 | A 1839970081 | GROMMET |
| 004 | A 1103010102 | PEDAL PLATE |
| Repalced by: A 1103000002 | ||
| 004 | A 1103000002 | PLATE |
| A 1103000002 | PLATE | |
| 006 | A 1133000720 | SHAFT |
| 007 | A 1213010018 | BEARING |
| LEFT CONTROL SHAFT | ||
| 008 | A 1103010018 | BEARING |
| RIGHT CONTROL SHAFT | ||
| 009 | N 900055012401 | LOCK RING |
| CONTROL SHAFT | ||
| 010 | A 1083010053 | SPACER TUBE |
| CONTROL SHAFT | ||
| 011 | N 007985006135 | SCREW |
| BEARING TO FIRE WALL | ||
| 012 | A 0009902291 | NUT RETAINER |
| BEARING TO FIRE WALL | ||
| N 000137006204 | SPRING WASHER | |
| BEARING TO FIRE WALL | ||
| 013 | A 1089900157 | NUT |
| 014 | A 1809933101 | SPRING |
| 015 | A 0005455314 | SWITCH |
| 016 | A 1135451040 | BRACKET |
| N 000084002107 | SCREW | |
| SWITCH TO BRACKET | ||
| N 000125002800 | WASHER | |
| SWITCH TO BRACKET | ||
| N 000127002203 | LOCK WASHER | |
| SWITCH TO BRACKET | ||
| N 000934002001 | NUT | |
| SWITCH TO BRACKET | ||
| N 007976004207 | SHEET METAL SCREW | |
| BRACKET TO BODY | ||
| 021 | N 000933008131 | SCREW |
| Repalced by: N 304017008016 | ||
| 021 | N 304017008016 | SCREW |
| 022 | N 000137008204 | SPRING WASHER |
| 023 | N 000125008407 | WASHER |
| 024 | A 1869931810 | SPRING |
| 025 | A 1133000015 | ROD |
| 026 | N 000934005008 | NUT |
| 027 | A 0009911622 | BALL SOCKET |
| Repalced by: A 0009918922 | ||
| 027 | A 0009918922 | BALL SOCKET |
| 028 | A 1213010097 | BOOT |
| 029 | N 000084008220 | SCREW |
| ACCELERATOR PEDAL STOP AT TOEBOARD | ||
| 030 | N 000934008010 | NUT |
| Repalced by: N 304032008006 | ||
| 030 | N 304032008006 | NUT |
| ACCELERATOR PEDAL STOP AT TOEBOARD | ||
| 031 | A 1123000241 | STOP |
| 032 | A 0005451706 | SWITCH |
| KICK-DOWN | ||
| 033 | A 1129900151 | NUT |
