Transporto priemonė: 280 SL USA; VIN numerio dalis: 113044

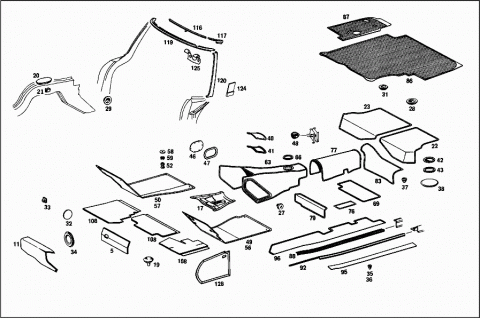

Grupė: 68 COVERING AND LINING - 001 BOW
| # | Kodas | Pavadinimas |
|---|---|---|
| A 0009832292 | FELT | |
| FRONT FLOOR,LEFT | ||
| 392X565 MM | ||
| A 0009832292 | FELT | |
| RIGHT FRONT FLOOR | ||
| 346X565 MM | ||
| A 0009891810 | PART NAME MISSING | |
| FRONT FLOOR,LEFT | ||
| 530X565 MM | ||
| A 0009891810 | PART NAME MISSING | |
| RIGHT FRONT FLOOR | ||
| 541X588 MM | ||
| A 0009832991 | CARDBOARD | |
| BITUMEN FELT PASTEBOARD, 3 MM | ||
| A 0009832991 | CARDBOARD | |
| BITUMEN FELT PASTEBOARD, 3 MM | ||
| A 0009832991 | CARDBOARD | |
| BITUMEN FELT PASTEBOARD, 3 MM | ||
| A 0009832991 | CARDBOARD | |
| BITUMEN FELT PASTEBOARD, 3 MM | ||
| A 0009832991 | CARDBOARD | |
| BITUMEN FELT PASTEBOARD, 3 MM | ||
| A 0009832991 | CARDBOARD | |
| BITUMEN FELT PASTEBOARD, 3 MM | ||
| A 0009832991 | CARDBOARD | |
| FRONT FLOOR,LEFT | ||
| 521X566 | ||
| A 0009832991 | CARDBOARD | |
| RIGHT FRONT FLOOR | ||
| 523X602 M | ||
| A 0009832991 | CARDBOARD | |
| BITUMEN FELT PASTEBOARD, 3 MM | ||
| A 0009832991 | CARDBOARD | |
| BITUMEN FELT PASTEBOARD, 3 MM | ||
| A 0009832991 | CARDBOARD | |
| BITUMEN FELT PASTEBOARD, 3 MM | ||
| 005 | A 1136820020 | INSULATION |
| Repalced by: A 0009834291 | ||
| 005 | A 0009834291 | CARDBOARD |
| FIRE WALL, BELOW HEAT EXCHANGER, INSIDE | ||
| A 1136822128 | INSULATION | |
| Repalced by: A 0009834291 | ||
| A 1136822228 | INSULATION | |
| Repalced by: A 0009834291 | ||
| A 1136820828 | INSULATION | |
| Repalced by: A 0009834291 | ||
| A 1136821428 | INSULATION | |
| Repalced by: A 0009834291 | ||
| A 1136820728 | INSULATION | |
| Repalced by: A 0009834291 | ||
| A 1136821328 | INSULATION | |
| Repalced by: A 0009834291 | ||
| A 1136821228 | INSULATION | |
| Repalced by: A 0009834291 | ||
| 011 | A 0009834291 | CARDBOARD |
| 7 MM | ||
| 011 | A 0009834291 | CARDBOARD |
| 7 MM | ||
| 011 | A 0009834291 | CARDBOARD |
| 7 MM | ||
| 011 | A 0009834291 | CARDBOARD |
| 7 MM | ||
| 011 | A 0009834291 | CARDBOARD |
| 7 MM | ||
| 011 | A 0009834291 | CARDBOARD |
| 7 MM | ||
| A 0009833091 | CARDBOARD | |
| Repalced by: A 0009832991 | ||
| A 0009832991 | CARDBOARD | |
| BITUMEN FELT PASTEBOARD, 3 MM | ||
| A 0009832991 | CARDBOARD | |
| BITUMEN FELT PASTEBOARD, 3 MM | ||
| A 0009830392 | FELT | |
| Repalced by: A 1137580097 | ||
| A 1137580097 | INTERMEDIATE LAYER | |
| TRUNK LID, WOOL FELT, 6 MM THICK, 300 X 160 MM | ||
| 017 | A 1136800175 | COVERING |
| BELOW TRANSMISSION | ||
| N 000933010128 | SCREW | |
| TUNNEL STRIKER PLATE TO TUNNEL | ||
| N 000127010202 | LOCK WASHER | |
| TUNNEL STRIKER PLATE TO TUNNEL | ||
| 019 | A 0009870381 | SEALING CORD |
| N 000125010513 | WASHER | |
| Repalced by: N 000125010518 | ||
| N 000125010518 | WASHER | |
| Repalced by: N 000125010532 | ||
| N 000125010532 | WASHER | |
| 020 | A 1106830010 | COVER |
| FOR SUBFRAME MOUNTING CUP | ||
| 021 | A 0019884478 | CLIP |
| COVER TO CUP | ||
| 022 | A 1136800103 | CARPET |
| Repalced by: A 1136801103 | ||
| 022 | A 1136801103 | CARPET |
| REAR LEFT BOUCLE CARPET | ||
| A 1136801103 | CARPET | |
| REAR LEFT TUFTING CARPET | ||
| 023 | A 1136800203 | CARPET |
| REAR RIGHT BOUCLE CARPET | ||
| A 1136801203 | CARPET | |
| REAR RIGHT TUFTING CARPET | ||
| N 000464006000 | SCREW | |
| COVERING TO CROSS MEMBER BELOW AUXILIARY SEAT | ||
| N 009021006205 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| COVERING TO CROSS MEMBER BELOW AUXILIARY SEAT | ||
| 027 | A 0009901322 | SCREW |
| TO PLUG THREADED HOLE FOR SAFETY BELT MOUNTING AT CENTER OF TUNNEL | ||
| 028 | A 1109871444 | EXPANSION PLUG |
| 029 | A 1139870044 | EXPANSION PLUG |
| TO PLUG THE HOLES | ||
| 029 | A 1139870044 | EXPANSION PLUG |
| TO PLUG THE HOLES | ||
| 031 | A 1109870544 | EXPANSION PLUG |
| 031 | A 1109870544 | EXPANSION PLUG |
| 032 | A 1139872444 | EXPANSION PLUG |
| TO PLUG HEAT EXCHANGER VALVE MOUNTING HOLE | ||
| 033 | A 0009870415 | PLUG |
| TO PLUG HOLES IN FIRE WALL | ||
| 034 | A 1109870844 | EXPANSION PLUG |
| TO PLUG THE PAINT RUN-OFF HOLES IN FRONT PANEL PILLAR | ||
| 035 | A 1119871215 | PLUG |
| Repalced by: A 0009871840 | ||
| 035 | A 0009871840 | RUBBER BUFFER |
| TO PLUG THE HOLES | ||
| 035 | A 0009871840 | RUBBER BUFFER |
| TO PLUG THE HOLES | ||
| 035 | A 0009871840 | RUBBER BUFFER |
| TO PLUG THE HOLES | ||
| 036 | A 1119871215 | PLUG |
| Repalced by: A 0009871840 | ||
| 036 | A 0009871840 | RUBBER BUFFER |
| IN REAR FLOOR | ||
| 036 | A 0009871840 | RUBBER BUFFER |
| TO PLUG THE HOLES | ||
| 036 | A 0009871840 | RUBBER BUFFER |
| TO PLUG THE HOLES | ||
| 036 | A 0009871840 | RUBBER BUFFER |
| TO PLUG THE HOLES | ||
| 037 | A 1109870039 | RUBBER BUFFER |
| Repalced by: A 0009973320 | ||
| 037 | A 0009973320 | EXPANSION PLUG |
| TO PLUG THE HOLES | ||
| 037 | A 0009973320 | EXPANSION PLUG |
| TO PLUG THE HOLES | ||
| 037 | A 0009973320 | EXPANSION PLUG |
| TO PLUG THE HOLES | ||
| 037 | A 0009973320 | EXPANSION PLUG |
| TO PLUG THE HOLES | ||
| 037 | A 0009973320 | EXPANSION PLUG |
| TO PLUG THE HOLES | ||
| 037 | A 0009973320 | EXPANSION PLUG |
| TO PLUG THE HOLES | ||
| 038 | A 1109871044 | EXPANSION PLUG |
| TO PLUG THE HOLES | ||
| 038 | A 1109871044 | EXPANSION PLUG |
| TO PLUG THE HOLES | ||
| 040 | A 1136830010 | COVER |
| Repalced by: A 1136830310 | ||
| 040 | A 1136830310 | COVER |
| IN TRANSMISSION TUNNEL, FOR MOUNTING HOLE | ||
| 041 | A 1136830098 | SEAL |
| Repalced by: A 0039895485 | ||
| 041 | A 0039895485 | ADHESIVE TAPE |
| TRANSMISSION TUNNEL | ||
| N 007513005109 | TAPPING SCREW | |
| COVER AND SEAL TO TRANSMISSION TUNNEL | ||
| 042 | A 1136830110 | COVER |
| FOR IMMERSION-PAINT HOLE | ||
| 043 | A 1139970041 | SEAL RING |
| N 007981004243 | SHEET METAL SCREW | |
| Repalced by: N 000000002062 | ||
| N 000000002062 | SCREW | |
| COVER AND SEAL WASHER TO REAR FLOOR | ||
| A 0009895120 | SEALANT | |
| Repalced by: A 0019893320 | ||
| A 0019893320 | SEALANT | |
| COVER TO REAR FLOOR | ||
| 046 | A 1136830210 | COVER |
| AT TUNNEL, FOR KICK-DOWN LINKAGE | ||
| 047 | A 1106830298 | SEAL |
| Repalced by: A 0039895485 | ||
| 047 | A 0039895485 | ADHESIVE TAPE |
| N 007981004219 | SHEET METAL SCREW | |
| Repalced by: N 000000000453 | ||
| N 000000000453 | SHEET METAL SCREW | |
| COVER TO TUNNEL | ||
| 048 | A 1138990008 | COVERING |
| JACK HOLDING DEVICE | ||
| 049 | A 1136840702 | LINING |
| Repalced by: A 1136840902 | ||
| 049 | A 1136840902 | LINING |
| FRONT FLOOR,LEFT | ||
| 050 | A 1136840802 | LINING |
| RIGHT FRONT FLOOR | ||
| 052 | A 0009881480 | FASTENER BUTTON |
| N 007983004267 | SHEET METAL SCREW | |
| A 1136800740 | LINING | |
| TUFTING FRONT FLOOR, LEFT | ||
| A 1136800840 | LINING | |
| TUFTING FRONT FLOOR, RIGHT | ||
| 056 | A 1136801340 | LINING |
| TUFTING FRONT FLOOR, LEFT | ||
| 057 | A 1136801440 | LINING |
| TUFTING FRONT FLOOR, RIGHT | ||
| 058 | A 1119901040 | WASHER |
| 059 | A 1369880981 | FASTENER BUTTON |
| Repalced by: A 0009888481 | ||
| 059 | A 0009888481 | FASTENER BUTTON |
| N 007981003238 | SHEET METAL SCREW | |
| N 007981003240 | SHEET METAL SCREW | |
| Repalced by: N 007981003207 | ||
| N 007981003207 | SHEET METAL SCREW | |
| 063 | A 1136800045 | LINING |
| BOUCLE TUNNEL, FRONT | ||
| A 1136800945 | LINING | |
| BOUCLE TUNNEL, FRONT | ||
| A 1136801545 | LINING | |
| TUFTING TUNNEL | ||
| A 1136802245 | LINING | |
| TUFTING TUNNEL | ||
| 066 | A 1119971081 | GROMMET |
| A 1136801145 | LINING | |
| TUFTING TUNNEL | ||
| A 1136801845 | LINING | |
| TUFTING TUNNEL | ||
| 069 | A 1136800341 | LINING |
| BOUCLE FLOOR, CENTRAL LEFT | ||
| A 1136800541 | LINING | |
| TUFTING FLOOR, CENTRAL LEFT | ||
| A 1136800441 | LINING | |
| BOUCLE FLOOR, CENTRAL RIGHT | ||
| A 1136800641 | LINING | |
| Repalced by: A 1136800841 | ||
| A 1136800841 | LINING | |
| TUFTING FLOOR, CENTRAL RIGHT | ||
| 076 | A 1136800041 | LINING |
| TUFTING BELOW SEAT | ||
| A 1136800741 | LINING | |
| TUFTING BELOW SEAT | ||
| 077 | A 1136800445 | LINING |
| BOUCLE AT CENTER OF TUNNEL | ||
| A 1136801745 | LINING | |
| TUFTING AT CENTER OF TUNNEL | ||
| 079 | A 1136800147 | LINING |
| BOUCLE CROSS MEMBER BELOW LEFT SEAT | ||
| A 1136800347 | LINING | |
| TUFTING CROSS MEMBER BELOW LEFT SEAT | ||
| A 1136800247 | LINING | |
| BOUCLE CROSS MEMBER BELOW RIGHT SEAT | ||
| A 1136800447 | LINING | |
| TUFTING CROSS MEMBER BELOW RIGHT SEAT | ||
| 083 | A 1136800146 | LINING |
| BOUCLE REAR FLOOR, LEFT | ||
| A 1136800346 | LINING | |
| TUFTING, CROSS MEMBER, REAR FLOOR COVERING, LEFT | ||
| A 1136800246 | LINING | |
| BOUCLE REAR FLOOR, RIGHT | ||
| A 1136800446 | LINING | |
| TUFTING CROSS MEMBER, REAR FLOOR COVERING, RIGHT | ||
| 086 | A 1136840104 | RUBBER MAT |
| TRUNK, LEFT | ||
| A 1136840404 | RUBBER MAT | |
| Repalced by: A 1136840604 | ||
| 087 | A 1136840604 | RUBBER MAT |
| TRUNK, RIGHT | ||
| 088 | A 1136860136 | RAIL |
| LEFT BELOW DOORS, AT ROCKER PANELS | ||
| A 1136860236 | RAIL | |
| RIGHT BELOW DOORS, AT ROCKER PANELS | ||
| N 007982002212 | SHEET METAL SCREW | |
| COVER RAILS TO ROCKER PANELS | ||
| N 009021004108 | WASHER | |
| Repalced by: N 009021004207 | ||
| N 009021004207 | WASHER | |
| COVER RAILS TO ROCKER PANELS | ||
| 092 | A 1136860336 | RAIL |
| LEFT CABLE COVERINGS UNDER DOORS TO SIDE MEMBERS | ||
| A 1136860436 | RAIL | |
| RIGHT CABLE COVERINGS UNDER DOORS TO SIDE MEMBERS | ||
| N 007982002212 | SHEET METAL SCREW | |
| COVER RAILS TO SIDE MEMBERS | ||
| 095 | A 1136860380 | LINING |
| LEFT ENTRANCE | ||
| A 1136860480 | LINING | |
| RIGHT ENTRANCE | ||
| 096 | A 1136800143 | LINING |
| BOUCLE LEFT ENTRANCE | ||
| A 1136800343 | LINING | |
| TUFTING LEFT ENTRANCE | ||
| A 1136800243 | LINING | |
| BOUCLE RIGHT ENTRANCE | ||
| A 1136800443 | LINING | |
| TUFTING RIGHT ENTRANCE | ||
| A 0009879135 | RUBBER SECTION | |
| Repalced by: A 0009875070 | ||
| A 0009875070 | RUBBER SECTION | |
| AT BODY FRONT END, REAR TOP, 50 MM | ||
| A 1136800317 | COVERING | |
| Repalced by: A 0009832291 | ||
| A 1136801317 | COVERING | |
| Repalced by: A 0009832291 | ||
| A 1136800717 | COVERING | |
| Repalced by: A 0009832291 | ||
| A 1136801517 | COVERING | |
| Repalced by: A 0009832291 | ||
| A 1136800417 | COVERING | |
| Repalced by: A 0009832291 | ||
| A 1136801017 | COVERING | |
| Repalced by: A 0009832291 | ||
| A 1136801817 | COVERING | |
| Repalced by: A 0009832291 | ||
| A 1136800517 | COVERING | |
| Repalced by: A 0009832291 | ||
| 108 | A 0009832291 | CARDBOARD |
| 800 X 1200 MM COVERING BELOW INSTRUMENT PANEL | ||
| A 0009830198 | FOAM PLASTICS | |
| Repalced by: A 0009833598 | ||
| A 0009833598 | FOAM PLASTICS | |
| 1000 X 1000 MM COVERING BELOW INSTRUMENT PANEL | ||
| A 0009838786 | IMITATION LEATHER | |
| Repalced by: A 0019832986 | ||
| A 0019832986 | IMITATION LEATHER | |
| IMITATION LEATHER FOR INSTRUMENT PANEL, CENTER, LEFT AND RIGHT | ||
| N 007981003227 | SHEET METAL SCREW | |
| Repalced by: N 007981003207 | ||
| N 007981003207 | SHEET METAL SCREW | |
| COVERING TO INSTRUMENT PANEL | ||
| N 009021003105 | WASHER | |
| COVERING TO INSTRUMENT PANEL | ||
| A 0009882378 | CLIP | |
| N 007983004236 | SHEET METAL SCREW | |
| COVERING TO FIRE WALL | ||
| A 1129900042 | WASHER | |
| Repalced by: A 3019900042 | ||
| A 3019900042 | WASHER | |
| COVERING TO FIRE WALL | ||
| 116 | A 1136880939 | PANELLING |
| Repalced by: A 1136880039 | ||
| 116 | A 1136880039 | PANELLING |
| INSIDE CENTRAL, TOP CROSS | ||
| 117 | A 1136880739 | PANELLING |
| Repalced by: A 1136880139 | ||
| 117 | A 1136880139 | PANELLING |
| INSIDE LEFT, TOP CROSS | ||
| A 1136880839 | PANELLING | |
| Repalced by: A 1136880239 | ||
| A 1136880239 | PANELLING | |
| INSIDE RIGHT, TOP CROSS | ||
| 119 | A 1136880040 | PANELLING |
| OUTSIDE, TOP CROSS | ||
| 120 | A 1136880141 | PANELLING |
| LATERAL OUTSIDE LEFT | ||
| A 1136880241 | PANELLING | |
| LATERAL OUTSIDE RIGHT | ||
| N 007981003226 | SHEET METAL SCREW | |
| WINDSHIELD INSIDE COVERING TO FRONT PANEL FRAME | ||
| 124 | A 1137250197 | PAD |
| LEFT | ||
| A 1137250297 | PAD | |
| RIGHT | ||
| 125 | A 1136881039 | PANELLING |
| Repalced by: A 1136880339 | ||
| 125 | A 1136880339 | PANELLING |
| N 007982002212 | SHEET METAL SCREW | |
| WINDSHIELD OUTSIDE COVERING TO FRONT PANEL FRAME | ||
| A 0009830098 | FOAM PLASTICS | |
| Repalced by: A 0009833598 | ||
| A 0009833598 | FOAM PLASTICS | |
| MOLTOPRENE, FRONT PANEL FRAME, TOP, 5 X 50 X 1100 MM | ||
| A 0009838786 | IMITATION LEATHER | |
| Repalced by: A 0019832986 | ||
| A 0019832986 | IMITATION LEATHER | |
| IMITATION LEATHER, FRONT PANEL FRAME, TOP, 100 X 1200 MM | ||
| 128 | A 1136800180 | PANELLING |
| IMITATION LEATHER, AT COWL, LATERAL BOTTOM LEFT | ||
| A 1136800980 | PANELLING | |
| IMITATION LEATHER, AT COWL, LATERAL BOTTOM LEFT | ||
| A 1136800280 | PANELLING | |
| IMITATION LEATHER AT COWL, LATERAL BOTTOM RIGHT | ||
| A 1136801080 | PANELLING | |
| IMITATION LEATHER AT COWL, LATERAL BOTTOM RIGHT | ||
| A 1136800781 | PANELLING | |
| TOP CROSS LEFT | ||
| A 1136800881 | PANELLING | |
| TOP CROSS RIGHT | ||
| A 1136800581 | PANELLING | |
| LATERAL LEFT | ||
| A 1136800681 | PANELLING | |
| LATERAL RIGHT | ||
| N 007981003265 | SHEET METAL SCREW | |
| A 1136800391 | GLOVE COMPARTMENT | |
| Repalced by: A 1136802791 | ||
| 137 | A 1136802791 | GLOVE COMPARTMENT |
| A 0009838786 | IMITATION LEATHER | |
| Repalced by: A 0019832986 | ||
| A 0019832986 | IMITATION LEATHER | |
| IMITATION LEATHER, GLOVE COMPARTMENT, TOP, 250 X 580 MM | ||
| A 0009835291 | CARDBOARD | |
| FELT BOARD, GLOVE COMPARTMENT BOTTOM, 2 X 135 X 287 MM | ||
| A 0009838786 | IMITATION LEATHER | |
| Repalced by: A 0019832986 | ||
| A 0019832986 | IMITATION LEATHER | |
| IMITATION LEATHER, GLOVE COMPARTMENT BOTTOM, 165 X 315 MM | ||
| 140 | A 1136800598 | GLOVE COMPARTMENT LID |
| 141 | A 1136800071 | GARNISH MOULDING |
| A 0009833810 | STRIP | |
| 15 X 1 X 335 MM | ||
| 143 | A 1136890370 | HANDLE |
| N 007988004103 | SCREW | |
| HANDLE TO GLOVE COMPARTMENT LID | ||
| 144 | A 1136890051 | HINGE PIN |
| N 007331004212 | RIVET | |
| A 0009940445 | LOCK | |
| Repalced by: A 0009943345 | ||
| 147 | A 0009943345 | LOCK |
| Repalced by: A 1409941045 | ||
| 147 | A 1409941045 | LOCK |
| HINGE TO GLOVE COMPARTMENT LID | ||
| N 007981004325 | SHEET METAL SCREW | |
| HINGE TO GLOVE COMPARTMENT LID | ||
| 148 | A 1109870439 | RUBBER BUFFER |
| Repalced by: A 1109870539 | ||
| 148 | A 1109870539 | RUBBER BUFFER |
| GLOVE COMPARTMENT LID STOP | ||
| 149 | H 101866890033 | GUIDE |
| 150 | A 1869932001 | SPRING |
| A 1086800384 | FASTENER | |
| WITH KEY | ||
| 151 | A 1086800284 | FASTENER |
| LESS KEY | ||
| A 1106890001 | LOCK | |
| SAME LOCK AS OF TRUNK LID | ||
| 152 | A 0007661006 | KEY |
| WITH THE LETTER "K" | ||
| A 0007662006 | KEY | |
| FOR REAR LID AND GLOVE COMPARTMENT STATE LETTER OF KEY BITTING WHEN ORDERING | ||
| N 007981004318 | SHEET METAL SCREW | |
| GLOVE COMPARTMENT WITH LID TO INSTRUMENT PANEL | ||
| N 007982003209 | SHEET METAL SCREW | |
| GLOVE COMPARTMENT WITH LID TO INSTRUMENT PANEL | ||
| N 007981004325 | SHEET METAL SCREW | |
| GLOVE COMPARTMENT WITH LID TO INSTRUMENT PANEL | ||
| A 0009851062 | WASHER | |
| GLOVE COMPARTMENT WITH LID TO INSTRUMENT PANEL | ||
| A 0009940445 | LOCK | |
| Repalced by: A 0009943345 | ||
| 158 | A 0009943345 | LOCK |
| Repalced by: A 1409941045 | ||
| 158 | A 1409941045 | LOCK |
| GLOVE COMPARTMENT WITH LID TO INSTRUMENT PANEL | ||
| 160 | A 0009942345 | LOCK |
| GLOVE COMPARTMENT WITH LID TO INSTRUMENT PANEL | ||
| 161 | A 1136802106 | PANELLING |
| A 1136804706 | PANELLING | |
| A 1136801706 | PANELLING | |
| BOTTOM LEFT AT INSTRUMENT PANEL | ||
| A 1136801806 | PANELLING | |
| BOTTOM RIGHT AT INSTRUMENT PANEL | ||
| 164 | A 1136806906 | PANELLING |
| BOTTOM LEFT AT INSTRUMENT PANEL | ||
| 166 | A 1136807306 | PANELLING |
| BOTTOM RIGHT AT INSTRUMENT PANEL | ||
| A 1136802506 | PANELLING | |
| CENTRAL AT INSTRUMENT PANEL | ||
| 167 | A 1136807106 | PANELLING |
| CENTRAL AT INSTRUMENT PANEL | ||
| A 1136890080 | ESCUTCHEON | |
| Repalced by: A 1136890380 | ||
| 168 | A 1136890380 | ESCUTCHEON |
| COURTESY LAMP AT INSTRUMENT PANEL | ||
| A 1136800106 | PANELLING | |
| TOP LEFT AT INSTRUMENT PANEL | ||
| A 1136800206 | PANELLING | |
| TOP RIGHT AT INSTRUMENT PANEL | ||
| 170 | A 1136805706 | PANELLING |
| TOP LEFT AT INSTRUMENT PANEL | ||
| 172 | A 1136805906 | PANELLING |
| TOP RIGHT AT INSTRUMENT PANEL | ||
| N 007981004325 | SHEET METAL SCREW | |
| BOTTOM PAD TO INSTRUMENT PANEL | ||
| N 007983004338 | SHEET METAL SCREW | |
| BOTTOM PAD TO INSTRUMENT PANEL | ||
| A 0009850962 | WASHER | |
| Repalced by: N 900056004507 | ||
| N 900056004507 | COUNTERSUNK WASHER | |
| BOTTOM PAD TO INSTRUMENT PANEL | ||
| N 007983004245 | SHEET METAL SCREW | |
| BOTTOM PAD TO INSTRUMENT PANEL | ||
| N 900056004507 | COUNTERSUNK WASHER | |
| BOTTOM PAD TO INSTRUMENT PANEL | ||
| N 007981004325 | SHEET METAL SCREW | |
| TOP PAD TO INSTRUMENT PANEL | ||
| N 007983004245 | SHEET METAL SCREW | |
| TOP PAD TO INSTRUMENT PANEL | ||
| A 0009940445 | LOCK | |
| Repalced by: A 0009943345 | ||
| A 0009943345 | LOCK | |
| Repalced by: A 1409941045 | ||
| A 1409941045 | LOCK | |
| TOP PAD TO INSTRUMENT PANEL | ||
| N 007982004227 | SHEET METAL SCREW | |
| Repalced by: N 007982004203 | ||
| N 007982004203 | SHEET METAL SCREW | |
| TOP PAD TO INSTRUMENT PANEL | ||
| A 1136800379 | HOUSING | |
| 186 | A 1136801179 | HOUSING |
| 188 | A 1136890771 | GARNISH MOULDING |
| N 007982002222 | SHEET METAL SCREW | |
| GARNISH MOULDING TO INSTRUMENT CLUSTER CAP | ||
| N 007981004219 | SHEET METAL SCREW | |
| Repalced by: N 000000000453 | ||
| N 000000000453 | SHEET METAL SCREW | |
| CAP TO INSTRUMENT CLUSTER | ||
| N 009021004108 | WASHER | |
| Repalced by: N 009021004207 | ||
| N 009021004207 | WASHER | |
| CAP TO INSTRUMENT CLUSTER | ||
| A 0009940445 | LOCK | |
| Repalced by: A 0009943345 | ||
| A 0009943345 | LOCK | |
| Repalced by: A 1409941045 | ||
| A 1409941045 | LOCK | |
| CAP TO INSTRUMENT CLUSTER | ||
| A 1136801117 | COVERING | |
| Repalced by: A 1136801217 | ||
| 194 | A 1136801217 | COVERING |
| 195 | A 1116805067 | END PIECE |
| A 0009944245 | LOCK | |
| Repalced by: A 0019945445 | ||
| A 0019945445 | LOCK | |
| COVERING TO INSTRUMENT PANEL | ||
| N 007983002232 | SHEET METAL SCREW | |
| COVERING TO INSTRUMENT PANEL | ||
| 197 | A 0009879440 | RUBBER BUFFER |
| COVERING TO INSTRUMENT PANEL | ||
| A 1136890339 | COVER | |
| CENTRAL | ||
| 200 | A 1136890439 | COVER |
| CENTRAL | ||
| 201 | A 1138170114 | TYPE DESIGNATION |
| "250 SL" | ||
| 202 | A 1138170314 | TYPE DESIGNATION |
| "280 SL" | ||
| A 1119940345 | LOCK | |
| TYPE DESIGNATION AND COVER TO INSTRUMENT PANEL | ||
| 204 | A 1089940145 | LOCK |
| TYPE DESIGNATION AND COVER TO INSTRUMENT PANEL | ||
| N 007981004313 | SHEET METAL SCREW | |
| CENTRAL COVER TO INSTRUMENT PANEL | ||
| A 0009941845 | LOCK | |
| CENTRAL COVER TO INSTRUMENT PANEL | ||
| 207 | A 1136800111 | PLATE |
| LEFT | ||
| 208 | A 1136800211 | PLATE |
| RIGHT | ||
| 209 | A 1136800164 | FRAME |
| 211 | A 1136890056 | RING |
| 212 | A 1136890156 | RING |
| 213 | A 0019889078 | CLIP |
| COVER PLATE TO INSTRUMENT PANEL | ||
| A 1136800771 | GARNISH MOULDING | |
| LEFT BOTTOM INSTRUMENT PANEL | ||
| 214 | A 1136802171 | GARNISH MOULDING |
| LEFT BOTTOM INSTRUMENT PANEL | ||
| A 1136800971 | GARNISH MOULDING | |
| CENTRAL BOTTOM INSTRUMENT PANEL | ||
| 216 | A 1136802371 | GARNISH MOULDING |
| CENTRAL BOTTOM INSTRUMENT PANEL | ||
| 217 | A 1136800271 | GARNISH MOULDING |
| RIGHT BOTTOM INSTRUMENT PANEL | ||
| A 0009833810 | STRIP | |
| 15 X 1 X 200 MM | ||
| N 007981002218 | SHEET METAL SCREW | |
| BOTTOM GARNISH MOULDINGS TO INSTRUMENT PANEL | ||
| A 1106890180 | ESCUTCHEON | |
| STEERING LOCK OPENING | ||
| A 1106890098 | SEAL | |
| 222 | A 1156890080 | ESCUTCHEON |
| STEERING LOCK OPENING | ||
| 223 | A 1156890097 | PAD |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
