Transporto priemonė: 280 SL USA; VIN numerio dalis: 113044
Grupė: 54 ELECTRICAL EQUIPMENT AND INSTRUMENTS
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |

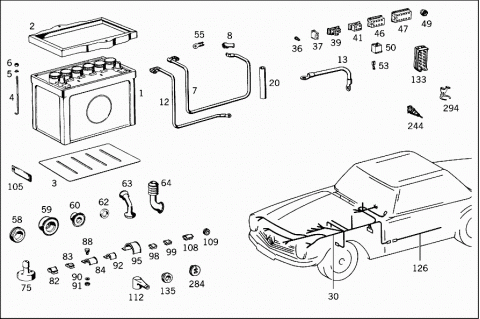

| BATTERY AND STARTING CABLE | ||
| 001 | A 0035413301 | BATTERY |
| 12V/55 AH | ||
| 002 | A 1135400023 | MOUNTING FRAME |
| 003 | A 1105410035 | BOTTOM |
| 004 | A 1865410124 | CLAMPING SCREW |
| 005 | N 912004006102 | LOCK WASHER |
| 006 | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 006 | N 304032006008 | NUT |
| A 1135400130 | POSITIVE CABLE | |
| 007 | A 1085400730 | POSITIVE CABLE |
| 008 | A 1115460035 | BOOT |
| Repalced by: A 1165460135 | ||
| 008 | A 1165460135 | BOOT |
| STARTING CABLE | ||
| A 0005460837 | GROMMET | |
| Repalced by: A 0005460937 | ||
| A 0005460937 | GROMMET | |
| STARTING CABLE | ||
| 012 | A 2015400031 | NEG. CABLE |
| FROM BATTERY NEG. POLE TO SIDE MEMBER | ||
| 013 | A 1165400531 | NEG. CABLE |
| FROM CROSS MEMBER TO ENGINE | ||
| A 1085406609 | CABLE HARNESS | |
| FROM CABLE CONNECTOR TO STARTING MOTOR | ||
| N 900261008001 | CABLE SHOE | |
| N 000933008131 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| GROUND CABLE TO LEFT SIDE MEMBER | ||
| N 000127008203 | LOCK WASHER | |
| GROUND CABLE TO LEFT SIDE MEMBER | ||
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
| GROUND CABLE TO LEFT SIDE MEMBER | ||
| 020 | A 0005462930 | INSULATING HOSE |
| OVER STARTING CABLE AND MAIN CABLE HARNESS | ||
| 160 MM | ||
| A 0019974190 | LOOM TIE | |
| N 007985004125 | SCREW | |
| Repalced by: N 007985004107 | ||
| N 007985004107 | SCREW | |
| STARTING CABLE TO CABLE CONNECTOR | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| STARTING CABLE TO CABLE CONNECTOR | ||
| N 007985006127 | SCREW | |
| STARTING CABLE TO CABLE CONNECTOR | ||
| N 912004006102 | LOCK WASHER | |
| STARTING CABLE TO CABLE CONNECTOR | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| LINES | ||
| A 1135400805 | CABLE HARNESS | |
| 030 | A 1135401605 | CABLE HARNESS |
| A 1135402705 | CABLE HARNESS | |
| A 1135400905 | CABLE HARNESS | |
| A 1135401705 | CABLE HARNESS | |
| A 1135402805 | CABLE HARNESS | |
| 036 | A 0005454728 | PLUG |
| UNIPOLAR | ||
| 037 | A 0025454928 | PLUG |
| Repalced by: A 0085453728 | ||
| 037 | A 0085453728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| A 0035454728 | PLUG | |
| Repalced by: A 0085450828 | ||
| A 0085450828 | PIN BUSHING HOUSING | |
| BIPOLAR | ||
| 039 | A 0045459228 | PLUG |
| 3-POLE | ||
| A 0045458628 | PLUG | |
| Repalced by: A 0075450028 | ||
| A 0075450028 | PIN BUSHING HOUSING | |
| Repalced by: A 0155454928 | ||
| A 0155454928 | PLUG | |
| 3-POLE | ||
| 041 | A 0045458628 | PLUG |
| Repalced by: A 0075450028 | ||
| 041 | A 0075450028 | PIN BUSHING HOUSING |
| Repalced by: A 0155454928 | ||
| 041 | A 0155454928 | PLUG |
| 4-POLE | ||
| A 0055451328 | PLUG | |
| Repalced by: A 0065458028 | ||
| A 0065458028 | PIN BUSHING HOUSING | |
| 4-POLE | ||
| A 0045459528 | PLUG | |
| 4-POLE | ||
| 046 | A 0055451328 | PLUG |
| Repalced by: A 0065458028 | ||
| 046 | A 0065458028 | PIN BUSHING HOUSING |
| 6-POLE | ||
| A 0045452628 | PLUG | |
| 8-POLE | ||
| 047 | A 0005453628 | PLUG |
| 12-POLE | ||
| A 0025453528 | PLUG | |
| Repalced by: A 0095452628 | ||
| A 0095452628 | PIN BUSHING HOUSING | |
| 12-POLE | ||
| A 0005453628 | PLUG | |
| 14-POLE | ||
| 049 | A 0005440486 | PLUG |
| HEADLAMP | ||
| 050 | A 0025459528 | PIN BUSHING HOUSING |
| A 0045459428 | PIN BUSHING HOUSING | |
| BIPOLAR | ||
| 053 | A 0005464040 | CABLE SHOE |
| A 0005464640 | CABLE SHOE | |
| A 0005466940 | CABLE SHOE | |
| 055 | A 0005464240 | CABLE SHOE |
| AT GENERATOR TERMINAL D+ | ||
| A 0005464440 | CABLE SHOE | |
| 058 | A 1869970781 | GROMMET |
| 059 | A 1119971381 | GROMMET |
| 060 | A 1119971581 | GROMMET |
| A 0009972881 | GROMMET | |
| 062 | A 0009974140 | SEAL RING |
| A 0009972081 | GROMMET | |
| 063 | A 1105460085 | PROTECTIVE TUBE |
| 064 | A 1155460085 | PROTECTIVE TUBE |
| 065 | A 1115400050 | FUSE BOX |
| 066 | A 0005451003 | CAP |
| 067 | A 0005450180 | GASKET |
| 068 | A 0005450280 | GASKET |
| 069 | A 0005452004 | SWITCH |
| A 0005452604 | SWITCH | |
| N 000085004100 | SCREW | |
| N 006797004230 | TOOTHED WASHER | |
| 073 | A 1105451137 | BUTTON |
| 074 | A 1105450272 | NUT |
| 075 | A 0005451112 | SWITCH |
| A 0005451212 | SWITCH | |
| A 0005458134 | FUSE | |
| N 072581025100 | FUSE | |
| N 007985004136 | SCREW | |
| FUSE BOX TO FIRE WALL | ||
| N 000137004202 | SPRING WASHER | |
| FUSE BOX TO FIRE WALL | ||
| N 007983004332 | SHEET METAL SCREW | |

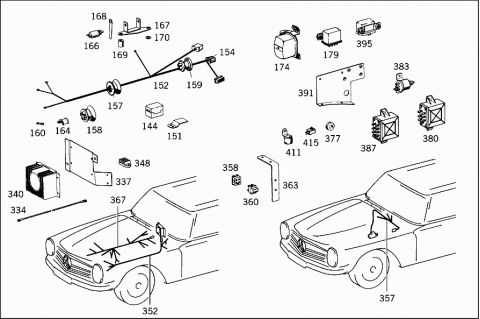

| FOOT DIMMER SWITCH TO TOEBOARD | ||
| 082 | A 0009883478 | CLIP |
| 083 | A 0009883378 | CLIP |
| 084 | A 1869950037 | CLAMP |
| MAIN CABLE HARNESS TO LEFT WHEEL ARCH PANEL | ||
| A 1369950037 | CLAMP | |
| MAIN CABLE HARNESS TO LEFT WHEEL ARCH PANEL | ||
| A 0019881078 | CLIP | |
| MAIN CABLE HARNESS TO LEFT WHEEL ARCH PANEL | ||
| 088 | A 1204200227 | SCREW |
| MAIN CABLE HARNESS TO LEFT WHEEL ARCH PANEL | ||
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| MAIN CABLE HARNESS TO LEFT WHEEL ARCH PANEL | ||
| 090 | N 912004006102 | LOCK WASHER |
| MAIN CABLE HARNESS TO LEFT WHEEL ARCH PANEL | ||
| 091 | N 000934006007 | NUT |
| MAIN CABLE HARNESS TO LEFT WHEEL ARCH PANEL | ||
| 092 | A 1879950037 | CLAMP |
| MAIN CABLE HARNESS TO CROSS MEMBER AND TO TOEBOARD | ||
| N 007981004243 | SHEET METAL SCREW | |
| Repalced by: N 000000002062 | ||
| N 000000002062 | SCREW | |
| MAIN CABLE HARNESS TO CROSS MEMBER AND TO TOEBOARD | ||
| A 1869950037 | CLAMP | |
| MAIN CABLE HARNESS | ||
| 095 | A 1369950137 | CLAMP |
| MAIN CABLE HARNESS TO FRONT PANEL PILLAR | ||
| N 007981004322 | SHEET METAL SCREW | |
| MAIN CABLE HARNESS TO FRONT PANEL PILLAR | ||
| 098 | A 0009881678 | CLIP |
| STOP LIGHT SWITCH CABLE TO PEDAL ASSEMBLY | ||
| 099 | A 0009881778 | CLIP |
| PLUG CONNECTION CABLE TO INSTRUMENT PANEL | ||
| A 0029884878 | CLIP | |
| BACK-UP LIGHT SWITCH PLUG CONNECTION | ||
| A 0019974290 | LOOM TIE | |
| Repalced by: A 0019974390 | ||
| A 0019974390 | LOOM TIE | |
| ELECTRIC CABLE TO WATER PIPE | ||
| 140 MM | ||
| 105 | A 1125401173 | BRACKET |
| MAIN CABLE HARNESS TO LOWER PART OF INSTRUMENT PANEL | ||
| N 040621014201 | INSULATING HOSE | |
| MAIN CABLE HARNESS TO LOWER PART OF INSTRUMENT PANEL | ||
| N 007981003214 | SHEET METAL SCREW | |
| MAIN CABLE HARNESS TO LOWER PART OF INSTRUMENT PANEL | ||
| A 0009881678 | CLIP | |
| MAIN CABLE HARNESS TO LOWER PART OF INSTRUMENT PANEL | ||
| 108 | A 0009881878 | CLIP |
| MAIN CABLE HARNESS TO LOWER PART OF INSTRUMENT PANEL | ||
| 109 | A 0009972881 | GROMMET |
| 109 | A 0009972881 | GROMMET |
| A 0009972081 | GROMMET | |
| SUPERTONE HORN CABLE | ||
| A 0005463335 | BOOT | |
| CABLE TO ALTERNATOR | ||
| 112 | A 0005450745 | BOOT |
| ELECTRIC CABLE TO THERMOSWITCH | ||
| 113 | A 1135460343 | BRACKET |
| CABLE PLUG CONNECTION | ||
| N 007981004224 | SHEET METAL SCREW | |
| Repalced by: N 000000000459 | ||
| N 000000000459 | SHEET METAL SCREW | |
| BRACKET TO LOWER PART OF INSTRUMENT PANEL | ||
| N 007981002320 | SHEET METAL SCREW | |
| INSTRUMENT CLUSTER CABLE CONNECTOR AND STEERING COLUMN JACKET TUBE CABLE TO BRACKET | ||
| N 007981002241 | SHEET METAL SCREW | |
| FOR CABLE CONNECTOR, TAIL LAMP CABLE HARNESS | ||
| N 000933004016 | SCREW | |
| GROUND CONNECTION | ||
| N 000933008131 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| GROUND CONNECTION | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| GROUND CONNECTION | ||
| N 000127008203 | LOCK WASHER | |
| GROUND CONNECTION | ||
| N 000934004004 | NUT | |
| GROUND CONNECTION | ||
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| GROUND CABLE TO INSTRUMENT PANEL | ||
| N 912004006102 | LOCK WASHER | |
| GROUND CABLE TO INSTRUMENT PANEL | ||
| N 000934006007 | NUT | |
| GROUND CABLE TO INSTRUMENT PANEL | ||
| 126 | A 1135400407 | CABLE HARNESS |
| TAIL LAMP | ||
| A 1135400607 | CABLE HARNESS | |
| TAIL LAMP | ||
| A 0025454928 | PLUG | |
| Repalced by: A 0085453728 | ||
| A 0085453728 | PIN BUSHING HOUSING | |
| BIPOLAR | ||
| A 0045458628 | PLUG | |
| Repalced by: A 0075450028 | ||
| A 0075450028 | PIN BUSHING HOUSING | |
| Repalced by: A 0155454928 | ||
| A 0155454928 | PLUG | |
| 4-POLE | ||
| A 0055451328 | PLUG | |
| Repalced by: A 0065458028 | ||
| A 0065458028 | PIN BUSHING HOUSING | |
| 6-POLE | ||
| 133 | A 0005453728 | PLUG |
| 12-POLE | ||
| A 1119970281 | GROMMET | |
| 135 | A 1869970781 | GROMMET |
| A 0009881678 | CLIP | |
| TRUNK LAMP CABLE TO BODY | ||
| N 072571001035 | CLAMP | |
| TRUNK LAMP CABLE TO BODY | ||
| N 007981004243 | SHEET METAL SCREW | |
| Repalced by: N 000000002062 | ||
| N 000000002062 | SCREW | |
| TRUNK LAMP CABLE TO BODY | ||
| A 1204200227 | SCREW | |
| WITH LOCK PLATE, GROUND CABLE TO FOLDING TOP CASE CENTER PIECE | ||
| N 912004006102 | LOCK WASHER | |
| GROUND CABLE TO FOLDING TOP CASE CENTRAL PIECE | ||
| N 000934006007 | NUT | |
| GROUND CABLE TO FOLDING TOP CASE CENTRAL PIECE | ||
| N 000933004016 | SCREW | |
| TAIL LAMP GROUND CONNECTION | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| TAIL LAMP GROUND CONNECTION | ||
| N 000934004004 | NUT | |
| TAIL LAMP GROUND CONNECTION | ||
| 144 | A 0005459901 | FUSE BOX |
| A 0005458134 | FUSE | |
| N 007985004179 | SCREW | |
| FUSE BOX TO BRACKET | ||
| N 000934004004 | NUT | |
| FUSE BOX TO BRACKET | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| FUSE BOX TO BRACKET | ||
| N 009021004108 | WASHER | |
| Repalced by: N 009021004207 | ||
| N 009021004207 | WASHER | |
| FUSE BOX TO BRACKET | ||
| 151 | A 1135451340 | BRACKET |
| 152 | A 1135400509 | CABLE HARNESS |
| AT TRANSMISSION; AIR POLLUTION CONTROL | ||
| A 1135400409 | CABLE HARNESS | |
| AT TRANSMISSION; AIR POLLUTION CONTROL | ||
| 154 | A 0025454928 | PLUG |
| Repalced by: A 0085453728 | ||
| 154 | A 0085453728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| A 0045458628 | PLUG | |
| Repalced by: A 0075450028 | ||
| A 0075450028 | PIN BUSHING HOUSING | |
| Repalced by: A 0155454928 | ||
| A 0155454928 | PLUG | |
| 4-POLE | ||
| A 0055451328 | PLUG | |
| Repalced by: A 0065458028 | ||
| A 0065458028 | PIN BUSHING HOUSING | |
| 4-POLE | ||
| A 0055451328 | PLUG | |
| Repalced by: A 0065458028 | ||
| A 0065458028 | PIN BUSHING HOUSING | |
| 6-POLE | ||
| 157 | A 1009970381 | GROMMET |
| 158 | A 1119972381 | GROMMET |
| Repalced by: A 0089971781 | ||
| 158 | A 0089971781 | GROMMET |
| 159 | A 1119972181 | GROMMET |
| 160 | A 0005464440 | CABLE SHOE |
| A 0019974190 | LOOM TIE | |
| 100 MM | ||
| A 0019974290 | LOOM TIE | |
| Repalced by: A 0019974390 | ||
| A 0019974390 | LOOM TIE | |
| 140 MM | ||
| 164 | A 1369950135 | CLAMP |
| A 0009881878 | CLIP | |
| 166 | A 0005458411 | SWITCH |
| Repalced by: A 0045450414 | ||
| 166 | A 0045450414 | SWITCH |
| Repalced by: A 0045451814 | ||
| 166 | A 0045451814 | SWITCH |
| AT TRANSMISSION COVER | ||
| 167 | A 1135400673 | BRACKET |
| AT TRANSMISSION COVER | ||
| 168 | A 1135450138 | MOLDED PIECE |
| A 1135400084 | LEVER | |
| 169 | A 1135450053 | SPACER TUBE |
| BRACKET TO TRANSMISSION COVER | ||
| 170 | A 1539900640 | WASHER |
| BRACKET TO TRANSMISSION COVER | ||
| N 000933006121 | SCREW | |
| Repalced by: N 304017006020 | ||
| N 304017006020 | SCREW | |
| N 006797010251 | TOOTHED WASHER | |
| 174 | A 0005450132 | CONTROL UNIT |
| A 0005450132 | CONTROL UNIT | |
| N 000933006126 | SCREW | |
| RELAY TO BRACKET | ||
| N 912004006102 | LOCK WASHER | |
| RELAY TO BRACKET | ||
| N 000934006007 | NUT | |
| RELAY TO BRACKET | ||
| 179 | A 0005425919 | RELAY |
| N 000084004143 | SCREW | |
| RELAY TO BRACKET | ||
| N 006797004132 | TOOTHED WASHER | |
| RELAY TO BRACKET | ||
| N 000934004004 | NUT | |
| RELAY TO BRACKET | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| INSTRUMENTS AND SWITCHES | ||
| A 0005420156 | HOUSING | |
| INSTRUMENT CLUSTER | ||
| 186 | A 0005421656 | HOUSING |
| INSTRUMENT CLUSTER | ||
| A 0005422578 | CONNECTION PLATE | |
| 188 | A 0005421378 | CONNECTION PLATE |
| A 0005420725 | POTENTIOMETER | |
| 189 | A 0005421625 | POTENTIOMETER |
| 191 | A 0005453728 | PLUG |
| 12-POLE | ||
| A 0015423302 | OIL PRESSURE GAUGE | |
| Repalced by: A 0015425802 | ||
| A 0015425802 | OIL PRESSURE GAUGE | |
| 193 | A 0015425802 | OIL PRESSURE GAUGE |
| A 0025424005 | TEMPERATURE GAUGE | |
| Repalced by: A 0025429605 | ||
| A 0025429605 | TEMPERATURE GAUGE | |
| GRADUATION IN DEGS.F. | ||
| 194 | A 0025429605 | TEMPERATURE GAUGE |
| GRADUATION IN DEGS.F. | ||
| 195 | A 0005428803 | FUEL GAUGE DASH UNIT |
| N 000084003100 | SCREW | |
| OIL PRESSURE GAUGE AND COOLING WATER TEMPERATURE GAUGE | ||
| N 000084003101 | SCREW | |
| FUEL GAUGE | ||
| N 000084003122 | SCREW | |
| RHEOSTAT | ||
| 198 | A 0005420472 | NUT |
| 199 | A 0005420672 | NUT |
| N 072601012800 | BULB | |
| 201 | A 1005420138 | SHIM |
| INSTRUMENT CLUSTER | ||
| 202 | A 0055420106 | SPEEDOMETER |
| READING IN MILES | ||
| 203 | A 0005420556 | HOUSING |
| 204 | A 0005442593 | LAMP SOCKET |
| N 072601012800 | BULB | |
| A 0005420472 | NUT | |
| 207 | A 0005425916 | TACHOMETER |
| A 0005442593 | LAMP SOCKET | |
| N 072601012800 | BULB | |
| A 0005420472 | NUT | |
| 220 | A 1005420038 | SHIM |
| SPEEDOMETER AND TACHOMETER | ||
| 222 | A 1215400159 | HOSE |
| OIL PRESSURE GAUGE LINE | ||
| 224 | A 1135400060 | ELECTRIC CABLE |
| OIL PRESSURE GAUGE | ||
| A 1135420244 | PIPE LINE | |
| OIL PRESSURE GAUGE | ||
| 229 | A 1135420040 | BRACKET |
| OIL PRESSURE GAUGE LINE | ||
| 231 | N 000137008204 | SPRING WASHER |
| OIL PRESSURE GAUGE LINE AND HOSE TO BRACKET | ||
| 234 | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 234 | N 304035008001 | NUT |
| OIL PRESSURE GAUGE LINE AND HOSE TO BRACKET | ||
| 238 | A 1005420111 | CLOCK |
| N 072601012800 | BULB | |
| A 0009881878 | CLIP | |
| 244 | A 0005451525 | PLUG SOCKET |
| HAND LAMP | ||
| 247 | A 0005425819 | RELAY |
| MIXTURE ENRICHMENT CONTROL | ||
| N 007981003331 | SHEET METAL SCREW | |
| Repalced by: N 007981003249 | ||
| N 007981003249 | SHEET METAL SCREW | |
| 250 | A 0005426819 | RELAY |
| WIPER MOTOR | ||
| A 0005426119 | RELAY | |
| N 007981004224 | SHEET METAL SCREW | |
| Repalced by: N 000000000459 | ||
| N 000000000459 | SHEET METAL SCREW | |
| RELAY TO BRACKET | ||
| 257 | A 0005453509 | SWITCH |
| STOP LIGHT, MECHANICAL | ||
| 258 | A 1135450073 | LOCK |
| 260 | A 1119900840 | WASHER |
| AS REQUIRED | ||
| 1.0 MM | ||
| A 1119900940 | WASHER | |
| AS REQUIRED | ||
| 0.5 MM | ||
| A 1119903840 | WASHER | |
| AS REQUIRED | ||
| 1.5 MM | ||
| 268 | A 1135450072 | NUT |
| 271 | A 1132920041 | STOP |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FLEXIBLE SHAFT | ||
| 273 | A 1135420507 | FLEXIBLE SHAFT |
| SPEEDOMETER | ||
| 1500 MM | ||
| A 1135420907 | FLEXIBLE SHAFT | |
| SPEEDOMETER | ||
| 1350 MM | ||
| 276 | A 1135420707 | FLEXIBLE SHAFT |
| TACHOMETER | ||
| 1300 MM | ||
| 278 | A 1115420540 | BRACKET |
| N 000933006106 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| TACHOMETER SHAFT TO BRACKET | ||
| N 912004006102 | LOCK WASHER | |
| TACHOMETER SHAFT TO BRACKET | ||
| N 000934006007 | NUT | |
| TACHOMETER SHAFT TO BRACKET | ||
| A 0009881878 | CLIP | |
| TACHOMETER SHAFT TO BRACKET | ||
| A 0009881878 | CLIP | |
| SPEEDOMETER SHAFT TO PEDAL ASSEMBLY | ||
| 284 | A 1109970781 | GROMMET |
| SPEEDOMETER AND TACHOMETER SHAFTS, OIL PRESSURE GAUGE LINE AND CAPILLARY TUBE THRU FIRE WALL | ||
| A 1109970381 | GROMMET | |
| SPEEDOMETER AND TACHOMETER SHAFTS THRU FIRE WALL | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| SUPERTONE HORN | ||
| A 0015423820 | HORN | |
| Repalced by: A 0035421920 | ||
| A 0025420020 | HORN | |
| Repalced by: A 0035421920 | ||
| 287 | A 0035421920 | HORN |
| LOW NOTE | ||
| A 0015423920 | HORN | |
| Repalced by: A 0035422020 | ||
| A 0025420120 | HORN | |
| Repalced by: A 0035422020 | ||
| A 0035422020 | HORN | |
| MEDIUM NOTE | ||
| 290 | N 900161010103 | SCREW |
| 291 | N 000127010202 | LOCK WASHER |
| N 000084004136 | SCREW | |
| CABLE CONNECTION TO HORN | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| CABLE CONNECTION TO HORN | ||
| 294 | A 0029886978 | CLIP |
| KICK-DOWN SWITCH | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| IGNITION COIL | ||
| A 0001580603 | IGNITION COIL | |
| Repalced by: A 0001582703 | ||
| 296 | A 0001582703 | IGNITION COIL |
| Repalced by: A 0001584903 | ||
| A 0001584903 | IGNITION COIL | |
| A 0001582303 | IGNITION COIL | |
| Repalced by: A 0001582803 | ||
| A 0001582803 | IGNITION COIL | |
| A 0001581485 | SUPPRESSOR HOUSING | |
| A 0001581285 | SUPPRESSOR HOUSING | |
| 297 | A 0001580240 | BRACKET |
| 299 | N 000084005222 | SCREW |
| 302 | N 000562005000 | NUT |
| N 000934005008 | NUT | |
| CABLES TO IGNITION COIL | ||
| N 000127005203 | LOCK WASHER | |
| CABLES TO IGNITION COIL | ||
| 307 | A 0001581185 | SUPPRESSOR HOUSING |
| 310 | A 0005463335 | BOOT |
| 312 | A 2019902201 | SCREW |
| IGNITION COIL TO SIDE MEMBER | ||
| 315 | N 000127008203 | LOCK WASHER |
| IGNITION COIL TO SIDE MEMBER | ||
| 318 | A 0009900848 | WASHER |
| IGNITION COIL TO SIDE MEMBER | ||
| 320 | A 0001580845 | SERIES RESISTOR |
| 0.9 OHM | ||
| A 0001581745 | SERIES RESISTOR | |
| 1.8 OHM | ||
| A 0001581945 | SERIES RESISTOR | |
| 0.4 OHM | ||
| A 0001582045 | SERIES RESISTOR | |
| 0.4 OHM | ||
| A 0001581345 | SERIES RESISTOR | |
| 0.6 OHM | ||
| 325 | A 1145420640 | BRACKET |
| N 912004004100 | LOCK WASHER | |
| CABLE TO RESISTOR | ||
| N 007985004123 | SCREW | |
| CABLE TO RESISTOR | ||
| N 007981003214 | SHEET METAL SCREW | |
| RESISTOR TO BRACKET | ||
| 330 | A 1085460003 | ELECTRIC CABLE |
| FROM SERIES RESISTOR TO IGNITION COIL | ||
| A 1145460003 | ELECTRIC CABLE | |
| N 007985004149 | SCREW | |
| CABLE TO RESISTOR | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| CABLE TO RESISTOR | ||
| 334 | A 1145460003 | ELECTRIC CABLE |
| GROUND | ||
| 337 | A 1135420640 | BRACKET |
| 340 | A 0005454132 | CONTROL UNIT |
| N 007985004125 | SCREW | |
| Repalced by: N 007985004107 | ||
| N 007985004107 | SCREW | |
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| N 000934004004 | NUT | |
| N 000933004067 | SCREW | |
| GROUND CONNECTION TO BRACKET | ||
| N 009021004202 | WASHER | |
| Repalced by: N 009021004207 | ||
| N 009021004207 | WASHER | |
| GROUND CONNECTION TO BRACKET | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| GROUND CONNECTION TO BRACKET | ||
| N 000934004004 | NUT | |
| GROUND CONNECTION TO BRACKET | ||
| 348 | A 0005467041 | CABLE CONNECTOR |
| BIPOLAR | ||
| N 007981004219 | SHEET METAL SCREW | |
| Repalced by: N 000000000453 | ||
| N 000000000453 | SHEET METAL SCREW | |
| CABLE CONNECTOR TO BRACKET | ||
| N 912004006102 | LOCK WASHER | |
| CABLE TO CABLE CONNECTOR | ||
| N 007985004125 | SCREW | |
| Repalced by: N 007985004107 | ||
| N 007985004107 | SCREW | |
| CABLE TO CABLE CONNECTOR | ||
| 352 | A 1135401209 | CABLE HARNESS |
| TRANSISTORIZED IGNITION | ||
| A 0045459128 | PLUG | |
| A 0005461635 | BOOT | |
| A 0005464640 | CABLE SHOE | |
| A 0009888978 | CLIP | |
| 357 | A 1085401609 | CABLE HARNESS |
| STARTING AT INSTRUMENT PANEL | ||
| 358 | A 0045458628 | PLUG |
| Repalced by: A 0075450028 | ||
| 358 | A 0075450028 | PIN BUSHING HOUSING |
| Repalced by: A 0155454928 | ||
| 358 | A 0155454928 | PLUG |
| 4-POLE | ||
| 360 | A 0035452828 | PLUG |
| Repalced by: A 0095459228 | ||
| 360 | A 0095459228 | PLUG |
| A 0019974190 | LOOM TIE | |
| 363 | A 1135450440 | BRACKET |
| N 007985004128 | SCREW | |
| N 000934004004 | NUT | |
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| 367 | A 1135401109 | CABLE HARNESS |
| AIR POLLUTION CONTROL | ||
| A 1135401009 | CABLE HARNESS | |
| AIR POLLUTION CONTROL | ||
| A 0045458528 | PLUG | |
| Repalced by: A 0085452028 | ||
| A 0085452028 | PIN BUSHING HOUSING | |
| UNIPOLAR | ||
| A 0035454728 | PLUG | |
| Repalced by: A 0085450828 | ||
| A 0085450828 | PIN BUSHING HOUSING | |
| BIPOLAR | ||
| A 0025454928 | PLUG | |
| Repalced by: A 0085453728 | ||
| A 0085453728 | PIN BUSHING HOUSING | |
| 3-POLE | ||
| A 0045458628 | PLUG | |
| Repalced by: A 0075450028 | ||
| A 0075450028 | PIN BUSHING HOUSING | |
| Repalced by: A 0155454928 | ||
| A 0155454928 | PLUG | |
| 4-POLE | ||
| A 0055451328 | PLUG | |
| Repalced by: A 0065458028 | ||
| A 0065458028 | PIN BUSHING HOUSING | |
| 6-POLE | ||
| A 0025454028 | PLUG | |
| Repalced by: A 0065458128 | ||
| A 0065458128 | PIN BUSHING HOUSING | |
| 8-POLE | ||
| A 1119972381 | GROMMET | |
| Repalced by: A 0089971781 | ||
| A 0089971781 | GROMMET | |
| A 1119972181 | GROMMET | |
| 377 | A 0009972881 | GROMMET |
| 380 | A 0005452432 | CONTROL UNIT |
| ENGINE SPEED | ||
| 383 | A 0015400097 | VALVE |
| Repalced by: A 0015407097 | ||
| 383 | A 0015407097 | VALVE |
| Repalced by: A 0015408697 | ||
| 383 | A 0015408697 | VALVE |
| 383 | A 0015408697 | VALVE |
| 387 | A 0005429319 | RELAY |
| A 0005429419 | RELAY | |
| 391 | A 1135420540 | BRACKET |
| N 007985004129 | SCREW | |
| RELAY AND SPEED SWITCH TO BRACKET | ||
| N 009021004202 | WASHER | |
| Repalced by: N 009021004207 | ||
| N 009021004207 | WASHER | |
| RELAY AND SPEED SWITCH TO BRACKET | ||
| A 0009902048 | WASHER | |
| RELAY AND SPEED SWITCH TO BRACKET | ||
| N 000934004004 | NUT | |
| RELAY AND SPEED SWITCH TO BRACKET | ||
| N 007976005203 | SHEET METAL SCREW | |
| BRACKET TO SIDE MEMBER | ||
| N 007981004204 | SHEET METAL SCREW | |
| VALVE TO BRACKET | ||
| 395 | A 0005425819 | RELAY |
| A 0019974190 | LOOM TIE | |
| ADDITIONAL CABLE HARNESS | ||
| A 0019974190 | LOOM TIE | |
| AT MAIN CABLE HARNESS | ||
| A 0019974190 | LOOM TIE | |
| AT WHEELHOUSE PANEL | ||
| A 0019974190 | LOOM TIE | |
| ADDITIONAL CABLE HARNESS | ||
| A 0019974190 | LOOM TIE | |
| ADDITIONAL CABLE HARNESS | ||
| A 0019974290 | LOOM TIE | |
| Repalced by: A 0019974390 | ||
| A 0019974390 | LOOM TIE | |
| AT WHEELHOUSE PANEL | ||
| 140 MM | ||
| A 0019974390 | LOOM TIE | |
| AT FIRE WALL | ||
| 140 MM | ||
| A 1369950137 | CLAMP | |
| A 1369950135 | CLAMP | |
| A 0009881878 | CLIP | |
| A 1209930225 | SPRING | |
| A 0019881078 | CLIP | |
| A 0009972881 | GROMMET | |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| REGULATOR AND CUT-OUT | ||

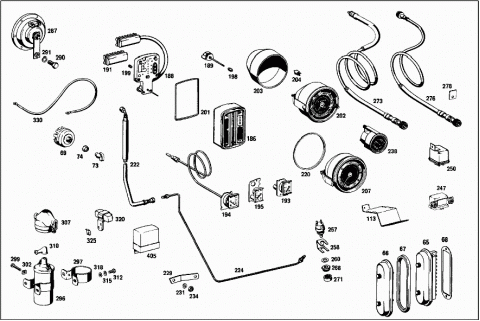

| 405 | A 0011546806 | REGULATOR AND CUT-OUT |
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| REGULATOR AND CUT-OUT TO WHEELHOUSE PANEL | ||
| N 912004006102 | LOCK WASHER | |
| REGULATOR AND CUT-OUT TO WHEELHOUSE PANEL | ||
| N 000934006007 | NUT | |
| REGULATOR AND CUT-OUT TO WHEELHOUSE PANEL | ||
| N 000934006007 | NUT | |
| CABLE TO ALTERNATOR | ||
| N 000137006204 | SPRING WASHER | |
| CABLE TO ALTERNATOR | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| WARNING BUZZER | ||
| 411 | A 0005422623 | BUZZER |
| A 0005422423 | BUZZER | |
| 415 | A 1245450414 | SWITCH |
| Repalced by: A 1245450214 | ||
| 415 | A 1245450214 | SWITCH |
| BUZZER CONTACT | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
