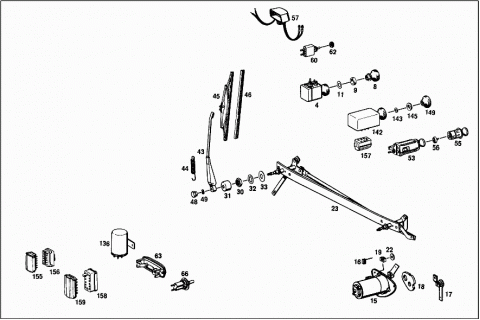

Transporto priemonė: 280 SL USA; VIN numerio dalis: 113044
Grupė: 82 ELECTRICAL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| A 1118210351 | SWITCH | |
| Repalced by: A 1118210751 | ||
| A 1118211551 | SWITCH | |
| Repalced by: A 1118210751 | ||
| A 1118210751 | SWITCH | |
| BLOWER;WITH VARIABLE RESISTOR | ||
| 004 | A 1118210851 | SWITCH |
| N 072601012800 | BULB | |
| A 1118200392 | KNOB | |
| Repalced by: A 1108201592 | ||
| A 1118200692 | KNOB | |
| Repalced by: A 1108201592 | ||
| A 1108201392 | KNOB | |
| Repalced by: A 1108201592 | ||
| 008 | A 1108201592 | KNOB |
| 009 | A 1139910135 | SPACER RING |
| Repalced by: A 1139900840 | ||
| 011 | A 1139900840 | WASHER |
| 012 | A 1138210036 | COVERING |
| LEFT TAIL LAMP CABLE | ||
| N 007981004243 | SHEET METAL SCREW | |
| Repalced by: N 000000002062 | ||
| N 000000002062 | SCREW | |
| COVERING TO CROSS MEMBER ABOVE REAR AXLE | ||
| 013 | A 1819950020 | CLAMP |
| Repalced by: A 1239951320 | ||
| 013 | A 1239951320 | CLAMP |
| N 007981004243 | SHEET METAL SCREW | |
| Repalced by: N 000000002062 | ||
| N 000000002062 | SCREW | |
| MOUNTING CLAMP TO TRUNK FLOOR | ||
| A 0009832991 | CARDBOARD | |
| BITUMEN FELT BOARD 120 X 80 MM TAIL LAMP CABLE HARNESS TO REAR FLOOR | ||
| 015 | A 1108200442 | ELECTRIC MOTOR |
| 016 | A 0008241775 | CARBON BRUSH SET |
| 017 | A 1108240110 | CRANK |
| 018 | A 1108240197 | PAD |
| WIPER MOTOR TO FIRE WALL | ||
| 019 | A 0009902791 | NUT RETAINER |
| Repalced by: A 0009902291 | ||
| 019 | A 0009902291 | NUT RETAINER |
| WIPER MOTOR TO FIRE WALL | ||
| N 000933006026 | SCREW | |
| WIPER MOTOR TO FIRE WALL | ||
| N 912004006102 | LOCK WASHER | |
| WIPER MOTOR TO FIRE WALL | ||
| 022 | A 1119971140 | SEAL RING |
| Repalced by: A 1159971040 | ||
| 022 | A 1159971040 | SEAL RING |
| Repalced by: A 2019870241 | ||
| 022 | A 2019870241 | RUBBER RING |
| WIPER MOTOR TO FIRE WALL | ||
| 023 | A 1138200343 | LINKAGE |
| A 0009830210 | STRIP | |
| 550 MM | ||
| N 900161006101 | SCREW | |
| LINKAGE TO FIRE WALL | ||
| N 912004006102 | LOCK WASHER | |
| LINKAGE TO FIRE WALL | ||
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| LINKAGE TO FIRE WALL | ||
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| DRIVE ROD TO LINKAGE | ||
| N 912004006102 | LOCK WASHER | |
| DRIVE ROD TO LINKAGE | ||
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| DRIVE ROD TO LINKAGE | ||
| A 0008241472 | NUT | |
| Repalced by: A 0029902651 | ||
| 030 | A 0029902651 | NUT |
| A 1118240072 | NUT | |
| Repalced by: A 1108240472 | ||
| A 1108240472 | CAPSULE | |
| 031 | A 1118240172 | NUT |
| Repalced by: A 1108240472 | ||
| 031 | A 1108240472 | CAPSULE |
| 032 | A 0008242282 | WASHER |
| 033 | A 0009870741 | RUBBER RING |
| A 1108200544 | WIPER ARM | |
| Repalced by: A 1138200344 | ||
| A 1138200344 | WIPER ARM | |
| LEFT | ||
| A 1108200644 | WIPER ARM | |
| Repalced by: A 1138200444 | ||
| A 1138200444 | WIPER ARM | |
| RIGHT | ||
| A 0008240135 | SPRING | |
| A 1138200045 | WIPER BLADE | |
| Repalced by: A 1138200445 | ||
| A 1138200445 | WIPER BLADE | |
| A 0008240827 | WIPER RUBBER | |
| Repalced by: A 0008245027 | ||
| A 0008245027 | WIPER RUBBER | |
| 305 MM | ||
| A 1138200344 | WIPER ARM | |
| LEFT | ||
| 043 | A 1138200444 | WIPER ARM |
| RIGHT | ||
| 044 | A 0008240135 | SPRING |
| A 1138200145 | WIPER BLADE | |
| Repalced by: A 1138200345 | ||
| 045 | A 1138200345 | WIPER BLADE |
| 046 | A 0008240827 | WIPER RUBBER |
| Repalced by: A 0008245027 | ||
| 046 | A 0008245027 | WIPER RUBBER |
| 305 MM | ||
| 046 | A 0008245027 | WIPER RUBBER |
| 305 MM | ||
| A 0008241227 | WIPER RUBBER | |
| 307 MM | ||
| A 0008241172 | NUT | |
| A 0008242572 | NUT | |
| Repalced by: A 0009901253 | ||
| 048 | A 0009901253 | NUT |
| 049 | A 0009901748 | WASHER |
| A 1108250353 | CIGAR LIGHTER | |
| Repalced by: A 1158250253 | ||
| A 1108250553 | CIGAR LIGHTER | |
| Repalced by: A 1158250253 | ||
| 053 | A 1158250253 | CIGAR LIGHTER |
| AUTOMATIC | ||
| 12 V | ||
| A 1108250251 | ELEMENT | |
| Repalced by: A 0008250551 | ||
| A 1108250351 | ELEMENT | |
| Repalced by: A 0008250551 | ||
| 055 | A 0008250551 | ELEMENT |
| WITH COIL AND WITH KNOB | ||
| 056 | A 0008250652 | INCANDESCENT SPIRAL |
| Repalced by: A 0008250252 | ||
| 056 | A 0008250252 | INCANDESCENT SPIRAL |
| 12 V | ||
| 057 | A 1138200052 | READING LAMP |
| GLOVE COMPARTMENT | ||
| N 072601012120 | BULB | |
| GLOVE COMPARTMENT LAMP | ||
| A 0005455917 | SWITCH | |
| Repalced by: A 0008210852 | ||
| 060 | A 0008210852 | CONTACTOR |
| WITH REST CONTACT, GLOVE COMPARTMENT LAMP | ||
| A 1129900057 | NUT | |
| Repalced by: A 0009900557 | ||
| 062 | A 0009900557 | NUT |
| GLOVE COMPARTMENT LAMP | ||
| A 1138250042 | ENTRANCE LAMP | |
| Repalced by: A 1138250142 | ||
| 063 | A 1138250142 | ENTRANCE LAMP |
| WITH SWITCH | ||
| N 072601012120 | BULB | |
| ENTRANCE LAMP | ||
| A 0008210452 | CONTACTOR | |
| Repalced by: A 0008211552 | ||
| 066 | A 0008211552 | CONTACTOR |
| DOOR | ||

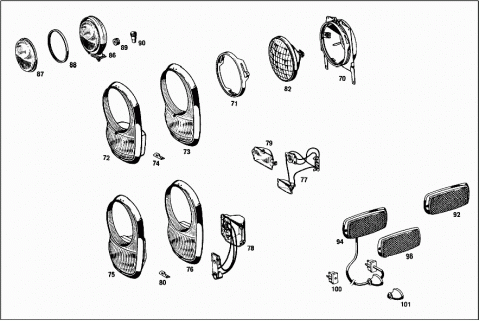

| 067 | A 1108250041 | INTERIOR LAMP |
| N 072601012701 | BULB | |
| N 007981003246 | SHEET METAL SCREW | |
| TRUNK LAMP TO TRUNK LID | ||
| 070 | A 1138201261 | LIGHTING UNIT |
| LESS LENS | ||
| 071 | A 0008268289 | RIM |
| 072 | A 1138200066 | LENS |
| 073 | A 1138260489 | RIM |
| 074 | A 1138260012 | ANGLE |
| A 1138200166 | LENS | |
| 075 | A 1138200266 | LENS |
| A 1138260589 | RIM | |
| 076 | A 1138260689 | RIM |
| 077 | A 0008264882 | LAMP SOCKET |
| 078 | A 0008265482 | LAMP SOCKET |
| 079 | A 0008262978 | REFLECTOR |
| 080 | A 1138260012 | ANGLE |
| N 007981003214 | SHEET METAL SCREW | |
| 082 | A 0008260399 | BEAM UNIT |
| Repalced by: A 0008263599 | ||
| A 0008263599 | BEAM UNIT | |
| Repalced by: A 0008266499 | ||
| A 0008266499 | BEAM UNIT | |
| Repalced by: A 0008266699 | ||
| A 0008266699 | BEAM UNIT | |
| SEALED BEAM | ||
| N 072601012900 | BULB | |
| PARKING AND CLEARANCE LIGHTS | ||
| N 072601012160 | BULB | |
| BLINKER LIGHT | ||
| 086 | A 0008203256 | EXTERIOR LAMP |
| Repalced by: A 0008203156 | ||
| 086 | A 0008203156 | EXTERIOR LAMP |
| FOGLAMP | ||
| 087 | A 0018261390 | LENS |
| 088 | A 0008261180 | SEAL |
| N 072601012400 | BULB | |
| 089 | A 0009973181 | GROMMET |
| 090 | A 0005454728 | PLUG |
| 092 | A 0008260741 | SIDE REFLECTOR |
| LEFT FRONT, ORANGE | ||
| A 0008260841 | SIDE REFLECTOR | |
| RIGHT FRONT, ORANGE | ||
| 094 | A 0008260341 | SIDE REFLECTOR |
| LEFT FRONT, ORANGE | ||
| A 0008260441 | SIDE REFLECTOR | |
| RIGHT FRONT, ORANGE | ||
| 095 | A 0008260541 | SIDE REFLECTOR |
| RED; LEFT REAR | ||
| A 0008260641 | SIDE REFLECTOR | |
| RED; RIGHT REAR | ||
| 097 | A 0008260141 | SIDE REFLECTOR |
| RED; LEFT REAR | ||
| A 0008260241 | SIDE REFLECTOR | |
| RED; RIGHT REAR | ||
| 098 | A 0008261457 | LENS |
| ORANGE | ||
| 099 | A 0008261557 | LENS |
| RED | ||
| 100 | A 0025452428 | PLUG |
| Repalced by: A 0095454028 | ||
| 100 | A 0095454028 | PLUG HOUSING |
| BIPOLAR | ||
| 101 | A 1159972081 | GROMMET |
| N 072601012900 | BULB | |
| 103 | A 1138200062 | LICENSE PLATE LAMP |
| N 007985004127 | SCREW | |
| Repalced by: A 1109900521 | ||
| A 1159900015 | SCREW | |
| Repalced by: A 1109900521 | ||
| A 1109900521 | SCREW | |
| Repalced by: N 007985004112 | ||
| N 007985004112 | SCREW | |
| Repalced by: N 007985004136 | ||
| N 007985004136 | SCREW | |
| LICENSE PLATE LAMP TO REAR BODY PANEL | ||
| N 000137004202 | SPRING WASHER | |
| LICENSE PLATE LAMP TO REAR BODY PANEL | ||
| 108 | A 1139970381 | GROMMET |
| LICENSE PLATE LAMP TO REAR BODY PANEL | ||
| N 072601012130 | BULB | |
| LICENSE PLATE LAMP | ||
| 110 | A 1138200164 | TAIL LAMP |
| Repalced by: A 1138201564 | ||
| 110 | A 1138201564 | TAIL LAMP |
| COMBINED LEFT, RED BLINKER LIGHT LENS | ||
| A 1138201564 | TAIL LAMP | |
| COMBINED LEFT, AMBER BLINKER LIGHT LENS | ||
| A 1138200264 | TAIL LAMP | |
| Repalced by: A 1138201664 | ||
| A 1138201664 | TAIL LAMP | |
| COMBINED RIGHT, RED BLINKER LIGHT LENS | ||
| A 1138201664 | TAIL LAMP | |
| COMBINED RIGHT, AMBER BLINKER LIGHT LENS | ||
| 114 | A 1118265058 | SEAL |
| 115 | A 1138260158 | SEAL |
| LEFT AT TAIL LAMP RIM | ||
| A 1138260758 | SEAL | |
| AT TAIL LAMP RIM | ||
| 116 | A 0019875951 | RUBBER SEAL |
| Repalced by: A 1118265197 | ||
| 116 | A 1118265197 | PAD |
| 350 MM AT TAIL LAMP RIM | ||
| 117 | A 0019874451 | RUBBER SEAL |
| AT TAIL LAMP RIM | ||
| A 1138260258 | SEAL | |
| RIGHT AT TAIL LAMP RIM | ||
| A 1138260658 | SEAL | |
| AT TAIL LAMP RIM | ||
| A 0019875951 | RUBBER SEAL | |
| Repalced by: A 1118265197 | ||
| A 1118265197 | PAD | |
| 350 MM AT TAIL LAMP RIM | ||
| A 0019874451 | RUBBER SEAL | |
| AT TAIL LAMP RIM | ||
| 122 | A 1138260152 | RIM |
| Repalced by: A 1138200164 | ||
| 122 | A 1138200164 | TAIL LAMP |
| Repalced by: A 1138201564 | ||
| 122 | A 1138201564 | TAIL LAMP |
| LEFT | ||
| A 1138260252 | RIM | |
| Repalced by: A 1138200264 | ||
| A 1138200264 | TAIL LAMP | |
| Repalced by: A 1138201664 | ||
| A 1138201664 | TAIL LAMP | |
| RIGHT | ||
| 124 | A 1138260752 | ORNAMENTAL FRAME |
| LEFT | ||
| A 1138260852 | ORNAMENTAL FRAME | |
| RIGHT | ||
| 126 | A 1138260156 | LENS |
| LEFT | ||
| A 1138260256 | LENS | |
| RIGHT | ||
| 128 | A 1119900257 | NUT |
| TAIL LAMPS TO BODY | ||
| N 000127005203 | LOCK WASHER | |
| TAIL LAMPS TO BODY | ||
| N 000934005008 | NUT | |
| TAIL LAMPS TO BODY | ||
| N 009021005202 | WASHER | |
| Repalced by: N 009021005205 | ||
| N 009021005205 | WASHER | |
| TAIL LAMPS TO BODY | ||
| N 072601012160 | BULB | |
| BLINKER AND STOP LIGHTS FOR COMBINED TAIL LAMPS | ||
| N 072601012190 | BULB | |
| FOR COMBINED TAIL LAMPS | ||
| N 072601012600 | BULB | |
| N 072601012900 | BULB | |
| CLEARANCE AND TAIL LIGHTS FOR COMBINED TAIL LAMPS | ||
| N 072601012701 | BULB | |
| FOR COMBINED TAIL LAMPS | ||
| 136 | A 0005448332 | SENDER UNIT |
| Repalced by: A 0015444232 | ||
| 136 | A 0015442832 | SENDER UNIT |
| Repalced by: A 0008211063 | ||
| 136 | A 0005445332 | SENDER UNIT |
| Repalced by: A 0015444232 | ||
| 136 | A 0015443932 | SENDER UNIT |
| Repalced by: A 0008211063 | ||
| 136 | A 0015443032 | SENDER UNIT |
| Repalced by: A 0008211063 | ||
| 136 | A 0005446132 | SENDER UNIT |
| Repalced by: A 0015444232 | ||
| 136 | A 0015444232 | SENDER UNIT |
| Repalced by: A 0005445832 | ||
| 136 | A 0005445832 | SENDER UNIT |
| N 007981004245 | SHEET METAL SCREW | |
| Repalced by: N 007981004339 | ||
| N 007981004339 | SHEET METAL SCREW | |
| Repalced by: N 000000000459 | ||
| N 000000000459 | SHEET METAL SCREW | |
| BLINKER SENDER UNIT TO CABLE CONNECTOR BRACKER | ||
| 142 | A 0018212951 | SWITCH |
| Repalced by: A 0015449532 | ||
| 142 | A 0015449532 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 143 | A 0009972040 | SEAL RING |
| N 072601012230 | BULB | |
| A 1108260524 | COVERING | |
| 145 | A 1108210259 | ESCUTCHEON |
| A 1108260022 | WASHER | |
| A 1108200092 | KNOB | |
| Repalced by: A 1108200392 | ||
| A 1108200392 | KNOB | |
| A 1108201492 | KNOB | |
| Repalced by: A 1158201992 | ||
| 149 | A 1158201992 | KNOB |
| A 1138200215 | ELECTRIC CABLE | |
| 12-POLE | ||
| A 0005453728 | PLUG | |
| A 0005453628 | PLUG | |
| 12-POLE | ||
| A 0025454428 | PLUG | |
| Repalced by: A 0055451328 | ||
| A 0055451328 | PLUG | |
| Repalced by: A 0065458028 | ||
| A 0065458028 | PIN BUSHING HOUSING | |
| 6-POLE | ||
| 155 | A 0025457428 | PLUG |
| 12-POLE | ||
| 156 | A 0025453128 | PLUG |
| 12-POLE | ||
| 157 | A 0025454428 | PLUG |
| Repalced by: A 0055451328 | ||
| 157 | A 0055451328 | PLUG |
| Repalced by: A 0065458028 | ||
| 157 | A 0065458028 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 158 | A 0025453528 | PLUG |
| Repalced by: A 0095452628 | ||
| 158 | A 0095452628 | PIN BUSHING HOUSING |
| 12-POLE | ||
| 159 | A 0025452628 | PLUG |
| Repalced by: A 0095455428 | ||
| 159 | A 0095455428 | PLUG HOUSING |
| 12-POLE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
