Transporto priemonė: 280 SL USA; VIN numerio dalis: 113044

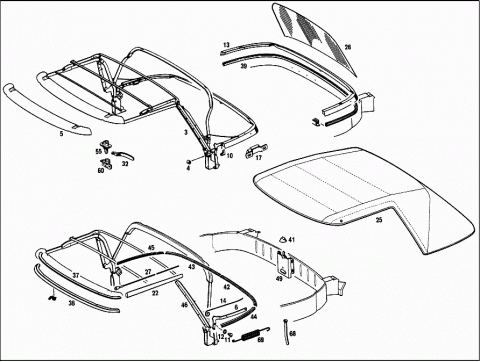

Grupė: 77 FOLDING TOP
| # | Kodas | Pavadinimas |
|---|---|---|
| A 1137700402 | FOLDING TOP FRAME ASSY | |
| LESS COVER | ||
| A 1137700502 | FOLDING TOP FRAME ASSY | |
| Repalced by: A 1137700702 | ||
| 003 | A 1137700702 | FOLDING TOP FRAME ASSY |
| LESS COVER | ||
| 004 | A 1139910140 | SPACER TUBE |
| FOR SUBSEQUENT CONVERSION ONLY | ||
| 005 | A 1137700310 | FOLDING TOP FRAME |
| FRONT CROSS | ||
| A 0009903330 | SCREW | |
| FOLDING TOP CROSS FRAME TO FOLDING TOP LATERAL FRAME | ||
| 006 | A 1137701514 | BRACKET |
| Repalced by: A 1137701714 | ||
| 006 | A 1137701714 | BRACKET |
| LEFT FOR FABRIC RETAINING RAIL | ||
| A 1137701614 | BRACKET | |
| Repalced by: A 1137701814 | ||
| A 1137701814 | BRACKET | |
| RIGHT FOR FABRIC RETAINING RAIL | ||
| A 1137701714 | BRACKET | |
| LEFT | ||
| A 1137701814 | BRACKET | |
| RIGHT | ||
| A 1137720096 | BOOT | |
| Repalced by: A 1077720096 | ||
| 010 | A 1077720096 | BOOT |
| 011 | A 1139841331 | SCREW |
| 012 | A 1139900940 | WASHER |
| Repalced by: A 1139901040 | ||
| 012 | A 1139901040 | WASHER |
| 013 | A 1137701149 | CLAMP |
| 014 | A 1137740365 | DEFLECTOR |
| FOR FABRIC BOW, LEFT | ||
| A 1137740465 | DEFLECTOR | |
| Repalced by: A 1137740365 | ||
| A 1137740365 | DEFLECTOR | |
| FOR FABRIC BOW, RIGHT | ||
| A 1139842331 | SCREW | |
| N 900055012001 | SPRING WASHER | |
| 017 | A 1137700329 | FOLDING TOP CATCH |
| LEFT | ||
| A 1137700429 | FOLDING TOP CATCH | |
| RIGHT | ||
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| N 000125006407 | WASHER | |
| 022 | A 1137780097 | PAD |
| MOSS TYPE RUBBER AT FOLDING TOP COVER, LATERAL | ||
| A 0009830098 | FOAM PLASTICS | |
| Repalced by: A 0009833598 | ||
| A 0009833598 | FOAM PLASTICS | |
| MOLTOPRENE 5 X 40 X 840 MM AT FOLDING TOP FRONT CROSS FRAME | ||
| A 0009838786 | IMITATION LEATHER | |
| Repalced by: A 0009839586 | ||
| A 0009839586 | IMITATION LEATHER | |
| IMITATION LEATHER AT FOLDING TOP FRONT CROSS FRAME | ||
| 025 | A 1137700282 | COVER |
| A 1137700382 | COVER | |
| OUTSIDE | ||
| 026 | A 1137770210 | GLASS PANE |
| 027 | A 1137700066 | PULL |
| N 000966004016 | SCREW | |
| Repalced by: N 000966004003 | ||
| N 000966004003 | SCREW | |
| PULL TO FOLDING TOP FRONT CROSS FRAME | ||
| N 900056004002 | COUNTERSUNK WASHER | |
| PULL TO FOLDING TOP FRONT CROSS FRAME | ||
| N 006797006145 | TOOTHED WASHER | |
| PULL TO FABRIC RETAINING RAIL AT FOLDING TOP PILLAR | ||
| N 000934006007 | NUT | |
| PULL TO FABRIC RETAINING RAIL AT FOLDING TOP PILLAR | ||
| N 900056006304 | COUNTERSUNK WASHER | |
| PULL TO FABRIC RETAINING RAIL AT FOLDING TOP PILLAR | ||
| 032 | A 1137660617 | MOUNTING |
| 032 | A 1137660617 | MOUNTING |
| A 1137760917 | LOCKING HANDLE | |
| Repalced by: A 1077760017 | ||
| A 1077760017 | LOCKING HANDLE | |
| N 000966006018 | SCREW | |
| FOLDING TOP LOCK BOLT HANDLE TO FOLDING TOP FRAME | ||
| N 007988006122 | SCREW | |
| N 000091006128 | SCREW | |
| 037 | A 1137790021 | SEALING RAIL |
| FOLDING TOP CROSS FRAME | ||
| N 007982003228 | SHEET METAL SCREW | |
| Repalced by: N 007982003203 | ||
| N 007982003203 | SHEET METAL SCREW | |
| Repalced by: N 007982003238 | ||
| N 007982003238 | SHEET METAL SCREW | |
| WEATHERSTRIP TO FOLDING TOP CROSS FRAME | ||
| 038 | A 1137951222 | SEAL |
| FRONT | ||
| 039 | A 1137790022 | SEAL |
| REAR | ||
| 200 MM | ||
| N 007982002212 | SHEET METAL SCREW | |
| SEAL TO FABRIC RETAINING BOW | ||
| A 0009850562 | WASHER | |
| SEAL TO FABRIC RETAINING BOW | ||
| 041 | A 1137790122 | SEAL |
| AT TENTERHOOK | ||
| 042 | A 1137790328 | RAIL |
| CENTRAL LEFT | ||
| 043 | A 1137790428 | RAIL |
| CENTRAL RIGHT | ||
| 044 | A 1137790128 | RAIL |
| LEFT | ||
| 045 | A 1137790228 | RAIL |
| RIGHT | ||
| N 007981003260 | SHEET METAL SCREW | |
| Repalced by: N 007981003323 | ||
| N 007981003335 | SHEET METAL SCREW | |
| Repalced by: N 007981003203 | ||
| N 007981003203 | SHEET METAL SCREW | |
| RAIL TO FABRIC RETAINING BOW | ||
| 046 | A 1137700334 | RAIL |
| LEFT FOLDING TOP PILLAR | ||
| A 1137700434 | RAIL | |
| RIGHT FOLDING TOP PILLAR | ||
| N 007987004138 | SCREW | |
| FABRIC RETAINING RAIL TO FOLDING TOP PILLAR | ||
| N 007516004213 | TAPPING SCREW | |
| FABRIC RETAINING RAIL TO FOLDING TOP PILLAR | ||
| 049 | A 1137700626 | FASTENER |
| N 006797006243 | TOOTHED WASHER | |
| FASTENER TO FOLDING TOP CASE, CENTER | ||
| A 0009840456 | WASHER | |
| FASTENER TO FOLDING TOP CASE, CENTER | ||
| N 000934006007 | NUT | |
| FASTENER TO FOLDING TOP CASE, CENTER | ||
| A 1137700126 | FASTENER | |
| Repalced by: A 1137700963 | ||
| A 1137701126 | FASTENER | |
| Repalced by: A 1137700963 | ||
| 055 | A 1137700963 | FASTENER |
| Repalced by: A 1077700163 | ||
| A 1077700163 | FASTENER | |
| Repalced by: A 1077700563 | ||
| A 1077700563 | FASTENER | |
| LEFT | ||
| A 1137700226 | FASTENER | |
| Repalced by: A 1137701063 | ||
| A 1137701226 | FASTENER | |
| Repalced by: A 1137701063 | ||
| A 1137701063 | FASTENER | |
| Repalced by: A 1077700263 | ||
| A 1077700263 | FASTENER | |
| Repalced by: A 1077700663 | ||
| A 1077700663 | FASTENER | |
| RIGHT | ||
| A 1117768097 | PAD | |
| 060 | A 1137700264 | BEARING |
| N 000966006018 | SCREW | |
| BEARING TO FRONT PANEL FRAME | ||
| N 007988006126 | SCREW | |
| BEARING TO FRONT PANEL FRAME | ||
| N 000091006128 | SCREW | |
| BEARING TO FRONT PANEL FRAME | ||
| N 000933008153 | SCREW | |
| FOLDING TOP FRAME ASSEMBLY TO CONSOLE | ||
| N 006797008141 | TOOTHED WASHER | |
| Repalced by: N 006797008120 | ||
| N 006797008120 | TOOTHED WASHER | |
| FOLDING TOP FRAME ASSEMBLY TO CONSOLE | ||
| A 1137720160 | INTERMEDIATE LAYER | |
| FOLDING TOP FRAME ASSEMBLY TO CONSOLE | ||
| 068 | A 1137790078 | HOSE |
| 069 | A 1137790436 | SPRING |
| A 1137700401 | FOLDING TOP | |
| TOTAL RANGE OF DELIVERY, FOR SUBSEQUENT CONVERSION FROM COUPE TO ROADSTER | ||
