Transporto priemonė: 280 SL USA; VIN numerio dalis: 113044
Grupė: 88 FRONT AND REAR END SHEET METAL - 001 ATTACHMENT PARTS
| # | Kodas | Pavadinimas |
|---|---|---|

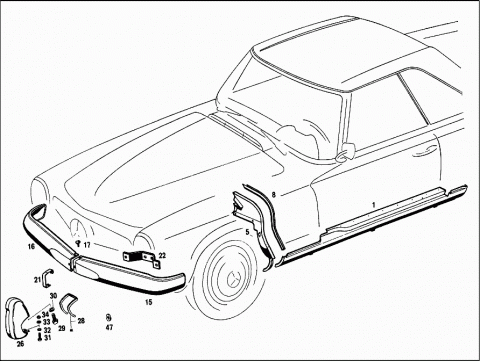

| 001 | A 1138830301 | ROCKER PANEL |
| LEFT | ||
| A 1138830401 | ROCKER PANEL | |
| RIGHT | ||
| A 0009909236 | SCREW | |
| Repalced by: N 007981002306 | ||
| N 007981002306 | SHEET METAL SCREW | |
| ROCKER PANELS TO SIDE MEMBERS | ||
| N 007981003203 | SHEET METAL SCREW | |
| ROCKER PANELS TO SIDE MEMBERS | ||
| N 007982002212 | SHEET METAL SCREW | |
| ROCKER PANELS TO SIDE MEMBERS | ||
| 005 | A 1138840135 | PARTITION PANEL |
| BELOW LEFT FRONT FENDER | ||
| A 1138840235 | PARTITION PANEL | |
| BELOW RIGHT FRONT FENDER | ||
| A 0009871651 | RUBBER SEAL | |
| Repalced by: A 1108840098 | ||
| 008 | A 1108840098 | SEAL |
| 770 MM AT PARTITION PANELS | ||
| N 007976005202 | SHEET METAL SCREW | |
| PARTITION PANELS TO BODY FRONT END | ||
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| PARTITION PANELS TO BODY FRONT END | ||
| A 0009894585 | ADHESIVE TAPE | |
| Repalced by: A 0029894185 | ||
| A 0029894185 | ADHESIVE TAPE | |
| 15 X 2 MM PARTITION PANELS TO BODY FRONT END | ||
| A 0009909236 | SCREW | |
| Repalced by: N 007981002306 | ||
| N 007981002306 | SHEET METAL SCREW | |
| PARTITION PANELS TO BODY FRONT END | ||
| A 1138840091 | SEAL | |
| AT PARTITION PANELS BELOW FRONT FENDERS | ||
| 015 | A 1138800170 | FRONT BUMPER FACE BAR |
| LEFT | ||
| 016 | A 1138800270 | FRONT BUMPER FACE BAR |
| RIGHT | ||
| 017 | A 1119900029 | SCREW |
| LEFT BUMPER FACE BAR TO RIGHT BUMPER FACE BAR | ||
| N 000125008418 | WASHER | |
| LEFT BUMPER FACE BAR TO RIGHT BUMPER FACE BAR | ||
| N 912004008102 | LOCK WASHER | |
| LEFT BUMPER FACE BAR TO RIGHT BUMPER FACE BAR | ||
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
| LEFT BUMPER FACE BAR TO RIGHT BUMPER FACE BAR | ||
| 021 | A 1138850023 | BUMPER JOINT COVER |
| 022 | A 1138850140 | BRACKET |
| N 000933010035 | SCREW | |
| BRACKETS TO FRONT BUMPER FACE BAR, AND BUMPER FACE BAR TO FRAME | ||
| N 000125010518 | WASHER | |
| Repalced by: N 000125010532 | ||
| N 000125010532 | WASHER | |
| BRACKETS TO FRONT BUMPER FACE BAR, AND BUMPER FACE BAR TO FRAME | ||
| N 000127010202 | LOCK WASHER | |
| BRACKETS TO FRONT BUMPER FACE BAR, AND BUMPER FACE BAR TO FRAME | ||
| N 009021010202 | WASHER | |
| Repalced by: N 009021010209 | ||
| N 009021010209 | WASHER | |
| FRONT BUMPER FACE BAR TO FRAME | ||
| 026 | A 1138800155 | BUMPER GUARD |
| FRONT LEFT WITH RUBBER BUFFER | ||
| A 1138800255 | BUMPER GUARD | |
| FRONT RIGHT WITH RUBBER BUFFER | ||
| 028 | A 0009872560 | RUBBER PAD |
| 350 MM GUARDS TO BUMPER FACE BAR | ||
| 029 | N 000933010090 | SCREW |
| GUARDS TO BUMPER FACE BAR | ||
| 030 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 030 | N 009021010209 | WASHER |
| GUARDS TO BUMPER FACE BAR | ||
| 031 | N 000933006026 | SCREW |
| GUARDS TO BUMPER FACE BAR | ||
| 032 | N 009021006103 | WASHER |
| Repalced by: N 009021006208 | ||
| 032 | N 009021006208 | WASHER |
| GUARDS TO BUMPER FACE BAR | ||
| 033 | N 912004006102 | LOCK WASHER |
| GUARDS TO BUMPER FACE BAR | ||
| 034 | N 000934006007 | NUT |
| GUARDS TO BUMPER FACE BAR | ||

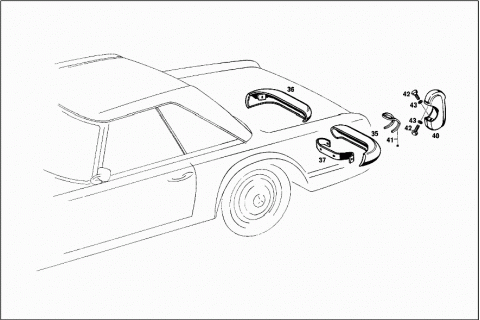

| 035 | A 1138800371 | REAR BUMPER FACE BAR |
| LEFT | ||
| 036 | A 1138800471 | REAR BUMPER FACE BAR |
| RIGHT | ||
| 037 | A 1138850040 | BRACKET |
| N 000933010035 | SCREW | |
| BRACKETS TO REAR BUMPER FACE BAR, AND BUMPER FACE BAR TO FRAME | ||
| N 000125010518 | WASHER | |
| Repalced by: N 000125010532 | ||
| N 000125010532 | WASHER | |
| BRACKETS TO REAR BUMPER FACE BAR, AND BUMPER FACE BAR TO FRAME | ||
| N 000127010202 | LOCK WASHER | |
| BRACKETS TO REAR BUMPER FACE BAR, AND BUMPER FACE BAR TO FRAME | ||
| 040 | A 1138800455 | BUMPER GUARD |
| REAR, WITH RUBBER BUFFER | ||
| 041 | A 0009872560 | RUBBER PAD |
| 340 MM GUARDS TO REAR BUMPER FACE BAR | ||
| 042 | N 000933010090 | SCREW |
| GUARDS TO REAR BUMPER FACE BAR | ||
| 043 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 043 | N 009021010209 | WASHER |
| GUARDS TO REAR BUMPER FACE BAR | ||
| N 000085005129 | SCREW | |
| LICENSE PLATE TO BUMPER FACE BAR AND TO BODY | ||
| N 009021005202 | WASHER | |
| Repalced by: N 009021005205 | ||
| N 009021005205 | WASHER | |
| LICENSE PLATE TO BUMPER FACE BAR AND TO BODY | ||
| N 000934005008 | NUT | |
| LICENSE PLATE TO BUMPER FACE BAR AND TO BODY | ||
| A 0009872541 | RUBBER RING | |
| Repalced by: A 0009873741 | ||
| 047 | A 0009873741 | RUBBER RING |
| LICENSE PLATE TO BUMPER FACE BAR AND TO BODY | ||

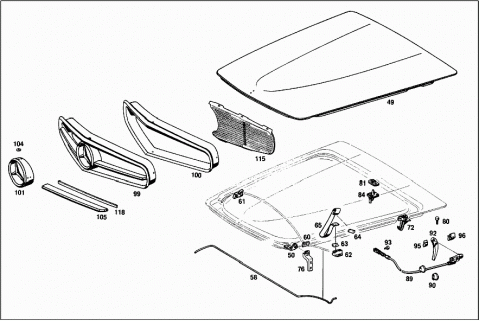

| 049 | A 1138800056 | ENGINE HOOD |
| 050 | A 1138800176 | MOUNTING |
| LEFT | ||
| A 1138800276 | MOUNTING | |
| RIGHT | ||
| N 000933006026 | SCREW | |
| HINGE MOUNTINGS TO ENGINE HOOD | ||
| N 912004006102 | LOCK WASHER | |
| HINGE MOUNTINGS TO ENGINE HOOD | ||
| N 000125006421 | WASHER | |
| HINGE MOUNTINGS TO ENGINE HOOD | ||
| A 1138870163 | TORSION BAR | |
| Repalced by: A 1138870263 | ||
| 058 | A 1138870263 | TORSION BAR |
| 060 | A 1138870111 | PLATE |
| LEFT | ||
| 061 | A 1138870211 | PLATE |
| RIGHT | ||
| N 007987005123 | SCREW | |
| BASE PLATES TO ENGINE HOOD INNER PLATE | ||
| 062 | A 1138870519 | SUPPORTING PLATE |
| AT WHEELHOUSE BRACKET, FOR TORSION BAR | ||
| 063 | A 1138870114 | FASTENER |
| BOTTOM | ||
| 064 | A 1138870214 | FASTENER |
| TOP | ||
| 065 | A 1138870136 | FASTENER |
| Repalced by: A 0009831412 | ||
| 065 | A 0009831412 | BELT |
| N 007981004226 | SHEET METAL SCREW | |
| Repalced by: N 007981004233 | ||
| N 007981004233 | SHEET METAL SCREW | |
| Repalced by: N 000000000460 | ||
| N 000000000460 | SHEET METAL SCREW | |
| FASTENERS TO HOOD SUPPORT | ||
| N 912004005100 | LOCK WASHER | |
| FASTENERS TO HOOD SUPPORT | ||
| N 007985006583 | SCREW | |
| BEARING BRACKET TO WHEELHOUSE BRACKET | ||
| N 000125006421 | WASHER | |
| BEARING BRACKET TO WHEELHOUSE BRACKET | ||
| N 912004006102 | LOCK WASHER | |
| BEARING BRACKET TO WHEELHOUSE BRACKET | ||
| 072 | A 1138800064 | SAFETY HOOK |
| N 000933005037 | SCREW | |
| SAFETY HOOK TO ENGINE HOOD | ||
| N 912004005100 | LOCK WASHER | |
| SAFETY HOOK TO ENGINE HOOD | ||
| N 000125005317 | WASHER | |
| Repalced by: N 000433005304 | ||
| N 000433005304 | WASHER | |
| SAFETY HOOK TO ENGINE HOOD | ||
| 076 | A 1138800181 | MOUNTING |
| LEFT | ||
| A 1138800281 | MOUNTING | |
| RIGHT | ||
| N 000933006026 | SCREW | |
| SEATS TO WHEELHOUSES | ||
| N 912004006102 | LOCK WASHER | |
| SEATS TO WHEELHOUSES | ||
| N 000125006421 | WASHER | |
| SEATS TO WHEELHOUSES | ||
| 080 | A 1108800017 | STOP SCREW |
| Repalced by: A 1269900015 | ||
| 080 | A 1269900015 | SCREW |
| Repalced by: A 2019880211 | ||
| 080 | A 2019880211 | BUFFER |
| Repalced by: A 2019880511 | ||
| 080 | A 2019880511 | BUFFER |
| AT ENGINE HOOD | ||
| N 000934006007 | NUT | |
| STOP SCREW | ||
| 081 | A 1108800560 | ENGINE HOOD CATCH |
| Repalced by: A 1158870006 | ||
| 081 | A 1158870006 | ENGINE HOOD CATCH |
| Repalced by: A 1078800060 | ||
| 081 | A 1078800060 | ENGINE HOOD CATCH |
| UPPER PART | ||
| N 000433006405 | WASHER | |
| ENGINE HOOD CATCH UPPER PART TO ENGINE HOOD FRONT BRACKET | ||
| N 912004006102 | LOCK WASHER | |
| ENGINE HOOD CATCH UPPER PART TO ENGINE HOOD FRONT BRACKET | ||
| N 000933006121 | SCREW | |
| Repalced by: N 304017006020 | ||
| N 304017006020 | SCREW | |
| ENGINE HOOD CATCH UPPER PART TO ENGINE HOOD FRONT BRACKET | ||
| 084 | A 1108800860 | ENGINE HOOD CATCH |
| Repalced by: A 1158800160 | ||
| 084 | A 1158800160 | ENGINE HOOD CATCH |
| LOWER PART | ||
| N 007987006165 | SCREW | |
| ENGINE HOOD CATCH LOWER PART TO BODY FRONT END | ||
| A 1138800159 | ENGINE HOOD RELEASE CABLE | |
| Repalced by: A 1138800759 | ||
| A 1138800359 | ENGINE HOOD RELEASE CABLE | |
| Repalced by: A 1138800759 | ||
| A 1138800559 | ENGINE HOOD RELEASE CABLE | |
| Repalced by: A 1138800759 | ||
| 089 | A 1138800759 | ENGINE HOOD RELEASE CABLE |
| LESS HANDLE | ||
| 090 | A 1109970381 | GROMMET |
| A 1109971281 | GROMMET | |
| 092 | A 1108800020 | HANDLE |
| 093 | A 0009910307 | PIN |
| Repalced by: N 918001005001 | ||
| 093 | N 918001005001 | PIN |
| N 007976004207 | SHEET METAL SCREW | |
| ENGINE HOOD RELEASE CABLE TO FRONT PANEL, LATERAL BOTTOM LEFT | ||
| N 006797005132 | TOOTHED WASHER | |
| ENGINE HOOD RELEASE CABLE TO FRONT PANEL, LATERAL BOTTOM LEFT | ||
| 095 | A 0009883378 | CLIP |
| 096 | A 0019889878 | CLIP |
| 099 | A 1138800023 | FRONT ORNAMENT |
| 100 | A 1138880222 | GARNISH MOULDING |
| FRONT END | ||
| 101 | A 1138800186 | MERCEDES STAR |
| N 007985005125 | SCREW | |
| Repalced by: N 007985005157 | ||
| N 007985005157 | SCREW | |
| MERCEDES STAR TO ORNAMENTAL FRAME | ||
| N 912004005100 | LOCK WASHER | |
| MERCEDES STAR TO ORNAMENTAL FRAME | ||
| N 009021005202 | WASHER | |
| Repalced by: N 009021005205 | ||
| N 009021005205 | WASHER | |
| MERCEDES STAR TO ORNAMENTAL FRAME | ||
| 104 | H 401218880249 | SHIM |
| 105 | A 1138880121 | GARNISH MOULDING |
| LEFT | ||
| A 1138880221 | GARNISH MOULDING | |
| RIGHT | ||
| N 000933005036 | SCREW | |
| GARNISH MOULDINGS TO MERCEDES STAR | ||
| N 000137005203 | SPRING WASHER | |
| GARNISH MOULDINGS TO MERCEDES STAR | ||
| N 000933005036 | SCREW | |
| GARNISH MOULDINGS TO ORNAMENTAL FRAME | ||
| N 000137005203 | SPRING WASHER | |
| GARNISH MOULDINGS TO ORNAMENTAL FRAME | ||
| N 000934005008 | NUT | |
| GARNISH MOULDINGS TO ORNAMENTAL FRAME | ||
| N 007983003216 | SHEET METAL SCREW | |
| FRONT END ORNAMENT TO FRONT END OPENING | ||
| N 900056003507 | COUNTERSUNK WASHER | |
| FRONT END ORNAMENT TO FRONT END OPENING | ||
| 115 | A 1138800385 | RADIATOR GRILLE |
| LEFT | ||
| A 1138800485 | RADIATOR GRILLE | |
| RIGHT | ||
| A 1138880097 | INSERT | |
| Repalced by: A 0009831292 | ||
| 118 | A 0009831292 | FELT |
| GREY 2 X 15 X 50 MM RADIATOR GRILLE | ||
| N 007976004203 | SHEET METAL SCREW | |
| RADIATOR GRILLE | ||
| A 0009900348 | WASHER | |
| RADIATOR GRILLE | ||
