Transporto priemonė: 280 SL USA; VIN numerio dalis: 113044

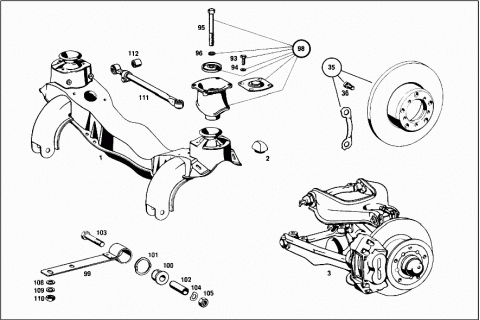

Grupė: 33 FRONT AXLE
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 1113303042 | FRONT SUBFRAME |
| 002 | A 1123330165 | RUBBER BUFFER |
| 003 | A 1083300298 | HALF FRONT AXLE |
| LEFT | ||
| A 1083300398 | HALF FRONT AXLE | |
| RIGHT | ||
| 004 | A 1083300020 | STEERING KNUCKLE |
| LEFT | ||
| A 1083300120 | STEERING KNUCKLE | |
| RIGHT | ||
| A 1803320148 | BUSHING | |
| TOP | ||
| A 1113320148 | BUSHING | |
| BOTTOM | ||
| 008 | N 000007002208 | CYLINDRICAL PIN |
| 009 | N 071412008100 | GREASE NIPPLE |
| A 1113320106 | KINGPIN | |
| 010 | N 071412008200 | GREASE NIPPLE |
| A 1203320051 | SPACER RING | |
| A 1203320162 | THRUST WASHER | |
| BOTTOM | ||
| A 1203320262 | THRUST WASHER | |
| TOP | ||
| A 1203320260 | DUST CAP | |
| 014 | A 1363320852 | SPACER WASHER |
| 1.7 MM AS REQUIRED | ||
| A 1363320952 | SPACER WASHER | |
| 1.9 MM AS REQUIRED | ||
| A 1363321052 | SPACER WASHER | |
| 2.1 MM AS REQUIRED | ||
| A 1363320052 | SPACER WASHER | |
| 2.3 MM AS REQUIRED | ||
| A 1363320152 | SPACER WASHER | |
| 2.5 MM AS REQUIRED | ||
| A 1363320252 | SPACER WASHER | |
| 2.7 MM AS REQUIRED | ||
| A 1803330009 | STEERING KNUCKLE SUPPORT | |
| 021 | N 071412008100 | GREASE NIPPLE |
| 022 | A 1819940015 | LOCK |
| 023 | N 000934014019 | NUT |
| Repalced by: N 308673014001 | ||
| 023 | N 308673014001 | NUT |
| 024 | A 1115860033 | REPAIR KIT |
| STEERING KNUCKLE | ||
| 026 | A 1123340501 | WHEEL HUB |
| A 0009815805 | TAPERED ROLLER BEARING | |
| 027 | A 1113340064 | RETAINER |
| 028 | A 0039979346 | SEAL RING |
| A 0009815905 | TAPERED ROLLER BEARING | |
| A 1153340315 | RING | |
| 031 | A 1203340772 | NUT |
| A 1209901320 | SCREW | |
| A 1123300057 | HUB CAP | |
| Repalced by: A 1083340025 | ||
| 033 | A 1083340025 | HUB CAP |
| 034 | A 2015470085 | CONTACT SPRING |
| A 1159940732 | LOCK | |
| INCLUDED IN 111 586 04 33 | ||
| A 1159940732 | LOCK | |
| INCLUDED IN 111 586 04 33 | ||
| 035 | A 1154211112 | BRAKE DISC |
| 036 | A 0009907212 | SCREW |
| 037 | A 1113300051 | REPAIR KIT |
| Repalced by: A 1073300051 | ||
| 037 | A 1073300051 | REPAIR KIT |
| FRONT WHEEL BEARING | ||
| 039 | A 1113302907 | TRANSVERSE CONTROL ARM |
| BOTTOM LEFT | ||
| A 1113303007 | TRANSVERSE CONTROL ARM | |
| BOTTOM RIGHT | ||
| A 1113330330 | PIN | |
| TO LOWER CONTROL ARMS | ||
| 041 | A 1203330180 | SEAL RING |
| 042 | A 1113330548 | SCREW COLLAR |
| THREAD O.D., 29.9 MM | ||
| 043 | A 1113330448 | SCREW COLLAR |
| THREAD O.D., 30.9 MM | ||
| 045 | A 1089900801 | SCREW |
| LOWER CONTROL ARM PIVOT PIN TO FRONT SUBFRAME | ||
| 046 | N 912004012100 | LOCK WASHER |
| LOWER CONTROL ARM PIVOT PIN TO FRONT SUBFRAME | ||
| 047 | N 000934012023 | NUT |
| Repalced by: N 308673012002 | ||
| 047 | N 308673012002 | NUT |
| LOWER CONTROL ARM PIVOT PIN TO FRONT SUBFRAME | ||
| A 1089900840 | WASHER | |
| LOWER CONTROL ARM PIVOT PIN TO FRONT SUBFRAME | ||
| 048 | N 071412008100 | GREASE NIPPLE |
| 049 | A 1203330474 | PIN |
| 050 | A 1813330180 | SEAL RING |
| 051 | A 1819900055 | NUT |
| N 000094003229 | COTTER PIN | |
| 052 | A 1103300118 | REPAIR KIT |
| LOWER CONTROL ARM PIVOT PIN | ||
| 053 | A 1103300318 | REPAIR KIT |
| LOWER CONTROL ARM | ||
| 055 | A 1123303107 | TRANSVERSE CONTROL ARM |
| TOP | ||
| A 1113330230 | PIN | |
| 057 | A 1089900801 | SCREW |
| UPPER CONTROL ARM PIVOT PIN TO FRONT SUBFRAME | ||
| 058 | A 1109940010 | LOCK |
| UPPER CONTROL ARM PIVOT PIN TO FRONT SUBFRAME | ||
| 059 | N 000433013004 | WASHER |
| UPPER CONTROL ARM PIVOT PIN TO FRONT SUBFRAME | ||
| 060 | A 1203330180 | SEAL RING |
| UPPER CONTROL ARM PIVOT PIN TO FRONT SUBFRAME | ||
| 061 | A 1203330248 | SCREW COLLAR |
| THREAD O.D., 29.9 MM UPPER CONTROL ARM PIVOT PIN TO FRONT SUBFRAME | ||
| 062 | A 1203330348 | SCREW COLLAR |
| THREAD O.D., 30.9 MM UPPER CONTROL ARM PIVOT PIN TO FRONT SUBFRAME | ||
| 063 | N 071412008200 | GREASE NIPPLE |
| 064 | A 1203330548 | SCREW COLLAR |
| 065 | A 1203330374 | PIN |
| 066 | A 1209903240 | WASHER |
| 067 | A 1813330180 | SEAL RING |
| 068 | A 1209901340 | WASHER |
| 069 | A 1203300187 | ECCENTRIC BUSHING |
| 070 | N 912004010102 | LOCK WASHER |
| 071 | N 000934010014 | NUT |
| 072 | A 1203330073 | LOCK |
| 073 | N 000933006010 | SCREW |
| 074 | N 912004006102 | LOCK WASHER |
| A 1105860033 | REPAIR KIT | |
| Repalced by: A 1103300218 | ||
| 075 | A 1103300218 | REPAIR KIT |
| UPPER TRANSVERSE CONTROL ARM | ||
| 076 | A 1103300018 | REPAIR KIT |
| UPPER CONTROL ARM PIVOT PIN | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| TIE RODS | ||
| 078 | A 1153300703 | TIE ROD |
| Repalced by: A 1073300103 | ||
| A 1153300803 | TIE ROD | |
| Repalced by: A 1073300103 | ||
| 078 | A 1073300103 | TIE ROD |
| A 0003381515 | TIE ROD | |
| Repalced by: A 1153300703 | ||
| A 1153300703 | TIE ROD | |
| 080 | A 0009951844 | CLAMP |
| Repalced by: A 0003384245 | ||
| 080 | A 0003384245 | CLAMP |
| N 000960008011 | SCREW | |
| FOR CLAMPS | ||
| N 000127008200 | LOCK WASHER | |
| FOR CLAMPS | ||
| N 000934008007 | NUT | |
| FOR CLAMPS | ||
| 084 | A 0003381910 | BALL JOINT |
| Repalced by: A 0003385210 | ||
| 084 | A 0003385210 | BALL JOINT |
| R.H. THREAD | ||
| 084 | A 0003385510 | BALL JOINT |
| R.H. THREAD | ||
| 085 | A 0003382010 | BALL JOINT |
| Repalced by: A 0003385010 | ||
| 085 | A 0003385010 | BALL JOINT |
| L.H. THREAD | ||
| 085 | A 0003385310 | BALL JOINT |
| L.H. THREAD | ||
| A 0003380297 | BOOT | |
| Repalced by: A 0003381397 | ||
| A 0003381397 | BOOT | |
| A 0003380963 | CLAMPING RING | |
| BOTTOM | ||
| A 0003381063 | CLAMPING RING | |
| TOP | ||
| 088 | A 1209900155 | NUT |
| TIE RODS TO STEERING KNUCKLES | ||
| TO 115 330 07 03,08 03 | ||
| N 913002010010 | NUT | |
| TO 107 330 01 03 | ||
| 089 | N 000094002077 | COTTER PIN |
| TIE RODS TO STEERING KNUCKLES | ||
| 090 | A 0003300485 | REPAIR KIT |
| TIE ROD BOOT | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FRONT AXLE SUSPENSION | ||
| A 1113301575 | RUBBER MOUNTING | |
| A 1133300077 | STOP | |
| 093 | N 000933008114 | SCREW |
| Repalced by: N 304017008021 | ||
| 093 | N 304017008021 | SCREW |
| 094 | N 912004008102 | LOCK WASHER |
| A 1113310645 | RETAINER | |
| 095 | N 000960012095 | SCREW |
| 096 | N 912004012100 | LOCK WASHER |
| 097 | A 1113330265 | RUBBER BUFFER |
| 098 | A 1135860033 | REPAIR KIT |
| FRONT SUBFRAME | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FRONT AXLE BRACING | ||
| 099 | A 1113311112 | LEAF SPRING |
| 100 | A 1103221585 | RUBBER MOUNTING |
| 101 | A 1103220276 | WASHER |
| RUBBER MOUNTS TO LEAF SPRINGS | ||
| 102 | A 1113320053 | SPACER TUBE |
| RUBBER MOUNTS TO LEAF SPRINGS | ||
| 103 | N 000933008145 | SCREW |
| RUBBER MOUNTS TO LEAF SPRINGS | ||
| 104 | N 912004008102 | LOCK WASHER |
| RUBBER MOUNTS TO LEAF SPRINGS | ||
| 105 | N 000934008010 | NUT |
| Repalced by: N 304032008006 | ||
| 105 | N 304032008006 | NUT |
| RUBBER MOUNTS TO LEAF SPRINGS | ||
| N 000960016138 | SCREW | |
| LEAF SPRING TO FRONT SUBFRAME | ||
| N 000137016202 | SPRING WASHER | |
| LEAF SPRING TO FRONT SUBFRAME | ||
| N 000985016007 | NUT | |
| LEAF SPRING TO FRONT SUBFRAME | ||
| 108 | N 000125015004 | WASHER |
| 109 | N 912004014100 | LOCK WASHER |
| 110 | N 000934014019 | NUT |
| Repalced by: N 308673014001 | ||
| 110 | N 308673014001 | NUT |
| 111 | A 1113300330 | GUIDE ROD |
| LATERAL SUPPORT | ||
| 112 | A 0009883310 | RUBBER MOUNTING |
| N 000960012157 | SCREW | |
| GUIDE ROD TO BODY FLOOR AND TO FRONT SUBFRAME | ||
| N 912004012100 | LOCK WASHER | |
| GUIDE ROD TO BODY FLOOR AND TO FRONT SUBFRAME | ||
| N 000934012023 | NUT | |
| Repalced by: N 308673012002 | ||
| N 308673012002 | NUT | |
| GUIDE ROD TO BODY FLOOR AND TO FRONT SUBFRAME | ||
