Transporto priemonė: 280 SL USA; VIN numerio dalis: 113044

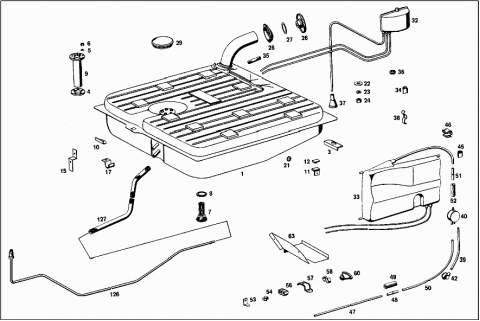

Grupė: 47 FUEL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 1134700701 | FUEL TANK |
| 82 L. | ||
| 003 | A 1304710222 | REINFORCEMENT |
| 004 | A 1104710180 | GASKET |
| 005 | N 000137005203 | SPRING WASHER |
| 006 | N 000934005008 | NUT |
| 007 | A 1114700686 | FUEL STRAINER |
| 008 | A 1109970145 | SEAL RING |
| 009 | A 1105421204 | GAUGE SENDER UNIT |
| 010 | A 1134750019 | BASE |
| FRONT | ||
| 011 | A 1124700781 | BRACKET |
| 012 | A 1249870740 | RUBBER BUFFER |
| N 912004006102 | LOCK WASHER | |
| TANK FRONT BRACING | ||
| 015 | A 1134760036 | BRACKET |
| TANK FRONT BRACING | ||
| 017 | A 1369950037 | CLAMP |
| TANK FRONT BRACING | ||
| N 000933006122 | SCREW | |
| Repalced by: N 304017006034 | ||
| N 304017006034 | SCREW | |
| TANK FRONT BRACING | ||
| N 000934006007 | NUT | |
| TANK FRONT BRACING | ||
| N 000933006130 | SCREW | |
| TANK FRONT BRACING | ||
| 021 | N 009021006103 | WASHER |
| Repalced by: N 009021006208 | ||
| 021 | N 009021006208 | WASHER |
| 022 | A 1089900340 | WASHER |
| 023 | N 000127008203 | LOCK WASHER |
| 024 | N 000934008010 | NUT |
| Repalced by: N 304032008006 | ||
| 024 | N 304032008006 | NUT |
| A 0004712030 | FILLER CAP | |
| A 0004712030 | FILLER CAP | |
| WITH LOCK UNDEFINED | ||
| 026 | A 0004714730 | FILLER CAP |
| 027 | A 1104710280 | GASKET |
| 028 | A 1134710081 | BOOT |
| 029 | A 1109870145 | LOCKING CAP |
| A 1134710068 | TANK | |
| Repalced by: A 1154710268 | ||
| 032 | A 1154710268 | TANK |
| FUEL TANK VENTILATION | ||
| 033 | A 1154711668 | TANK |
| 4.5 L. | ||
| 034 | A 0039888178 | CLIP |
| EXPANSION TANK TO LEFT FENDER | ||
| 035 | A 2014761126 | HOSE |
| 80 MM | ||
| 036 | A 0009971881 | GROMMET |
| 037 | A 1114710181 | BOOT |
| N 900269010100 | CLAMP | |
| 038 | A 1109950332 | CLAMP |
| VENT LINES TO TAIL CENTRAL PIECE | ||
| N 007981004243 | SHEET METAL SCREW | |
| Repalced by: N 000000002062 | ||
| N 000000002062 | SCREW | |
| VENT LINES TO TAIL CENTRAL PIECE | ||
| 039 | A 0089979082 | HOSE |
| Repalced by: A 0009872727 | ||
| 039 | A 0009872727 | PLASTIC PIPE |
| 040 | A 1234700193 | VALVE |
| 042 | A 1084710081 | BOOT |
| N 916033012100 | CLAMP | |
| N 916002008100 | CLAMP | |
| HOSES TO VENT LINES AND PLASTIC PIPES | ||
| 045 | A 0009881878 | CLIP |
| LINE TO CARDBOARD WALL | ||
| 046 | A 1149880178 | CLIP |
| LINE TO CARDBOARD WALL | ||
| 047 | A 0089979082 | HOSE |
| Repalced by: A 0009872727 | ||
| 047 | A 0009872727 | PLASTIC PIPE |
| FRONT FROM EXPANSION TANK TO ENGINE | ||
| 048 | A 1144710223 | LINE |
| FROM EXPANSION TANK TO ENGINE | ||
| 049 | A 1149971882 | HOSE |
| 40 MM FROM EXPANSION TANK TO ENGINE | ||
| N 916033012100 | CLAMP | |
| FROM EXPANSION TANK TO ENGINE | ||
| 050 | A 0089979082 | HOSE |
| Repalced by: A 0009872727 | ||
| 050 | A 0009872727 | PLASTIC PIPE |
| REAR FROM EXPANSION TANK TO ENGINE | ||
| 051 | A 1144710223 | LINE |
| FROM EXPANSION TANK TO ENGINE | ||
| 052 | A 1149971882 | HOSE |
| 40 MM FROM EXPANSION TANK TO ENGINE | ||
| N 916002012100 | CLAMP | |
| FROM EXPANSION TANK TO ENGINE | ||
| 053 | A 1080780041 | BRACKET |
| ON LEFT CYLINDER HEAD | ||
| 054 | A 0029887778 | CLIP |
| PIPE LINE MOUNTING | ||
| 056 | A 1104760084 | DAMPING STRIP |
| PIPE LINE MOUNTING | ||
| 057 | A 1099950022 | CLAMP |
| PIPE LINE MOUNTING | ||
| 058 | A 0009950068 | CLAMP |
| PIPE LINE MOUNTING | ||
| N 072571002015 | CLAMP | |
| PIPE LINE MOUNTING | ||
| N 007981004243 | SHEET METAL SCREW | |
| Repalced by: N 000000002062 | ||
| N 000000002062 | SCREW | |
| PIPE LINE MOUNTING | ||
| 060 | A 0079975881 | GROMMET |
| PIPE LINE MOUNTING | ||
| A 0009972881 | GROMMET | |
| PIPE LINE MOUNTING | ||
| 063 | A 1136930133 | COVERING |
| AT WHEEL ARCH PANEL, BOTTOM LEFT | ||
| N 007981004224 | SHEET METAL SCREW | |
| Repalced by: N 000000000459 | ||
| N 000000000459 | SHEET METAL SCREW | |
| X XXXXXXXXXXXX | PART NAME MISSING | |

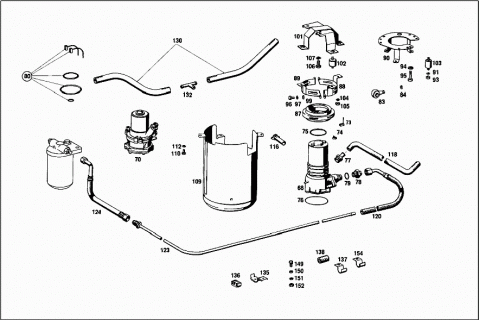

| FUEL PUMP | ||
| A 0010913401 | FUEL PUMP | |
| Repalced by: A 0010915201 | ||
| 068 | A 0010914601 | FUEL PUMP |
| Repalced by: A 0010915201 | ||
| 070 | A 0010915201 | FUEL PUMP |
| ELECTRIC | ||
| A 0009972281 | GROMMET | |
| 073 | A 0005480242 | CARBON BRUSH |
| SET = 2 PIECES | ||
| 074 | A 0005450197 | SPRING |
| 075 | A 0009979145 | SEAL RING |
| 076 | A 0049970445 | SEAL RING |
| 077 | A 0009975972 | FITTING |
| ON SUCTION SIDE | ||
| 078 | A 0000910710 | VALVE |
| 079 | N 007603018101 | SEAL RING |
| 080 | A 0005860147 | REPAIR KIT |
| 083 | A 0000910323 | CAP |
| Repalced by: A 1239971681 | ||
| 083 | A 1239971681 | GROMMET |
| CABLE TO FUEL PUMP | ||
| 084 | A 0009941010 | LOCK |
| CABLE TO FUEL PUMP | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| CABLE TO FUEL PUMP | ||
| N 000934004004 | NUT | |
| CABLE TO FUEL PUMP | ||
| 087 | A 1284780082 | RUBBER RING |
| 088 | A 1004700434 | CLAMP |
| 089 | A 1004700534 | CLAMP |
| 090 | A 1084700281 | BRACKET |
| FUEL PUMP TO BRACKET | ||
| 091 | N 912004005100 | LOCK WASHER |
| FUEL PUMP TO CROSS MEMBER | ||
| 093 | N 000934005008 | NUT |
| FUEL PUMP TO CROSS MEMBER | ||
| 094 | N 912004006102 | LOCK WASHER |
| FUEL PUMP TO CROSS MEMBER | ||
| 095 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 095 | N 304017006018 | SCREW |
| FUEL PUMP TO CROSS MEMBER | ||
| 096 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 096 | N 304017006018 | SCREW |
| FUEL PUMP TO CROSS MEMBER | ||
| 097 | N 912004006102 | LOCK WASHER |
| FUEL PUMP TO CROSS MEMBER | ||
| 099 | N 000125006407 | WASHER |
| FUEL PUMP TO CROSS MEMBER | ||
| 101 | A 1134700181 | BRACKET |
| FUEL PUMP | ||
| 102 | A 1169880511 | BUFFER |
| 103 | A 1269880011 | BUFFER |
| 104 | N 912004006102 | LOCK WASHER |
| 105 | N 000934006007 | NUT |
| 106 | N 000933008131 | SCREW |
| Repalced by: N 304017008016 | ||
| 106 | N 304017008016 | SCREW |
| 107 | N 000127008203 | LOCK WASHER |
| 109 | A 1134701548 | PROTECTOR |
| 110 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 110 | N 304017006018 | SCREW |
| PROTECTIVE CASE TO TRUNK FLOOR | ||
| N 000933006122 | SCREW | |
| Repalced by: N 304017006034 | ||
| N 304017006034 | SCREW | |
| PROTECTIVE CASE TO TRUNK FLOOR | ||
| N 000933006047 | SCREW | |
| PROTECTIVE CASE TO TRUNK FLOOR | ||
| 112 | N 912004006102 | LOCK WASHER |
| PROTECTIVE CASE TO TRUNK FLOOR | ||
| N 000125006421 | WASHER | |
| PROTECTIVE CASE TO TRUNK FLOOR | ||
| N 000125006407 | WASHER | |
| PROTECTIVE CASE TO SPARE WHEEL WELL | ||
| 116 | A 1085460185 | PROTECTIVE TUBE |
| FUEL PUMP CABLE HARNESS THRU REAR CROSS MEMBER | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FUEL LINES | ||
| 118 | A 1124761226 | HOSE |
| 380 MM FROM FUEL TANK TO FUEL PUMP | ||
| N 900269017101 | CLAMP | |
| FROM FUEL TANK TO FUEL PUMP | ||
| 120 | A 1134760926 | HOSE |
| FROM FUEL PUMP TO FEED LINE | ||
| N 916002017100 | CLAMP | |
| FROM FUEL PUMP TO FEED LINE | ||
| A 1369950037 | CLAMP | |
| FUEL HOSE TO SUPPORT UNDER TRUNK | ||
| 123 | A 1134700164 | LINE |
| FROM FUEL PUMP TO ENGINE | ||
| 124 | A 1084760026 | HOSE |
| FROM FEED LINE TO FUEL FILTER | ||
| N 900269017101 | CLAMP | |
| FROM FEED LINE TO FUEL FILTER | ||
| 126 | A 1134700264 | LINE |
| 127 | A 1149971882 | HOSE |
| 300 MM | ||
| A 1144760326 | HOSE | |
| Repalced by: A 1149971882 | ||
| 130 | A 1149971882 | HOSE |
| A 0019976990 | LOOM TIE | |
| 132 | A 1144760125 | INTERMEDIATE PIECE |
| N 900269012102 | CLAMP | |
| 135 | A 1109950022 | CLAMP |
| BRAKE AND FUEL LINES TO BOTTOM LEFT FRONT FORKED SUPPORT | ||
| 136 | A 1114760384 | DAMPING STRIP |
| BRAKE AND FUEL LINES TO BOTTOM LEFT FRONT FORKED SUPPORT | ||
| 137 | A 1539950120 | CLAMP |
| BRAKE AND FUEL LINES TO BOTTOM LEFT FRONT FORKED SUPPORT | ||
| 138 | A 1289970182 | HOSE |
| 28 MM BRAKE AND FUEL LINES TO BOTTOM LEFT FRONT FORKED SUPPORT | ||
| N 007976005203 | SHEET METAL SCREW | |
| BRAKE AND FUEL LINES TO BOTTOM LEFT FRONT FORKED SUPPORT | ||
| A 1089950520 | CLAMP | |
| N 007976005203 | SHEET METAL SCREW | |
| A 1263280181 | BUFFER | |
| N 072571001022 | CLAMP | |
| A 1109950022 | CLAMP | |
| FUEL AND BRAKE LINES TO FRAME FLOOR UNIT | ||
| A 1114760384 | DAMPING STRIP | |
| FUEL AND BRAKE LINES TO FRAME FLOOR UNIT | ||
| 149 | A 1204200227 | SCREW |
| FUEL AND BRAKE LINES TO FRAME FLOOR UNIT | ||
| N 000085006124 | SCREW | |
| FUEL AND BRAKE LINES TO FRAME FLOOR UNIT | ||
| 150 | A 0009873841 | RUBBER RING |
| FUEL AND BRAKE LINES TO FRAME FLOOR UNIT | ||
| 151 | N 912004006102 | LOCK WASHER |
| FUEL AND BRAKE LINES TO FRAME FLOOR UNIT | ||
| 152 | N 000934006007 | NUT |
| FUEL AND BRAKE LINES TO FRAME FLOOR UNIT | ||
| N 007976005203 | SHEET METAL SCREW | |
| FUEL AND BRAKE LINES TO FRAME FLOOR UNIT | ||
| 154 | A 1369950037 | CLAMP |
| IN TUNNEL, REAR FUEL AND BRAKE LINES TO FRAME FLOOR UNIT | ||
