Transporto priemonė: 280 SL USA; VIN numerio dalis: 113044

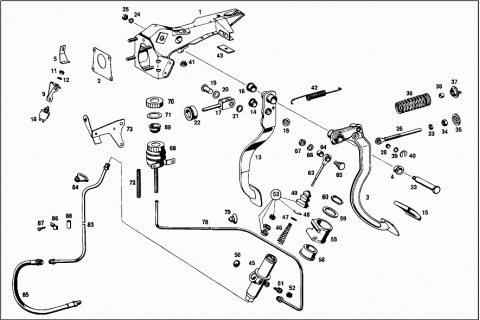

Grupė: 29 PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 1132900533 | BRACKET |
| 002 | A 1134310380 | GASKET |
| 003 | A 1102905216 | PEDAL |
| CLUTCH | ||
| 004 | A 1102910550 | BUSHING |
| Repalced by: A 1242920050 | ||
| 004 | A 1242920050 | BUSHING |
| 005 | A 1085450087 | STOP |
| Repalced by: A 1085450287 | ||
| 005 | A 1085450287 | STOP |
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| STOP TO CLUTCH PEDAL | ||
| N 000934006007 | NUT | |
| STOP TO CLUTCH PEDAL | ||
| N 912004006102 | LOCK WASHER | |
| STOP TO CLUTCH PEDAL | ||
| N 006797006145 | TOOTHED WASHER | |
| STOP TO CLUTCH PEDAL | ||
| 009 | A 1085450740 | BRACKET |
| Repalced by: A 1085451740 | ||
| 009 | A 1085451740 | BRACKET |
| 010 | A 0015450211 | SWITCH |
| 011 | A 0019906751 | NUT |
| Repalced by: A 0002520372 | ||
| 011 | A 0002520372 | NUT |
| 012 | N 000137008204 | SPRING WASHER |
| 013 | A 1132900101 | PEDAL |
| BRAKE | ||
| 014 | A 1132920050 | BUSHING |
| 015 | A 1072910182 | PAD |
| TO CLUTCH AND BRAKE PEDALS | ||
| 015 | A 1072910182 | PAD |
| TO CLUTCH AND BRAKE PEDALS | ||
| 016 | A 1102910550 | BUSHING |
| Repalced by: A 1242920050 | ||
| 016 | A 1242920050 | BUSHING |
| 017 | A 1132900239 | ROD |
| 018 | A 1132920150 | BUSHING |
| 019 | N 001434014013 | PIN |
| 020 | N 900055014000 | SPRING WASHER |
| 021 | A 1535010252 | SPACER WASHER |
| N 000094004002 | COTTER PIN | |
| 022 | A 1132920097 | BOOT |
| ROD THRU FIRE WALL | ||
| 023 | A 1102910674 | PIN |
| A 1102910574 | PIN | |
| 024 | N 000127010200 | LOCK WASHER |
| 025 | N 000936010010 | NUT |
| 026 | A 1102901939 | ROD |
| A 1152901339 | ROD | |
| 028 | A 1102910750 | BUSHING |
| 033 | N 007976010000 | SHEET METAL SCREW |
| 034 | N 070615010001 | NUT |
| 035 | A 1112910491 | SPRING RETAINER |
| 036 | A 1109930501 | SPRING |
| A 1159937902 | SPRING | |
| 037 | A 1102900633 | BRACKET |
| Repalced by: A 1072910091 | ||
| 037 | A 1072910091 | SPRING RETAINER |
| 038 | A 1072910091 | SPRING RETAINER |
| 039 | N 000125008407 | WASHER |
| 040 | N 006799006003 | LOCK PLATE |
| 041 | A 1112910086 | STOP |
| CLUTCH PEDAL STOP | ||
| 042 | A 1079930410 | SPRING |
| 043 | A 1114620075 | WASHER |
| BETWEEN PEDAL ASSEMBLY BRACKET AND CROSS MEMBER | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| CLUTCH MASTER CYLINDER | ||
| 045 | A 0002952906 | MASTER CYLINDER |
| 15/16" DIA X 34 MM STROKE | ||
| A 0002955206 | MASTER CYLINDER | |
| 3/4" DIA. X 34 MM STROKE | ||
| 046 | A 0009932105 | SPRING |
| 047 | A 0009907040 | WASHER |
| 048 | A 0009943335 | SNAP RING |
| 049 | A 0002951583 | BOOT |
| 050 | N 000470020000 | EXPANSION PLUG |
| 051 | A 0004201055 | BLEEDER VALVE |
| 052 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 052 | A 0004210887 | PROTECTIVE CAP |
| 053 | A 0005861129 | REPAIR KIT |
| A 0005861529 | REPAIR KIT | |
| 055 | A 1082950040 | BRACKET |
| Repalced by: A 1152950340 | ||
| 055 | A 1152950340 | BRACKET |
| A 1082950140 | BRACKET | |
| Repalced by: A 1152950340 | ||
| A 1152950340 | BRACKET | |
| A 1152950240 | BRACKET | |
| A 1152950340 | BRACKET | |
| 058 | A 1082950050 | BUSHING |
| 059 | A 1082950076 | WASHER |
| 060 | N 900055034101 | LOCK RING |
| N 000931006053 | SCREW | |
| CLUTCH MASTER CYLINDER TO PEDAL ASSEMBLY BRACKET | ||
| N 000137006204 | SPRING WASHER | |
| CLUTCH MASTER CYLINDER TO PEDAL ASSEMBLY BRACKET | ||
| N 000934006007 | NUT | |
| CLUTCH MASTER CYLINDER TO PEDAL ASSEMBLY BRACKET | ||
| 063 | A 1102901839 | ROD |
| CLUTCH MASTER CYLINDER | ||
| 064 | A 1102950250 | BUSHING |
| 065 | A 1102950571 | SCREW |
| Repalced by: A 1152950172 | ||
| 065 | A 1152950172 | NUT |
| 066 | N 000127008200 | LOCK WASHER |
| 067 | N 000936008003 | NUT |
| 068 | A 1112900215 | RESERVOIR |
| 069 | A 0004314334 | STRAINER |
| 070 | A 0002950237 | SCREW PLUG |
| Repalced by: A 0004315433 | ||
| 070 | A 0004315433 | FILLER CAP |
| 071 | A 0009976841 | SEAL RING |
| 072 | A 0002951083 | BOOT |
| 073 | A 1132900086 | BRACKET |
| A 1132950240 | BRACKET | |
| N 000933006122 | SCREW | |
| Repalced by: N 304017006034 | ||
| N 304017006034 | SCREW | |
| EXPANSION TANK TO BRACKET | ||
| N 912004006102 | LOCK WASHER | |
| EXPANSION TANK TO BRACKET | ||
| N 000934006007 | NUT | |
| EXPANSION TANK TO BRACKET | ||
| A 1132901213 | LINE | |
| Repalced by: A 1112901313 | ||
| A 1112901313 | LINE | |
| FROM RESERVOIR TO CLUTCH MASTER CYLINDER | ||
| 078 | A 1132901413 | LINE |
| Repalced by: A 1112901313 | ||
| 078 | A 1112901313 | LINE |
| A 1132901513 | LINE | |
| Repalced by: A 1132901713 | ||
| A 1132901713 | LINE | |
| 079 | A 1109971581 | GROMMET |
| A 0029884978 | CLIP | |
| A 0059978382 | HOSE | |
| A 0009870944 | EXPANSION PLUG | |
| A 1109871044 | EXPANSION PLUG | |
| 083 | A 1132901013 | LINE |
| Repalced by: A 1123205653 | ||
| 083 | A 1123205653 | LINE |
| FROM CLUTCH MASTER CYLINDER TO CLUTCH HOSE | ||
| 084 | A 0079975881 | GROMMET |
| A 1109870044 | EXPANSION PLUG | |
| Repalced by: A 1139870044 | ||
| A 1139870044 | EXPANSION PLUG | |
| 085 | A 0002950835 | HOSE |
| FROM LINE TO CLUTCH SLAVE CYLINDER | ||
| 086 | N 072571001034 | CLAMP |
| 087 | N 007976004216 | SHEET METAL SCREW |
| 088 | N 073379006101 | HOSE |
| 30 MM | ||
