Transporto priemonė: 280 SL USA; VIN numerio dalis: 113044

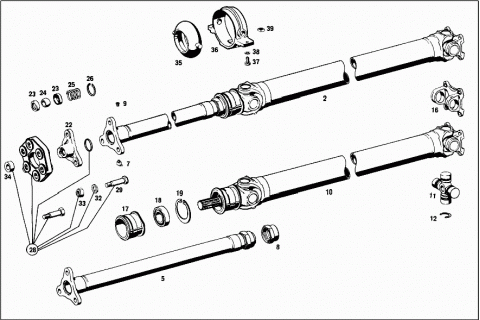

Grupė: 41 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|
| 002 | A 1134101003 | PROPELLER SHAFT |
| A 1134101103 | PROPELLER SHAFT | |
| SPLIT | ||
| 005 | A 1134101301 | PROPELLER SHAFT |
| FRONT | ||
| A 1134101401 | PROPELLER SHAFT | |
| FRONT | ||
| 007 | N 071412006200 | GREASE NIPPLE |
| 008 | A 1104110072 | NUT |
| Repalced by: A 1104110172 | ||
| 008 | A 1104110172 | NUT |
| 009 | A 1229970087 | VALVE |
| 010 | A 1134100002 | PROPELLER SHAFT |
| REAR, WITH BEARING | ||
| 011 | A 1114100031 | UNIVERSAL JOINT CROSS |
| WITH NEEDLES AND NEEDLE BEARING BUSHINGS, SERVICE-FREE | ||
| 012 | A 1889940534 | SNAP RING |
| 1.45 MM | ||
| A 1889940034 | SNAP RING | |
| 1.50 77 | ||
| A 1889940234 | SNAP RING | |
| 1.60 MM | ||
| A 1889940334 | SNAP RING | |
| 1.65 MM | ||
| A 1889940434 | SNAP RING | |
| 1.70 MM | ||
| 016 | A 1114110044 | DRIVE FLANGE |
| 017 | A 1104130401 | HOUSING |
| Repalced by: A 1104100422 | ||
| 017 | A 1104100422 | INTERMEDIATE BEARING |
| 018 | A 0039812325 | BALL BEARING |
| 019 | N 000472055000 | LOCK RING |
| A 1809971040 | SEAL RING | |
| BETWEEN PROPELLER SHAFT AND CENTERING CROSS | ||
| 022 | A 1114100130 | CENTERING FLANGE |
| 023 | A 1364110118 | BALL SOCKET |
| 024 | A 1844110017 | CENTERING BALL |
| 025 | A 1109933701 | SPRING |
| 026 | N 000984030000 | LOCK RING |
| A 1804110615 | FLEXIBLE JOINT DISC | |
| 028 | A 1084100115 | FLEXIBLE JOINT DISC |
| PARTS KIT | ||
| 029 | A 1104110171 | SCREW |
| FLEXIBLE JOINT DISC TO FRONT PROPELLER SHAFT OR TO TRANSMISSION RESP. | ||
| A 1104110071 | SCREW | |
| FLEXIBLE JOINT DISC TO FRONT PROPELLER SHAFT OR TO TRANSMISSION RESP. | ||
| 032 | A 1879901440 | WASHER |
| FLEXIBLE JOINT DISC TO FRONT PROPELLER SHAFT OR TO TRANSMISSION RESP. | ||
| 033 | N 913002012003 | NUT |
| Repalced by: N 913002012002 | ||
| 033 | N 913002012002 | NUT |
| FLEXIBLE JOINT DISC TO FRONT PROPELLER SHAFT OR TO TRANSMISSION RESP. | ||
| 034 | A 1204110060 | RUBBER RING |
| 035 | A 1114130012 | RUBBER MOUNTING |
| PROPELLER SHAFT INTERMEDIATE BEARING | ||
| 036 | A 1104130429 | BEARING BRACKET |
| PROPELLER SHAFT INTERMEDIATE BEARING | ||
| 037 | N 000933008108 | SCREW |
| INTERMEDIATE BEARING TO FRAME FLOOR UNIT | ||
| 038 | N 912004008102 | LOCK WASHER |
| INTERMEDIATE BEARING TO FRAME FLOOR UNIT | ||
| 039 | A 1109900052 | NUT |
| INTERMEDIATE BEARING TO FRAME FLOOR UNIT | ||
| A 1119900020 | SCREW | |
| PROPELLER SHAFT TO REAR AXLE | ||
| A 1119940209 | LOCK | |
| PROPELLER SHAFT TO REAR AXLE | ||
| N 913021010001 | NUT | |
| Repalced by: N 304035010001 | ||
| N 304035010001 | NUT | |
| PROPELLER SHAFT TO REAR AXLE | ||
