Transporto priemonė: 280 SL USA; VIN numerio dalis: 113044

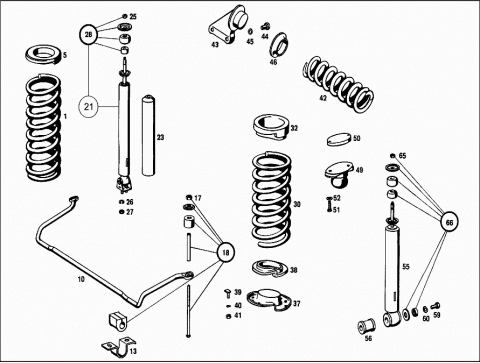

Grupė: 32 SPRINGS AND SUSPENSION

#	Kodas	Pavadinimas
	X XXXXXXXXXXXX	PART NAME MISSING
		FRONT SPRINGS
001	A 1133210404	FRONT SPRING
		15.60-MM-DIA. WIRE
	A 1083210304	FRONT SPRING
		16.20-MM-DIA. WIRE
	A 1133220084	SHIM
		FRONT SPRING,TOP
	A 1113220385	RUBBER MOUNTING
		20.0 MM AS REQUIRED
	A 1113220485	RUBBER MOUNTING
		22.5 MM AS REQUIRED
005	A 1113220585	RUBBER MOUNTING
		25.0 MM AS REQUIRED
	A 1113220685	RUBBER MOUNTING
		27.5 MM AS REQUIRED
	A 1113220785	RUBBER MOUNTING
		30.0 MM AS REQUIRED
	A 1113220885	RUBBER MOUNTING
		32.5 MM AS REQUIRED
	X XXXXXXXXXXXX	PART NAME MISSING
		FRONT SPRING STABILIZER
	A 1133230165	TORSION BAR
	Repalced by: A 1133230265
010	A 1133230265	TORSION BAR
		22 MM DIA.
010	A 1133230265	TORSION BAR
		22 MM DIA.
	A 1133230185	RUBBER MOUNTING
	A 1103230485	RUBBER MOUNTING
013	A 1113231140	BRACKET
	A 1113230044	RUBBER BUFFER
	A 1113230267	RETAINER
	A 1119911040	SPACER TUBE
	A 1119900501	SCREW
017	N 000985008003	NUT
	A 1135860032	REPAIR KIT
018	A 1103200047	REPAIR KIT
018	A 1103200047	REPAIR KIT
	X XXXXXXXXXXXX	PART NAME MISSING
		FRONT SHOCK ABSORBERS
021	A 1133200030	SHOCK ABSORBER
		RANGE OF DELIVERY
	A 0003231285	RUBBER MOUNTING
023	A 1113230138	DUST CAP
	A 1803260168	RUBBER BUFFER
	A 1803230083	HOUSING
	Repalced by: A 1153230767
	A 1153230767	RETAINER
025	N 000934010015	NUT
	Repalced by: N 308673010000
025	N 308673010000	NUT
026	N 000127008203	LOCK WASHER
027	N 000934008010	NUT
	Repalced by: N 304032008006
027	N 304032008006	NUT
028	A 1103200056	REPAIR KIT
	X XXXXXXXXXXXX	PART NAME MISSING
		REAR SPRINGS
030	A 1133240404	REAR SPRING
		15.8-MM-DIA. WIRE
032	A 1083250185	BUSHING
		30 MM AS REQUIRED
	A 1083250285	BUSHING
		24 MM AS REQUIRED
	A 1083250385	BUSHING
		18 MM AS REQUIRED
037	A 1104250715	EYE
		BOTTOM
038	A 1103250185	BUSHING
		BOTTOM
039	A 1103250175	SCREW
040	N 000127008203	LOCK WASHER
041	N 000934008010	NUT
	Repalced by: N 304032008006
041	N 304032008006	NUT
042	A 1133290301	COMPENSATING SPRING
		11.9-MM-DIA. WIRE
043	A 1103202343	BRACKET
		COMPENSATING SPRING
044	A 1109900301	SCREW
045	N 000127012201	LOCK WASHER
046	A 1103290085	RUBBER RING
		TO COMPENSATING SPRING, 18 MM AS REQUIRED
	A 1103290185	RUBBER RING
		TO COMPENSATING SPRING, 21 MM AS REQUIRED
049	A 1103200544	RUBBER BUFFER
		TO LIMIT SPRING TRAVEL TOWARDS TOP
050	A 1133250184	SHIM
051	N 000933008152	SCREW
	Repalced by: N 304017008027
051	N 304017008027	SCREW
052	N 000127008202	LOCK WASHER
	X XXXXXXXXXXXX	PART NAME MISSING
		REAR SHOCK ABSORBERS
055	A 1133200031	SHOCK ABSORBER
		RANGE OF DELIVERY
056	A 1103260281	RUBBER MOUNTING
	A 1109900240	WASHER
	A 1103260067	RETAINER
059	N 000933010106	SCREW
060	N 000127010202	LOCK WASHER
	A 1103230585	RUBBER MOUNTING
		BOTTOM
	A 1803260168	RUBBER BUFFER
		TOP
	A 1803230083	HOUSING
	Repalced by: A 1153230767
	A 1153230767	RETAINER
	Repalced by: A 1233230367
	A 1233230367	RETAINER
		TOP
065	N 000934010015	NUT
	Repalced by: N 308673010000
065	N 308673010000	NUT
066	A 1103200156	REPAIR KIT
