Transporto priemonė: 280 SL USA; VIN numerio dalis: 113044
Grupė: 46 STEERING

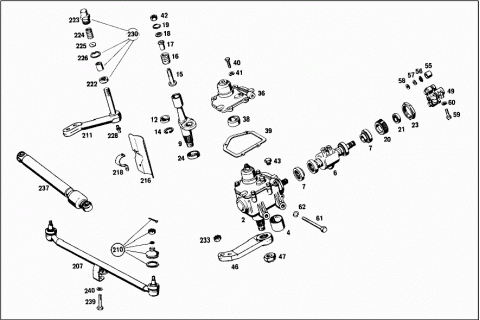

| # | Kodas | Pavadinimas |
|---|---|---|
| A 1114603701 | STEERING BOX ASSEMBLY | |
| Repalced by: A 1114604301 | ||
| A 1114604301 | STEERING BOX ASSEMBLY | |
| LESS PITMAN ARM | ||
| 002 | A 1114604301 | STEERING BOX ASSEMBLY |
| LESS PITMAN ARM | ||
| 004 | A 1114620350 | BUSHING |
| A 3094600308 | STEERING WORM | |
| 006 | A 1114604008 | STEERING WORM |
| 007 | A 0009815027 | ANGULAR CONTACT BEARING |
| 009 | A 3094600211 | STEERG. WORM SECTOR SHAFT |
| 30 MM DIA. | ||
| 012 | A 1114620137 | BALL CUP |
| 014 | N 000472030000 | LOCK RING |
| 015 | A 1114620471 | SCREW |
| 016 | A 1119932101 | SPRING |
| 017 | A 1114620485 | THRUST PIECE |
| 018 | A 1114610462 | THRUST WASHER |
| 019 | A 0049949241 | LOCK |
| 020 | A 1114610406 | SET COLLAR |
| 021 | A 0029974746 | SEAL RING |
| A 0029977046 | SEAL RING | |
| A 0049971546 | SEAL RING | |
| 023 | A 1209900551 | NUT |
| 024 | A 0019979346 | SEAL RING |
| A 0029977146 | SEAL RING | |
| A 0029977246 | SEAL RING | |
| 036 | A 1114600814 | STEERING BOX COVER |
| 038 | A 1114620250 | BUSHING |
| 039 | A 1114610280 | GASKET |
| 040 | N 000933008057 | SCREW |
| Repalced by: N 304017008034 | ||
| 040 | N 304017008034 | SCREW |
| 041 | N 912004008102 | LOCK WASHER |
| 042 | N 000934010014 | NUT |
| 043 | N 007604012102 | SCREW PLUG |
| 046 | A 1114632501 | PITMAN ARM |
| 047 | N 000937022000 | NUT |
| N 000094005035 | COTTER PIN | |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| STEERING COUPLING | ||
| 049 | A 1114600310 | STEERING COUPLING |
| Repalced by: A 3094600210 | ||
| A 3094600210 | STEERING COUPLING | |
| 054 | A 1154600957 | UNIVERSAL JOINT |
| 055 | A 1114620165 | RING |
| 056 | A 1119903040 | WASHER |
| 057 | N 900055010000 | SPRING WASHER |
| 058 | A 1369909540 | WASHER |
| N 000094002059 | COTTER PIN | |
| 059 | A 1119900420 | SCREW |
| 060 | N 007980008001 | LOCK WASHER |
| 061 | N 000931010253 | SCREW |

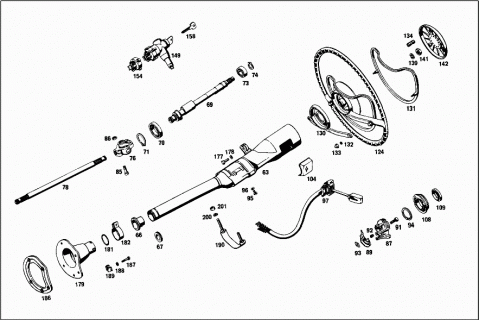

| STEERING TO FRAME FLOOR UNIT | ||
| 062 | N 912004010102 | LOCK WASHER |
| STEERING TO FRAME FLOOR UNIT | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| STEERING COLUMN JACKET TUBE | ||
| 063 | A 1134603416 | STEER. COLUMN JACKET TUBE |
| 065 | A 1134605816 | STEER. COLUMN JACKET TUBE |
| 066 | A 1164620096 | BOOT |
| 067 | A 1109871444 | EXPANSION PLUG |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| STEERING SHAFT | ||
| 069 | A 1134602309 | STEERING SHAFT |
| TOP | ||
| 070 | N 000625016007 | GROOVED BALL BEARING |
| 071 | N 000471035000 | LOCK RING |
| 073 | N 000625006004 | GROOVED BALL BEARING |
| 074 | N 000471020000 | LOCK RING |
| 076 | A 1134600457 | UNIVERSAL JOINT |
| 078 | A 1134620501 | STEERING SHAFT |
| BOTTOM | ||
| A 1134603909 | STEERING SHAFT | |
| A 1134603909 | STEERING SHAFT | |
| A 1134604409 | STEERING SHAFT | |
| A 1164620060 | SEAL RING | |
| 085 | A 1009900312 | SCREW |
| 086 | N 900071008100 | NUT |
| Repalced by: A 0009900851 | ||
| 086 | A 0009900851 | NUT |
| 087 | A 1114620628 | BEARING RING |
| A 1154621835 | BEARING BODY | |
| 089 | A 1134620233 | LOCK RING |
| A 0009818910 | NEEDLE BEARING | |
| Repalced by: A 0189816110 | ||
| A 0189816110 | NEEDLE BEARING | |
| 091 | N 000912006026 | SCREW |
| 092 | A 1139930201 | SPRING |
| 093 | A 1139900052 | NUT |
| 094 | N 000472042001 | LOCK RING |
| 095 | N 000912005001 | SCREW |
| 096 | N 000127005200 | LOCK WASHER |
| 097 | A 0015455524 | SWITCH,AUTOMATIC |
| COMBINATION | ||
| A 0005453728 | PLUG | |
| 12-POLE | ||
| 099 | A 0025452924 | SWITCH,AUTOMATIC |
| BLINKER | ||
| 100 | A 0025452628 | PLUG |
| Repalced by: A 0095455428 | ||
| 100 | A 0095455428 | PLUG HOUSING |
| 12-POLE | ||
| N 007985004105 | SCREW | |
| COMBINATION SWITCH TO BASE PLATE | ||
| N 000127004200 | LOCK WASHER | |
| COMBINATION SWITCH TO BASE PLATE | ||
| N 000125004311 | WASHER | |
| Repalced by: N 000125004319 | ||
| N 000125004319 | WASHER | |
| COMBINATION SWITCH TO BASE PLATE | ||
| 104 | A 1134620096 | BOOT |
| A 1134620196 | BOOT | |
| 106 | A 1074640143 | CONTACT PIECE |
| 108 | A 0004640928 | CONTACT RING |
| 109 | A 0009811018 | ROLLER BEARING |
| 112 | A 1154600897 | PROTECTIVE SLEEVE |
| Repalced by: A 1164600003 | ||
| 114 | A 1154640017 | CONTACT PLATE |
| 115 | N 900055032200 | LOCK RING |
| 117 | A 1164620096 | BOOT |
| 119 | A 1134620296 | BOOT |
| 121 | A 1084620496 | BOOT |
| X XXXXXXXXXXXX | PART NAME MISSING | |

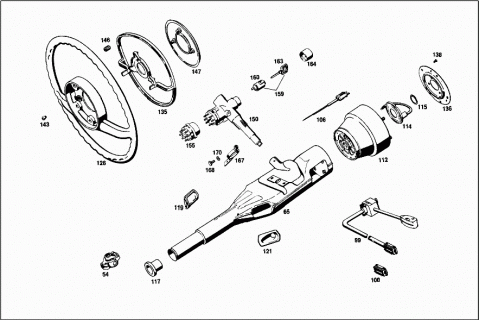

| STEERING WHEEL | ||
| 124 | A 1124600203 | STEERING WHEEL |
| LESS HUB PAD, DARK GRAPHITE GREY | ||
| 126 | A 1154640201 | STEERING WHEEL |
| Repalced by: A 1164600003 | ||
| 126 | A 1154640301 | STEERING WHEEL |
| LIGHT IVORY | ||
| 130 | A 1104641236 | HUB |
| DARK GRAPHITE GREY | ||
| 131 | A 1004640115 | SIGNAL RING |
| 132 | A 1114640073 | LOCK |
| 133 | A 1114640172 | NUT |
| 134 | A 1114640024 | INSULATING PART |
| 135 | A 1154640515 | SIGNAL RING |
| 136 | A 1154640134 | BRACKET |
| 138 | N 007513003403 | TAPPING SCREW |
| 139 | N 912004014100 | LOCK WASHER |
| STEERING WHEEL TO STEERING COLUMN | ||
| N 000137008204 | SPRING WASHER | |
| STEERING WHEEL TO STEERING COLUMN | ||
| 141 | N 000936014008 | NUT |
| STEERING WHEEL TO STEERING COLUMN | ||
| 142 | A 1114600642 | COVER PLATE |
| BLACK | ||
| 143 | A 1154640024 | INSULATING PART |
| 146 | A 1154640035 | GUIDE PIN |
| 147 | A 1154640342 | PAD |
| BLACK | ||
| A 1154640442 | GUIDE | |
| Repalced by: A 1164600003 | ||
| A 1164600003 | STEERING WHEEL | |
| A 1169900121 | SCREW | |
| TO 116 460 00 03 | ||
| A 1169935501 | SPRING | |
| TO 116 460 00 03 | ||
| A 1169935101 | SPRING | |
| TO 116 460 00 03 | ||
| A 1164640050 | BUSHING | |
| TO 116 460 00 03 | ||
| A 1164640177 | PROTECTIVE RING | |
| Repalced by: A 6019900540 | ||
| A 6019900540 | WASHER | |
| TO 116 460 00 03 | ||
| A 1164640077 | PROTECTIVE RING | |
| TO 116 460 00 03 | ||
| A 1169901040 | WASHER | |
| TO 116 460 00 03 | ||
| A 0004640432 | BADGE | |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| STEERING LOCK | ||
| 149 | A 0004622830 | STEERING LOCK |
| 150 | A 0004625930 | STEERING LOCK |
| 150 | A 0004625930 | STEERING LOCK |
| A 0004626330 | STEERING LOCK | |
| Repalced by: A 0004627230 | ||
| A 0004627230 | STEERING LOCK | |
| 154 | A 0004620693 | IGNITION SWITCH |
| WITH STARTER NON-REPEAT UNIT | ||
| 155 | A 1164620093 | IGNITION SWITCH |
| N 000084004105 | SCREW | |
| IGNITION SWITCH | ||
| A 0004620332 | KEY | |
| BLANK | ||
| 158 | A 1114620132 | KEY |
| N 900397000201 | RING | |
| 159 | A 0004600004 | TUMBLER |
| WITH MASTER KEY | ||
| 160 | A 0004624830 | TUMBLER |
| 160 | A 0004624830 | TUMBLER |
| A 0004626630 | TUMBLER | |
| 163 | A 0007663506 | KEY |
| Repalced by: A 0007600406 | ||
| 163 | A 0007600406 | KEY |
| 163 | A 0007600406 | KEY |
| 164 | A 0004620923 | COVER |
| 164 | A 0004620923 | COVER |
| A 0004621023 | COVER | |
| 167 | A 1134600164 | CLAMP |
| 167 | A 1134600164 | CLAMP |
| A 1154600322 | CLAMPING PIECE | |
| 168 | N 000933006130 | SCREW |
| 168 | N 000933006130 | SCREW |
| N 000933005049 | SCREW | |
| 170 | N 912004006102 | LOCK WASHER |
| 170 | N 912004006102 | LOCK WASHER |
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| N 304017006016 | SCREW | |
| N 000931006094 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| N 000934006007 | NUT | |
| N 000934006007 | NUT | |
| N 007985004123 | SCREW | |
| MAIN CABLE HARNESS TO STEERING LOCK | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| MAIN CABLE HARNESS TO STEERING LOCK | ||
| 177 | N 000931006016 | SCREW |
| 178 | N 000127006200 | LOCK WASHER |
| 179 | A 1134600395 | COVERING |
| A 1134600595 | COVERING | |
| A 1134600595 | COVERING | |
| 181 | A 0009972041 | SEAL RING |
| COVERING TO STEERING COLUMN JACKET TUBE | ||
| 182 | N 071555045500 | CLAMP |
| COVERING TO STEERING COLUMN JACKET TUBE | ||
| N 000933008154 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| N 912004008102 | LOCK WASHER | |
| COVERING TO STEERING COLUMN JACKET TUBE | ||
| N 000439008200 | NUT | |
| COVERING TO STEERING COLUMN JACKET TUBE | ||
| 186 | A 1134620280 | GASKET |
| COVERING TO FIRE WALL | ||
| 187 | N 000931006082 | SCREW |
| COVERING TO FIRE WALL | ||
| 188 | A 1809901040 | WASHER |
| COVERING TO FIRE WALL | ||
| 189 | A 0009902791 | NUT RETAINER |
| Repalced by: A 0009902291 | ||
| 189 | A 0009902291 | NUT RETAINER |
| COVERING TO FIRE WALL | ||
| 190 | A 1134600165 | STRAP |
| 200 | N 009021008213 | WASHER |
| STRAP | ||
| 201 | N 000985008000 | NUT |
| STRAP | ||
| N 000931008046 | SCREW | |
| Repalced by: N 304017008018 | ||
| N 304017008018 | SCREW | |
| STEERING COLUMN JACKET TUBE TO CROSS MEMBER | ||
| N 000931008217 | SCREW | |
| STEERING COLUMN JACKET TUBE TO CROSS MEMBER | ||
| N 009021008213 | WASHER | |
| STEERING COLUMN JACKET TUBE TO CROSS MEMBER | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| DRAG LINK | ||
| 207 | A 1104600205 | DRAG LINK |
| A 0003380297 | BOOT | |
| Repalced by: A 0003381397 | ||
| A 0003381397 | BOOT | |
| A 0003380963 | CLAMPING RING | |
| A 0003381063 | CLAMPING RING | |
| 210 | A 0003300485 | REPAIR KIT |
| 211 | A 1114601319 | INTERMEDIATE LEVER |
| A 1084630310 | STEERING INTERMEDIATE ARM | |
| A 1114601419 | INTERMEDIATE LEVER | |
| 216 | A 1114630090 | PROTECTIVE PLATE |
| A 1084630090 | PROTECTIVE PLATE | |
| 218 | A 1114631140 | BRACKET |
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| PROTECTIVE PLATE TO BRACKET | ||
| N 912004006102 | LOCK WASHER | |
| PROTECTIVE PLATE TO BRACKET | ||
| N 000934006007 | NUT | |
| PROTECTIVE PLATE TO BRACKET | ||
| 222 | A 1114630060 | SEAL RING |
| 223 | A 1114630133 | CAP |
| 224 | A 1119930401 | SPRING |
| 225 | A 1114630062 | THRUST WASHER |
| 226 | A 1819940010 | LOCK |
| 228 | N 071412008100 | GREASE NIPPLE |
| A 1114631056 | DUST CAP | |
| A 1114630052 | SPACER WASHER | |
| Repalced by: A 1244630077 | ||
| A 1244630077 | WASHER | |
| N 000960016287 | SCREW | |
| N 913004016004 | NUT | |
| Repalced by: N 910113016002 | ||
| N 910113016002 | NUT | |
| 230 | A 1114600050 | REPAIR KIT |
| STEERING INTERMEDIATE ARM | ||
| A 1145860146 | REPAIR KIT | |
| Repalced by: A 1235860246 | ||
| A 1235860246 | REPAIR KIT | |
| 233 | A 1209900155 | NUT |
| DRAG LINK TO PITMAN ARM AND TO STEERING INTERMEDIATE ARM | ||
| N 000094002077 | COTTER PIN | |
| DRAG LINK TO PITMAN ARM AND TO STEERING INTERMEDIATE ARM | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| STEERING SHOCK ABSORBER | ||
| 237 | A 0004635132 | SHOCK ABSORBER |
| (STEERING SHOCK ABSORBER) | ||
| 239 | N 000960010037 | SCREW |
| 240 | N 000127010202 | LOCK WASHER |
| N 000960010026 | SCREW | |
| Repalced by: N 000961010031 | ||
| N 000961010031 | SCREW | |
| Repalced by: N 308676010023 | ||
| N 308676010023 | SCREW | |
| STEERING SHOCK ABSORBER TO BODY FLOOR | ||
| N 000127010202 | LOCK WASHER | |
| STEERING SHOCK ABSORBER TO BODY FLOOR | ||
| N 000936010003 | NUT | |
| STEERING SHOCK ABSORBER TO BODY FLOOR | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
