Transporto priemonė: 280 SL USA; VIN numerio dalis: 113044

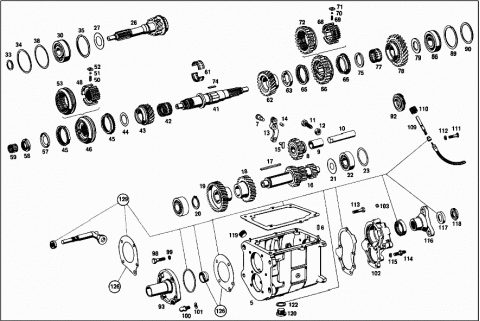

Grupė: 26 TRANSMISSION
| # | Kodas | Pavadinimas |
|---|---|---|
| A 1132600504 | TRANSMISSION | |
| WITH BELL HOUSING | ||
| A 1132601104 | TRANSMISSION | |
| Repalced by: A 1132600804 | ||
| A 1132600804 | TRANSMISSION | |
| WITH BELL HOUSING | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| TRANSMISSION CASE | ||
| A 1112600211 | TRANSMISSION CASE | |
| Repalced by: A 1112600411 | ||
| 005 | A 1112600411 | TRANSMISSION CASE |
| 006 | N 000007006205 | CYLINDRICAL PIN |
| 007 | A 1112620074 | PIN |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| TRANSMISSION GEARS | ||
| 008 | A 1202600325 | GEAR |
| REVERSE SPEED | ||
| 009 | A 1202630350 | BUSHING |
| 010 | A 1862630030 | REVERSE IDLER SHAFT |
| N 000417010006 | HEADLESS SETSCREW | |
| Repalced by: A 1109900110 | ||
| 011 | A 1109900110 | SCREW |
| 012 | N 000934010005 | NUT |
| 013 | A 1362600037 | LEVER |
| 014 | N 900037008104 | DOWEL PIN |
| 015 | A 1212630123 | COLLAR |
| 016 | A 1102630902 | COUNTERSHAFT |
| A 1112630502 | COUNTERSHAFT | |
| 017 | A 1869910368 | KEY |
| 018 | A 1112630013 | GEAR |
| 3RD SPEED | ||
| 019 | A 1112630010 | GEAR |
| 4TH SPEED | ||
| 020 | N 900055035300 | LOCK RING |
| 021 | A 1869901840 | WASHER |
| 022 | A 0019817125 | BALL BEARING |
| Repalced by: A 0049814201 | ||
| 022 | A 0049814201 | CYLINDR. ROLLER BEARING |
| 023 | A 1202630852 | SPACER WASHER |
| AS REQUIRED | ||
| 1.0 MM | ||
| A 6022630252 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.1 MM | ||
| A 6022630352 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.25 MM | ||
| A 6022630452 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.5 MM | ||
| 026 | A 1112601320 | DRIVE SHAFT |
| 027 | A 1862620066 | OIL RING |
| 030 | A 0029810625 | BALL BEARING |
| A 0029810725 | BALL BEARING | |
| 033 | A 1232620494 | SNAP RING |
| 034 | A 1862620451 | SPACER RING |
| 035 | A 1369940635 | SNAP RING |
| 1.90 MM AS REQUIRED DRIVE SHAFT BEARING | ||
| A 1369940935 | SNAP RING | |
| 2.00 MM AS REQUIRED DRIVE SHAFT BEARING | ||
| A 1369940735 | SNAP RING | |
| Repalced by: A 1369940935 | ||
| A 1369940935 | SNAP RING | |
| 2.05 MM AS REQUIRED DRIVE SHAFT BEARING | ||
| A 1159942235 | SNAP RING | |
| 2.10 MM AS REQUIRED DRIVE SHAFT BEARING | ||
| 038 | A 1362620652 | SPACER WASHER |
| 0.10 MM AS REQUIRED DRIVE SHAFT BEARING | ||
| A 1362620752 | SPACER WASHER | |
| 0.20 MM AS REQUIRED DRIVE SHAFT BEARING | ||
| A 1362620852 | SPACER WASHER | |
| 0.30 MM AS REQUIRED DRIVE SHAFT BEARING | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| MAIN SHAFT | ||
| 041 | A 1802620105 | MAIN SHAFT |
| 042 | A 0019816810 | NEEDLE BEARING |
| 043 | A 1112600344 | GEAR |
| 043 | A 1112600344 | GEAR |
| A 1112600444 | GEAR | |
| 044 | A 1202622362 | THRUST WASHER |
| 3RD SPEED GEAR | ||
| 045 | A 1132620034 | SYNCHRONIZER RING |
| 3RD AND 4TH SPEED | ||
| 046 | A 1112600845 | SYNCHRONIZER BODY |
| 3RD AND 4TH SPEED | ||
| 046 | A 1112600845 | SYNCHRONIZER BODY |
| 3RD AND 4TH SPEED | ||
| A 1112601045 | SYNCHRONIZER BODY | |
| 3RD AND 4TH SPEED | ||
| 048 | A 1112620435 | SYNCHRONIZER BODY |
| 3RD AND 4TH SPEED | ||
| A 1112620735 | SYNCHRONIZER BODY | |
| 3RD AND 4TH SPEED | ||
| 050 | A 1809934101 | SPRING |
| 051 | N 005401306500 | BALL |
| 052 | A 1212620040 | FOLLOWER |
| 053 | A 1112620423 | SLIDING COLLAR |
| 3RD AND 4TH SPEED | ||
| A 1112620723 | SLIDING COLLAR | |
| 3RD AND 4TH SPEED | ||
| 057 | A 1209940115 | LOCK |
| MAIN SHAFT,FRONT | ||
| 058 | A 1202620326 | GROOVED NUT |
| MAIN SHAFT,FRONT | ||
| A 0009816312 | ROLLER ASSEMBLY | |
| Repalced by: A 0029813412 | ||
| 059 | A 0029813412 | ROLLER ASSEMBLY |
| 061 | A 1209810312 | ROLLER ASSEMBLY |
| SPLIT | ||
| 062 | A 1102620412 | GEAR |
| 35 TEETH; 2ND SPEED | ||
| A 1112620612 | GEAR | |
| 35 TEETH; 2ND SPEED | ||
| 063 | A 1202621662 | THRUST WASHER |
| AS REQUIRED | ||
| 7.9 MM | ||
| A 1202621862 | THRUST WASHER | |
| AS REQUIRED | ||
| 8.0 MM | ||
| A 1202622062 | THRUST WASHER | |
| AS REQUIRED | ||
| 8.10 MM | ||
| 065 | A 1132620034 | SYNCHRONIZER RING |
| 1ST AND 2ND SPEED | ||
| 066 | A 1112600945 | SYNCHRONIZER BODY |
| 1ST AND 2ND SPEED | ||
| 068 | A 1112620635 | SYNCHRONIZER BODY |
| 069 | A 1809934101 | SPRING |
| 070 | N 005401306500 | BALL |
| 071 | A 1212620040 | FOLLOWER |
| 072 | A 1112620623 | SLIDING COLLAR |
| 074 | A 1202620081 | KEY |
| 075 | A 1202621162 | THRUST WASHER |
| AS REQUIRED | ||
| 4.40 MM | ||
| A 1202621362 | THRUST WASHER | |
| AS REQUIRED | ||
| 4.50 MM | ||
| A 1202621562 | THRUST WASHER | |
| AS REQUIRED | ||
| 4.60 MM | ||
| 077 | A 0019816910 | NEEDLE BEARING |
| 1ST SPEED | ||
| 078 | A 1102620311 | GEAR |
| Repalced by: A 1102600019 | ||
| 078 | A 1102600019 | GEAR |
| 1ST SPEED | ||
| 079 | A 1862620162 | THRUST WASHER |
| AS REQUIRED | ||
| 3.80 MM | ||
| A 1862620262 | THRUST WASHER | |
| AS REQUIRED | ||
| 3.90 MM | ||
| A 1862620362 | THRUST WASHER | |
| AS REQUIRED | ||
| 4.00 MM | ||
| A 1862620462 | THRUST WASHER | |
| AS REQUIRED | ||
| 4.10 MM | ||
| A 1862620562 | THRUST WASHER | |
| AS REQUIRED | ||
| 4.20 MM | ||
| A 1862620662 | THRUST WASHER | |
| AS REQUIRED | ||
| 4.30 MM | ||
| A 1862620762 | THRUST WASHER | |
| AS REQUIRED | ||
| 4.40 MM | ||
| A 1862620862 | THRUST WASHER | |
| AS REQUIRED | ||
| 4.50 MM | ||
| 086 | A 0029810625 | BALL BEARING |
| A 0029810725 | BALL BEARING | |
| 089 | A 0009941640 | SNAP RING |
| 090 | A 1362620452 | SPACER WASHER |
| AS REQUIRED | ||
| 0.1 MM | ||
| A 1362620552 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.2 MM | ||
| A 1362620952 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.3 MM | ||
| 092 | A 1102640030 | DRIVE GEAR |
| SPEEDOMETER | ||
| 093 | A 1112600821 | TRANSMISSION CASE COVER |
| FRONT | ||
| A 1082600021 | TRANSMISSION CASE COVER | |
| FRONT | ||
| A 1862610060 | SEAL RING | |
| A 0049973246 | SEAL RING | |
| A 1112610379 | GASKET | |
| TRANSMISSION CASE FRONT COVER TO TRANSMISSION CASE | ||
| 098 | N 000931008046 | SCREW |
| Repalced by: N 304017008018 | ||
| 098 | N 304017008018 | SCREW |
| TRANSMISSION CASE FRONT COVER TO TRANSMISSION CASE | ||
| 099 | N 000137008204 | SPRING WASHER |
| TRANSMISSION CASE FRONT COVER TO TRANSMISSION CASE | ||
| 100 | A 1119910015 | BALL PIVOT |
| 101 | N 000137010201 | SPRING WASHER |
| 102 | A 1112600416 | TRANSMISSION CASE COVER |
| REAR | ||
| 103 | A 1532640055 | PLUG |
| A 1112610079 | GASKET | |
| A 0009971746 | SEAL RING | |
| A 1152740060 | SEAL RING | |
| SPEEDOMETER DRIVE | ||
| 109 | A 1112640032 | SHAFT |
| SPEEDOMETER DRIVE | ||
| 110 | A 1202640231 | DRIVE GEAR |
| SPEEDOMETER | ||
| 111 | N 000931006083 | SCREW |
| SPEEDOMETER DRIVE SHAFT TO TRANSMISSION | ||
| 112 | N 000137006204 | SPRING WASHER |
| SPEEDOMETER DRIVE SHAFT TO TRANSMISSION | ||
| 113 | N 000931008046 | SCREW |
| Repalced by: N 304017008018 | ||
| 113 | N 304017008018 | SCREW |
| 114 | A 1109900010 | SCREW |
| 115 | N 000137008204 | SPRING WASHER |
| 116 | A 1112620045 | FLANGE |
| 117 | A 1862620173 | LOCK |
| 118 | A 1862620226 | GROOVED NUT |
| 119 | A 1869970032 | SCREW PLUG |
| OIL FILLING | ||
| 120 | A 1159970032 | SCREW PLUG |
| Repalced by: A 2109970132 | ||
| 120 | A 2109970132 | SCREW PLUG |
| OIL DRAIN | ||
| 122 | N 007603024100 | SEAL RING |
| OIL DRAIN | ||
| N 007603024105 | SEAL RING | |
| TO 113 586 01 26, 11 586 00 26 | ||
| A 1112610279 | GASKET | |
| TO 113 586 00 26 | ||
| A 0009874046 | SEALING CORD | |
| TO 113 586 00 26 | ||
| 126 | A 1115860126 | REPAIR KIT |
| TRANSMISSION CASE FRONT COVER | ||
| A 1085860226 | REPAIR KIT | |
| TRANSMISSION CASE FRONT COVER | ||
| 129 | A 1135860026 | REPAIR KIT |
| TRANSMISSION | ||
| A 1135860126 | REPAIR KIT | |
| TRANSMISSION | ||

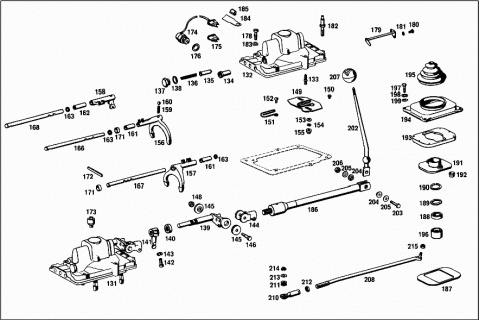

| X XXXXXXXXXXXX | PART NAME MISSING | |
| GEARSHIFT,TRANSMISSION | ||
| 131 | A 1132600214 | TRANSMISSION CASE COVER |
| TOP | ||
| 132 | A 1982600914 | TRANSMISSION CASE COVER |
| 133 | A 1362650247 | INTERLOCK PLUG |
| 134 | A 1539920005 | BUSHING |
| 135 | A 1362650048 | INTERLOCK PIN |
| 136 | A 1362650093 | PRESSURE SPRING |
| 137 | A 1369970830 | SCREW PLUG |
| 138 | N 007603018104 | SEAL RING |
| 139 | A 1132600038 | SHAFT |
| 140 | N 006503014100 | SEAL RING |
| 141 | A 1982680033 | SHIFTING FINGER |
| 142 | A 1209901320 | SCREW |
| 143 | N 000127007201 | LOCK WASHER |
| 144 | A 1982680523 | YOKE |
| 145 | A 1112670083 | SEAL |
| 146 | A 1112670074 | PIN |
| A 1119903240 | WASHER | |
| AS REQUIRED | ||
| 0.2 MM | ||
| A 1119903340 | WASHER | |
| AS REQUIRED | ||
| 0.3 MM | ||
| 148 | A 0019900151 | NUT |
| 149 | A 1982600028 | GUIDE PLATE |
| 150 | A 1362650074 | PIN |
| 151 | A 1362650293 | PRESSURE SPRING |
| 152 | N 000660004002 | RIVET |
| 153 | A 1369908240 | WASHER |
| 154 | N 900055008000 | SPRING WASHER |
| 155 | A 1362650272 | NUT |
| 156 | A 1862650001 | SHIFTING FORK |
| 1ST AND 2ND SPEED | ||
| A 1862650701 | SHIFTING FORK | |
| 1ST AND 2ND SPEED | ||
| 157 | A 3092650102 | SHIFTING FORK |
| 3RD AND 4TH SPEED | ||
| 158 | A 1802650107 | LEVER |
| REVERSE SPEED | ||
| 159 | A 1869931301 | SPRING |
| 160 | N 005401308000 | BALL |
| 161 | A 1362650053 | SPACER TUBE |
| TO SHIFTING FORKS | ||
| 162 | A 1362650153 | SPACER TUBE |
| TO LEVER | ||
| 163 | A 1119903440 | WASHER |
| AS REQUIRED | ||
| 0.3 MM | ||
| A 1119900940 | WASHER | |
| AS REQUIRED | ||
| 0.5 MM | ||
| A 1119900840 | WASHER | |
| AS REQUIRED | ||
| 1.0 MM | ||
| 166 | A 1362650404 | SHIFTING ROD |
| 1ST AND 2ND SPEED | ||
| 167 | A 1362650504 | SHIFTING ROD |
| 3RD AND 4TH SPEED | ||
| 168 | A 1362650204 | SHIFTING ROD |
| REVERSE SPEED | ||
| 171 | A 1842650053 | SPACER TUBE |
| TO SHIFTING RODS | ||
| 172 | A 1362650081 | KEY |
| TO SHIFTING RODS | ||
| 173 | A 1112600058 | BREATHER |
| 174 | A 0005451206 | SWITCH |
| BACK-UP LIGHT | ||
| 175 | A 0025452428 | PLUG |
| Repalced by: A 0095454028 | ||
| 175 | A 0095454028 | PLUG HOUSING |
| DOUBLE | ||
| 176 | N 007603018104 | SEAL RING |
| A 1112610179 | GASKET | |
| 178 | N 000931008171 | SCREW |
| N 000931008327 | SCREW | |
| Repalced by: N 304017008043 | ||
| N 304017008043 | SCREW | |
| 179 | A 1135400084 | LEVER |
| 180 | N 000084005402 | SCREW |
| LEVER TO SHIFTING SHAFT | ||
| 181 | N 006797005231 | TOOTHED WASHER |
| LEVER TO SHIFTING SHAFT | ||
| 182 | A 1112681074 | PIN |
| 183 | N 000137008204 | SPRING WASHER |
| 184 | A 1115460143 | BRACKET |
| BACK-UP LIGHT SWITCH CABLE | ||
| 185 | A 0009881678 | CLIP |
| BACK-UP LIGHT SWITCH CABLE | ||
| 186 | A 1112603182 | SHIFTING TUBE |
| 187 | A 1112680934 | BEARING COVER |
| BOTTOM | ||
| 188 | A 1112670086 | RUBBER RING |
| 189 | A 1989900048 | WASHER |
| 190 | A 0009947041 | LOCK |
| 191 | A 1112600595 | BEARING |
| SHIFT LEVER | ||
| 192 | A 1119920310 | BUSHING |
| 193 | A 1112680834 | BEARING COVER |
| TOP | ||
| 194 | A 1112680398 | COVER PLATE |
| 195 | A 1112680497 | BOOT |
| TOP | ||
| 196 | A 1112680797 | BOOT |
| BOTTOM | ||
| 197 | N 000933006130 | SCREW |
| 198 | N 000137006204 | SPRING WASHER |
| 199 | N 000125007408 | WASHER |
| Repalced by: N 006902007100 | ||
| 199 | N 006902007100 | WASHER |
| N 000931008172 | SCREW | |
| YOKE TO SHIFTING TUBE | ||
| N 912004008102 | LOCK WASHER | |
| YOKE TO SHIFTING TUBE | ||
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
| YOKE TO SHIFTING TUBE | ||
| 202 | A 1112680324 | SHIFT LEVER |
| 203 | A 1119901001 | SCREW |
| 204 | A 1982680150 | BUSHING |
| 205 | A 1119903540 | WASHER |
| 206 | A 0019900151 | NUT |
| 207 | A 1112680942 | KNOB |
| SHIFT LEVER | ||
| 208 | A 1132600889 | PULL ROD |
| 210 | A 1112600453 | END PIECE |
| 211 | A 1119920410 | BUSHING |
| A 1119920510 | BUSHING | |
| 212 | N 070616010004 | NUT |
| 213 | N 000125007408 | WASHER |
| Repalced by: N 006902007100 | ||
| 213 | N 006902007100 | WASHER |
| THRUST ROD TO TRANSMISSION CASE COVER AND TO GEARSHIFT LEVER BEARING | ||
| A 1119903740 | WASHER | |
| 214 | A 0019900151 | NUT |
| 215 | N 000985006000 | NUT |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
