Transporto priemonė: 280 SL USA; VIN numerio dalis: 113044

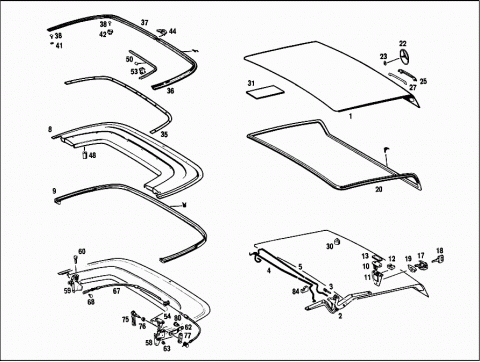

Grupė: 75 TRUNK LID - 001 OUTSIDE FLAPS
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 1137500475 | REAR LID |
| SHELL | ||
| 002 | A 1137501587 | HINGE |
| TRUNK LID AND FOLDING TOP CASE COVER, LEFT | ||
| A 1137501487 | HINGE | |
| TRUNK LID AND FOLDING TOP CASE COVER, RIGHT | ||
| 003 | A 1137580415 | PIN |
| TRUNK LID AND FOLDING TOP CASE COVER | ||
| 004 | A 1137580326 | SPRING |
| TRUNK LID AND FOLDING TOP CASE COVER | ||
| 005 | A 1137580226 | SPRING |
| REAR LID | ||
| N 000933006026 | SCREW | |
| FOLDING TOP CASE COVER AND TRUNK LID TO HINGES | ||
| A 0009900848 | WASHER | |
| FOLDING TOP CASE COVER AND TRUNK LID TO HINGES | ||
| A 0009903891 | NUT RETAINER | |
| Repalced by: A 0009903931 | ||
| A 0009903931 | SCREW | |
| FOLDING TOP CASE COVER AND TRUNK LID TO HINGES | ||
| 008 | A 1137500375 | REAR LID |
| SHELL; FOLDING TOP CASE | ||
| 009 | A 1137500177 | SEAL |
| FOLDING TOP CASE COVER | ||
| 010 | A 1137500185 | LOCK |
| UPPER PART TRUNK LID LOCK | ||
| 011 | A 1137500285 | LOCK |
| LOWER PART TRUNK LID LOCK | ||
| 012 | A 1137580072 | BUFFER |
| Repalced by: A 1169870539 | ||
| 012 | A 1169870539 | RUBBER BUFFER |
| REAR LID LOCK | ||
| A 1117585010 | BASE PLATE | |
| 013 | A 1117585111 | PLATE |
| N 007987006153 | SCREW | |
| LOCK UPPER PART TO TRUNK LID | ||
| A 0009904891 | NUT RETAINER | |
| Repalced by: A 0009909991 | ||
| A 0009909991 | NUT RETAINER | |
| LOCK LOWER PART TO REAR BODY PANEL | ||
| N 007988006153 | SCREW | |
| LOCK LOWER PART TO REAR BODY PANEL | ||
| 017 | A 1137500084 | FASTENER |
| A 1137501185 | LOCK | |
| WORKSHOP VERSION WITH KEY; ONLY W/CODE 466 (CENTRAL LOCKING MECHANISM) | ||
| A 1137500184 | FASTENER | |
| LESS KEY | ||
| A 0007663506 | KEY | |
| Repalced by: A 0007600206 | ||
| 018 | A 0007600206 | KEY |
| 019 | A 1137580005 | PAD |
| A 0009900350 | NUT | |
| 020 | A 1137500077 | SEAL |
| A 0009899271 | CLEANER | |
| SEAL TO TRUNK LID | ||
| 022 | A 1137580058 | MERCEDES STAR |
| 023 | A 1109870741 | RUBBER RING |
| MERCEDES STAR TO TRUNK LID | ||
| N 000125008418 | WASHER | |
| MERCEDES STAR TO TRUNK LID | ||
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
| MERCEDES STAR TO TRUNK LID | ||
| 025 | A 1117585002 | HANDLE |
| A 1117585090 | SHIM | |
| Repalced by: A 1087580105 | ||
| 027 | A 1087580105 | PAD |
| HANDLE TO TRUNK LID | ||
| N 007985005125 | SCREW | |
| Repalced by: N 007985005157 | ||
| N 007985005157 | SCREW | |
| HANDLE TO TRUNK LID | ||
| N 912004012100 | LOCK WASHER | |
| HANDLE TO TRUNK LID | ||
| 030 | A 1139870240 | RUBBER BUFFER |
| 031 | A 1137580097 | INTERMEDIATE LAYER |
| UNDER TRUNK LID | ||
| A 0009830098 | FOAM PLASTICS | |
| Repalced by: A 0009833598 | ||
| A 0009833598 | FOAM PLASTICS | |
| MOLTOPRENE 5 X 380 X 1300 MM FOLDING TOP CASE COVER | ||
| A 0009838786 | IMITATION LEATHER | |
| Repalced by: A 0019832986 | ||
| A 0019832986 | IMITATION LEATHER | |
| IMITATION LEATHER 380 X 1300 MM FOLDING TOP CASE COVER | ||
| 035 | A 1137500035 | RAIL |
| FOLDING TOP CASE COVER | ||
| 036 | A 1137501181 | GARNISH MOULDING |
| LEFT OUTSIDE FOLDING TOP CASE COVER | ||
| 037 | A 1137501281 | GARNISH MOULDING |
| RIGHT OUTSIDE FOLDING TOP CASE COVER | ||
| A 0019876125 | PLASTIC SECTION | |
| FOLDING TOP CASE COVER | ||
| 2300 MM | ||
| 038 | A 0009901833 | SCREW |
| GARNISH MOULDING TO FOLDING TOP CASE COVER | ||
| A 1139900033 | SCREW | |
| GARNISH MOULDING TO FOLDING TOP CASE COVER | ||
| N 000125003212 | WASHER | |
| GARNISH MOULDING TO FOLDING TOP CASE COVER | ||
| N 000934003002 | NUT | |
| GARNISH MOULDING TO FOLDING TOP CASE COVER | ||
| 041 | A 1139870041 | RUBBER RING |
| GARNISH MOULDING TO FOLDING TOP CASE COVER | ||
| 042 | A 0009909451 | NUT |
| GARNISH MOULDING TO FOLDING TOP CASE COVER | ||
| A 1137580129 | COVERING | |
| GARNISH MOULDING TO FOLDING TOP CASE COVER | ||
| 044 | A 1137580141 | ESCUTCHEON |
| N 000125003212 | WASHER | |
| ESCUTCHEON ON FOLDING TOP CASE COVER | ||
| N 000934003002 | NUT | |
| ESCUTCHEON ON FOLDING TOP CASE COVER | ||
| A 1139870041 | RUBBER RING | |
| ESCUTCHEON ON FOLDING TOP CASE COVER | ||
| 048 | A 1139870140 | RUBBER BUFFER |
| FOLDING TOP CASE COVER | ||
| A 0009943345 | LOCK | |
| Repalced by: A 1409941045 | ||
| A 1409941045 | LOCK | |
| RUBBER BUFFERS TO FOLDING TOP CASE COVER | ||
| N 007981004330 | SHEET METAL SCREW | |
| RUBBER BUFFERS TO FOLDING TOP CASE COVER | ||
| 050 | A 1137580181 | GARNISH MOULDING |
| LEFT | ||
| A 1137580281 | GARNISH MOULDING | |
| RIGHT | ||
| 053 | A 1139880178 | CLIP |
| GARNISH MOULDING TO FOLDING TOP CASE COVER | ||
| 054 | A 1137500585 | LOCK |
| N 007985006128 | SCREW | |
| LOCK UPPER PART TO FOLDING TOP CASE COVER | ||
| N 007985006131 | SCREW | |
| LOCK UPPER PART TO FOLDING TOP CASE COVER | ||
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| LOCK UPPER PART TO FOLDING TOP CASE COVER | ||
| N 006797006243 | TOOTHED WASHER | |
| LOCK UPPER PART TO FOLDING TOP CASE COVER | ||
| 058 | A 1137500385 | LOCK |
| LOWER PART; LEFT | ||
| 059 | A 1137500485 | LOCK |
| LOWER PART; RIGHT | ||
| 060 | A 1108800017 | STOP SCREW |
| Repalced by: A 1269900015 | ||
| 060 | A 1269900015 | SCREW |
| Repalced by: A 2019880211 | ||
| 060 | A 2019880211 | BUFFER |
| Repalced by: A 2019880511 | ||
| 060 | A 2019880511 | BUFFER |
| N 000439006204 | NUT | |
| Repalced by: N 304035006001 | ||
| N 304035006001 | NUT | |
| 062 | A 1137580123 | ROD |
| 063 | A 1137580615 | PIN |
| THRUST ROD TO LEFT LOWER LOCK PART | ||
| N 900055006001 | SPRING WASHER | |
| THRUST ROD TO LEFT LOWER LOCK PART | ||
| N 006799004001 | LOCK PLATE | |
| THRUST ROD TO LEFT LOWER LOCK PART | ||
| N 000933006026 | SCREW | |
| FOLDING TOP CASE COVER TO HINGE | ||
| A 0009900848 | WASHER | |
| FOLDING TOP CASE COVER TO HINGE | ||
| 067 | A 1137500159 | PULL |
| FOLDING TOP CASE COVER | ||
| 068 | A 1137580615 | PIN |
| FOLDING TOP CASE COVER CABLE TO LOCK LOWER PART,RIGHT | ||
| N 900055006001 | SPRING WASHER | |
| FOLDING TOP CASE COVER CABLE TO LOCK LOWER PART,RIGHT | ||
| N 006799004001 | LOCK PLATE | |
| FOLDING TOP CASE COVER CABLE TO LOCK LOWER PART,RIGHT | ||
| N 000933006122 | SCREW | |
| Repalced by: N 304017006034 | ||
| N 304017006034 | SCREW | |
| LOCK LOWER PARTS TO BODY | ||
| N 000137006204 | SPRING WASHER | |
| LOCK LOWER PARTS TO BODY | ||
| N 072571001004 | CLAMP | |
| BOWDEN CABLE TO FOLDING TOP CASE BOTTOM | ||
| N 007981003325 | SHEET METAL SCREW | |
| BOWDEN CABLE TO FOLDING TOP CASE BOTTOM | ||
| 075 | A 1137500093 | HANDLE |
| 076 | A 1137580082 | WASHER |
| 077 | A 1137500190 | LEVER |
| N 900055008002 | SPRING WASHER | |
| HANDLE AND LEVER TO SUPPORT | ||
| N 000137006204 | SPRING WASHER | |
| HANDLE AND LEVER TO SUPPORT | ||
| N 000985006000 | NUT | |
| HANDLE AND LEVER TO SUPPORT | ||
| 080 | A 1137580077 | NIPPLE |
| ROD TO LEVER | ||
| N 000137010205 | PART NAME MISSING | |
| ROD TO LEVER | ||
| N 000933005037 | SCREW | |
| ROD TO LEVER | ||
| N 912004005100 | LOCK WASHER | |
| ROD TO LEVER | ||
| N 009021005202 | WASHER | |
| Repalced by: N 009021005205 | ||
| N 009021005205 | WASHER | |
| ROD TO LEVER | ||
| 084 | A 1137580214 | BRACKET |
| N 000603005009 | SCREW | |
| SPRING TO STAYS | ||
| A 0009900348 | WASHER | |
| SPRING TO STAYS | ||
| N 000934005008 | NUT | |
| SPRING TO STAYS | ||
