Transporto priemonė: 280 USA; VIN numerio dalis: 114060
Grupė: 24 ENGINE SUSPENSION - 001 RUBBER MOUNTING TO ENGINE SUPPORT

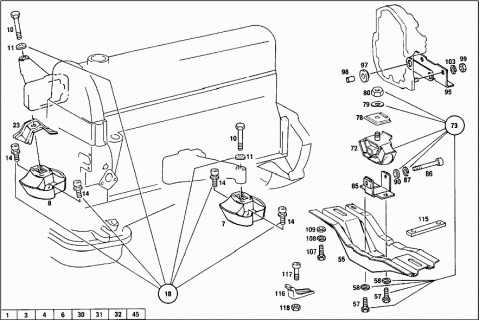

16082

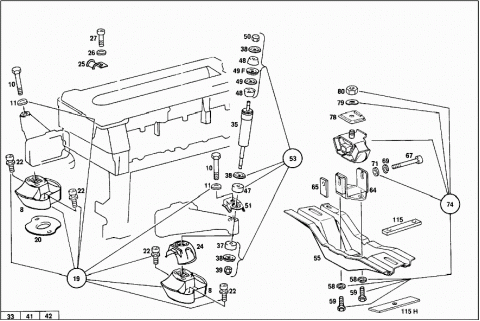

16083
# Kodas Pavadinimas
Y YYYYYYYYYYYY PART NAME MISSING
SEE SPARE PARTS LIST 033, M 180 GROUP 22,FIG.-NO. 5
Y YYYYYYYYYYYY PART NAME MISSING
SEE SPARE PARTS LIST 037, M 110 GROUP 22,FIG.-NO. 1
Y YYYYYYYYYYYY PART NAME MISSING
SEE SPARE PARTS LIST 038, M 114 GROUP 22,FIG.-NO. 4
Y YYYYYYYYYYYY PART NAME MISSING
SEE SPARE PARTS LIST 039, M 130 GROUP 22,FIG.-NO. 4
Y YYYYYYYYYYYY PART NAME MISSING
SEE SPARE PARTS LIST 033, M 180 GROUP 22,FIG.-NO. 10
Y YYYYYYYYYYYY PART NAME MISSING
SEE SPARE PARTS LIST 037, M 110 GROUP 22,FIG.-NO. 5
Y YYYYYYYYYYYY PART NAME MISSING
SEE SPARE PARTS LIST 038, M 114 GROUP 22,FIG.-NO. 10
Y YYYYYYYYYYYY PART NAME MISSING
SEE SPARE PARTS LIST 039, M 130 GROUP 22,FIG.-NO. 10
Y YYYYYYYYYYYY PART NAME MISSING
SEE SPARE PARTS LIST 033, M 180 GROUP 22,FIG.-NO. 14
Y YYYYYYYYYYYY PART NAME MISSING
SEE SPARE PARTS LIST 037, M 110 GROUP 22,FIG.-NO. 17
Y YYYYYYYYYYYY PART NAME MISSING
SEE SPARE PARTS LIST 038, M 114 GROUP 22,FIG.-NO. 15
Y YYYYYYYYYYYY PART NAME MISSING
SEE SPARE PARTS LIST 039, M 130 GROUP 22,FIG.-NO. 15
Y YYYYYYYYYYYY PART NAME MISSING
SEE SPARE PARTS LIST 033, M 180 GROUP 22,FIG.-NO. 16
Y YYYYYYYYYYYY PART NAME MISSING
SEE SPARE PARTS LIST 037, M 110 GROUP 22,FIG.-NO. 22
Y YYYYYYYYYYYY PART NAME MISSING
SEE SPARE PARTS LIST 038, M 114 GROUP 22,FIG.-NO. 19
Y YYYYYYYYYYYY PART NAME MISSING
SEE SPARE PARTS LIST 039, M 130 GROUP 22,FIG.-NO. 19
007 A 1142230112 RUBBER MOUNTING
LEFT
A 1142230212 RUBBER MOUNTING
Repalced by: A 1072410913
008 A 1072410913 RUBBER MOUNTING
RIGHT
008 A 1072410913 RUBBER MOUNTING
RIGHT
010 N 000931012182 SCREW
011 N 000137012203 SPRING WASHER
Repalced by: N 000137012206
011 N 000137012206 SPRING WASHER
014 N 914019008000 COMBINATION BOLT
018 A 1145860022 REPAIR KIT
019 A 1145860122 REPAIR KIT
020 A 1142410284 SHIM
022 N 914019008000 COMBINATION BOLT
023 A 1152230234 COVERING
A 1142410234 SCREENING PLATE
024 A 1142410334 SCREENING PLATE
Repalced by: A 1142410234
024 A 1142410234 SCREENING PLATE
025 A 1879950037 CLAMP
026 N 000137006204 SPRING WASHER
027 N 000912006002 SCREW
Y YYYYYYYYYYYY PART NAME MISSING
SEE SPARE PARTS LIST 033, M 180 GROUP 22,FIG.-NO. 21
Y YYYYYYYYYYYY PART NAME MISSING
SEE SPARE PARTS LIST 038, M 114 GROUP 22,FIG.-NO. 26
Y YYYYYYYYYYYY PART NAME MISSING
SEE SPARE PARTS LIST 039, M 130 GROUP 22,FIG.-NO. 26
Y YYYYYYYYYYYY PART NAME MISSING
SEE SPARE PARTS LIST 033, M 180 GROUP 22,FIG.-NO. 26
Y YYYYYYYYYYYY PART NAME MISSING
SEE SPARE PARTS LIST 038, M 114 GROUP 22,FIG.-NO. 32
Y YYYYYYYYYYYY PART NAME MISSING
SEE SPARE PARTS LIST 039, M 130 GROUP 22,FIG.-NO. 32
Y YYYYYYYYYYYY PART NAME MISSING
SEE SPARE PARTS LIST 033, M 180 GROUP 22,FIG.-NO. 28
Y YYYYYYYYYYYY PART NAME MISSING
SEE SPARE PARTS LIST 038, M 114 GROUP 22,FIG.-NO. 37
Y YYYYYYYYYYYY PART NAME MISSING
SEE SPARE PARTS LIST 039, M 130 GROUP 22,FIG.-NO. 37
Y YYYYYYYYYYYY PART NAME MISSING
SEE SPARE PARTS LIST 037, M 110 GROUP 22,FIG.-NO.71
035 A 1162400148 ENGINE VIBRATION ABSORBER
A 1162400248 ENGINE VIBRATION ABSORBER
037 A 1072410065 RUBBER BUFFER
038 A 1082410012 RETAINER
039 N 913002006005 NUT
Repalced by: N 913002006009
039 N 913002006009 NUT
Y YYYYYYYYYYYY PART NAME MISSING
SEE SPARE PARTS LIST 037, M 110 GROUP 22,FIG.-NO.78
Y YYYYYYYYYYYY PART NAME MISSING
SEE SPARE PARTS LIST 037, M 110 GROUP 22,FIG.-NO.85
Y YYYYYYYYYYYY PART NAME MISSING
SEE SPARE PARTS LIST 033, M 180 GROUP 22,FIG.-NO. 38
Y YYYYYYYYYYYY PART NAME MISSING
SEE SPARE PARTS LIST 037, M 110 GROUP 22,FIG.-NO.91
Y YYYYYYYYYYYY PART NAME MISSING
SEE SPARE PARTS LIST 038, M 114 GROUP 22,FIG.-NO. 45
Y YYYYYYYYYYYY PART NAME MISSING
SEE SPARE PARTS LIST 039, M 130 GROUP 22,FIG.-NO. 45
047 A 1072410065 RUBBER BUFFER
ENGINE SHOCK ABSORBER TO FRONT SUBFRAME
048 A 1232410365 RUBBER BUFFER
049 A 1082410012 RETAINER
049F A 1152410812 RETAINER
050 N 913002006005 NUT
Repalced by: N 913002006009
050 N 913002006009 NUT
051 A 1142410040 BRACKET
Repalced by: A 1152410440
051 A 1152410440 BRACKET
053 A 1142400017 REPAIR KIT
ENINE SHOCK ABSORBER MOUNTING PARTS
A 1152422601 ENGINE SUPPORT
055 A 1152422701 ENGINE SUPPORT
057 N 000933008131 SCREW
Repalced by: N 304017008016
057 N 304017008016 SCREW
058 N 912004008102 LOCK WASHER
059 N 000933008131 SCREW
Repalced by: N 304017008016
059 N 304017008016 SCREW
064 A 1152400340 BRACKET
065 A 1232420272 NUT
067 N 000912008054 SCREW
069 N 912004008102 LOCK WASHER
071 N 007349008002 WASHER
072 A 1232402218 RUBBER MOUNTING
073 A 1145860024 REPAIR KIT
074 A 1155860124 REPAIR KIT
Repalced by: A 1232420413
074 A 1232420413 RUBBER MOUNTING
078 A 1082420031 MOUNTING PLATE
079 N 000137012203 SPRING WASHER
Repalced by: N 000137012206
079 N 000137012206 SPRING WASHER
080 N 000934012023 NUT
Repalced by: N 308673012002
080 N 308673012002 HEXAGON NUT
085 A 1232420140 BRACKET
086 N 000912008067 SCREW
087 N 912004008102 LOCK WASHER
090 N 007349008002 WASHER
095 A 1144900444 PLATE
A 1144920318 BASE PLATE
097 A 1211550181 RUBBER RING
098 A 1084920053 SPACER TUBE
099 N 000934010005 NUT
N 000933008153 SCREW
103 N 912004010102 LOCK WASHER
N 000137008204 SPRING WASHER
107 N 000933010128 SCREW
107 N 000933010128 SCREW
N 000933010035 SCREW
108 N 912004010102 LOCK WASHER
109 N 007349010003 WASHER
Repalced by: N 007349010007
109 N 007349010007 WASHER
115 A 1152421240 BRACKET
115H A 1152420126 SHIM
116 A 1152420543 STOP
117 N 000912010049 SCREW
118 N 000934010005 NUT
