Transporto priemonė: 280 USA; VIN numerio dalis: 114060

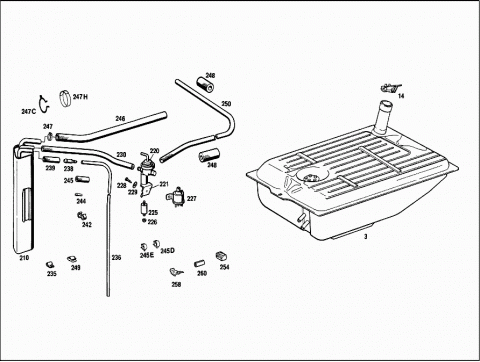

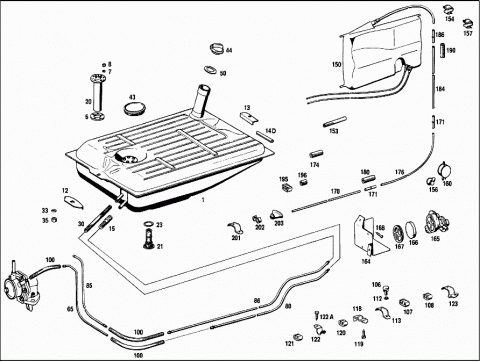

Grupė: 47 FUEL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 1144700101 | FUEL TANK |
| 65 L. | ||
| 003 | A 1144700901 | FUEL TANK |
| 78 L | ||
| 006 | A 1104710180 | GASKET |
| 007 | N 000137005203 | SPRING WASHER |
| 008 | N 000934005008 | NUT |
| 012 | A 1304710122 | REINFORCEMENT |
| 013 | A 1304710222 | REINFORCEMENT |
| 014 | A 1164700129 | FILLER NECK |
| 014D | A 0009873272 | EDGE GUARD SECTION |
| 015 | A 1114761526 | HOSE |
| N 916002018100 | CLAMP | |
| 020 | A 1105421204 | GAUGE SENDER UNIT |
| A 1145420004 | GAUGE SENDER UNIT | |
| 021 | A 1114700686 | FUEL STRAINER |
| 023 | A 1109970145 | SEAL RING |
| A 1104760326 | HOSE | |
| Repalced by: A 1149971882 | ||
| 030 | A 1149971882 | HOSE |
| 160 MM | ||
| N 916033012100 | CLAMP | |
| A 0019976990 | HOSE CLAMP | |
| TO 114 997 18 82 | ||
| 033 | A 1089900340 | WASHER |
| 035 | N 913002008004 | NUT |
| 043 | A 1109870145 | LOCKING CAP |
| 044 | A 1244700005 | FILLER CAP |
| 050 | A 1154710079 | SEAL RING |
| 065 | A 1144761001 | LINE |
| FEED, FRONT | ||
| 080 | A 1154760101 | LINE |
| FEED, REAR | ||
| A 1144762001 | LINE | |
| FEED | ||
| 085 | A 1154761601 | LINE |
| RETURN; FRONT | ||
| 086 | A 1144760301 | LINE |
| RETURN; REAR | ||
| A 1104760326 | HOSE | |
| Repalced by: A 1149971882 | ||
| 100 | A 1149971882 | HOSE |
| 100 | A 1149971882 | HOSE |
| N 916033012100 | CLAMP | |
| A 0019976990 | HOSE CLAMP | |
| TO 114 997 18 82 | ||
| N 916026010000 | CLAMP | |
| Repalced by: N 000000000665 | ||
| N 000000000665 | CLAMP | |
| 106 | A 1204200227 | SCREW |
| 107 | A 1104760084 | DAMPING STRIP |
| 108 | A 0009877770 | RUBBER SECTION |
| 20 MM | ||
| 20 MM | ||
| 112 | A 0009873841 | RUBBER RING |
| 113 | A 1109950022 | CLAMP |
| N 000934006013 | NUT | |
| Repalced by: N 304032006008 | ||
| N 304032006008 | NUT | |
| 118 | A 1159950122 | CLAMP |
| 118 | A 1159950122 | CLAMP |
| 119 | N 007976006203 | SHEET METAL SCREW |
| 119 | N 007976006203 | SHEET METAL SCREW |
| N 007976006203 | SHEET METAL SCREW | |
| A 1104760084 | DAMPING STRIP | |
| A 1109950022 | CLAMP | |
| 120 | A 0009877770 | RUBBER SECTION |
| 20 MM FUEL LINES TO LEFT FRONT FORKED MEMBER | ||
| 20 MM | ||
| A 1109950022 | CLAMP | |
| FUEL LINE TO LEFT FRONT FORKED MEMBER | ||
| N 007976005203 | SHEET METAL SCREW | |
| FUEL LINE TO LEFT FRONT FORKED MEMBER | ||
| 121 | A 0009878670 | RUBBER SECTION |
| 15 MM FUEL LINES TO LEFT FRONT FORKED MEMBER | ||
| A 0029887378 | CLIP | |
| FUEL LINE TO LEFT FRONT FORKED MEMBER | ||
| A 0015407097 | VALVE | |
| Repalced by: A 0015408697 | ||
| A 0015408697 | VALVE | |
| 122 | A 1089950520 | CLAMP |
| 122A | N 007976005203 | SHEET METAL SCREW |
| A 0009877770 | RUBBER SECTION | |
| 20 MM FUEL LINE TO OUTSIDE LEFT SIDE MEMBER | ||
| 20 MM | ||
| 123 | A 1159950022 | CLAMP |
| FUEL LINE TO OUTSIDE LEFT SIDE MEMBER | ||
| N 007976006203 | SHEET METAL SCREW | |
| FUEL LINE TO OUTSIDE LEFT SIDE MEMBER | ||
| A 1154710268 | TANK | |
| A 1154710268 | TANK | |
| 150 | A 1154711668 | TANK |
| 150 | A 1154711668 | TANK |
| 150 | A 1154711668 | TANK |
| A 0089979082 | HOSE | |
| Repalced by: A 0009872727 | ||
| A 0009872727 | PLASTIC PIPE | |
| A 0009872727 | PLASTIC PIPE | |
| A 1119972281 | GROMMET | |
| 153 | A 2014761126 | HOSE |
| 80 MM | ||
| N 916002010100 | CLAMP | |
| 154 | A 0039888178 | CLIP |
| A 0009881878 | CLIP | |
| A 0009881878 | CLIP | |
| 156 | A 1084710081 | BOOT |
| 156 | A 1084710081 | BOOT |
| 157 | A 1149880178 | CLIP |
| 157 | A 1149880178 | CLIP |
| 160 | A 1154700293 | VALVE |
| Repalced by: A 1234700193 | ||
| 160 | A 1154700293 | VALVE |
| 164 | A 1144710441 | BRACKET |
| 165 | A 1234700193 | VALVE |
| 166 | A 1074710042 | FILTER |
| 167 | A 1074710267 | COVER |
| 168 | N 007976004211 | SHEET METAL SCREW |
| N 007981004243 | SHEET METAL SCREW | |
| Repalced by: N 000000002062 | ||
| N 000000002062 | SCREW | |
| A 0009870044 | EXPANSION PLUG | |
| A 1074711615 | BREATHER PIPE | |
| A 0019976990 | HOSE CLAMP | |
| A 1149971882 | HOSE | |
| N 916033012100 | CLAMP | |
| N 916033012100 | CLAMP | |
| N 916002008100 | CLAMP | |
| N 916002008100 | CLAMP | |
| A 0019974190 | LOOM TIE | |
| A 0019974190 | LOOM TIE | |
| 170 | A 0089979082 | HOSE |
| Repalced by: A 0009872727 | ||
| 170 | A 0009872727 | PLASTIC PIPE |
| 170 | A 0009872727 | PLASTIC PIPE |
| 170 | A 0009872727 | PLASTIC PIPE |
| A 1144711215 | BREATHER PIPE | |
| Repalced by: A 1164712315 | ||
| A 1164712315 | BREATHER PIPE | |
| Repalced by: A 1164714115 | ||
| A 1164714115 | BREATHER PIPE | |
| 2110 MM | ||
| 171 | A 1144710223 | LINE |
| 171 | A 1144710223 | LINE |
| A 1104760326 | HOSE | |
| Repalced by: A 1149971882 | ||
| 174 | A 1149971882 | HOSE |
| 40 MM | ||
| 174 | A 1149971882 | HOSE |
| 40 MM | ||
| N 916033012100 | CLAMP | |
| N 916033012100 | CLAMP | |
| A 0019976990 | HOSE CLAMP | |
| TO 114 997 18 82 | ||
| A 0019976990 | HOSE CLAMP | |
| TO 114 997 18 82 | ||
| 176 | A 0089979082 | HOSE |
| Repalced by: A 0009872727 | ||
| 176 | A 0009872727 | PLASTIC PIPE |
| 176 | A 0009872727 | PLASTIC PIPE |
| 176 | A 0009872727 | PLASTIC PIPE |
| A 1144711115 | BREATHER PIPE | |
| 1775 MM | ||
| A 1104760326 | HOSE | |
| Repalced by: A 1149971882 | ||
| 180 | A 1149971882 | HOSE |
| 40 MM | ||
| 180 | A 1149971882 | HOSE |
| 40 MM | ||
| N 916033012100 | CLAMP | |
| N 916033012100 | CLAMP | |
| A 0019976990 | HOSE CLAMP | |
| TO 114 997 18 82 | ||
| A 0019976990 | HOSE CLAMP | |
| TO 114 997 18 82 | ||
| 184 | A 0089979082 | HOSE |
| Repalced by: A 0009872727 | ||
| 184 | A 0009872727 | PLASTIC PIPE |
| 184 | A 0009872727 | PLASTIC PIPE |
| 186 | A 1144710223 | LINE |
| 186 | A 1144710223 | LINE |
| A 1104760326 | HOSE | |
| Repalced by: A 1149971882 | ||
| 190 | A 1149971882 | HOSE |
| 190 | A 1149971882 | HOSE |
| N 916033012100 | CLAMP | |
| N 916033012100 | CLAMP | |
| A 0019976990 | HOSE CLAMP | |
| TO 114 997 18 82 | ||
| A 0019976990 | HOSE CLAMP | |
| TO 114 997 18 82 | ||
| A 1004760381 | RUBBER PAD | |
| Repalced by: A 1104760084 | ||
| A 1104760084 | DAMPING STRIP | |
| A 1104760084 | DAMPING STRIP | |
| 195 | A 1124760184 | DAMPING STRIP |
| 196 | N 073379008100 | HOSE |
| TUNNEL, TOP | ||
| 196 | N 073379008100 | HOSE |
| 196 | N 073379008100 | HOSE |
| 196 | N 073379008100 | HOSE |
| 196 | N 073379008100 | HOSE |
| SPRING RETAINER | ||
| 196 | N 073379008100 | HOSE |
| SIDE MEMBER | ||
| 196 | N 073379008100 | HOSE |
| 201 | A 1099950022 | CLAMP |
| 201 | A 1099950022 | CLAMP |
| 202 | A 0009950068 | CLAMP |
| 202 | A 0009950068 | CLAMP |
| 203 | A 0079975881 | GROMMET |
| 203 | A 0079975881 | GROMMET |
| A 0009972881 | GROMMET | |
| A 0009972881 | GROMMET | |
| A 1089950520 | CLAMP | |
| A 1809950022 | CLAMP | |
| A 1124760184 | DAMPING STRIP | |
| 210 | A 1164700259 | ACTIVATED CHARCOAL FILTER |
| A 1144700293 | VALVE | |
| Repalced by: A 0004700093 | ||
| A 0004700093 | VALVE | |
| 220 | A 0004700093 | VALVE |
| 221 | A 1144710541 | BRACKET |
| 225 | A 1269880011 | BUFFER |
| 226 | N 913004005001 | NUT |
| 227 | A 0015401497 | VALVE |
| Repalced by: A 0015407097 | ||
| 227 | A 0015407097 | VALVE |
| Repalced by: A 0015408697 | ||
| 227 | A 0015408697 | VALVE |
| 227 | A 0015408697 | VALVE |
| 228 | N 007976005203 | SHEET METAL SCREW |
| 229 | N 009021006103 | WASHER |
| Repalced by: N 009021006208 | ||
| 229 | N 009021006208 | WASHER |
| 230 | A 1149971882 | HOSE |
| 355 MM | ||
| 235 | A 0019976990 | HOSE CLAMP |
| 236 | A 0089979082 | HOSE |
| Repalced by: A 0009872727 | ||
| 236 | A 0009872727 | PLASTIC PIPE |
| 1130 MM | ||
| 238 | A 1074760424 | CONNECTOR |
| 239 | A 1074762426 | HOSE |
| Repalced by: A 2019970852 | ||
| 239 | A 2019970852 | HOSE |
| 50 MM | ||
| N 916026010000 | CLAMP | |
| Repalced by: N 000000000665 | ||
| N 000000000665 | CLAMP | |
| 242 | A 0009950068 | CLAMP |
| 244 | A 1074711615 | BREATHER PIPE |
| 245 | A 1149971882 | HOSE |
| 40 MM | ||
| A 0019976990 | HOSE CLAMP | |
| 245D | A 1109950365 | CLAMP |
| Repalced by: A 0004760436 | ||
| 245D | A 0004760436 | BRACKET |
| 245E | A 1159950365 | CLAMP |
| A 0019974190 | LOOM TIE | |
| A 1144763026 | HOSE | |
| 360 MM | ||
| 246 | A 1124761226 | HOSE |
| 360 MM | ||
| N 916002018100 | CLAMP | |
| 247 | N 916002017100 | CLAMP |
| A 1109950165 | CLAMP | |
| 247C | A 1159950465 | CLAMP |
| 247H | A 1109950065 | CLAMP |
| Repalced by: A 0004760436 | ||
| 247H | A 0004760436 | BRACKET |
| 248 | A 1079971482 | HOSE |
| 55 MM | ||
| 249 | A 0009883378 | CLIP |
| 250 | A 1149971882 | HOSE |
| 580 MM | ||
| 250 | A 1149971882 | HOSE |
| 580 MM | ||
| A 0019976990 | HOSE CLAMP | |
| 254 | A 1004760381 | RUBBER PAD |
| Repalced by: A 1104760084 | ||
| 254 | A 1104760084 | DAMPING STRIP |
| A 1124760184 | DAMPING STRIP | |
| 258 | A 1809950022 | CLAMP |
| 260 | N 073379008100 | HOSE |
| A 1089950520 | CLAMP | |
| A 1159950122 | CLAMP | |
| N 007976006203 | SHEET METAL SCREW | |
