Transporto priemonė: 280 USA; VIN numerio dalis: 114060

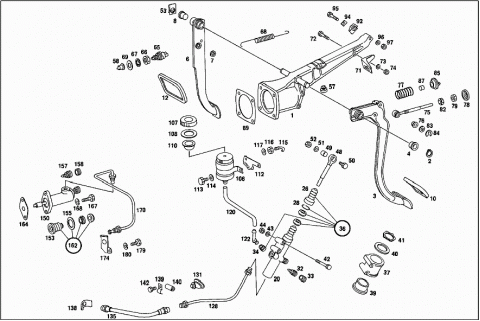

Grupė: 29 PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 1152901231 | BEARING |
| 002 | N 000471016001 | LOCK RING |
| 003 | A 1152902816 | PEDAL |
| 004 | A 1102910550 | BUSHING |
| Repalced by: A 1242920050 | ||
| 004 | A 1242920050 | BUSHING |
| 006 | A 1152902318 | PEDAL |
| A 1152900818 | PEDAL | |
| Repalced by: A 1152901818 | ||
| A 1152901818 | PEDAL | |
| 007 | A 1102920150 | BUSHING |
| 008 | A 1102910550 | BUSHING |
| Repalced by: A 1242920050 | ||
| 008 | A 1242920050 | BUSHING |
| 010 | A 1072910182 | PAD |
| 010 | A 1072910182 | PAD |
| 012 | A 1232910082 | PAD |
| 020 | A 0002957806 | MASTER CYLINDER |
| 3/4" DIA. X 34 MM STROKE | ||
| 026 | A 0002951583 | BOOT |
| 028 | A 0009943335 | SNAP RING |
| 032 | A 0004201055 | BLEEDER VALVE |
| 033 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 033 | A 0004210887 | PROTECTIVE CAP |
| 034 | A 0009971186 | PLUG |
| 036 | A 0005861529 | REPAIR KIT |
| 037 | A 1152950240 | BRACKET |
| A 1152950340 | BRACKET | |
| 039 | A 1082950050 | BUSHING |
| 040 | A 1082950076 | WASHER |
| 041 | A 0019943241 | LOCK |
| 042 | N 000931006087 | SCREW |
| Repalced by: N 304014006004 | ||
| 042 | N 304014006004 | SCREW |
| 043 | N 000137006204 | SPRING WASHER |
| 044 | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 044 | N 304032006008 | NUT |
| 048 | A 1152900639 | ROD |
| 049 | A 1102950250 | BUSHING |
| 050 | A 1102950571 | SCREW |
| Repalced by: A 1152950172 | ||
| A 1152950172 | NUT | |
| 051 | N 912004008102 | LOCK WASHER |
| 052 | N 000934008020 | NUT |
| 053 | A 0009941151 | LOCK |
| A 1152910086 | STOP | |
| 057 | A 1072910086 | STOP |
| 058 | A 1155450055 | GUIDE |
| A 0005454109 | SWITCH | |
| Repalced by: A 0005453509 | ||
| 065 | A 0005453509 | SWITCH |
| STOP LIGHT SWITCH | ||
| 066 | A 0009909251 | NUT |
| 067 | N 006797012250 | TOOTHED WASHER |
| 068 | A 1079930410 | SPRING |
| 069 | A 1152910076 | WASHER |
| 069 | A 1152910076 | WASHER |
| 071 | A 1152910540 | BRACKET |
| 072 | N 000931006094 | SCREW |
| 073 | N 000137006204 | SPRING WASHER |
| 074 | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 074 | N 304032006008 | NUT |
| 075 | A 1152901339 | ROD |
| 076 | A 1102910750 | BUSHING |
| 077 | A 1159937902 | SPRING |
| 078 | A 1112910491 | SPRING RETAINER |
| 079 | N 070615010004 | NUT |
| 082 | N 007967010001 | NUT |
| 083 | N 000125008418 | WASHER |
| 084 | N 006799006003 | LOCK PLATE |
| 085 | A 1072910091 | SPRING RETAINER |
| 087 | A 1072910091 | SPRING RETAINER |
| 089 | A 1154310180 | GASKET |
| 092 | A 1152940140 | BRACKET |
| 094 | A 1152940087 | SHIM |
| 095 | N 000931006084 | SCREW |
| Repalced by: N 304017006027 | ||
| 095 | N 304017006027 | SCREW |
| 096 | N 000137006204 | SPRING WASHER |
| 097 | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 097 | N 304032006008 | NUT |
| 106 | A 1152900115 | RESERVOIR |
| 107 | A 0002950237 | SCREW PLUG |
| Repalced by: A 0004315433 | ||
| 107 | A 0004315433 | FILLER CAP |
| 108 | A 0009976841 | SEAL RING |
| 110 | A 0004314334 | STRAINER |
| 112 | A 1152950940 | BRACKET |
| 113 | N 007976004217 | SHEET METAL SCREW |
| 114 | N 000125005306 | WASHER |
| 115 | A 1152950124 | CLAMPING SCREW |
| 116 | N 000934006007 | NUT |
| 117 | N 912004006102 | LOCK WASHER |
| 120 | A 0099973882 | HOSE |
| A 0002950036 | INTERMEDIATE PIECE | |
| 122 | A 0002950136 | INTERMEDIATE PIECE |
| A 1119972181 | GROMMET | |
| 128 | A 1152901213 | LINE |
| Repalced by: A 1003203953 | ||
| 128 | A 1003203953 | LINE |
| 131 | A 1232950183 | BOOT |
| 135 | A 0002952135 | HOSE |
| 138 | A 1072950173 | LOCK |
| 139 | N 072571001025 | CLAMP |
| 140 | A 1109970382 | HOSE |
| 142 | A 0009905436 | SCREW |
| A 1109870044 | EXPANSION PLUG | |
| Repalced by: A 1139870044 | ||
| A 1139870044 | EXPANSION PLUG | |
| 150 | A 0002958207 | SLAVE CYLINDER |
| Repalced by: A 0002956507 | ||
| 150 | A 0002956507 | SLAVE CYLINDER |
| Repalced by: A 0012956807 | ||
| 150 | A 0012956807 | SLAVE CYLINDER |
| KUGELFISCHER | ||
| A 0002956507 | SLAVE CYLINDER | |
| Repalced by: A 0012956807 | ||
| A 0012956807 | SLAVE CYLINDER | |
| TEVES | ||
| 153 | A 0002951983 | BOOT |
| TEVES | ||
| A 0002952183 | BOOT | |
| TEVES | ||
| 155 | A 0009945935 | SNAP RING |
| TO 000 295 40 07 | ||
| A 0002950373 | LOCK | |
| 157 | A 0004201055 | BLEEDER VALVE |
| 158 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 158 | A 0004210887 | PROTECTIVE CAP |
| A 0005861829 | REPAIR KIT | |
| TEVES | ||
| 162 | A 0002903367 | REPAIR KIT |
| TEVES | ||
| A 0005863929 | REPAIR KIT | |
| Repalced by: A 0002902111 | ||
| A 0002902111 | SLAVE CYLINDER | |
| TEVES | ||
| 164 | A 1152510080 | GASKET |
| 167 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 167 | N 304017008027 | SCREW |
| 168 | N 912004008102 | LOCK WASHER |
| A 1152900713 | LINE | |
| Repalced by: A 1072900013 | ||
| 170 | A 1072900013 | LINE |
| 174 | A 1152951340 | BRACKET |
| A 1152950740 | BRACKET | |
| 179 | N 000933008131 | SCREW |
| Repalced by: N 304017008016 | ||
| 179 | N 304017008016 | SCREW |
| 180 | N 912004008102 | LOCK WASHER |
| A 1082950440 | BRACKET | |
| A 0002950973 | LOCK | |
| A 0002953183 | BOOT | |
