Transporto priemonė: 280 USA; VIN numerio dalis: 114060

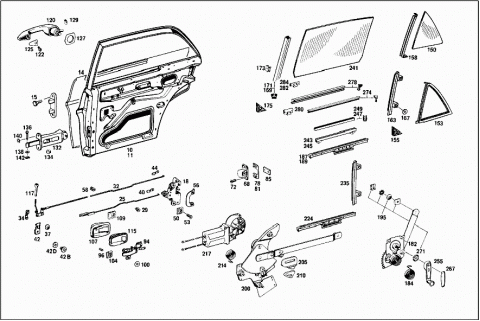

Grupė: 73 REAR DOORS - 001 DOORS
| # | Kodas | Pavadinimas |
|---|---|---|
| A 1157300105 | DOOR SHELL | |
| Repalced by: A 1157301105 | ||
| A 1157301105 | DOOR SHELL | |
| LEFT | ||
| A 1157301105 | DOOR SHELL | |
| LEFT | ||
| 010 | A 1157300205 | DOOR SHELL |
| Repalced by: A 1157301205 | ||
| 010 | A 1157301205 | DOOR SHELL |
| RIGHT | ||
| 011 | A 1157301205 | DOOR SHELL |
| RIGHT | ||
| A 1157300109 | PANELLING | |
| LEFT REAR DOOR | ||
| 014 | A 1157300209 | PANELLING |
| RIGHT REAR DOOR | ||
| A 1145860172 | REPAIR KIT | |
| Repalced by: A 1145860073 | ||
| A 1145860073 | REPAIR KIT | |
| Repalced by: A 1145860172 | ||
| A 1145860172 | REPAIR KIT | |
| CONVERSION OF REAR DOOR | ||
| A 1089900122 | SCREW | |
| A 1089900122 | SCREW | |
| N 914004008008 | COMBINATION BOLT | |
| Repalced by: A 1239900317 | ||
| 015 | A 1239900317 | SCREW |
| 015 | A 1239900317 | SCREW |
| A 1157302135 | DOOR LOCK | |
| LEFT | ||
| A 1157302535 | DOOR LOCK | |
| LEFT | ||
| A 1157302235 | DOOR LOCK | |
| RIGHT | ||
| 018 | A 1157302635 | DOOR LOCK |
| RIGHT | ||
| A 1157301592 | PULL ROD | |
| Repalced by: A 1157301992 | ||
| A 1157301592 | PULL ROD | |
| A 1157301592 | PULL ROD | |
| A 1157301592 | PULL ROD | |
| Repalced by: A 1157302092 | ||
| A 1157301592 | PULL ROD | |
| A 1157301592 | PULL ROD | |
| A 1157301992 | PULL ROD | |
| LEFT | ||
| A 1157301992 | PULL ROD | |
| LEFT | ||
| 025 | A 1157302092 | PULL ROD |
| RIGHT | ||
| 025 | A 1157302092 | PULL ROD |
| RIGHT | ||
| A 1159870037 | MOLDED PIECE | |
| Repalced by: A 0029888378 | ||
| 029 | A 0029888378 | CLIP |
| Repalced by: A 0069886378 | ||
| 029 | A 0069886378 | CLIP |
| A 1157300793 | DOOR LOCKING DEVICE | |
| LEFT | ||
| 032 | A 1157300893 | DOOR LOCKING DEVICE |
| RIGHT | ||
| 034 | A 1009940160 | LOCK |
| H 101807330076 | WASHER | |
| Repalced by: N 900055008002 | ||
| 037 | N 900055008002 | SPRING WASHER |
| N 000125006421 | WASHER | |
| Repalced by: N 000125006449 | ||
| N 000125006449 | WASHER | |
| N 000923006009 | SCREW | |
| 040 | A 1009940160 | LOCK |
| 042 | A 0009903991 | NUT RETAINER |
| 042B | A 1149900192 | RIVET |
| Repalced by: A 0009906092 | ||
| 042B | A 0009906092 | RIVET |
| UPPER PART | ||
| 042D | A 1149900292 | RIVET |
| Repalced by: A 0009905548 | ||
| 042D | A 0009905548 | WASHER |
| LOWER PART | ||
| 044 | A 1009940160 | LOCK |
| 044 | A 1009940160 | LOCK |
| 044 | A 1009940160 | LOCK |
| A 0009904191 | NUT RETAINER | |
| Repalced by: A 0009908391 | ||
| A 0009905391 | NUT RETAINER | |
| Repalced by: A 0009908391 | ||
| A 0009908391 | NUT RETAINER | |
| Repalced by: A 0009907191 | ||
| 050 | A 0009907191 | NUT RETAINER |
| N 007988006124 | SCREW | |
| Repalced by: A 0009903631 | ||
| A 0009903631 | SCREW | |
| Repalced by: A 1409843029 | ||
| A 1409843029 | SCREW | |
| 053 | A 0009903330 | SCREW |
| A 1087230124 | EDGING | |
| 056 | A 1087230224 | EDGING |
| 058 | A 0029888378 | CLIP |
| Repalced by: A 0069886378 | ||
| 058 | A 0069886378 | CLIP |
| N 007988004103 | SCREW | |
| A 1157200104 | LOCKING EYE | |
| Repalced by: A 1157200504 | ||
| A 1157200104 | LOCKING EYE | |
| A 1157200204 | LOCKING EYE | |
| Repalced by: A 1157200604 | ||
| A 1157200204 | LOCKING EYE | |
| A 1157200504 | LOCKING EYE | |
| LEFT | ||
| A 1157200504 | LOCKING EYE | |
| LEFT | ||
| A 1157200504 | LOCKING EYE | |
| LEFT | ||
| 068 | A 1157200604 | LOCKING EYE |
| RIGHT | ||
| 068 | A 1157200604 | LOCKING EYE |
| RIGHT | ||
| 068 | A 1157200604 | LOCKING EYE |
| RIGHT | ||
| 072 | A 0009903330 | SCREW |
| A 1007230211 | PLATE | |
| A 1007230211 | PLATE | |
| A 1007230311 | PLATE | |
| A 1007230311 | PLATE | |
| 078 | A 1157230511 | PLATE |
| 078 | A 1157230511 | PLATE |
| 078 | A 1157230511 | PLATE |
| 081 | A 1157230611 | PLATE |
| 081 | A 1157230611 | PLATE |
| 081 | A 1157230611 | PLATE |
| 085 | A 1156370011 | PLATE |
| A 1157600161 | INTERIOR HANDLE ASSEMBLY | |
| LEFT | ||
| A 1157600161 | INTERIOR HANDLE ASSEMBLY | |
| LEFT | ||
| A 1157600161 | INTERIOR HANDLE ASSEMBLY | |
| LEFT | ||
| A 1157600561 | INTERIOR HANDLE ASSEMBLY | |
| RIGHT | ||
| A 1157600561 | INTERIOR HANDLE ASSEMBLY | |
| RIGHT | ||
| A 1157600261 | INTERIOR HANDLE ASSEMBLY | |
| RIGHT | ||
| A 1157600261 | INTERIOR HANDLE ASSEMBLY | |
| RIGHT | ||
| A 1157600261 | INTERIOR HANDLE ASSEMBLY | |
| RIGHT | ||
| 094 | A 1157600661 | INTERIOR HANDLE ASSEMBLY |
| 094 | A 1157600661 | INTERIOR HANDLE ASSEMBLY |
| 096 | A 1159920125 | SLEEVE |
| 096 | A 1159920125 | SLEEVE |
| N 007985006132 | SCREW | |
| 100 | A 0009940510 | LOCK |
| A 0009904191 | NUT RETAINER | |
| Repalced by: A 0009908391 | ||
| A 0009905391 | NUT RETAINER | |
| Repalced by: A 0009908391 | ||
| A 0009908391 | NUT RETAINER | |
| Repalced by: A 0009907191 | ||
| 104 | A 0009907191 | NUT RETAINER |
| A 1087660511 | ESCUTCHEON | |
| LEFT | ||
| 107 | A 1087660611 | ESCUTCHEON |
| RIGHT | ||
| 109 | A 1157660098 | SEAL |
| 109 | A 1157660098 | SEAL |
| 109 | A 1157660098 | SEAL |
| N 007987004119 | SCREW | |
| N 006797004333 | TOOTHED WASHER | |
| A 1087660390 | INSERT | |
| LEFT | ||
| 115 | A 1087660490 | INSERT |
| RIGHT | ||
| 117 | A 1107600565 | KNOB |
| A 1157600559 | DOOR HANDLE | |
| OUTSIDE LEFT | ||
| 120 | A 1157600659 | DOOR HANDLE |
| OUTSIDE RIGHT | ||
| 122 | A 1207660015 | PIN |
| A 1157660105 | PAD | |
| Repalced by: A 1157660205 | ||
| 125 | A 1157660205 | PAD |
| FRONT RIGHT | ||
| A 1157660305 | PAD | |
| LEFT | ||
| 127 | A 1157660405 | PAD |
| RIGHT | ||
| 129 | A 1119930026 | DISC SPRING |
| N 007985006149 | SCREW | |
| Repalced by: N 007985006580 | ||
| N 007985006580 | SCREW | |
| 132 | A 1157300016 | DOOR CHECK |
| 134 | A 0009840758 | ROLLER |
| Repalced by: A 3147230068 | ||
| 134 | A 3147230068 | ROLLER |
| 136 | A 1089910007 | PIN |
| 138 | A 1089900140 | WASHER |
| 140 | A 1089900240 | WASHER |
| 142 | N 912001006001 | LOCK |
| N 000933006026 | SCREW | |
| N 913017006000 | NUT | |
| Repalced by: N 910112006001 | ||
| N 910112006001 | NUT | |
| Repalced by: N 913023006001 | ||
| N 913023006001 | NUT | |
| A 1157350509 | GLASS PANE | |
| LEFT | ||
| A 1157350709 | GLASS PANE | |
| LEFT | ||
| A 1157350609 | GLASS PANE | |
| RIGHT | ||
| 150 | A 1157350809 | GLASS PANE |
| RIGHT | ||
| A 1157350124 | SEAL | |
| LEFT | ||
| 153 | A 1157350224 | SEAL |
| RIGHT | ||
| A 1087250098 | SEAL | |
| Repalced by: A 1157251298 | ||
| 155 | A 1157251298 | SEAL |
| Repalced by: A 1167250198 | ||
| 155 | A 1167250198 | SEAL |
| A 1157300119 | WINDOW STAYBAR | |
| LEFT | ||
| 158 | A 1157300219 | WINDOW STAYBAR |
| RIGHT | ||
| N 007981004318 | SHEET METAL SCREW | |
| N 000125004311 | WASHER | |
| Repalced by: N 000125004319 | ||
| N 000125004319 | WASHER | |
| A 1087300115 | WINDOW RUN | |
| LEFT | ||
| 163 | A 1087300215 | WINDOW RUN |
| RIGHT | ||
| N 000933006122 | SCREW | |
| Repalced by: N 304017006034 | ||
| N 304017006034 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| 167 | A 0009940510 | LOCK |
| 169 | A 0009852930 | SEALING SECTION |
| 2180 MM ORDER BY THE METER | ||
| 169 | A 0009852930 | SEALING SECTION |
| 2180 MM ORDER BY THE METER | ||
| 169 | A 0009852930 | SEALING SECTION |
| 2180 MM ORDER BY THE METER | ||
| A 1157350025 | WINDOW RUN | |
| Repalced by: A 1157250925 | ||
| 171 | A 1157250925 | WINDOW RUN |
| 2275 MM | ||
| 171 | A 1157250925 | WINDOW RUN |
| 2275 MM | ||
| 173 | A 0029882378 | CLIP |
| A 1087250098 | SEAL | |
| Repalced by: A 1157251298 | ||
| 175 | A 1157251298 | SEAL |
| Repalced by: A 1167250198 | ||
| 175 | A 1167250198 | SEAL |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| MECHANICALLY OPERATED WINDOW REGULATOR | ||
| A 1087350102 | WINDOW REGULATOR | |
| Repalced by: A 1087350302 | ||
| A 1087350102 | WINDOW REGULATOR | |
| A 1087350302 | WINDOW REGULATOR | |
| LEFT | ||
| A 1087350202 | WINDOW REGULATOR | |
| Repalced by: A 1087350402 | ||
| A 1087350202 | WINDOW REGULATOR | |
| 182 | A 1087350402 | WINDOW REGULATOR |
| RIGHT | ||
| A 0007680105 | SPRING | |
| Repalced by: A 0007680905 | ||
| 184 | A 0007680905 | SPRING |
| Repalced by: A 0007680734 | ||
| 184 | A 0007680734 | SPRING |
| A 1157300145 | WINDOW REGULATOR RAIL | |
| LEFT | ||
| A 1157300545 | WINDOW REGULATOR RAIL | |
| LEFT | ||
| 187 | A 1157300245 | WINDOW REGULATOR RAIL |
| RIGHT | ||
| 189 | A 1157300645 | WINDOW REGULATOR RAIL |
| RIGHT | ||
| A 1139840037 | SLIDE | |
| Repalced by: A 1155860072 | ||
| A 0009900548 | WASHER | |
| Repalced by: A 1155860072 | ||
| A 0009842456 | WASHER | |
| Repalced by: A 1155860072 | ||
| N 912002010000 | LOCK | |
| Repalced by: A 1155860072 | ||
| 195 | A 1155860072 | REPAIR KIT |
| Repalced by: A 1237200114 | ||
| 195 | A 1237200114 | REPAIR KIT |
| WINDOW REGULATOR | ||
| N 000933006122 | SCREW | |
| Repalced by: N 304017006034 | ||
| N 304017006034 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| ELECTRIC WINDOW REGULATOR | ||
| A 1097300946 | WINDOW REGULATOR | |
| LEFT | ||
| 200 | A 1097301046 | WINDOW REGULATOR |
| RIGHT | ||
| A 0007680975 | HOUSING | |
| LEFT | ||
| 205 | A 0007681075 | HOUSING |
| RIGHT | ||
| A 0007680775 | STOP | |
| LEFT | ||
| 210 | A 0007680875 | STOP |
| RIGHT | ||
| A 0009900457 | NUT | |
| 214 | A 0007680505 | SPRING |
| A 0009907822 | SCREW | |
| Repalced by: N 914114006007 | ||
| N 914114006007 | SCREW | |
| A 0008201642 | ELECTRIC MOTOR | |
| Repalced by: A 0018200542 | ||
| A 0018200542 | ELECTRIC MOTOR | |
| LEFT | ||
| A 0008201742 | ELECTRIC MOTOR | |
| Repalced by: A 0018200442 | ||
| 217 | A 0018200442 | ELECTRIC MOTOR |
| RIGHT | ||
| A 0009902322 | SCREW | |
| Repalced by: N 914114006006 | ||
| N 914114006006 | SCREW | |
| A 1157300745 | WINDOW REGULATOR RAIL | |
| LEFT | ||
| 224 | A 1157300845 | WINDOW REGULATOR RAIL |
| RIGHT | ||
| N 000934006007 | NUT | |
| A 0009940510 | LOCK | |
| N 912004006102 | LOCK WASHER | |
| N 000933006084 | SCREW | |
| Repalced by: N 304017006026 | ||
| N 304017006026 | SCREW | |
| A 0000940510 | PIPE SOCKET | |
| N 912004006102 | LOCK WASHER | |
| A 1097300115 | WINDOW RUN | |
| LEFT | ||
| 235 | A 1097300215 | WINDOW RUN |
| RIGHT | ||
| A 1157301518 | CRANK OPERATED WINDOW | |
| LEFT | ||
| A 1157302318 | CRANK OPERATED WINDOW | |
| LEFT | ||
| A 1157301618 | CRANK OPERATED WINDOW | |
| RIGHT | ||
| A 1157302418 | CRANK OPERATED WINDOW | |
| RIGHT | ||
| A 1157350510 | GLASS PANE | |
| Repalced by: A 1157301518 | ||
| 241 | A 1157350610 | GLASS PANE |
| Repalced by: A 1157301618 | ||
| 243 | A 1107200047 | RETAINING RAIL |
| 245 | A 1157200147 | RETAINING RAIL |
| 247 | A 0019874257 | RUBBER MOULDING |
| 340 MM | ||
| 249 | A 0009876657 | RUBBER MOULDING |
| 290 MM | ||
| N 000933006122 | SCREW | |
| Repalced by: N 304017006034 | ||
| N 304017006034 | SCREW | |
| N 006797006145 | TOOTHED WASHER | |
| A 1087600102 | CRANK | |
| Repalced by: A 1237600102 | ||
| A 1087600202 | CRANK | |
| Repalced by: A 1237600102 | ||
| 255 | A 1237600102 | CRANK |
| N 007987004135 | SCREW | |
| N 006797004333 | TOOTHED WASHER | |
| A 1107680195 | PAD | |
| Repalced by: A 1087680095 | ||
| 267 | A 1087680095 | PAD |
| Repalced by: A 1237600020 | ||
| 267 | A 1237600020 | COVERING |
| Repalced by: A 1237600120 | ||
| 267 | A 1237600120 | COVERING |
| A 1107680013 | WASHER | |
| Repalced by: A 1087680113 | ||
| 271 | A 1087680113 | WASHER |
| 274 | A 1217250166 | SEAL |
| INSIDE | ||
| 4000 MM | ||
| 274 | A 1217250166 | SEAL |
| OUTSIDE | ||
| 4000 MM | ||
| 278 | A 1157350265 | SEALING RAIL |
| Repalced by: A 1167250065 | ||
| 278 | A 1167250065 | SEALING RAIL |
| OUTSIDE | ||
| 280 | A 1089880378 | CLIP |
| 282 | A 1159880078 | CLIP |
| 284 | A 1159881278 | CLIP |
| A 1157300551 | PANELLING | |
| LEFT | ||
| 289 | A 1157300651 | PANELLING |
| RIGHT | ||
| 292 | A 1087250070 | ESCUTCHEON |
| A 0019883178 | CLIP | |
| Repalced by: A 0029884578 | ||
| 295 | A 0029884578 | CLIP |
| 299 | A 1117275290 | INSULATION |
| Repalced by: A 1237270090 | ||
| 299 | A 1237270090 | INSULATION |
| Repalced by: A 1107270390 | ||
| 299 | A 1107270390 | INSULATION |
| Repalced by: A 2106820008 | ||
| 299 | A 2106820008 | INSULATION |
| Repalced by: A 1686820308 | ||
| 299 | A 1686820308 | INSULATION |
| A 1157370131 | SEAL | |
| LEFT | ||
| 304 | A 1157370231 | SEAL |
| RIGHT | ||
| A 1157300778 | WEATHERSTRIP | |
| Repalced by: A 1157301378 | ||
| A 1157301378 | WEATHERSTRIP | |
| LEFT | ||
| A 1157300878 | WEATHERSTRIP | |
| Repalced by: A 1157301478 | ||
| 311 | A 1157301478 | WEATHERSTRIP |
| RIGHT | ||
| 313 | A 0019882478 | CLIP |
| A 1157300397 | EDGE GUARD SECTION | |
| Repalced by: A 1157301397 | ||
| A 1157301397 | EDGE GUARD SECTION | |
| LEFT | ||
| A 1157300497 | EDGE GUARD SECTION | |
| Repalced by: A 1157301497 | ||
| 319 | A 1157301497 | EDGE GUARD SECTION |
| RIGHT | ||
| A 1147300170 | PANELLING | |
| LEFT | ||
| A 1147300270 | PANELLING | |
| RIGHT | ||
| A 1157300170 | PANELLING | |
| LEFT | ||
| A 1157300270 | PANELLING | |
| RIGHT | ||
| A 1157308570 | PANELLING | |
| LEFT | ||
| A 1157308570 | PANELLING | |
| LEFT | ||
| A 1157308570 | PANELLING | |
| LEFT | ||
| A 1157300995 | PANELLING | |
| LEFT | ||
| A 1157302595 | PANELLING | |
| LEFT | ||
| 330 | A 1157308670 | PANELLING |
| RIGHT | ||
| 330 | A 1157308670 | PANELLING |
| RIGHT | ||
| 330 | A 1157308670 | PANELLING |
| RIGHT | ||
| A 1157301095 | PANELLING | |
| RIGHT | ||
| 335 | A 1157302695 | PANELLING |
| RIGHT | ||
| 338 | A 0029884578 | CLIP |
| A 0029885978 | CLIP | |
| Repalced by: A 0039884178 | ||
| 340 | A 0039884178 | TRIM CLIP |
| 343 | A 1157280131 | GARNISH MOULDING |
| A 1157280231 | GARNISH MOULDING | |
| A 1147380531 | GARNISH MOULDING | |
| 348 | A 1147380631 | GARNISH MOULDING |
| 350 | A 1147280131 | GARNISH MOULDING |
| A 1147280231 | GARNISH MOULDING | |
| 354 | A 0029882378 | CLIP |
| 354 | A 0029882378 | CLIP |
| A 1157280080 | SEAL | |
| Repalced by: A 1157280180 | ||
| 359 | A 1157280180 | SEAL |
| N 914127003200 | SHEET METAL SCREW | |
| A 1157380130 | GARNISH MOULDING | |
| LEFT | ||
| 365 | A 1157380230 | GARNISH MOULDING |
| RIGHT | ||
| 367 | A 1157280097 | PAD |
| 369 | A 1157280038 | SPACER |
| 371 | A 1159880078 | CLIP |
| 371 | A 1159880078 | CLIP |
| A 1159880678 | CLIP | |
| Repalced by: A 1159881778 | ||
| A 1159881078 | CLIP | |
| Repalced by: A 1159881778 | ||
| 377 | A 1159881778 | CLIP |
| 377 | A 1159881778 | CLIP |
| A 1147300180 | GARNISH MOULDING | |
| LEFT | ||
| 383 | A 1147300280 | GARNISH MOULDING |
| RIGHT | ||
| A 1147300185 | WELT | |
| Repalced by: A 1147300180 | ||
| A 1147300180 | GARNISH MOULDING | |
| LEFT | ||
| 387 | A 1147300285 | WELT |
| Repalced by: A 1147300280 | ||
| 387 | A 1147300280 | GARNISH MOULDING |
| RIGHT | ||
| 390 | A 0009886081 | FASTENER BUTTON |
| 395 | A 0009881581 | GROMMET |
| Repalced by: A 0019882081 | ||
| 395 | A 0019882081 | FASTENER BUTTON |
| Repalced by: A 0089970381 | ||
| 395 | A 0089970381 | GROMMET |
| Repalced by: A 0019882081 | ||
| 395 | A 0019882081 | FASTENER BUTTON |
| Repalced by: A 0019887681 | ||
| 395 | A 0019887681 | FASTENER BUTTON |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
