Transporto priemonė: 280 USA; VIN numerio dalis: 114060
Grupė: 46 STEERING
| # | Kodas | Pavadinimas |
|---|---|---|

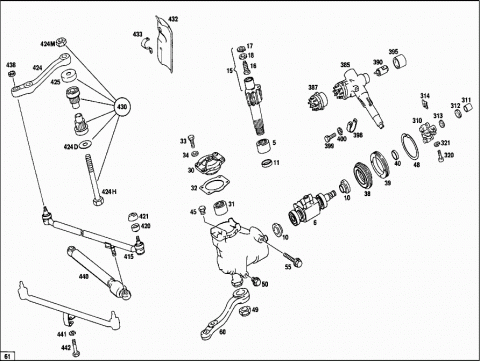

| 005 | A 0019818810 | NEEDLE BEARING |
| 006 | A 1154601018 | STEERING NUT |
| 010 | A 0009815027 | ANGULAR CONTACT BEARING |
| 011 | A 0029977246 | SEAL RING |
| 015 | A 1154600011 | STEERG. WORM SECTOR SHAFT |
| 016 | A 1154620271 | SCREW |
| 017 | N 000984020000 | LOCK RING |
| 018 | A 1154620275 | WASHER |
| AS REQUIRED | ||
| 3.00 MM | ||
| A 1154620375 | WASHER | |
| 3.1 MM AS REQUIRED | ||
| A 1154620475 | WASHER | |
| 3.2 MM AS REQUIRED | ||
| A 1154620575 | WASHER | |
| 3.3 MM AS REQUIRED | ||
| A 1154600214 | STEERING BOX COVER | |
| Repalced by: A 1154600514 | ||
| A 1154600214 | STEERING BOX COVER | |
| A 1154600214 | STEERING BOX COVER | |
| A 1154600514 | STEERING BOX COVER | |
| Repalced by: A 1154600814 | ||
| A 1154600514 | STEERING BOX COVER | |
| A 1154600514 | STEERING BOX COVER | |
| 030 | A 1154600814 | STEERING BOX COVER |
| 030 | A 1154600814 | STEERING BOX COVER |
| 031 | A 0019818810 | NEEDLE BEARING |
| 032 | A 1154610180 | GASKET |
| A 0029901901 | SCREW | |
| A 0029901901 | SCREW | |
| A 0029901901 | SCREW | |
| 033 | A 0049900701 | SCREW |
| 033 | A 0049900701 | SCREW |
| 034 | N 000433008406 | WASHER |
| 034 | N 000433008406 | WASHER |
| 038 | A 1154620151 | RING |
| 039 | A 1154620134 | SCREW COLLAR |
| 040 | A 0029974746 | SEAL RING |
| A 0049971546 | SEAL RING | |
| 045 | N 007604012102 | SCREW PLUG |
| N 000934010009 | NUT | |
| Repalced by: N 304032010002 | ||
| N 304032010002 | NUT | |
| N 304032010002 | NUT | |
| A 0019908651 | NUT | |
| A 0019908651 | NUT | |
| 048 | N 900055080210 | LOCK RING |
| 049 | A 0019901251 | NUT |
| 050 | A 1159901901 | SCREW |
| A 1159902301 | SCREW | |
| 055 | A 1159902101 | SCREW |
| A 1159902501 | SCREW | |
| 060 | A 1154630701 | PITMAN ARM |
| A 1154631201 | PITMAN ARM | |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 49 | ||

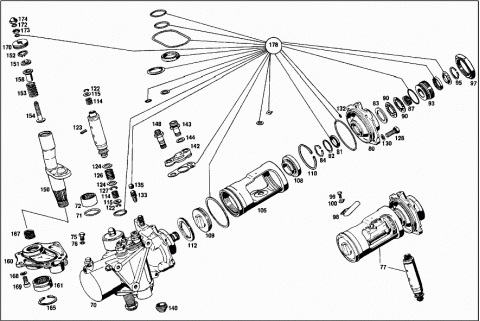

| 070 | A 1144601001 | STEERING BOX ASSEMBLY |
| 071 | A 0019970245 | SEAL RING |
| Repalced by: A 0139973648 | ||
| 071 | A 0139973648 | SEAL RING |
| 072 | A 0009818210 | NEEDLE BEARING |
| A 0019972545 | SEAL RING | |
| 075 | A 1129970030 | SCREW PLUG |
| 076 | N 007603008109 | SEAL RING |
| 077 | A 1144600685 | PISTON |
| 080 | A 1124602014 | STEERING BOX COVER |
| 081 | A 1124600061 | GASKET |
| 082 | A 1124620162 | THRUST WASHER |
| 083 | A 1124610162 | THRUST WASHER |
| 084 | A 0009942641 | LOCK |
| 087 | A 0009816310 | NEEDLE BEARING |
| A 0009810818 | ROLLER BEARING | |
| 090 | A 0009810418 | ROLLER BEARING |
| A 0009811418 | ROLLER BEARING | |
| 093 | A 1124600386 | THREADED INSERT |
| A 0009979745 | SEAL RING | |
| A 0059975846 | SEAL RING | |
| A 0019974040 | SEAL RING | |
| 095 | A 0009942641 | LOCK |
| A 0019972645 | SEAL RING | |
| Repalced by: A 0149976148 | ||
| A 0149976148 | SEAL RING | |
| 097 | A 1209900551 | NUT |
| 098 | A 1089950420 | CLAMP |
| 099 | A 1209900520 | SCREW |
| 100 | A 1129940005 | LOCK |
| 105 | A 1144601285 | PISTON |
| 108 | A 0009814627 | ANGULAR CONTACT BEARING |
| 109 | A 1124661905 | COVER |
| 110 | A 0019945141 | LOCK |
| 112 | A 1124660134 | SCREW COLLAR |
| A 1124660160 | SEAL RING | |
| 114 | A 1129939501 | SPRING |
| 115 | A 1124660462 | THRUST WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| A 1124660562 | THRUST WASHER | |
| AS REQUIRED | ||
| 1.10 MM | ||
| A 1124660662 | THRUST WASHER | |
| AS REQUIRED | ||
| 1.20 MM | ||
| A 1124660762 | THRUST WASHER | |
| AS REQUIRED | ||
| 1.30 MM | ||
| A 1124660862 | THRUST WASHER | |
| AS REQUIRED | ||
| 1.40 MM | ||
| A 1124660962 | THRUST WASHER | |
| AS REQUIRED | ||
| 1.50 MM | ||
| A 1124661062 | THRUST WASHER | |
| AS REQUIRED | ||
| 1.60 MM | ||
| A 1124661162 | THRUST WASHER | |
| AS REQUIRED | ||
| 1.70 MM | ||
| A 1124661262 | THRUST WASHER | |
| AS REQUIRED | ||
| 1.80 MM | ||
| A 1124661362 | THRUST WASHER | |
| AS REQUIRED | ||
| 1.90 MM | ||
| A 1124661462 | THRUST WASHER | |
| AS REQUIRED | ||
| 2.00 MM | ||
| 122 | A 0009943841 | LOCK |
| 123 | A 1129910141 | CLAMPING PIN |
| 124 | A 1124660275 | WASHER |
| 126 | A 1129931902 | SPRING |
| 127 | A 0009945441 | LOCK |
| 128 | N 000933010034 | SCREW |
| 130 | N 000127010200 | LOCK WASHER |
| 132 | A 0049974445 | SEAL RING |
| 133 | A 0004200855 | BLEEDER VALVE |
| 135 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 135 | A 0004210887 | PROTECTIVE CAP |
| 140 | A 1124661105 | COVER |
| 142 | A 1124661205 | COVER |
| 143 | A 1129971772 | FITTING |
| 144 | N 007603014100 | SEAL RING |
| A 1124660380 | GASKET | |
| A 0059979845 | SEAL RING | |
| 148 | A 1129972172 | FITTING |
| 150 | A 1144600111 | STEERG. WORM SECTOR SHAFT |
| 151 | A 1114610462 | THRUST WASHER |
| 152 | A 0049949241 | LOCK |
| 153 | A 1119932101 | SPRING |
| 154 | A 1114620471 | SCREW |
| 158 | A 1114620485 | THRUST PIECE |
| 160 | A 1094600215 | STEERING BOX COVER |
| A 0019970245 | SEAL RING | |
| Repalced by: A 0139973648 | ||
| A 0139973648 | SEAL RING | |
| 161 | A 0009818110 | NEEDLE BEARING |
| A 0059975946 | SEAL RING | |
| A 0019973940 | SEAL RING | |
| 165 | A 0009945341 | LOCK |
| A 0029974745 | SEAL RING | |
| A 0049974445 | SEAL RING | |
| 167 | A 1129939701 | SPRING |
| 168 | N 000137008103 | SPRING WASHER |
| Repalced by: N 000137008204 | ||
| 168 | N 000137008204 | SPRING WASHER |
| 169 | N 000912008014 | SCREW |
| 170 | A 1124660172 | NUT |
| A 0019970145 | SEAL RING | |
| 172 | N 007603010404 | SEAL RING |
| 173 | A 1089900051 | NUT |
| 174 | N 001587010001 | CAP NUT |
| 176 | N 000937022000 | NUT |
| 178 | A 1094600261 | GASKET KIT |
| 180 | A 1144630401 | PITMAN ARM |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 176 | ||
| N 000094005033 | COTTER PIN | |
| 183 | A 1154630052 | SPACER WASHER |

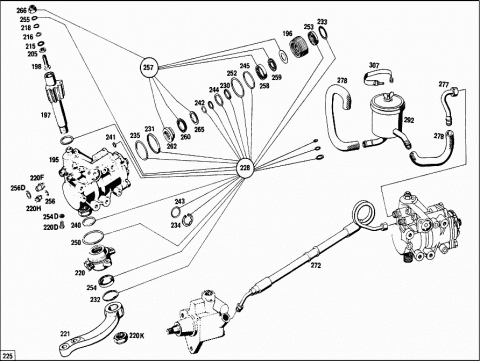

| 195 | A 1074601701 | STEERING BOX ASSEMBLY |
| 196 | A 1074600286 | THREADED INSERT |
| 197 | A 1074600211 | STEERG. WORM SECTOR SHAFT |
| 198 | A 1234620071 | SCREW |
| A 1074620862 | THRUST WASHER | |
| 2.65 MM AS REQUIRED | ||
| A 1074620962 | THRUST WASHER | |
| 2.70 MM AS REQUIRED | ||
| A 1074621062 | THRUST WASHER | |
| 2.75 MM AS REQUIRED | ||
| A 1074621162 | THRUST WASHER | |
| Repalced by: A 1074620262 | ||
| A 1074620262 | THRUST WASHER | |
| 2.80 MM AS REQUIRED | ||
| 205 | A 1074620162 | THRUST WASHER |
| 2.85 MM AS REQUIRED | ||
| A 1074620262 | THRUST WASHER | |
| 2.90 MM AS REQUIRED | ||
| A 1074620362 | THRUST WASHER | |
| 2.95 MM AS REQUIRED | ||
| A 1074620462 | THRUST WASHER | |
| AS REQUIRED | ||
| 3.00 MM | ||
| A 1074620562 | THRUST WASHER | |
| AS REQUIRED | ||
| 3.05 MM | ||
| A 1074620662 | THRUST WASHER | |
| 3.10 MM AS REQUIRED | ||
| 215 | A 0049949241 | LOCK |
| 216 | A 1074620762 | THRUST WASHER |
| 218 | N 000471012001 | LOCK RING |
| 220 | A 1074600615 | STEERING BOX COVER |
| A 1144600015 | STEERING BOX COVER | |
| A 1149900001 | SCREW | |
| 220D | A 1159970630 | SCREW PLUG |
| 220F | N 915013010001 | SCREW FITTING |
| 220H | N 915013006002 | SCREW FITTING |
| 220K | A 0019905451 | NUT |
| A 1239900201 | SCREW | |
| Repalced by: A 2019900801 | ||
| A 2019900801 | SCREW | |
| 80 MM | ||
| 221 | A 1144630801 | PITMAN ARM |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 220K | ||
| A 1154630052 | SPACER WASHER | |
| 228 | A 1074600061 | GASKET KIT |
| A 1074660060 | SEAL RING | |
| 230 | A 1074660160 | SEAL RING |
| 231 | A 1074660260 | SEAL RING |
| A 0049949241 | LOCK | |
| 232 | A 0009949841 | LOCK |
| 233 | A 0019942541 | LOCK |
| 234 | A 0019948441 | LOCK |
| 235 | A 0019972645 | SEAL RING |
| Repalced by: A 0149976148 | ||
| 235 | A 0149976148 | SEAL RING |
| 240 | A 0049974545 | SEAL RING |
| Repalced by: A 0139973748 | ||
| 240 | A 0139973748 | SEAL RING |
| 241 | A 0099974245 | SEAL RING |
| 242 | A 0099974345 | SEAL RING |
| 243 | A 0099974445 | SEAL RING |
| 244 | A 0099974545 | SEAL RING |
| 245 | A 0099974645 | SEAL RING |
| 250 | A 0099974745 | SEAL RING |
| 252 | A 0099974845 | SEAL RING |
| 253 | A 0129978047 | SEAL RING |
| Repalced by: A 0119976746 | ||
| 253 | A 0119976746 | SEAL RING |
| 254 | A 0069978246 | SEAL RING |
| Repalced by: A 0119976846 | ||
| 254 | A 0119976846 | SEAL RING |
| Repalced by: A 0199975047 | ||
| 254 | A 0199975047 | SEAL RING |
| 254D | N 007603008109 | SEAL RING |
| 255 | N 007603012110 | SEAL RING |
| 256 | N 007603012111 | SEAL RING |
| 256D | N 007603016401 | SEAL RING |
| 257 | A 1074600037 | REPAIR KIT |
| 258 | A 0049811010 | NEEDLE BEARING |
| 259 | A 0009814818 | ROLLER BEARING |
| 260 | A 0009814918 | ROLLER BEARING |
| 262 | A 0009815427 | ANGULAR CONTACT BEARING |
| A 0019905540 | WASHER | |
| 265 | A 0019905640 | WASHER |
| 266 | A 0019907051 | NUT |
| Repalced by: A 0009904050 | ||
| 266 | A 0009904050 | NUT |
| 270 | A 1149973982 | HOSE |
| A 1159974482 | HOSE | |
| 272 | A 1149971282 | HOSE |
| A 1149974182 | HOSE | |
| 275 | A 1124601024 | LINE |
| 277 | A 1144600624 | LINE |
| 277E | A 1104600424 | LINE |
| 277F | N 007603018101 | SEAL RING |
| 277G | A 1109900263 | HOLLOW SCREW |
| 278 | A 0069970982 | HOSE |
| N 916026020001 | CLAMP | |
| N 916026020001 | CLAMP | |
| 280 | A 1109870541 | RUBBER RING |

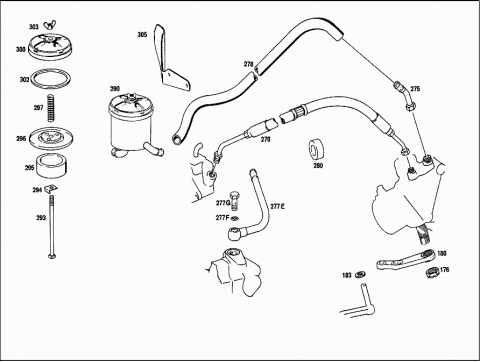

| 290 | A 1144600283 | OIL TANK |
| 292 | A 1144600483 | OIL TANK |
| 293 | A 1892360171 | SCREW |
| 294 | A 0004660373 | LOCK |
| 295 | A 0002360055 | FILTER |
| 296 | A 0002360076 | WASHER |
| 297 | A 0019931401 | SPRING |
| 300 | A 0004601182 | COVER |
| 302 | A 0002360080 | GASKET |
| 303 | N 000315006004 | NUT |
| 305 | A 1144660440 | BRACKET |
| N 900288092100 | CLAMP | |
| 307 | A 0009952735 | CLAMP |
| 310 | A 1154600510 | STEERING COUPLING |
| 311 | A 1114620165 | RING |
| 312 | A 1119903040 | WASHER |
| 313 | A 1369909540 | WASHER |
| 314 | N 912002010001 | LOCK |
| 320 | A 1119900420 | SCREW |
| 321 | N 007980008001 | LOCK WASHER |

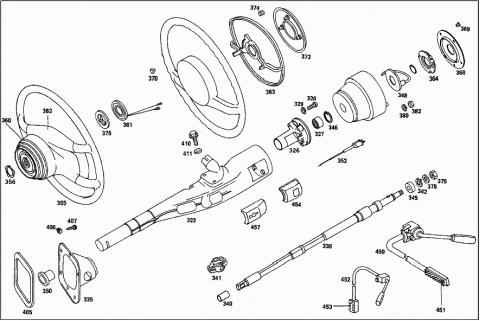

| A 1154603116 | STEER. COLUMN JACKET TUBE | |
| 322 | A 1154607116 | STEER. COLUMN JACKET TUBE |
| 326 | A 1154621835 | BEARING BODY |
| 327 | A 0009818910 | NEEDLE BEARING |
| Repalced by: A 0189816110 | ||
| 327 | A 0189816110 | NEEDLE BEARING |
| 328 | N 000912006039 | SCREW |
| Repalced by: N 000912006064 | ||
| 328 | N 000912006064 | SCREW |
| 329 | N 000137006204 | SPRING WASHER |
| 335 | A 1154600895 | COVERING |
| A 1159950535 | CLAMP | |
| N 000931006159 | SCREW | |
| N 000125006421 | WASHER | |
| Repalced by: N 000125006449 | ||
| N 000125006449 | WASHER | |
| N 912004006102 | LOCK WASHER | |
| N 000934006013 | NUT | |
| Repalced by: N 304032006008 | ||
| N 304032006008 | NUT | |
| 338 | A 1154608309 | STEERING SHAFT |
| MECHANICAL STEERING | ||
| 338 | A 1154608309 | STEERING SHAFT |
| POWER STEERING | ||
| A 1154607109 | STEERING SHAFT | |
| POWER STEERING | ||
| 340 | A 1164620060 | SEAL RING |
| 341 | A 1154600957 | UNIVERSAL JOINT |
| 341 | A 1154600957 | UNIVERSAL JOINT |
| 342 | N 000471020000 | LOCK RING |
| 345 | N 000625006004 | GROOVED BALL BEARING |
| 346 | N 000472042001 | LOCK RING |
| A 1154600897 | PROTECTIVE SLEEVE | |
| Repalced by: A 1164600003 | ||
| 348 | A 1154640017 | CONTACT PLATE |
| 350 | A 1164620096 | BOOT |
| 352 | A 1074640143 | CONTACT PIECE |
| A 1154640201 | STEERING WHEEL | |
| Repalced by: A 1164600003 | ||
| 355 | A 1164600003 | STEERING WHEEL |
| 356 | N 900055032200 | LOCK RING |
| 360 | A 1164640025 | PANELLING |
| A 1169900121 | SCREW | |
| A 1169935501 | SPRING | |
| A 1169935101 | SPRING | |
| A 1164640050 | BUSHING | |
| A 1164640177 | PROTECTIVE RING | |
| Repalced by: A 6019900540 | ||
| A 6019900540 | WASHER | |
| A 1164640077 | PROTECTIVE RING | |
| A 1169901040 | WASHER | |
| 361 | A 1164640017 | CONTACT PLATE |
| 362 | A 1164640087 | PAD |
| A 1164640187 | PAD | |
| Repalced by: A 1164640087 | ||
| A 1164640087 | PAD | |
| 363 | A 1154640515 | SIGNAL RING |
| 364 | A 0004640928 | CONTACT RING |
| 368 | A 1154640134 | BRACKET |
| 369 | N 007987003122 | SCREW |
| 370 | A 1154640024 | INSULATING PART |
| 373 | A 1154640342 | PAD |
| 374 | A 1154640035 | GUIDE PIN |
| 375 | A 0004640432 | BADGE |
| 378 | N 000137014201 | SPRING WASHER |
| 379 | N 000936014010 | NUT |
| 380 | N 000137008204 | SPRING WASHER |
| 382 | N 000934008013 | NUT |
| A 1154621530 | STEERING LOCK | |
| A 1154621530 | STEERING LOCK | |
| 385 | A 1154622330 | STEERING LOCK |
| 385 | A 1154622330 | STEERING LOCK |
| A 1154622730 | STEERING LOCK | |
| Repalced by: A 1154623730 | ||
| A 1154623130 | STEERING LOCK | |
| Repalced by: A 1154623730 | ||
| A 1154623730 | STEERING LOCK | |
| A 1154623730 | STEERING LOCK | |
| 387 | A 1164620093 | IGNITION SWITCH |
| A 0004624830 | TUMBLER | |
| STATE KEY NO. WHEN ORDERING | ||
| A 0004624830 | TUMBLER | |
| STATE KEY NO. WHEN ORDERING | ||
| 390 | A 0004626630 | TUMBLER |
| STATE KEY NO. WHEN ORDERING | ||
| 390 | A 0004626630 | TUMBLER |
| STATE KEY NO. WHEN ORDERING | ||
| A 0004627930 | TUMBLER | |
| STATE KEY NO. WHEN ORDERING | ||
| A 0004627930 | TUMBLER | |
| STATE KEY NO. WHEN ORDERING | ||
| A 0004600004 | TUMBLER | |
| WITHOUT LOCK UNDEFINED | ||
| A 0004600004 | TUMBLER | |
| WITHOUT LOCK UNDEFINED | ||
| A 0004600004 | TUMBLER | |
| WITHOUT LOCK UNDEFINED | ||
| A 1164620079 | TUMBLER | |
| WITHOUT LOCK UNDEFINED | ||
| A 1164620079 | TUMBLER | |
| WITHOUT LOCK UNDEFINED | ||
| A 6014600304 | TUMBLER | |
| STATE KEY NO. WHEN ORDERING | ||
| A 0004629330 | TUMBLER | |
| WITHOUT LOCK UNDEFINED | ||
| A 0004620923 | COVER | |
| A 0004620923 | COVER | |
| 395 | A 0004621023 | COVER |
| 395 | A 0004621023 | COVER |
| A 0004621323 | COVER | |
| A 0004621323 | COVER | |
| A 1234620523 | COVER | |
| 398 | A 1154600322 | CLAMPING PIECE |
| 399 | N 000931006094 | SCREW |
| 400 | N 912004006102 | LOCK WASHER |
| 405 | A 1154620780 | GASKET |
| A 1114620175 | WASHER | |
| 406 | A 0009902791 | NUT RETAINER |
| Repalced by: A 0009902291 | ||
| 406 | A 0009902291 | NUT RETAINER |
| 407 | N 914007006004 | COMBINATION BOLT |
| 410 | N 000931008244 | SCREW |
| 411 | N 009021008213 | WASHER |
| 415 | A 1144600305 | DRAG LINK |
| Repalced by: A 0004600005 | ||
| 415 | A 0004600005 | DRAG LINK |
| 420 | A 0004630097 | WASHER |
| TO115 460 15 05, 16 05, 114 460 02 05 | ||
| 421 | A 0004630496 | BOOT |
| TO115 460 15 05, 16 05, 114 460 02 05 | ||
| A 0003300485 | REPAIR KIT | |
| TO 114 460 03 05 | ||
| 424 | A 1154631510 | STEERING INTERMEDIATE ARM |
| 424D | A 1114630052 | SPACER WASHER |
| Repalced by: A 1244630077 | ||
| 424D | A 1244630077 | WASHER |
| 424H | N 000960016287 | SCREW |
| 424M | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 424M | N 910113016002 | NUT |
| 425 | A 1114631056 | DUST CAP |
| 430 | A 1244600019 | REPAIR KIT |
| Repalced by: A 1264600819 | ||
| 430 | A 1264600819 | INTERMEDIATE LEVER |
| REPAIR KIT | ||
| A 1154630152 | SPACER WASHER | |
| A 1154630190 | PROTECTIVE PLATE | |
| A 1154630190 | PROTECTIVE PLATE | |
| A 1144630190 | PROTECTIVE PLATE | |
| 432 | A 1144600195 | COVERING |
| 433 | A 1154630340 | BRACKET |
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| N 000934006013 | NUT | |
| Repalced by: N 304032006008 | ||
| N 304032006008 | NUT | |
| 438 | A 1209900155 | NUT |
| N 000094002077 | COTTER PIN | |
| 440 | A 0004635132 | SHOCK ABSORBER |
| (STEERING SHOCK ABSORBER) | ||
| 441 | N 000127010202 | LOCK WASHER |
| 442 | N 000960010037 | SCREW |
| N 000137010201 | SPRING WASHER | |
| N 913004010010 | NUT | |
| Repalced by: N 910113010002 | ||
| N 910113010002 | HEXAGON NUT | |
| N 910113010002 | HEXAGON NUT | |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| BLINKER SWITCH | ||
| A 0025459524 | SWITCH,AUTOMATIC | |
| A 0025459524 | SWITCH,AUTOMATIC | |
| A 0035457924 | SWITCH,AUTOMATIC | |
| A 0045450824 | SWITCH,AUTOMATIC | |
| 450 | A 0045453224 | SWITCH,AUTOMATIC |
| A 0045457624 | SWITCH,AUTOMATIC | |
| A 0045457524 | SWITCH,AUTOMATIC | |
| 451 | A 0035453728 | PLUG |
| Repalced by: A 0095455628 | ||
| 451 | A 0125450328 | PLUG HOUSING |
| Repalced by: A 0095455628 | ||
| 451 | A 0095455628 | PLUG HOUSING |
| A 0095455728 | COVER | |
| TO 009 545 56 28 | ||
| 452 | A 0045458724 | SWITCH,AUTOMATIC |
| TEMPOMAT (CRUISE CONTROL) | ||
| 453 | A 0035457128 | PLUG |
| Repalced by: A 0065457828 | ||
| 453 | A 0065457828 | PLUG HOUSING |
| SIXFOLD | ||
| N 914025004103 | COMBINATION BOLT | |
| N 007985004179 | SCREW | |
| N 912004004100 | LOCK WASHER | |
| 454 | A 1154621396 | BOOT |
| 457 | A 1164620396 | BOOT |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
