Transporto priemonė: 280 USA; VIN numerio dalis: 114060

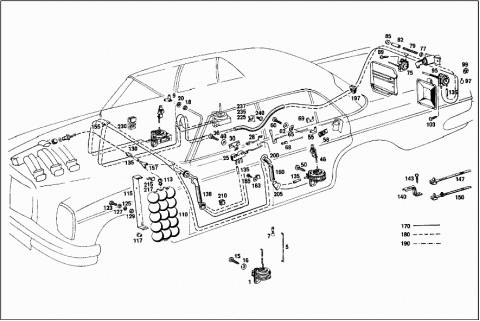

Grupė: 80 VACUUM SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 1158002275 | ELEMENT |
| RIGHT FRONT DOOR | ||
| 005 | A 1158000080 | CONTROL ROD |
| 007 | A 1009940160 | LOCK |
| 009 | A 1157300221 | LEVER |
| Repalced by: A 1157300121 | ||
| 015 | N 007981004258 | SHEET METAL SCREW |
| ELEMENT ON FRONT DOOR | ||
| 016 | N 000125005317 | WASHER |
| Repalced by: N 000433005304 | ||
| 016 | N 000433005304 | WASHER |
| ELEMENT ON FRONT DOOR | ||
| 018 | N 000439006204 | NUT |
| Repalced by: N 304035006001 | ||
| 018 | N 304035006001 | NUT |
| 020 | N 000137006204 | SPRING WASHER |
| A 1168000273 | SWITCH | |
| Repalced by: A 1168000473 | ||
| 025 | A 1168000473 | SWITCH |
| LEFT FRONT DOOR | ||
| 028 | A 1168050232 | CLAMP |
| 030 | A 1168050114 | BRACKET |
| A 0039891585 | ADHESIVE TAPE | |
| 036 | N 007981004220 | SHEET METAL SCREW |
| SWITCH ON FRONT DOOR | ||
| 040 | N 000125004311 | WASHER |
| Repalced by: N 000125004319 | ||
| 040 | N 000125004319 | WASHER |
| SWITCH ON FRONT DOOR | ||
| 046 | A 1158000375 | ELEMENT |
| Repalced by: A 1158000475 | ||
| 046 | A 1158000475 | ELEMENT |
| LEFT REAR DOOR | ||
| A 1158000475 | ELEMENT | |
| RIGHT REAR DOOR | ||
| 050 | N 007981004258 | SHEET METAL SCREW |
| H 101807330018 | LEVER | |
| Repalced by: A 1157300121 | ||
| 055 | A 1157300121 | LEVER |
| 058 | A 0009903991 | NUT RETAINER |
| ANGULAR LEVER ON REAR DOOR | ||
| 060 | A 1159840132 | SCREW |
| ANGULAR LEVER ON REAR DOOR | ||
| 062 | N 000125006421 | WASHER |
| ANGULAR LEVER ON REAR DOOR | ||
| Repalced by: N 000125006449 | ||
| 062 | N 000125006449 | WASHER |
| ANGULAR LEVER ON REAR DOOR | ||
| 065 | N 900055008002 | SPRING WASHER |
| ANGULAR LEVER ON REAR DOOR | ||
| 068 | A 1009940160 | LOCK |
| 069 | A 1159940160 | LOCK |
| 075 | A 1158000075 | ELEMENT |
| FILLER NECK FLAP | ||
| 077 | N 000125004311 | WASHER |
| Repalced by: N 000125004319 | ||
| 077 | N 000125004319 | WASHER |
| 079 | A 1128050036 | SPRING |
| 082 | A 1158050017 | BUSHING |
| 085 | A 1158050299 | RING |
| 089 | N 007981004322 | SHEET METAL SCREW |
| 095 | A 1158000575 | ELEMENT |
| Repalced by: A 1078000775 | ||
| 095 | A 1078000775 | ELEMENT |
| REAR LID | ||
| 097 | A 1158050036 | SPRING |
| 099 | N 006799004001 | LOCK PLATE |
| 103 | N 007981004322 | SHEET METAL SCREW |
| 110 | A 1078000219 | TANK |
| 113 | A 1098050098 | SEAL |
| Repalced by: A 1238050298 | ||
| 113 | A 1238050298 | SEAL |
| 115 | A 1158000132 | CLAMP |
| 117 | N 007340004121 | RIVET |
| 123 | N 000933006026 | SCREW |
| 125 | N 912004006102 | LOCK WASHER |
| 127 | N 009021006103 | WASHER |
| Repalced by: N 009021006208 | ||
| 127 | N 009021006208 | WASHER |
| 129 | N 000934006007 | NUT |
| 130 | A 1168000378 | VALVE |
| 135 | A 0079976182 | HOSE |
| CONNECTOR FOR VACUUM LINES | ||
| 135 | A 0079976182 | HOSE |
| CONNECTOR FOR VACUUM LINES | ||
| 135 | A 0079976182 | HOSE |
| CONNECTOR FOR VACUUM LINES | ||
| 135 | A 0079976182 | HOSE |
| CONNECTOR FOR VACUUM LINES | ||
| 138 | A 1158210097 | HOSE |
| 140 | A 1158210614 | BRACKET |
| 143 | N 007981004219 | SHEET METAL SCREW |
| Repalced by: N 000000000453 | ||
| 143 | N 000000000453 | TAPPING SCREW |
| 147 | A 0019974190 | LOOM TIE |
| A 0029970790 | LOOM TIE | |
| Repalced by: A 0019974190 | ||
| A 0019974190 | LOOM TIE | |
| 150 | A 1149970190 | LOOM TIE |
| 155 | A 1158050422 | DISTRIBUTOR |
| Repalced by: A 1170780145 | ||
| 155 | A 1170780145 | BRANCH-OFF FITTING |
| T-SHAPE | ||
| 157 | A 1158050322 | DISTRIBUTOR |
| Repalced by: A 1170780145 | ||
| 157 | A 1170780145 | BRANCH-OFF FITTING |
| Y-SHAPE | ||
| 160 | A 0009870527 | PLASTIC PIPE |
| 500 MM | ||
| 163 | A 1099950020 | CLAMP |
| 165 | N 007981004226 | SHEET METAL SCREW |
| Repalced by: N 007981004233 | ||
| 165 | N 007981004233 | SHEET METAL SCREW |
| Repalced by: N 000000000460 | ||
| 165 | N 000000000460 | SHEET METAL SCREW |
| 170 | A 0059973482 | HOSE |
| BLACK | ||
| 170 | A 0059973482 | HOSE |
| BLACK | ||
| 170 | A 0059973482 | HOSE |
| BLACK | ||
| 170 | A 0059973482 | HOSE |
| BLACK | ||
| 170 | A 0059973482 | HOSE |
| BLACK | ||
| 170 | A 0059973482 | HOSE |
| BLACK | ||
| 170 | A 0059973482 | HOSE |
| BLACK | ||
| 170 | A 0059973482 | HOSE |
| BLACK | ||
| 180 | A 0059975982 | HOSE |
| WHITE | ||
| 180 | A 0059975982 | HOSE |
| WHITE | ||
| 180 | A 0059975982 | HOSE |
| WHITE | ||
| 180 | A 0059975982 | HOSE |
| WHITE | ||
| 180 | A 0059975982 | HOSE |
| WHITE | ||
| 180 | A 0059975982 | HOSE |
| WHITE | ||
| 180 | A 0059975982 | HOSE |
| WHITE | ||
| 180 | A 0059975982 | HOSE |
| WHITE | ||
| 180 | A 0059975982 | HOSE |
| WHITE | ||
| 180 | A 0059975982 | HOSE |
| WHITE | ||
| 190 | A 0059977182 | HOSE |
| Repalced by: A 0001581435 | ||
| 190 | A 0001581435 | PIPE LINE |
| YELLOW | ||
| 190 | A 0001581435 | PIPE LINE |
| YELLOW | ||
| 190 | A 0001581435 | PIPE LINE |
| YELLOW | ||
| 190 | A 0001581435 | PIPE LINE |
| YELLOW | ||
| N 040621010200 | INSULATING HOSE | |
| 320 MM | ||
| 197 | A 1159971981 | GROMMET |
| WHEELHOUSE | ||
| 200 | A 1099970081 | GROMMET |
| CENTRAL PILLAR | ||
| 205 | A 1099970181 | GROMMET |
| REAR DOOR | ||
| 210 | A 1089880878 | CLIP |
| Repalced by: A 1149880178 | ||
| 210 | A 1149880178 | CLIP |
| VACUUM LINE MOUNTING | ||
| 215 | A 0029884678 | CLIP |
| 217 | A 0009883378 | CLIP |
| 225 | N 072571002015 | CLAMP |
| VACUUM LINE | ||
| 230 | A 1159881378 | CLIP |
| 235 | N 072571002024 | CLAMP |
| VACUUM LINE | ||
| 237 | N 072573003006 | CLAMP |
| VACUUM LINE | ||
| 240 | N 007981003214 | SHEET METAL SCREW |
| 250 | A 1002700072 | SCREW |
| Repalced by: A 1009900663 | ||
| 250 | A 1009900663 | HOLLOW SCREW |
| 250 | A 1009900663 | HOLLOW SCREW |
| 252 | N 007603010100 | SEAL RING |
| 252 | N 007603010100 | SEAL RING |
| 254 | A 1869912740 | SPACER TUBE |
| 254 | A 1869912740 | SPACER TUBE |
| 256 | A 0059975982 | HOSE |
| WHITE | ||
| 256 | A 0059975982 | HOSE |
| WHITE | ||
| 258 | A 0089978482 | HOSE |
| Repalced by: A 0089978582 | ||
| 258 | A 0089978582 | HOSE |
| GREEN | ||
| A 0009976652 | HOSE | |
| GREY/LIGHT BLUE | ||
| 350 MM | ||
| A 0009976652 | HOSE | |
| GREY/LIGHT BLUE | ||
| 350 MM | ||
| 260 | A 0079976182 | HOSE |
| 260 | A 0079976182 | HOSE |
| 260 | A 0079976182 | HOSE |
| 266 | A 1158050322 | DISTRIBUTOR |
| Repalced by: A 1170780145 | ||
| 266 | A 1170780145 | BRANCH-OFF FITTING |
| 266 | A 1170780145 | BRANCH-OFF FITTING |
| 269 | A 1158050422 | DISTRIBUTOR |
| Repalced by: A 1170780145 | ||
| 269 | A 1170780145 | BRANCH-OFF FITTING |
| 269 | A 1170780145 | BRANCH-OFF FITTING |
| 272 | A 1089880878 | CLIP |
| Repalced by: A 1149880178 | ||
| 272 | A 1149880178 | CLIP |
| 272 | A 1149880178 | CLIP |
| A 1158000078 | VALVE | |
| Repalced by: A 1078800778 | ||
| A 1128000178 | VALVE | |
| Repalced by: A 1078000778 | ||
| 279 | A 1078000778 | VALVE |
| Repalced by: A 1168000378 | ||
| 279 | A 1168000378 | VALVE |
| 279 | A 1168000378 | VALVE |
| 284 | A 1118055090 | CAP |
| 284 | A 1118055090 | CAP |
| A 1158050119 | TANK | |
| Repalced by: A 1158000519 | ||
| A 1158000119 | TANK | |
| Repalced by: A 1158000519 | ||
| A 1158000419 | TANK | |
| Repalced by: A 1158000519 | ||
| 289 | A 1158000519 | TANK |
| A 1148000119 | TANK | |
| Repalced by: A 1148000219 | ||
| A 1148000219 | TANK | |
| Repalced by: A 1148000319 | ||
| 292 | A 1148000319 | TANK |
| 295 | A 1098050098 | SEAL |
| Repalced by: A 1238050298 | ||
| 295 | A 1238050298 | SEAL |
| A 1078050198 | SEAL | |
| N 006797006145 | TOOTHED WASHER | |
| N 006797006145 | TOOTHED WASHER | |
| 301 | A 1159971040 | SEAL RING |
| Repalced by: A 2019870241 | ||
| 301 | A 2019870241 | RUBBER RING |
| 301 | A 2019870241 | RUBBER RING |
| N 000934006007 | NUT | |
| N 000934006007 | NUT | |
| 307 | A 1869970681 | GROMMET |
| 310 | A 1128050055 | GUIDE |
| 310 | A 1128050055 | GUIDE |
| 314 | A 1159971981 | GROMMET |
| 314 | A 1159971981 | GROMMET |
| 318 | A 0079976182 | HOSE |
| 318 | A 0079976182 | HOSE |
| 318 | A 0079976182 | HOSE |
| 318 | A 0079976182 | HOSE |
| 318 | A 0079976182 | HOSE |
| 318 | A 0079976182 | HOSE |
| 318 | A 0079976182 | HOSE |
| 330 | A 0089978382 | HOSE |
| LIGHT GREEN | ||
| 330 | A 0089978382 | HOSE |
| LIGHT GREEN | ||
| 330 | A 0089978382 | HOSE |
| LIGHT GREEN | ||
| A 0009976552 | HOSE | |
| LIGHT GREEN | ||
| A 0009976552 | HOSE | |
| LIGHT GREEN | ||
| A 0009976552 | HOSE | |
| LIGHT GREEN | ||
| A 0009976552 | HOSE | |
| LIGHT GREEN | ||
| A 0009976552 | HOSE | |
| LIGHT GREEN | ||
| A 0089978482 | HOSE | |
| Repalced by: A 0089978582 | ||
| A 0089978582 | HOSE | |
| MEDIUM GREEN | ||
| A 0089978582 | HOSE | |
| MEDIUM GREEN | ||
| A 0009970352 | HOSE | |
| MEDIUM GREEN | ||
| 338 | A 0009970752 | HOSE |
| Repalced by: A 0009976552 | ||
| 338 | A 0009976552 | HOSE |
| MEDIUM GREEN/YELLOW | ||
| 338 | A 0009976552 | HOSE |
| MEDIUM GREEN/YELLOW | ||
| 341 | A 0089978582 | HOSE |
| DARK GREEN | ||
| 341 | A 0089978582 | HOSE |
| DARK GREEN | ||
| 341 | A 0089978582 | HOSE |
| DARK GREEN | ||
| 341 | A 0089978582 | HOSE |
| DARK GREEN | ||
| 341 | A 0089978582 | HOSE |
| DARK GREEN | ||
| 341 | A 0089978582 | HOSE |
| DARK GREEN | ||
| 341 | A 0089978582 | HOSE |
| DARK GREEN | ||
| 341 | A 0089978582 | HOSE |
| DARK GREEN | ||
| 349 | A 1158050322 | DISTRIBUTOR |
| Repalced by: A 1170780145 | ||
| 349 | A 1170780145 | BRANCH-OFF FITTING |
| 349 | A 1170780145 | BRANCH-OFF FITTING |
| 353 | N 072571002015 | CLAMP |
| 353 | N 072571002015 | CLAMP |
| 358 | A 0009900392 | RIVET |
| Repalced by: A 0009902292 | ||
| 358 | A 0009902292 | RIVET |
| 358 | A 0009902292 | RIVET |
| A 0009976452 | HOSE | |
| MEDIUM GREEN/ORANGE | ||
| A 0009976452 | HOSE | |
| MEDIUM GREEN/ORANGE | ||
| A 0009976452 | HOSE | |
| MEDIUM GREEN/ORANGE | ||
| A 0009976452 | HOSE | |
| MEDIUM GREEN/ORANGE | ||
