Transporto priemonė: 300 CE-24 JAPAN; VIN numerio dalis: 124051

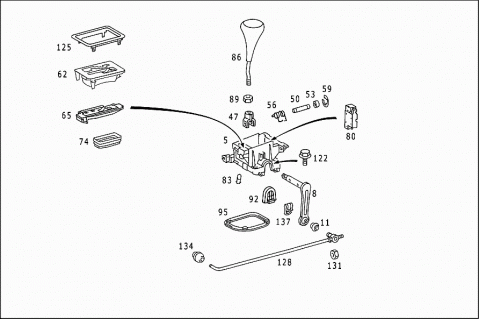

Grupė: 26 GEARSHIFT MECHANISM - 090 FLOOR SHIFT USED WITH AUTOMATIC FIVESPEED TRANSMISSION
| # | Kodas | Pavadinimas |
|---|---|---|
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSMISSION,SEE MICROFICHE NO.: | ||
| AUTOM.481 | ||
| 005 | A 1242670237 | BEARING BRACKET |
| Repalced by: A 1292670637 | ||
| 005 | A 1292670637 | BEARING BRACKET |
| 008 | A 1242600938 | SHAFT |
| 011 | A 1159920310 | BUSHING |
| 016 | A 1242606737 | LEVER |
| (LOCK-OUT LEVER),BRAKE | ||
| 017 | N 001444006106 | PIN |
| (LOCK-OUT LEVER),BRAKE | ||
| 020 | N 000137006204 | SPRING WASHER |
| (LOCK-OUT LEVER),BRAKE | ||
| 023 | A 1242606937 | LEVER |
| (LOCK-OUT LEVER),STEERING LOCK | ||
| 026 | A 1292670174 | PIN |
| Repalced by: A 1292670274 | ||
| 026 | A 1292670274 | PIN |
| (LOCK-OUT LEVER),STEERING LOCK | ||
| 029 | N 913001006003 | NUT |
| 032 | A 1242670740 | BRACKET |
| 033 | A 1249930915 | SPRING |
| 035 | N 914128004300 | SHEET METAL SCREW |
| 038 | A 1242670676 | WASHER |
| (CAM PLATE) | ||
| 041 | A 1249945241 | LOCK |
| (CAM PLATE) | ||
| 044 | A 1242671040 | BRACKET |
| 047 | A 1262670123 | YOKE |
| 050 | A 1152670174 | PIN |
| SHIFT LEVER BEARING | ||
| 053 | A 1152670950 | BUSHING |
| 056 | A 1299930020 | SPRING |
| 059 | N 006799005002 | LOCK PLATE |
| 062 | A 1292600272 | SHIFT CASE |
| 065 | A 1295400649 | INDICATOR |
| SLOTTED GATE LIGHTING | ||
| 074 | A 1292670097 | BOOT |
| 080 | A 1295450214 | SWITCH |
| 5TH SPEED | ||
| 083 | N 072601012230 | BULB |
| W5/1,2-12V 1,2W | ||
| 086 | B 66268117 | HANDLE |
| GEARSHIFT LEVER WITH LEATHER COVER | ||
| 089 | N 070616010003 | NUT |
| RANGE SELECTOR LEVER | ||
| 092 | A 2012671676 | COVERING |
| 095 | A 2012670380 | GASKET |
| BEARING BRACKET TO TUNNEL | ||
| 098 | A 1245844738 | GUMMED LABEL |
| 098 | A 1245846738 | GUMMED LABEL |
| 101 | A 1242600251 | WIRE CABLE |
| Repalced by: A 1242600451 | ||
| 101 | A 1242600451 | WIRE CABLE |
| PEDAL ASSEMBLY TO LOCK-OUT LEVER | ||
| 101 | A 1242600351 | WIRE CABLE |
| PEDAL ASSEMBLY TO LOCK-OUT LEVER | ||
| 104 | A 1242670264 | WIRE CABLE |
| STEERING LOCK TO LOCKING LEVER | ||
| 104 | A 1242670364 | WIRE CABLE |
| STEERING LOCK TO LOCKING LEVER | ||
| 107 | A 1242670840 | BRACKET |
| 108 | A 0059883578 | CLIP |
| 110 | A 0019974390 | LOOM TIE |
| 113 | N 916016005100 | CLAMP |
| WIRE CABLE TO FLOOR SHIFT MECHANISM | ||
| 116 | N 007976004211 | SHEET METAL SCREW |
| WIRE CABLE TO FLOOR SHIFT MECHANISM | ||
| 119 | A 1242670206 | COVER |
| 122 | N 914130006106 | SCREW |
| BEARING BRACKET TO TUNNEL | ||
| 125 | A 1292670088 | COVERING |
| 125 | A 1242670288 | COVERING |
| 128 | A 1242602933 | SHIFTING ROD |
| 131 | N 070616010004 | NUT |
| 134 | A 1159920310 | BUSHING |
| RANGE SELECTOR LEVER | ||
| 137 | A 0009944160 | PIN LOCK |
| SHIFTING ROD | ||
