Transporto priemonė: 300 CE; VIN numerio dalis: 124050

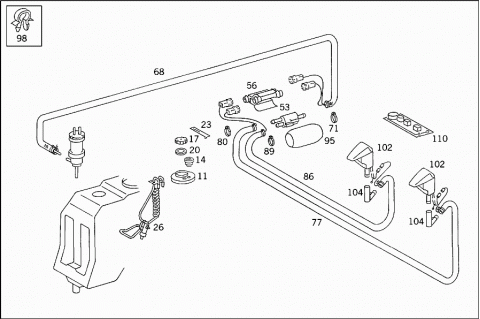

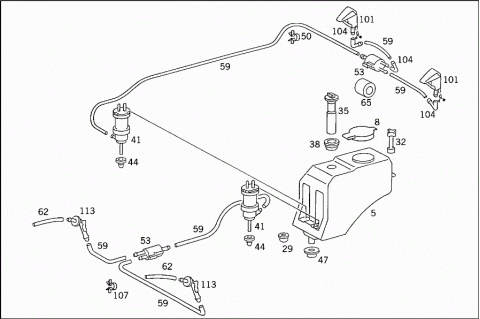

Grupė: 86 WIPER/WASER - 030 PANE WASHER,HEADLAMP WIPER/WASHER
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 1248690520 | RESERVOIR |
| Repalced by: A 1248690720 | ||
| 005 | A 1248690720 | RESERVOIR |
| PANE WASHER | ||
| 005 | A 1248690720 | RESERVOIR |
| PANE WASHER | ||
| 005 | A 1248690720 | RESERVOIR |
| 008 | A 1248690072 | FILLER CAP |
| Repalced by: A 1248690172 | ||
| 008 | A 1248690172 | FILLER CAP |
| Repalced by: A 2028609369 | ||
| 008 | A 2028609369 | FASTENER |
| PANE WASHER; SMALL COVER NOT HEATED | ||
| 008 | A 2028609369 | FASTENER |
| PANE WASHER; SMALL COVER NOT HEATED | ||
| 008 | A 1248690272 | FILLER CAP |
| PANE WASHER; BIG COVER NOT HEATED | ||
| 011 | A 1268690608 | COVERING |
| WINDSHIELD WASHER RESERVOIR | ||
| 014 | A 1249975081 | GROMMET |
| 017 | A 1238690172 | FILLER CAP |
| WINDSHIELD WASHER RESERVOIR | ||
| 020 | A 1239970540 | SEAL RING |
| 023 | A 1268690214 | HOLDER |
| 026 | A 1248301761 | HEATER UNIT |
| HEATED WINDSHIELD WASHER RESERVOIR | ||
| 029 | A 1109870039 | RUBBER BUFFER |
| Repalced by: A 0009973320 | ||
| 029 | A 0009973320 | EXPANSION PLUG |
| TO PLUG THE HOLE FOR HEADLAMP CLEANING DEVICE IN RESERVOIR | ||
| 032 | A 2018690028 | NUT |
| RESERVOIR TO WHEELHOUSE | ||
| 035 | A 1265401117 | SENDER UNIT |
| WINDSHIELD WASHER WATER LEVEL | ||
| 035 | A 1295400217 | SENDER UNIT |
| Repalced by: A 1405400017 | ||
| 035 | A 1405400017 | SENDER UNIT |
| WINDSHIELD WASHER WATER LEVEL | ||
| 038 | A 1269974881 | GROMMET |
| 041 | A 1248690221 | PUMP |
| Repalced by: A 1248690421 | ||
| 041 | A 1248690421 | PUMP |
| Repalced by: A 2028690021 | ||
| 041 | A 2028690021 | PUMP |
| 041 | A 2028690021 | PUMP |
| HEADLAMP WIPER/WASHER | ||
| 041 | A 1248690321 | PUMP |
| Repalced by: A 2028690021 | ||
| 041 | A 2028690021 | PUMP |
| 041 | A 2028690021 | PUMP |
| HEADLAMP WIPER/WASHER | ||
| 041 | A 1248690021 | PUMP |
| Repalced by: A 1248690621 | ||
| 041 | A 1248690621 | PUMP |
| Repalced by: A 2028690021 | ||
| 041 | A 2028690021 | PUMP |
| 041 | A 2028690021 | PUMP |
| HEADLAMP WIPER/WASHER | ||
| 041 | A 1248690121 | PUMP |
| Repalced by: A 1248690521 | ||
| 041 | A 1248690521 | PUMP |
| Repalced by: A 2028690021 | ||
| 041 | A 2028690021 | PUMP |
| 041 | A 2028690021 | PUMP |
| HEADLAMP WIPER/WASHER | ||
| 044 | A 1239973681 | GROMMET |
| FROM PUMP TO RESERVOIR | ||
| 044 | A 1239973681 | GROMMET |
| HEADLAMP WIPER/WASHER | ||
| 047 | A 2019975181 | GROMMET |
| RESERVOIR TO WHEELHOUSE | ||
| 050 | A 0009955444 | CLAMP |
| Repalced by: A 0009956044 | ||
| 050 | A 0009956044 | CLAMP |
| HOSE TO ENGINE HOOD HINGE | ||
| 053 | A 0008600062 | VALVE |
| Repalced by: A 0008600862 | ||
| 053 | A 0008600862 | CHECK VALVE |
| AT HOSE TO LEFT AND RIGHT NOZZLES | ||
| 053 | A 0008600862 | CHECK VALVE |
| HEADLAMP WIPER/WASHER | ||
| 056 | A 0008205998 | HEATING ELEMENT |
| Repalced by: A 0008206198 | ||
| 056 | A 0008206198 | HEATING ELEMENT |
| 059 | A 0109978982 | HOSE |
| 062 | A 0149977782 | HOSE |
| FROM CONNECTOR TO LEFT AND RIGHT NOZZLES | ||
| 85 MM | ||
| 065 | A 1268323194 | HOSE |
| CHECK VALVE | ||
| 065 | A 1268323194 | HOSE |
| CHECK VALVE | ||
| 068 | A 1248600092 | HOSE |
| FROM PUMP TO CHECK VALVE | ||
| 071 | A 0009953565 | CLAMP |
| Repalced by: A 0049970190 | ||
| 071 | A 0049970190 | LOOM TIE |
| 077 | A 1248600192 | HOSE |
| FROM CHECK VALVE TO LEFT NOZZLE | ||
| 080 | A 0009953565 | CLAMP |
| Repalced by: A 0049970190 | ||
| 080 | A 0049970190 | LOOM TIE |
| 086 | A 1248600292 | HOSE |
| FROM CHECK VALVE TO RIGHT NOZZLE | ||
| 089 | A 0009953565 | CLAMP |
| Repalced by: A 0049970190 | ||
| 089 | A 0049970190 | LOOM TIE |
| 095 | A 1268690494 | HOSE |
| 098 | A 0009955644 | CLAMP |
| Repalced by: A 0009955244 | ||
| 098 | A 0009955244 | CLAMP |
| 098 | A 0009955444 | CLAMP |
| Repalced by: A 0009956044 | ||
| 098 | A 0009956044 | CLAMP |
| 101 | A 1248600547 | NOZZLE |
| Repalced by: A 1248600747 | ||
| 101 | A 1248600747 | NOZZLE |
| ENGINE HOOD | ||
| 101 | A 1248600747 | NOZZLE |
| ENGINE HOOD | ||
| 102 | A 1248601947 | NOZZLE |
| ENGINE HOOD, LEFT | ||
| 102 | A 1248602047 | NOZZLE |
| ENGINE HOOD,RIGHT | ||
| 104 | A 1248690024 | CONNECTOR |
| AT LEFT AND RIGHT NOZZLES | ||
| 104 | A 1248690024 | CONNECTOR |
| CHECK VALVE | ||
| 107 | A 0009955444 | CLAMP |
| Repalced by: A 0009956044 | ||
| 107 | A 0009956044 | CLAMP |
| HOSE TO CROSS MEMBER | ||
| 110 | A 1268201111 | PLATE |
| ENGINE HOOD BRACKET,REAR | ||
| 113 | A 2018690124 | CONNECTOR |
| PANELLING BELOW LIGHTING UNIT | ||
