Transporto priemonė: 300 E JAPAN; VIN numerio dalis: 124030

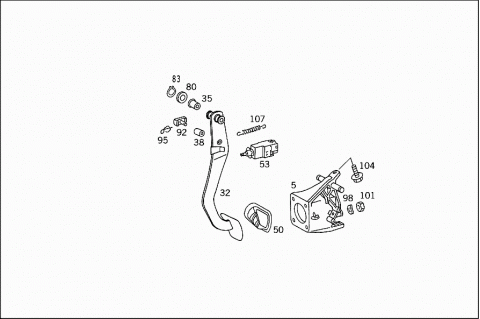

Grupė: 29 PEDAL ASSEMBLY - 015 PEDAL ASSEMBLY WITH BEARING
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 1242900519 | BEARING BRACKET |
| 032 | A 1242900818 | BRAKE PEDAL |
| Repalced by: A 1242901118 | ||
| 032 | A 1242901118 | BRAKE PEDAL |
| 035 | A 1102910550 | BUSHING |
| Repalced by: A 1242920050 | ||
| 035 | A 1242920050 | BUSHING |
| 038 | A 1262920050 | BUSHING |
| 050 | A 1232910082 | PAD |
| BRAKE PEDAL | ||
| 053 | A 0005457709 | SWITCH |
| Repalced by: A 0005458609 | ||
| 053 | A 0005458609 | SWITCH |
| Repalced by: A 0005459909 | ||
| 053 | A 0005459909 | SWITCH |
| Repalced by: A 0015450109 | ||
| 053 | A 0015450109 | BRAKE LIGHT SWITCH |
| STOP LIGHT SWITCH | ||
| 080 | A 1152910076 | WASHER |
| PEDAL TO BEARING BRACKET | ||
| 083 | N 000471016001 | LOCK RING |
| PEDAL TO BEARING BRACKET | ||
| 092 | A 1242920074 | PIN |
| Repalced by: A 1242920574 | ||
| 092 | A 1242920574 | PIN |
| BRAKE PEDAL TO BRAKE BOOSTER | ||
| 095 | N 912011008000 | LOCK |
| BRAKE PEDAL TO BRAKE BOOSTER | ||
| 098 | N 000137008204 | SPRING WASHER |
| PEDAL ASSEMBLY TO FIRE WALL | ||
| 101 | N 304032008006 | NUT |
| PEDAL ASSEMBLY TO FIRE WALL | ||
| 104 | A 2019900204 | SCREW |
| PEDAL ASSEMBLY TO FIRE WALL | ||
| 107 | A 1249931310 | SPRING |
| BRAKE PEDAL RELEASE SPRING | ||
