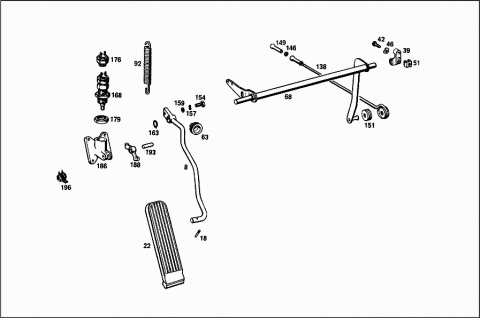

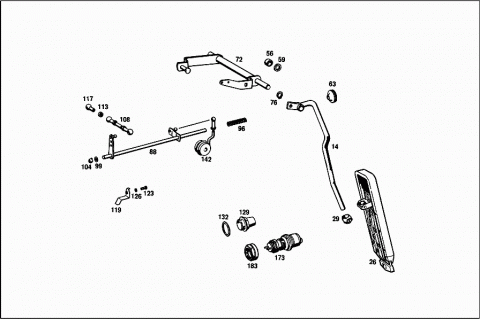

| 008 |
A 1103000304 |
ACCELERATOR PEDAL |
| 008 |
A 1103000304 |
ACCELERATOR PEDAL |
| 008 |
A 1103000304 |
ACCELERATOR PEDAL |
| 014 |
A 1083010001 |
LEVER |
| 014 |
A 1083010001 |
LEVER |
| 014 |
A 1083010001 |
LEVER |
|
A 1113000204 |
ACCELERATOR PEDAL |
| 018 |
A 1109970010 |
PIN |
| 022 |
A 1103010102 |
PEDAL PLATE |
|
Repalced by: A 1103000002
|
| 022 |
A 1103000002 |
PLATE |
| 022 |
A 1103000002 |
PLATE |
| 022 |
A 1103000002 |
PLATE |
|
A 1103010183 |
INSERT |
|
Repalced by: A 1103010083
|
|
A 1103010083 |
INSERT |
|
A 1103010083 |
INSERT |
|
A 1103010083 |
INSERT |
|
A 1103010582 |
PAD |
|
Repalced by: A 1103000002
|
|
A 1103000002 |
PLATE |
|
A 1103000002 |
PLATE |
|
A 1103000002 |
PLATE |
|
A 1103000002 |
PLATE |
|
A 1103000002 |
PLATE |
|
A 1103000002 |
PLATE |
|
A 1103010083 |
INSERT |
|
A 1103010083 |
INSERT |
|
A 1103010083 |
INSERT |
|
A 1103010482 |
PAD |
|
A 1103010482 |
PAD |
|
A 1103010482 |
PAD |
|
A 1103010482 |
PAD |
|
T YYYYYYYYYYYY |
PART NAME MISSING |
| 026 |
A 1153000304 |
ACCELERATOR PEDAL |
|
Repalced by: A 1233000204
|
| 026 |
A 1233000204 |
ACCELERATOR PEDAL |
| 029 |
A 1233010022 |
JOINT |
| 029 |
A 1233010022 |
JOINT |
| 029 |
A 1233010022 |
JOINT |
|
A 1163010182 |
PAD |
|
Repalced by: A 1233000204
|
|
A 1233000204 |
ACCELERATOR PEDAL |
|
A 1163010182 |
PAD |
|
A 1163010182 |
PAD |
|
A 1073010040 |
BRACKET |
|
Repalced by: A 1249888678
|
|
A 1249888678 |
CLIP |
| 039 |
A 1103010018 |
BEARING |
| 039 |
A 1103010018 |
BEARING |
|
A 1213010018 |
BEARING |
| 042 |
N 000931006082 |
SCREW |
| 042 |
N 000931006082 |
SCREW |
|
N 007985006131 |
SCREW |
| 046 |
N 000137006204 |
SPRING WASHER |
| 051 |
A 0009902791 |
NUT RETAINER |
|
Repalced by: A 0009902291
|
| 051 |
A 0009902291 |
NUT RETAINER |
|
Repalced by: A 0019906791
|
| 051 |
A 0019906791 |
NUT RETAINER |
| 056 |
A 1083010053 |
SPACER TUBE |
| 059 |
A 1143010051 |
SPACER RING |
| 059 |
A 1143010051 |
SPACER RING |
| 063 |
A 1839970081 |
GROMMET |
|
A 1093000020 |
SHAFT |
|
A 1083000020 |
SHAFT |
|
Repalced by: A 1083000820
|
| 068 |
A 1083000820 |
SHAFT |
|
A 1093000520 |
SHAFT |
| 072 |
A 1093001220 |
SHAFT |
|
A 1093001620 |
SHAFT |
| 076 |
N 900055012402 |
LOCK RING |
| 076 |
N 900055012402 |
LOCK RING |
|
A 1093000220 |
SHAFT |
|
A 1083000920 |
SHAFT |
|
A 1093001420 |
SHAFT |
|
A 1093001720 |
SHAFT |
|
A 1093000720 |
SHAFT |
|
Repalced by: A 1093001320
|
|
A 1093001320 |
SHAFT |
| 088 |
A 1093001520 |
SHAFT |
| 092 |
A 1169930610 |
SPRING |
| 092 |
A 1169930610 |
SPRING |
|
A 1169930610 |
SPRING |
| 096 |
A 1099930901 |
SPRING |
| 096 |
A 1099930901 |
SPRING |
| 099 |
A 1093010051 |
SPACER RING |
| 099 |
A 1093010051 |
SPACER RING |
| 104 |
A 1263000085 |
JOINT BALL |
|
Repalced by: A 1263010485
|
|
A 1263010485 |
RUBBER BUFFER |
|
A 1163010150 |
BUSHING |
|
A 1163010150 |
BUSHING |
|
A 1093000015 |
ROD |
|
A 1093000215 |
ROD |
|
A 1093000415 |
ROD |
| 108 |
A 1093000615 |
ROD |
| 113 |
N 000934005008 |
NUT |
| 113 |
N 000934005008 |
NUT |
| 117 |
A 0009911622 |
BALL SOCKET |
|
Repalced by: A 0009918922
|
| 117 |
A 0009918922 |
BALL SOCKET |
|
Repalced by: A 0009930461
|
| 117 |
A 0009930461 |
CONICAL CUP |
| 117 |
A 0009930461 |
CONICAL CUP |
| 119 |
A 1093011020 |
LEVER |
| 123 |
N 000933005036 |
SCREW |
| 126 |
N 000125005317 |
WASHER |
|
Repalced by: N 000433005304
|
| 126 |
N 000433005304 |
WASHER |
| 129 |
A 1153010241 |
STOP |
| 129 |
A 1153010241 |
STOP |
| 132 |
A 1159970640 |
SEAL RING |
| 132 |
A 1159970640 |
SEAL RING |
|
A 0009870415 |
PLUG |
|
A 1123000815 |
ROD |
| 138 |
A 1113001215 |
ROD |
|
A 1003000115 |
ROD |
|
A 1093000115 |
ROD |
| 142 |
A 1093000315 |
ROD |
| 146 |
N 000934005008 |
NUT |
| 149 |
A 0009911622 |
BALL SOCKET |
|
Repalced by: A 0009918922
|
| 149 |
A 0009918922 |
BALL SOCKET |
|
Repalced by: A 0009930461
|
| 149 |
A 0009930461 |
CONICAL CUP |
| 151 |
A 1213010097 |
BOOT |
|
Repalced by: A 1803010097
|
| 151 |
A 1803010097 |
BOOT |
| 154 |
N 000933009016 |
SCREW |
| 157 |
N 000137008204 |
SPRING WASHER |
|
Repalced by: N 000137008212
|
| 157 |
N 000137008212 |
SPRING WASHER |
| 159 |
N 000125008407 |
WASHER |
| 163 |
N 900055012402 |
LOCK RING |
| 168 |
A 1123000241 |
STOP |
| 168 |
A 1123000241 |
STOP |
|
A 1093000041 |
STOP |
| 173 |
A 1153000241 |
STOP |
| 173 |
A 1153000241 |
STOP |
| 173 |
A 1153000241 |
STOP |
|
A 1123000341 |
STOP |
|
A 0005452706 |
SWITCH |
|
|
WITH PLUG CONNECTION |
| 176 |
A 0005451706 |
SWITCH |
|
|
KICK-DOWN |
| 176 |
A 0005451706 |
SWITCH |
|
|
KICK-DOWN |
| 179 |
A 1129900151 |
NUT |
| 179 |
A 1129900151 |
NUT |
| 179 |
A 1129900151 |
NUT |
| 179 |
A 1129900151 |
NUT |
| 183 |
A 1153040151 |
NUT |
| 183 |
A 1153040151 |
NUT |
| 183 |
A 1153040151 |
NUT |
| 186 |
A 1123040127 |
HOUSING |
| 188 |
A 1123040120 |
LEVER |
| 193 |
A 1129970010 |
PIN |
| 196 |
A 1129930020 |
SPRING |
|
A 1093040040 |
BRACKET |
|
A 0029884878 |
CLIP |
|
N 912004006102 |
LOCK WASHER |
|
|
SPRING-LOADED STOP TO TOEBOARD |
|
N 007985006131 |
SCREW |
|
|
SPRING-LOADED STOP TO TOEBOARD |
