Transporto priemonė: 300 SEL; VIN numerio dalis: 109016

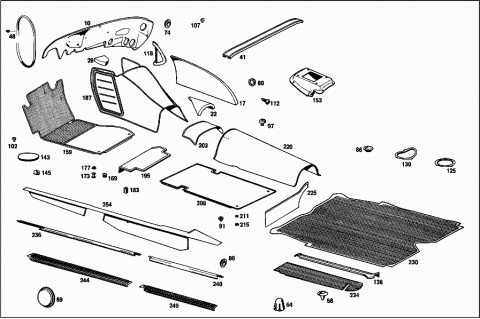

Grupė: 68 COVERING - 001 BOW
| # | Kodas | Pavadinimas |
|---|---|---|
| A 0009833691 | CARDBOARD | |
| 1 MM | ||
| A 0009833691 | CARDBOARD | |
| REAR END PILLAR | ||
| 324X763 MM | ||
| A 0009833691 | CARDBOARD | |
| REAR ROOF RAIL | ||
| 187X1078 MM | ||
| A 0009833691 | CARDBOARD | |
| FRONT ROOF RAIL | ||
| 174X1304 MM | ||
| A 0009833691 | CARDBOARD | |
| SIDE ROOF RAIL | ||
| 172X1236 MM | ||
| A 0009832991 | CARDBOARD | |
| 3 MM | ||
| A 0009832991 | CARDBOARD | |
| 3 MM | ||
| A 0009832991 | CARDBOARD | |
| 3 MM | ||
| A 0009832991 | CARDBOARD | |
| 3 MM | ||
| A 0009832991 | CARDBOARD | |
| TRANSMISSION TUNNEL | ||
| 684X794 MM | ||
| A 0009832991 | CARDBOARD | |
| TUNNEL,FRONT FLOOR | ||
| 165X225 MM | ||
| A 0009832991 | CARDBOARD | |
| 3 MM | ||
| A 0009832991 | CARDBOARD | |
| 3 MM | ||
| A 0009832991 | CARDBOARD | |
| 3 MM | ||
| A 0009832991 | CARDBOARD | |
| 3 MM | ||
| A 0009832991 | CARDBOARD | |
| 3 MM | ||
| A 0009832991 | CARDBOARD | |
| TOEBOARD;RIGHT | ||
| 455X559 MM | ||
| A 0009832991 | CARDBOARD | |
| 3 MM | ||
| A 0009832991 | CARDBOARD | |
| 3 MM | ||
| A 0009832991 | CARDBOARD | |
| 3 MM | ||
| A 0009832991 | CARDBOARD | |
| 3 MM | ||
| A 0009832991 | CARDBOARD | |
| 3 MM | ||
| A 0009832991 | CARDBOARD | |
| 3 MM | ||
| A 0009832991 | CARDBOARD | |
| 3 MM | ||
| A 0009832991 | CARDBOARD | |
| 3 MM | ||
| A 0009832991 | CARDBOARD | |
| TOEBOARD;LEFT | ||
| 475X502 MM | ||
| A 0009832991 | CARDBOARD | |
| 3 MM | ||
| A 0009832991 | CARDBOARD | |
| 3 MM | ||
| A 0009832991 | CARDBOARD | |
| 3 MM | ||
| A 0009832991 | CARDBOARD | |
| 3 MM | ||
| A 0009832991 | CARDBOARD | |
| 3 MM | ||
| A 0009832991 | CARDBOARD | |
| LUGGAGE COMPARTMENT FLOOR, LEFT | ||
| 372X563 MM | ||
| A 0009832991 | CARDBOARD | |
| LUGGAGE COMPARTMENT FLOOR, RIGHT | ||
| 377X480 MM | ||
| A 0009832991 | CARDBOARD | |
| 3 MM | ||
| A 0009832991 | CARDBOARD | |
| BELOW REAR SEAT | ||
| 625X665 MM | ||
| A 0009832991 | CARDBOARD | |
| 3 MM | ||
| A 0009832991 | CARDBOARD | |
| 3 MM | ||
| A 0009832991 | CARDBOARD | |
| TUNNEL,IN THE REAR | ||
| 534X845 MM | ||
| A 0009832991 | CARDBOARD | |
| LUGGAGE COMPARTMENT FLOOR | ||
| 505X735 MM | ||
| A 0009832991 | CARDBOARD | |
| 3 MM | ||
| A 0009832991 | CARDBOARD | |
| 3 MM | ||
| A 0009832991 | CARDBOARD | |
| LUGGAGE COMPARTMENT FLOOR | ||
| 85X570 MM | ||
| A 0009832991 | CARDBOARD | |
| FRONT FLOOR,LEFT | ||
| 522X558 | ||
| A 0009832991 | CARDBOARD | |
| RIGHT FRONT FLOOR | ||
| 544X558 MM | ||
| A 0009832991 | CARDBOARD | |
| TUNNEL,FRONT FLOOR | ||
| 371X380 MM | ||
| A 0009832991 | CARDBOARD | |
| 3 MM | ||
| A 0009832991 | CARDBOARD | |
| 3 MM | ||
| A 0009832991 | CARDBOARD | |
| TOEBOARD;LEFT | ||
| 439X490 MM | ||
| A 0009832991 | CARDBOARD | |
| TOEBOARD;RIGHT | ||
| 494X545 MM | ||
| A 0009832991 | CARDBOARD | |
| TOEBOARD;LEFT | ||
| 450X549 MM | ||
| A 0009832991 | CARDBOARD | |
| TOEBOARD;RIGHT | ||
| 396X440 MM | ||
| A 0009832991 | CARDBOARD | |
| 3 MM | ||
| A 0009833091 | CARDBOARD | |
| 5 MM | ||
| A 0009834291 | CARDBOARD | |
| 7 MM | ||
| A 0009834291 | CARDBOARD | |
| 7 MM | ||
| A 1086820301 | INSULATION | |
| Repalced by: A 0009891810 | ||
| A 0009891810 | FIBREGLAS MAT | |
| LEFT, FRONT FLOOR | ||
| A 1086820401 | INSULATION | |
| RIGHT, FRONT FLOOR | ||
| A 1086820501 | INSULATION | |
| LEFT, FRONT FLOOR | ||
| A 1086820201 | INSULATION | |
| Repalced by: A 0009891810 | ||
| A 0009891810 | FIBREGLAS MAT | |
| RIGHT, FRONT FLOOR | ||
| A 1086822704 | INSULATION | |
| Repalced by: A 0009891810 | ||
| A 1086822604 | INSULATION | |
| Repalced by: A 0009891810 | ||
| A 1086822904 | INSULATION | |
| Repalced by: A 0009891810 | ||
| A 1086822804 | INSULATION | |
| Repalced by: A 0009891810 | ||
| 010 | A 1086820526 | INSULATION |
| A 1086820726 | INSULATION | |
| Repalced by: A 0009834291 | ||
| A 0009834291 | CARDBOARD | |
| LEFT, FIRE WALL, SIDE | ||
| A 1086820826 | INSULATION | |
| Repalced by: A 0009834291 | ||
| A 0009834291 | CARDBOARD | |
| RIGHT, FIRE WALL, SIDE | ||
| A 1086820626 | INSULATION | |
| FIRE WALL, CENTER | ||
| A 1086820926 | INSULATION | |
| Repalced by: A 0009834291 | ||
| A 0009834291 | CARDBOARD | |
| LEFT, AT FIRE WALL, SIDE TOP | ||
| A 1086821926 | INSULATION | |
| Repalced by: A 1086824326 | ||
| A 1086824326 | INSULATION | |
| Repalced by: A 1086824526 | ||
| A 1086824526 | INSULATION | |
| LEFT, AT FIRE WALL, SIDE BOTTOM | ||
| A 1086820713 | INSULATION | |
| LEFT | ||
| 017 | A 1086820813 | INSULATION |
| RIGHT | ||
| 022 | A 1086820913 | INSULATION |
| 029 | A 1086821013 | INSULATION |
| A 1096820113 | INSULATION | |
| Repalced by: A 0009830098 | ||
| A 1096820713 | INSULATION | |
| Repalced by: A 0009830098 | ||
| A 1096820913 | INSULATION | |
| Repalced by: A 0009830098 | ||
| A 0009830098 | FOAM PLASTICS | |
| Repalced by: A 0009833598 | ||
| A 0009833598 | FOAM PLASTICS | |
| LEFT | ||
| 20 MM | ||
| A 1096820213 | INSULATION | |
| Repalced by: A 0009891810 | ||
| A 0009891810 | FIBREGLAS MAT | |
| RIGHT | ||
| 15 MM | ||
| A 1096820013 | INSULATION | |
| Repalced by: A 1096820513 | ||
| A 1096820513 | INSULATION | |
| LEFT | ||
| A 1096820613 | INSULATION | |
| Repalced by: A 0009891810 | ||
| A 0009891810 | FIBREGLAS MAT | |
| RIGHT | ||
| A 0009830098 | FOAM PLASTICS | |
| Repalced by: A 0009833598 | ||
| A 0009833598 | FOAM PLASTICS | |
| REAR END PILLAR | ||
| 324X763 MM | ||
| A 0009833598 | FOAM PLASTICS | |
| REAR ROOF RAIL | ||
| 187X1078 MM | ||
| A 0009833598 | FOAM PLASTICS | |
| FRONT ROOF RAIL | ||
| 174X1304 MM | ||
| A 0009833598 | FOAM PLASTICS | |
| SIDE ROOF RAIL | ||
| 172X1236 MM | ||
| A 0009833598 | FOAM PLASTICS | |
| 5 MM | ||
| A 0009830198 | FOAM PLASTICS | |
| Repalced by: A 0009833598 | ||
| A 0009833598 | FOAM PLASTICS | |
| 10 MM | ||
| A 0009833598 | FOAM PLASTICS | |
| 10 MM | ||
| A 0009891610 | INSULATION MAT | |
| 15 MM | ||
| A 0009891610 | INSULATION MAT | |
| FRONT FLOOR | ||
| 540X510 MM | ||
| A 0009891610 | INSULATION MAT | |
| 15 MM | ||
| A 0009891610 | INSULATION MAT | |
| 15 MM | ||
| A 0009891610 | INSULATION MAT | |
| 15 MM | ||
| A 0009891610 | INSULATION MAT | |
| 15 MM | ||
| A 0009891610 | INSULATION MAT | |
| 20 MM | ||
| A 0009891610 | INSULATION MAT | |
| 20 MM | ||
| A 0009891610 | INSULATION MAT | |
| 20 MM | ||
| A 0009891810 | FIBREGLAS MAT | |
| TOEBOARD;LEFT | ||
| 441X490 MM | ||
| A 0009891810 | FIBREGLAS MAT | |
| TOEBOARD;RIGHT | ||
| 495X504 MM | ||
| A 0009891810 | FIBREGLAS MAT | |
| TOEBOARD;LEFT | ||
| 450X550 MM | ||
| A 0009891810 | FIBREGLAS MAT | |
| TOEBOARD;RIGHT | ||
| 397X442 MM | ||
| A 0009891810 | FIBREGLAS MAT | |
| 7 MM | ||
| A 0009891810 | FIBREGLAS MAT | |
| 7 MM | ||
| A 0009891810 | FIBREGLAS MAT | |
| 7 MM | ||
| A 0009891810 | FIBREGLAS MAT | |
| 7 MM | ||
| A 0009891810 | FIBREGLAS MAT | |
| TOEBOARD;LEFT | ||
| 439X490 MM | ||
| A 0009891810 | FIBREGLAS MAT | |
| TOEBOARD;RIGHT | ||
| 494X545 MM | ||
| A 0009891810 | FIBREGLAS MAT | |
| TOEBOARD;LEFT | ||
| 450X549 MM | ||
| A 0009891810 | FIBREGLAS MAT | |
| TOEBOARD;RIGHT | ||
| 396X440 MM | ||
| A 1096820526 | INSULATION | |
| ENGINE HOOD | ||
| A 1096821107 | INSULATION | |
| TUNNEL, LEFT | ||
| A 1096821207 | INSULATION | |
| TUNNEL,RIGHT | ||
| A 1096821307 | INSULATION | |
| TUNNEL, TOP LEFT | ||
| A 1096821407 | INSULATION | |
| TUNNEL, TOP RIGHT | ||
| A 1086820051 | INSULATION | |
| Repalced by: A 1156820052 | ||
| A 1086820151 | INSULATION | |
| Repalced by: A 1156820052 | ||
| A 1086820651 | INSULATION | |
| Repalced by: A 1156820052 | ||
| 041 | A 1156820052 | INSULATION |
| Repalced by: A 0009834192 | ||
| A 0009834192 | FELT | |
| BOW NO. 2 FROM THE FRONT | ||
| A 1086820551 | INSULATION | |
| Repalced by: A 0009834192 | ||
| A 0009834192 | FELT | |
| BOWS NOS. 1,3,4 | ||
| A 1086820107 | INSULATION | |
| 048 | A 0009875070 | RUBBER SECTION |
| 465 MM | ||
| A 1106870045 | CAP | |
| OVER KICK-DOWN-SWITCH | ||
| A 1126830210 | COVER | |
| A 1126830198 | SEAL | |
| Repalced by: A 0019890985 | ||
| A 0019890985 | ADHESIVE TAPE | |
| A 0009940845 | LOCK | |
| Repalced by: A 0009945045 | ||
| A 0009945045 | LOCK | |
| A 1126830198 | SEAL | |
| A 0009940845 | LOCK | |
| N 007976006303 | SHEET METAL SCREW | |
| N 007976006303 | SHEET METAL SCREW | |
| A 1106830610 | COVER | |
| AT TUNNEL | ||
| A 1106830610 | COVER | |
| AT TUNNEL | ||
| A 1106830610 | COVER | |
| AT TUNNEL | ||
| A 1106830298 | SEAL | |
| Repalced by: A 0039895485 | ||
| A 0039895485 | ADHESIVE TAPE | |
| A 0039895485 | ADHESIVE TAPE | |
| A 0039895485 | ADHESIVE TAPE | |
| A 0009942345 | LOCK | |
| A 0009942345 | LOCK | |
| A 0009942345 | LOCK | |
| N 007981004318 | SHEET METAL SCREW | |
| N 007981004318 | SHEET METAL SCREW | |
| N 007981004318 | SHEET METAL SCREW | |
| 058 | A 1119971281 | GROMMET |
| A 1089970481 | GROMMET | |
| 064 | A 1106830336 | COVERING |
| 069 | A 1109870644 | EXPANSION PLUG |
| A 1109871444 | EXPANSION PLUG | |
| HOLE IN REAR END FLOOR | ||
| 074 | A 1109870844 | EXPANSION PLUG |
| 074 | A 1109870844 | EXPANSION PLUG |
| 080 | A 1109870944 | EXPANSION PLUG |
| Repalced by: A 1139870044 | ||
| 080 | A 1139870044 | EXPANSION PLUG |
| A 1109871044 | EXPANSION PLUG | |
| A 1099870015 | PLUG | |
| IGNITION COIL MOUNTING HOLES | ||
| A 1109870544 | EXPANSION PLUG | |
| Repalced by: A 0009974020 | ||
| A 0009974020 | EXPANSION PLUG | |
| 086 | A 1139870044 | EXPANSION PLUG |
| 091 | A 1109870039 | RUBBER BUFFER |
| Repalced by: A 0009973320 | ||
| 091 | A 0009973320 | EXPANSION PLUG |
| 097 | A 0009901322 | SCREW |
| A 0019870340 | RUBBER BUFFER | |
| Repalced by: A 1269870139 | ||
| A 1269870139 | RUBBER BUFFER | |
| A 1269870139 | RUBBER BUFFER | |
| AT FRONT RIGHT WHEELHOUSE | ||
| 102 | A 1119871215 | PLUG |
| Repalced by: A 0009871840 | ||
| 102 | A 0009871840 | RUBBER BUFFER |
| 107 | A 1159970286 | PLUG |
| 112 | A 0009871115 | PLUG |
| Repalced by: A 0009974886 | ||
| 112 | A 0009974886 | PLUG |
| A 0009971986 | PLUG | |
| 118 | A 1096830010 | COVER |
| Repalced by: A 1096830110 | ||
| A 1096830110 | COVER | |
| A 1096830210 | COVER | |
| A 1096830510 | COVER | |
| A 1096830610 | COVER | |
| 125 | A 1106830110 | COVER |
| Repalced by: A 1236830010 | ||
| 125 | A 1236830010 | COVER |
| 130 | A 1106830210 | COVER |
| Repalced by: A 1236830010 | ||
| 130 | A 1236830010 | COVER |
| A 0009895120 | SEALANT | |
| Repalced by: A 0019893320 | ||
| A 0019893320 | SEALANT | |
| A 1109870144 | EXPANSION PLUG | |
| Repalced by: A 1109870744 | ||
| A 1109870744 | EXPANSION PLUG | |
| 136 | A 1086830124 | LEDGE |
| IN LUGGAGE COMPARTMENT,LEFT | ||
| A 1126830224 | LEDGE | |
| Repalced by: A 1086830224 | ||
| A 1086830224 | LEDGE | |
| IN LUGGAGE COMPARTMENT, RIGHT | ||
| A 1086830224 | LEDGE | |
| IN LUGGAGE COMPARTMENT, RIGHT | ||
| A 1096830224 | LEDGE | |
| Repalced by: A 1086830224 | ||
| A 1086830224 | LEDGE | |
| IN LUGGAGE COMPARTMENT, RIGHT | ||
| N 007981004318 | SHEET METAL SCREW | |
| 143 | A 1106830010 | COVER |
| 145 | A 0019884478 | CLIP |
| A 1156830098 | SEAL | |
| N 007985006128 | SCREW | |
| A 0009902791 | NUT RETAINER | |
| Repalced by: A 0009902291 | ||
| A 0009902291 | NUT RETAINER | |
| Repalced by: A 0019906791 | ||
| A 0019906791 | NUT RETAINER | |
| A 1096830028 | SLIDING PLATE | |
| ACCELERATOR PEDAL | ||
| A 0019877625 | PLASTIC SECTION | |
| A 0019877625 | PLASTIC SECTION | |
| A 0019877625 | PLASTIC SECTION | |
| A 0019877625 | PLASTIC SECTION | |
| N 007981003246 | SHEET METAL SCREW | |
| 153 | A 1096800036 | COVERING |
| A 0019890985 | ADHESIVE TAPE | |
| N 007976004215 | SHEET METAL SCREW | |
| A 1096800140 | LINING | |
| Repalced by: A 1096801740 | ||
| A 1086803140 | LINING | |
| Repalced by: A 1096801740 | ||
| 159 | A 1096801740 | LINING |
| LEFT | ||
| A 1096802140 | LINING | |
| LEFT | ||
| A 1096803340 | LINING | |
| LEFT | ||
| A 1096803340 | LINING | |
| LEFT | ||
| A 1096805740 | LINING | |
| LEFT | ||
| A 1096806140 | LINING | |
| LEFT | ||
| A 1096804540 | LINING | |
| LEFT | ||
| A 1096800240 | LINING | |
| RIGHT | ||
| A 1096802240 | LINING | |
| RIGHT | ||
| A 1096803440 | LINING | |
| RIGHT | ||
| A 1096805840 | LINING | |
| RIGHT | ||
| A 1096806640 | LINING | |
| RIGHT | ||
| A 1096804640 | LINING | |
| RIGHT | ||
| A 1096800340 | LINING | |
| LEFT | ||
| A 1096800440 | LINING | |
| RIGHT | ||
| A 1096802540 | LINING | |
| LEFT | ||
| A 1096803540 | LINING | |
| LEFT | ||
| A 1096805940 | LINING | |
| LEFT | ||
| A 1096804740 | LINING | |
| LEFT | ||
| A 1096804840 | LINING | |
| RIGHT | ||
| A 1096806040 | LINING | |
| RIGHT | ||
| A 1096806240 | LINING | |
| RIGHT | ||
| A 1096801240 | LINING | |
| Repalced by: A 1096801840 | ||
| A 1096801840 | LINING | |
| RIGHT | ||
| A 1096801840 | LINING | |
| RIGHT | ||
| A 1096802640 | LINING | |
| RIGHT | ||
| A 1096803640 | LINING | |
| RIGHT | ||
| A 1096808140 | LINING | |
| LEFT | ||
| A 1096808340 | LINING | |
| Repalced by: A 1096804740 | ||
| A 1096804740 | LINING | |
| LEFT | ||
| A 1096808240 | LINING | |
| RIGHT | ||
| A 1096808440 | LINING | |
| RIGHT | ||
| 169 | A 0009882280 | FASTENER BUTTON |
| Repalced by: A 0009881480 | ||
| 169 | A 0009881480 | FASTENER BUTTON |
| 173 | A 0009881480 | FASTENER BUTTON |
| 177 | A 1369880981 | FASTENER BUTTON |
| Repalced by: A 0009888481 | ||
| 177 | A 0009888481 | FASTENER BUTTON |
| N 007981003255 | SHEET METAL SCREW | |
| N 007981003270 | SHEET METAL SCREW | |
| N 007973003227 | SHEET METAL SCREW | |
| A 1119901040 | WASHER | |
| A 1129900042 | WASHER | |
| Repalced by: A 3019900042 | ||
| A 3019900042 | WASHER | |
| 183 | A 1159870042 | SPACER |
| Repalced by: A 0009888581 | ||
| A 0009888581 | FASTENER BUTTON | |
| 187 | A 1096800145 | LINING |
| 187 | A 1096800145 | LINING |
| A 1096802645 | LINING | |
| A 1096800245 | LINING | |
| A 1096800245 | LINING | |
| A 1096802745 | LINING | |
| A 1096803145 | LINING | |
| A 1096803545 | LINING | |
| A 1096803445 | LINING | |
| A 1096803645 | LINING | |
| A 1096803745 | LINING | |
| A 1096804145 | LINING | |
| A 1096803945 | LINING | |
| A 1096803745 | LINING | |
| A 1096804145 | LINING | |
| 195 | A 1096800147 | LINING |
| LEFT | ||
| 195 | A 1096800147 | LINING |
| LEFT | ||
| A 1096800547 | LINING | |
| LEFT | ||
| A 1096804140 | LINING | |
| LEFT | ||
| A 1096800247 | LINING | |
| RIGHT | ||
| A 1096800247 | LINING | |
| RIGHT | ||
| A 1096800647 | LINING | |
| RIGHT | ||
| A 1096804240 | LINING | |
| RIGHT | ||
| A 1096800347 | LINING | |
| LEFT | ||
| A 1096800347 | LINING | |
| LEFT | ||
| A 1096800747 | LINING | |
| LEFT | ||
| A 1096804340 | LINING | |
| LEFT | ||
| A 1096800447 | LINING | |
| LEFT | ||
| A 1096800447 | LINING | |
| LEFT | ||
| A 1096800847 | LINING | |
| LEFT | ||
| A 1096804440 | LINING | |
| LEFT | ||
| 203 | A 1096800645 | LINING |
| A 1096800141 | LINING | |
| Repalced by: A 1096800041 | ||
| A 1096800241 | LINING | |
| Repalced by: A 1096800041 | ||
| 208 | A 1096800041 | LINING |
| 211 | A 1119901040 | WASHER |
| 215 | A 1369880981 | FASTENER BUTTON |
| Repalced by: A 0009888481 | ||
| 215 | A 0009888481 | FASTENER BUTTON |
| N 007981003214 | SHEET METAL SCREW | |
| 220 | A 1096800745 | LINING |
| 225 | A 1096800144 | LINING |
| LEFT | ||
| A 1096800244 | LINING | |
| RIGHT | ||
| 230 | A 1106840205 | LINING |
| Repalced by: A 1086840105 | ||
| A 1086840105 | LINING | |
| 234 | A 1086840006 | LINING |
| 236 | A 1086860136 | RAIL |
| Repalced by: A 1086860536 | ||
| 236 | A 1086860536 | RAIL |
| LEFT | ||
| A 1086860236 | RAIL | |
| Repalced by: A 1086860636 | ||
| A 1086860636 | RAIL | |
| RIGHT | ||
| N 007983003248 | SHEET METAL SCREW | |
| Repalced by: N 007983004205 | ||
| N 007983004205 | SHEET METAL SCREW | |
| 240 | A 1096860136 | RAIL |
| BELOW REAR DOOR, LEFT | ||
| A 1096860236 | RAIL | |
| BELOW REAR DOOR, RIGHT | ||
| N 007983003248 | SHEET METAL SCREW | |
| Repalced by: N 007983004205 | ||
| N 007983004205 | SHEET METAL SCREW | |
| 244 | A 1086860180 | LINING |
| LEFT | ||
| A 1086860280 | LINING | |
| RIGHT | ||
| 249 | A 1096860380 | LINING |
| LEFT | ||
| A 1096860480 | LINING | |
| RIGHT | ||
| 254 | A 1096800143 | LINING |
| LEFT | ||
| A 1096800243 | LINING | |
| RIGHT | ||
| A 1096800417 | COVERING | |
| Repalced by: A 1096804717 | ||
| 257 | A 1096804717 | COVERING |
| Repalced by: A 1086807617 | ||
| 257 | A 1086807617 | COVERING |
| RIGHT | ||
| 257 | A 1086807617 | COVERING |
| RIGHT | ||
| A 1096800117 | COVERING | |
| Repalced by: A 1096803117 | ||
| A 1096801717 | COVERING | |
| Repalced by: A 1096803117 | ||
| A 1096803117 | COVERING | |
| INSTRUMENT PANEL BRACING | ||
| A 1096803317 | COVERING | |
| INSTRUMENT PANEL BRACING | ||
| A 1096803917 | COVERING | |
| 263 | A 1096804517 | COVERING |
| INSTRUMENT PANEL BRACING | ||
| 263 | A 1096804517 | COVERING |
| INSTRUMENT PANEL BRACING | ||
| A 1086809417 | COVERING | |
| INSTRUMENT PANEL BRACING | ||
| A 1086802367 | END PIECE | |
| INSTRUMENT PANEL BRACING | ||
| A 1086809717 | COVERING | |
| INSTRUMENT PANEL BRACING | ||
| N 007983003264 | SHEET METAL SCREW | |
| INSTRUMENT PANEL BRACING | ||
| A 1129900042 | WASHER | |
| Repalced by: A 3019900042 | ||
| A 3019900042 | WASHER | |
| INSTRUMENT PANEL BRACING | ||
| A 1096803217 | COVERING | |
| INSTRUMENT PANEL BRACING | ||
| A 1096800217 | COVERING | |
| Repalced by: A 1096803017 | ||
| A 1096801817 | COVERING | |
| Repalced by: A 1096803017 | ||
| A 1096803017 | COVERING | |
| INSTRUMENT PANEL BRACING | ||
| A 1096804217 | COVERING | |
| INSTRUMENT PANEL BRACING | ||
| A 1096804217 | COVERING | |
| INSTRUMENT PANEL BRACING | ||
| A 1086809117 | COVERING | |
| Repalced by: A 1096802717 | ||
| A 1096802717 | COVERING | |
| LEFT INSTRUMENT PANEL BRACING | ||
| A 1086809217 | COVERING | |
| RIGHT INSTRUMENT PANEL BRACING | ||
| A 1086809517 | COVERING | |
| Repalced by: A 0009832291 | ||
| A 0009832291 | CARDBOARD | |
| LEFT INSTRUMENT PANEL BRACING | ||
| A 1086809617 | COVERING | |
| Repalced by: A 0009832291 | ||
| A 0009832291 | CARDBOARD | |
| RIGHT INSTRUMENT PANEL BRACING | ||
| A 1086801117 | COVERING | |
| Repalced by: A 1096802717 | ||
| A 1096801317 | COVERING | |
| Repalced by: A 1096802717 | ||
| 270 | A 1096802717 | COVERING |
| LEFT | ||
| 270 | A 1096802717 | COVERING |
| LEFT | ||
| A 1086808817 | COVERING | |
| Repalced by: A 0009832291 | ||
| A 0009832291 | CARDBOARD | |
| RIGHT | ||
| A 0009832291 | CARDBOARD | |
| RIGHT | ||
| A 0009882378 | CLIP | |
| A 1086809317 | COVERING | |
| LEFT | ||
| A 1086809817 | COVERING | |
| RIGHT | ||
| A 1086870312 | ANGLE | |
| LEFT | ||
| A 1096800617 | COVERING | |
| Repalced by: A 1096804817 | ||
| A 1096804817 | COVERING | |
| LEFT | ||
| A 1096804817 | COVERING | |
| LEFT | ||
| 277 | A 0009882378 | CLIP |
| N 007983004245 | SHEET METAL SCREW | |
| N 007983003230 | SHEET METAL SCREW | |
| N 007983003264 | SHEET METAL SCREW | |
| A 0009850662 | WASHER | |
| 283 | A 1129900042 | WASHER |
| Repalced by: A 3019900042 | ||
| 283 | A 3019900042 | WASHER |
| A 1139880080 | FASTENER BUTTON | |
| Repalced by: A 0009881480 | ||
| A 0009881480 | FASTENER BUTTON | |
| INSTRUMENT PANEL OUTSIDE COVERING TO FIRE WALL | ||
| N 007983004229 | SHEET METAL SCREW | |
| Repalced by: N 007983004228 | ||
| N 007983004228 | SHEET METAL SCREW | |
| INSTRUMENT PANEL OUTSIDE COVERING TO FIRE WALL | ||
| A 1096800380 | PANELLING | |
| Repalced by: A 1096800580 | ||
| A 1096800580 | PANELLING | |
| FRONT PANEL, LATERAL LEFT, WITH POCKET | ||
| A 1096800480 | PANELLING | |
| Repalced by: A 1096800680 | ||
| 288 | A 1096800680 | PANELLING |
| FRONT PANEL, LATERAL RIGHT, WITH POCKET | ||
| A 1096800180 | PANELLING | |
| FRONT PANEL, LATERAL LEFT, LESS POCKET | ||
| A 1096800280 | PANELLING | |
| FRONT PANEL, LATERAL RIGHT, LESS POCKET | ||
| A 1096801380 | PANELLING | |
| FRONT PANEL, LATERAL LEFT, LESS POCKET | ||
| A 1096801480 | PANELLING | |
| FRONT PANEL, LATERAL RIGHT, LESS POCKET | ||
| A 1096801780 | PANELLING | |
| FRONT PANEL, LATERAL LEFT, LESS POCKET | ||
| A 1096801880 | PANELLING | |
| FRONT PANEL, LATERAL RIGHT, LESS POCKET | ||
| A 1096880120 | RAIL | |
| LEFT | ||
| 295 | A 1096880220 | RAIL |
| RIGHT | ||
| N 007982002205 | SHEET METAL SCREW | |
| N 007983003260 | SHEET METAL SCREW | |
| A 0009850662 | WASHER | |
| 300 | A 1096880141 | PANELLING |
| LEFT | ||
| A 1096880241 | PANELLING | |
| RIGHT | ||
| N 007983002203 | SHEET METAL SCREW | |
| 307 | A 1086800791 | GLOVE COMPARTMENT |
| A 1086800891 | GLOVE COMPARTMENT | |
| A 1086890191 | GLOVE COMPARTMENT | |
| Repalced by: A 1086800791 | ||
| A 1086890291 | GLOVE COMPARTMENT | |
| Repalced by: A 1086800891 | ||
| A 1086890591 | GLOVE COMPARTMENT | |
| Repalced by: A 1086800791 | ||
| A 1086890791 | GLOVE COMPARTMENT | |
| Repalced by: A 1086800791 | ||
| A 1086890691 | GLOVE COMPARTMENT | |
| Repalced by: A 1086800891 | ||
| A 1086890891 | GLOVE COMPARTMENT | |
| Repalced by: A 1086800891 | ||
| A 0009943345 | LOCK | |
| Repalced by: A 1409941045 | ||
| A 1409941045 | LOCK | |
| N 007981004244 | SHEET METAL SCREW | |

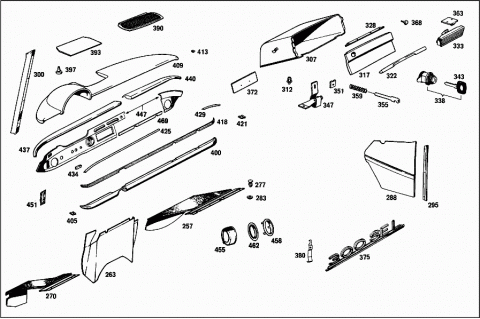

| Repalced by: N 000000000453 | ||
| N 000000000453 | SHEET METAL SCREW | |
| 312 | A 0009900192 | RIVET |
| Repalced by: A 1239900092 | ||
| 312 | A 1239900092 | RIVET |
| 312 | A 1239900092 | RIVET |
| A 1086800198 | GLOVE COMPARTMENT LID | |
| Repalced by: A 1096800198 | ||
| A 1086800298 | GLOVE COMPARTMENT LID | |
| Repalced by: A 1096800298 | ||
| A 1096800198 | GLOVE COMPARTMENT LID | |
| A 1096800298 | GLOVE COMPARTMENT LID | |
| 317 | A 1096800798 | GLOVE COMPARTMENT LID |
| A 1096800898 | GLOVE COMPARTMENT LID | |
| A 1096801198 | GLOVE COMPARTMENT LID | |
| A 1096801298 | GLOVE COMPARTMENT LID | |
| A 1086890170 | HANDLE | |
| Repalced by: A 1086890070 | ||
| A 1086890270 | HANDLE | |
| Repalced by: A 1086890070 | ||
| A 1086890070 | HANDLE | |
| Repalced by: A 1086890370 | ||
| A 1086890370 | HANDLE | |
| A 1086890370 | HANDLE | |
| A 0009872060 | RUBBER PAD | |
| 322 | A 1086800170 | HANDLE |
| A 1086800270 | HANDLE | |
| N 007995003013 | WOOD SCREW | |
| N 007996003007 | WOOD SCREW | |
| N 009021003107 | WASHER | |
| 328 | A 1086890972 | GARNISH MOULDING |
| N 007997003003 | WOOD SCREW | |
| 333 | A 1156890101 | LOCK |
| N 007988004105 | SCREW | |
| A 0009850662 | WASHER | |
| Repalced by: A 0009851062 | ||
| A 0009851062 | WASHER | |
| A 1086800084 | FASTENER | |
| A 0007662306 | KEY | |
| Repalced by: A 1087600206 | ||
| A 1087600206 | KEY | |
| A 1086800384 | FASTENER | |
| WITH KEY | ||
| 338 | A 1086800284 | FASTENER |
| LESS KEY | ||
| A 0007663506 | KEY | |
| Repalced by: A 0007600406 | ||
| 343 | A 0007600406 | KEY |
| MASTER KEY | ||
| HUF | ||
| A 0007600606 | KEY | |
| MASTER KEY | ||
| YMOS | ||
| 347 | A 1086800151 | HINGE |
| 351 | A 0009944545 | LOCK |
| N 007983003202 | SHEET METAL SCREW | |
| Repalced by: A 1269900436 | ||
| A 1269900436 | SCREW | |
| N 007985004149 | SCREW | |
| Repalced by: N 000000001933 | ||
| N 000000001933 | SCREW | |
| N 000137004202 | SPRING WASHER | |
| N 009021004108 | WASHER | |
| Repalced by: N 009021004207 | ||
| N 009021004207 | WASHER | |
| 355 | A 1086890032 | CLAMP |
| 359 | A 1109930901 | SPRING |
| A 1086890025 | STRIKER | |
| Repalced by: A 1156890225 | ||
| 363 | A 1156890225 | STRIKER |
| A 1159940145 | LOCK | |
| N 007983004237 | SHEET METAL SCREW | |
| 368 | A 0009879740 | RUBBER BUFFER |
| 372 | A 1096800396 | COVER |
| 375 | A 1098170014 | TYPE DESIGNATION |
| "300 SEL" | ||
| A 1089880578 | CLIP | |
| Repalced by: A 1089940145 | ||
| A 0009940045 | LOCK | |
| Repalced by: A 1089940145 | ||
| 380 | A 1089940145 | LOCK |
| A 1086890008 | COVERING | |
| Repalced by: A 1086890108 | ||
| 390 | A 1086890108 | COVERING |
| A 0009944245 | LOCK | |
| Repalced by: A 0019945445 | ||
| A 0019945445 | LOCK | |
| N 007983002237 | SHEET METAL SCREW | |
| Repalced by: N 007982003261 | ||
| N 007982003261 | SHEET METAL SCREW | |
| 393 | A 1106800067 | END PIECE |
| Repalced by: A 1156800039 | ||
| A 1156800039 | ORNAMENTAL COVER | |
| Repalced by: A 1156803539 | ||
| A 1156803539 | ORNAMENTAL COVER | |
| 397 | A 0009879440 | RUBBER BUFFER |
| A 1086800306 | PANELLING | |
| Repalced by: A 1086800906 | ||
| A 1086800506 | PANELLING | |
| Repalced by: A 1086800906 | ||
| 400 | A 1086800906 | PANELLING |
| Repalced by: A 1086801706 | ||
| 400 | A 1086801706 | PANELLING |
| BOTTOM | ||
| A 1086801706 | PANELLING | |
| BOTTOM | ||
| A 1086800406 | PANELLING | |
| Repalced by: A 1086801006 | ||
| A 1086800606 | PANELLING | |
| Repalced by: A 1086801006 | ||
| A 1086801006 | PANELLING | |
| Repalced by: A 1086801806 | ||
| A 1086801806 | PANELLING | |
| BOTTOM | ||
| A 1086801806 | PANELLING | |
| BOTTOM | ||
| N 007981004254 | SHEET METAL SCREW | |
| N 009021005202 | WASHER | |
| Repalced by: N 009021005205 | ||
| N 009021005205 | WASHER | |
| 405 | A 0009943345 | LOCK |
| Repalced by: A 1409941045 | ||
| 405 | A 1409941045 | LOCK |
| A 1086800106 | PANELLING | |
| Repalced by: A 1086800706 | ||
| A 1086800206 | PANELLING | |
| Repalced by: A 1086800806 | ||
| 409 | A 1086800706 | PANELLING |
| Repalced by: A 1086801906 | ||
| 409 | A 1086801906 | PANELLING |
| TOP | ||
| A 1086800806 | PANELLING | |
| Repalced by: A 1086802006 | ||
| A 1086802006 | PANELLING | |
| TOP | ||
| A 1086801906 | PANELLING | |
| TOP | ||
| A 1086802006 | PANELLING | |
| TOP | ||
| A 0009831910 | STRIP | |
| 18 X 40 MM | ||
| N 007982003215 | SHEET METAL SCREW | |
| A 0009850162 | WASHER | |
| Repalced by: A 0009850562 | ||
| A 0009851262 | WASHER | |
| Repalced by: A 0009850562 | ||
| 413 | A 0009850562 | WASHER |
| A 1086890171 | GARNISH MOULDING | |
| Repalced by: A 1086890371 | ||
| A 1086890371 | GARNISH MOULDING | |
| BOTTOM | ||
| A 1086890271 | GARNISH MOULDING | |
| Repalced by: A 1086890471 | ||
| A 1086890471 | GARNISH MOULDING | |
| BOTTOM | ||
| 418 | A 1086890371 | GARNISH MOULDING |
| BOTTOM | ||
| A 1086890471 | GARNISH MOULDING | |
| BOTTOM | ||
| A 0009831110 | STRIP | |
| Repalced by: A 0009831910 | ||
| A 0009831910 | STRIP | |
| 18 X 1470 MM | ||
| N 007983002216 | SHEET METAL SCREW | |
| N 007981002223 | SHEET METAL SCREW | |
| 421 | A 0009944245 | LOCK |
| Repalced by: A 0019945445 | ||
| 421 | A 0019945445 | LOCK |
| 425 | A 1086890172 | GARNISH MOULDING |
| TOP LEFT | ||
| A 1086890472 | GARNISH MOULDING | |
| TOP RIGHT | ||
| 429 | A 1086890272 | GARNISH MOULDING |
| TOP RIGHT | ||
| A 1086890372 | GARNISH MOULDING | |
| TOP LEFT | ||
| A 0009872060 | RUBBER PAD | |
| GARNISH MOULDING TO TOP OF INSTRUMENT PANEL | ||
| A 0009872060 | RUBBER PAD | |
| GARNISH MOULDING TO TOP OF INSTRUMENT PANEL | ||
| N 007981002208 | SHEET METAL SCREW | |
| 434 | A 0009944645 | LOCK |
| 437 | A 1086801106 | PANELLING |
| TOP LEFT | ||
| A 1086801206 | PANELLING | |
| TOP RIGHT | ||
| A 1086801306 | PANELLING | |
| TOP LEFT | ||
| 440 | A 1086801406 | PANELLING |
| TOP RIGHT | ||
| N 007981002222 | SHEET METAL SCREW | |
| N 009021003200 | WASHER | |
| A 0009944645 | LOCK | |
| A 1086800187 | INSTRUMENT PANEL | |
| A 1096802183 | PANELLING | |
| A 1096805783 | PANELLING | |
| Repalced by: A 1096808583 | ||
| A 1096802983 | PANELLING | |
| Repalced by: A 1096808583 | ||
| 447 | A 1096808583 | PANELLING |
| A 1086800287 | INSTRUMENT PANEL | |
| A 1096802283 | PANELLING | |
| A 1096805883 | PANELLING | |
| Repalced by: A 1096808483 | ||
| A 1096803083 | PANELLING | |
| Repalced by: A 1096808483 | ||
| A 1096808483 | PANELLING | |
| 451 | A 1088360342 | FRAME |
| LEFT | ||
| A 1088360442 | FRAME | |
| RIGHT | ||
| 455 | A 1086890330 | CAP |
| LEFT | ||
| A 1086890430 | CAP | |
| Repalced by: A 1086890471 | ||
| A 1086890471 | GARNISH MOULDING | |
| RIGHT | ||
| 458 | A 1156890080 | ESCUTCHEON |
| 462 | A 1156890097 | PAD |
| A 1106890180 | ESCUTCHEON | |
| A 1106890098 | SEAL | |
| 469 | A 1096800183 | PANELLING |
| A 1096800283 | PANELLING | |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
