Transporto priemonė: 300 SEL; VIN numerio dalis: 109016

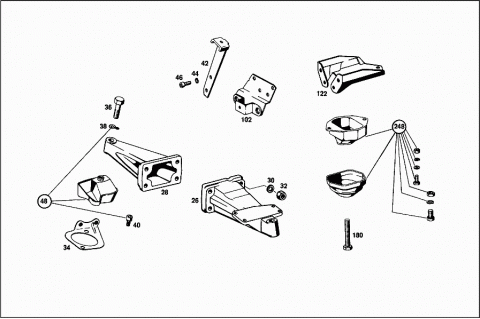

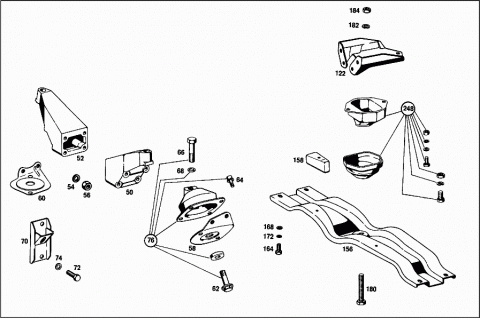

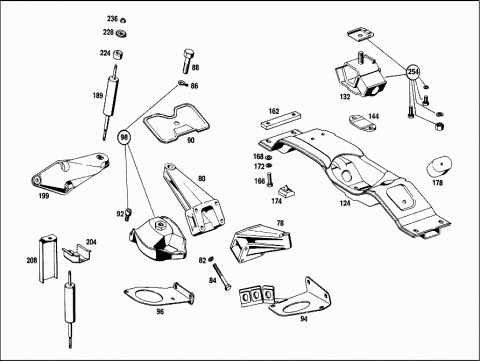

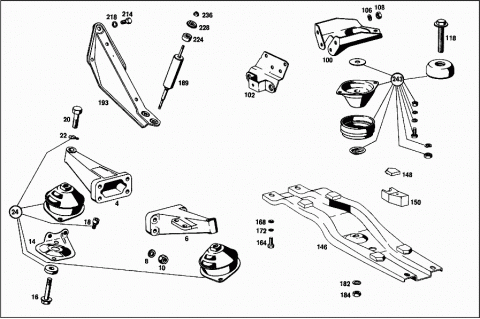

Grupė: 24 ENGINE SUSPENSION - 001 RUBBER MOUNTING TO ENGINE SUPPORT
| # | Kodas | Pavadinimas |
|---|---|---|
| 004 | A 1892232104 | ENGINE SUPPORT |
| LEFT | ||
| A 1892232304 | ENGINE SUPPORT | |
| LEFT | ||
| 006 | A 1892232004 | ENGINE SUPPORT |
| RIGHT | ||
| A 1892232204 | ENGINE SUPPORT | |
| RIGHT | ||
| 008 | N 000125010504 | WASHER |
| 010 | N 000934010009 | NUT |
| Repalced by: N 304032010002 | ||
| 010 | N 304032010002 | NUT |
| A 1802231012 | RUBBER MOUNTING | |
| LEFT | ||
| A 1092200137 | PLATE | |
| LEFT | ||
| A 1122230012 | RUBBER MOUNTING | |
| RIGHT | ||
| 014 | A 1092200037 | PLATE |
| RIGHT | ||
| A 1169870641 | RUBBER RING | |
| 016 | A 1212200471 | SCREW |
| 018 | N 914019008000 | COMBINATION BOLT |
| 020 | N 000931012132 | SCREW |
| 022 | N 000137012203 | SPRING WASHER |
| Repalced by: N 000137012206 | ||
| 022 | N 000137012206 | SPRING WASHER |
| 024 | A 1085860022 | REPAIR KIT |
| Repalced by: A 1122230012 | ||
| 024 | A 1122230012 | RUBBER MOUNTING |
| ENGINE FRONT MOUNTING | ||
| 026 | A 1272230204 | ENGINE SUPPORT |
| LEFT | ||
| 028 | A 1802232504 | ENGINE SUPPORT |
| RIGHT | ||
| 030 | N 000125010504 | WASHER |
| 032 | N 000934010009 | NUT |
| Repalced by: N 304032010002 | ||
| 032 | N 304032010002 | NUT |
| A 1092200337 | PLATE | |
| LEFT | ||
| 034 | A 1092200237 | PLATE |
| RIGHT | ||
| A 1082200017 | REPAIR KIT | |
| FRONT | ||
| 036 | N 000931012182 | SCREW |
| 038 | N 000137012203 | SPRING WASHER |
| Repalced by: N 000137012206 | ||
| 038 | N 000137012206 | SPRING WASHER |
| 040 | N 914019008000 | COMBINATION BOLT |
| 042 | A 1082410002 | SUPPORT |
| ENGINE SHOCK ABSORBERS | ||
| 044 | N 912004010102 | LOCK WASHER |
| 046 | N 000912010069 | SCREW |
| 048 | A 1082200017 | REPAIR KIT |
| ENGINE FRONT MOUNTING | ||
| 050 | A 1002230701 | ENGINE SUPPORT |
| LEFT | ||
| A 1002230901 | ENGINE SUPPORT | |
| LEFT | ||
| 052 | A 1002230801 | ENGINE SUPPORT |
| RIGHT | ||
| A 1002231001 | ENGINE SUPPORT | |
| RIGHT | ||
| 054 | N 000125008407 | WASHER |
| 056 | N 000934008013 | NUT |
| A 1002200630 | MOUNTING | |
| 058 | A 1092200537 | PLATE |
| LEFT | ||
| 060 | A 1092200637 | PLATE |
| RIGHT | ||
| A 1092201137 | PLATE | |
| A 1169870641 | RUBBER RING | |
| 062 | A 1002200171 | SCREW |
| 064 | N 914019008000 | COMBINATION BOLT |
| 066 | N 000931012182 | SCREW |
| 068 | N 000125013003 | WASHER |
| 070 | A 1002200040 | BRACKET |
| ENGINE SHOCK ABSORBERS | ||
| 072 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 072 | N 304017010028 | SCREW |
| 074 | N 000125010504 | WASHER |
| 076 | A 1095860022 | REPAIR KIT |
| ENGINE FRONT SUSPENSION | ||
| 078 | A 1162231204 | ENGINE SUPPORT |
| LEFT | ||
| 080 | A 1162231304 | ENGINE SUPPORT |
| RIGHT | ||
| 082 | N 000125008407 | WASHER |
| 084 | N 000931008327 | SCREW |
| Repalced by: N 304017008043 | ||
| 084 | N 304017008043 | SCREW |
| A 1162230112 | RUBBER MOUNTING | |
| FRONT | ||
| 086 | N 000137012203 | SPRING WASHER |
| Repalced by: N 000137012206 | ||
| 086 | N 000137012206 | SPRING WASHER |
| 088 | N 000931012120 | SCREW |
| 090 | A 1162230034 | COVERING |
| 092 | N 914019008000 | COMBINATION BOLT |
| 094 | A 1092200937 | PLATE |
| LEFT | ||
| 096 | A 1092200737 | PLATE |
| RIGHT | ||
| 098 | A 1112200017 | REPAIR KIT |
| ENGINE FRONT SUSPENSION | ||
| 100 | A 1092400006 | CONSOLE |
| 102 | A 1104900644 | PLATE |
| 102 | A 1104900644 | PLATE |
| A 1144920318 | BASE PLATE | |
| A 1104900444 | PLATE | |
| A 1104900444 | PLATE | |
| A 1084900144 | PLATE | |
| 106 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 106 | N 000137008212 | SPRING WASHER |
| 106 | N 000137008212 | SPRING WASHER |
| 108 | N 000934008013 | NUT |
| 108 | N 000934008013 | NUT |
| N 000137008204 | SPRING WASHER | |
| Repalced by: N 000137008212 | ||
| N 000137008212 | SPRING WASHER | |
| PLATE TO TRANSMISSION,REAR | ||
| N 000933008153 | SCREW | |
| Repalced by: N 304017008034 | ||
| N 304017008034 | SCREW | |
| PLATE TO TRANSMISSION,REAR | ||
| N 912004010102 | LOCK WASHER | |
| PLATE TO TRANSMISSION,REAR | ||
| N 000934010014 | NUT | |
| PLATE TO TRANSMISSION,REAR | ||
| A 1122420013 | RUBBER MOUNTING | |
| A 1119900640 | WASHER | |
| A 1112240082 | BOOT | |
| A 1212240084 | RETAINER | |
| 118 | A 1112400071 | SCREW |
| A 1092420065 | RUBBER BUFFER | |
| N 000933008131 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| ENGINE MOUNT TO ENGINE REAR SUPPORT | ||
| N 000127008203 | LOCK WASHER | |
| ENGINE MOUNT TO ENGINE REAR SUPPORT | ||
| N 000934008013 | NUT | |
| ENGINE MOUNT TO ENGINE REAR SUPPORT | ||
| 122 | A 1082420401 | ENGINE SUPPORT |
| REAR | ||
| 122 | A 1082420401 | ENGINE SUPPORT |
| REAR | ||
| A 1092400402 | ENGINE SUPPORT | |
| REAR | ||
| 124 | A 1082401902 | ENGINE SUPPORT |
| REAR | ||
| 124 | A 1082401902 | ENGINE SUPPORT |
| REAR | ||
| A 1092420401 | ENGINE SUPPORT | |
| REAR | ||
| A 1092400502 | ENGINE SUPPORT | |
| A 1292240012 | RUBBER MOUNTING | |
| REAR | ||
| A 1292240012 | RUBBER MOUNTING | |
| REAR | ||
| A 1162400418 | RUBBER MOUNTING | |
| A 1292240112 | RUBBER MOUNTING | |
| REAR | ||
| 132 | A 1162400418 | RUBBER MOUNTING |
| REAR | ||
| 132 | A 1162400418 | RUBBER MOUNTING |
| REAR | ||
| A 1212240382 | BOOT | |
| A 1212240382 | BOOT | |
| A 1082401902 | ENGINE SUPPORT | |
| A 1212240282 | BOOT | |
| Repalced by: A 1212240382 | ||
| A 1212240382 | BOOT | |
| N 000933008145 | SCREW | |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| N 000933008145 | SCREW | |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| N 000933008130 | SCREW | |
| Repalced by: N 304017008039 | ||
| N 304017008039 | SCREW | |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| N 000125008407 | WASHER | |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| N 000127008203 | LOCK WASHER | |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| N 000934008013 | NUT | |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| 144 | A 1082420284 | SHIM |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| 146 | A 1102400402 | ENGINE SUPPORT |
| A 1082400502 | ENGINE SUPPORT | |
| Repalced by: A 1102400402 | ||
| A 1102400402 | ENGINE SUPPORT | |
| 148 | A 1102420213 | RUBBER MOUNTING |
| 148 | A 1102420213 | RUBBER MOUNTING |
| 150 | A 1109870939 | RUBBER BUFFER |
| 150 | A 1109870939 | RUBBER BUFFER |
| N 007981006302 | SHEET METAL SCREW | |
| N 007981006302 | SHEET METAL SCREW | |
| N 000125006407 | WASHER | |
| N 000125006407 | WASHER | |
| 156 | A 1092400302 | ENGINE SUPPORT |
| 158 | A 1099870039 | RUBBER BUFFER |
| N 007981006302 | SHEET METAL SCREW | |
| N 000125006407 | WASHER | |
| A 1082420031 | MOUNTING PLATE | |
| A 1082420031 | MOUNTING PLATE | |
| 162 | A 1082420140 | BRACKET |
| 162 | A 1082420140 | BRACKET |
| 164 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 164 | N 304017008021 | SCREW |
| 164 | N 304017008021 | SCREW |
| 166 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 166 | N 304017008034 | SCREW |
| 166 | N 304017008034 | SCREW |
| 168 | N 000125008407 | WASHER |
| 168 | N 000125008407 | WASHER |
| N 007349008002 | WASHER | |
| N 007349008002 | WASHER | |
| 172 | N 000127008203 | LOCK WASHER |
| 174 | A 1089870440 | RUBBER BUFFER |
| EXHAUST PIPE STOP | ||
| 174 | A 1089870440 | RUBBER BUFFER |
| EXHAUST PIPE STOP | ||
| A 1089870940 | RUBBER BUFFER | |
| LEFT | ||
| A 1089870840 | RUBBER BUFFER | |
| RIGHT | ||
| 178 | A 1089870740 | RUBBER BUFFER |
| FOR BRACING | ||
| 178 | A 1089870740 | RUBBER BUFFER |
| FOR BRACING | ||
| 180 | N 000933012039 | SCREW |
| 180 | N 000933012039 | SCREW |
| 182 | N 000137012203 | SPRING WASHER |
| Repalced by: N 000137012206 | ||
| 182 | N 000137012206 | SPRING WASHER |
| 184 | N 000936012007 | NUT |
| N 000934008013 | NUT | |
| ENGINE MOUNTING TO TRANSMISSION | ||
| N 000137008204 | SPRING WASHER | |
| Repalced by: N 000137008212 | ||
| N 000137008212 | SPRING WASHER | |
| ENGINE MOUNTING TO TRANSMISSION | ||
| N 000137008212 | SPRING WASHER | |
| ENGINE MOUNTING TO TRANSMISSION | ||
| 189 | A 0002400648 | ENGINE VIBRATION ABSORBER |
| Repalced by: A 0002401348 | ||
| 189 | A 0002401348 | ENGINE VIBRATION ABSORBER |
| A 0002401348 | ENGINE VIBRATION ABSORBER | |
| 193 | A 1082410202 | SUPPORT |
| A 1082410102 | SUPPORT | |
| 199 | A 1092410302 | SUPPORT |
| 204 | A 1092400040 | BRACKET |
| 208 | A 1092400045 | PROTECTIVE PLATE |
| 214 | N 000933008145 | SCREW |
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| 218 | N 000127008203 | LOCK WASHER |
| N 000137008204 | SPRING WASHER | |
| Repalced by: N 000137008212 | ||
| N 000137008212 | SPRING WASHER | |
| 224 | A 1072410065 | RUBBER BUFFER |
| 228 | A 1082410012 | RETAINER |
| A 1082410112 | RETAINER | |
| 236 | N 913002006005 | NUT |
| Repalced by: N 913002006009 | ||
| 236 | N 913002006009 | NUT |
| A 1072400117 | REPAIR KIT | |
| ENINE SHOCK ABSORBER MOUNTING PARTS | ||
| 243 | A 1095860024 | REPAIR KIT |
| ENGINE REAR SUSPENSION | ||
| 248 | A 1082400418 | REPAIR KIT |
| ENGINE REAR SUSPENSION | ||
| 248 | A 1082400418 | REPAIR KIT |
| ENGINE REAR SUSPENSION | ||
| 254 | A 1085860124 | REPAIR KIT |
