Transporto priemonė: 300 SEL; VIN numerio dalis: 109016

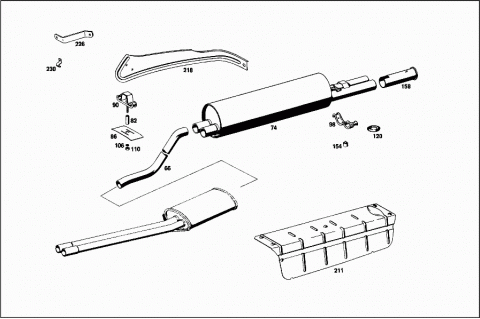

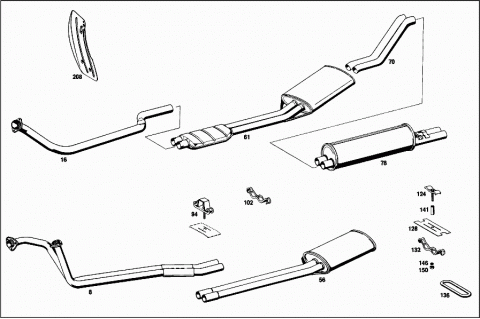

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 004 | A 1124901010 | EXHAUST PIPE |
| FRONT | ||
| 008 | A 1084902120 | EXHAUST PIPE |
| FRONT | ||
| 012 | A 1094900019 | EXHAUST PIPE |
| FRONT LEFT | ||
| A 1094901019 | EXHAUST PIPE | |
| FRONT LEFT | ||
| A 1094900119 | EXHAUST PIPE | |
| FRONT RIGHT | ||
| A 1094901119 | EXHAUST PIPE | |
| FRONT RIGHT | ||
| 016 | A 1094900419 | EXHAUST PIPE |
| FRONT LEFT | ||
| A 1094900519 | EXHAUST PIPE | |
| Repalced by: A 1094900020 | ||
| A 1094900020 | EXHAUST PIPE | |
| FRONT RIGHT | ||
| A 1084900110 | EXHAUST PIPE | |
| FRONT | ||
| A 1084902920 | EXHAUST PIPE | |
| FRONT | ||
| A 1094900219 | EXHAUST PIPE | |
| FRONT LEFT | ||
| A 1094901219 | EXHAUST PIPE | |
| FRONT LEFT | ||
| A 1094900319 | EXHAUST PIPE | |
| FRONT RIGHT | ||
| A 1094900619 | EXHAUST PIPE | |
| FRONT LEFT | ||
| A 1094900719 | EXHAUST PIPE | |
| FRONT RIGHT | ||
| 022 | N 915035000020 | SEAL RING |
| 022 | N 915035000020 | SEAL RING |
| 022 | N 915035000020 | SEAL RING |
| N 915035000008 | SEAL RING | |
| N 915035000023 | SEAL RING | |
| N 915035000023 | SEAL RING | |
| N 006912008020 | SCREW | |
| N 000931008246 | SCREW | |
| Repalced by: N 304017008028 | ||
| N 304017008028 | SCREW | |
| N 000931008327 | SCREW | |
| Repalced by: N 304017008043 | ||
| N 304017008043 | SCREW | |
| N 999901008005 | NUT | |
| Repalced by: A 0009903250 | ||
| A 0009903250 | NUT | |
| 026 | A 0004921059 | FLEXIBLE METAL TUBE |
| EXHAUST PIPE CONNECTION | ||
| 031 | A 1104920040 | CLAMP |
| EXHAUST PIPE CONNECTION | ||
| N 000931008248 | SCREW | |
| Repalced by: N 304017008053 | ||
| N 304017008053 | SCREW | |
| EXHAUST PIPE CONNECTION | ||
| N 000125008407 | WASHER | |
| EXHAUST PIPE CONNECTION | ||
| N 000127008203 | LOCK WASHER | |
| EXHAUST PIPE CONNECTION | ||
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
| EXHAUST PIPE CONNECTION | ||
| 033 | A 1084920319 | BRACKET |
| A 1084920026 | CLAMPING PIECE | |
| A 1104920126 | CLAMPING PIECE | |
| A 1104920027 | CLAMPING BRACKET | |
| 036 | N 999901008005 | NUT |
| Repalced by: A 0009903250 | ||
| 036 | A 0009903250 | NUT |
| 041 | N 000931008244 | SCREW |
| A 1089900340 | WASHER | |
| N 000440009103 | WASHER | |
| A 1211550181 | RUBBER RING | |
| A 1084920053 | SPACER TUBE | |
| 046 | N 000127008203 | LOCK WASHER |
| 052 | N 000934008013 | NUT |
| A 1234920027 | CLAMPING BRACKET | |
| N 002093016100 | DISC SPRING | |
| A 1089900340 | WASHER | |
| 056 | A 1094900115 | EXHAUST MUFFLER WITH PIPE |
| CENTRAL | ||
| A 1094900315 | EXHAUST MUFFLER WITH PIPE | |
| CENTRAL | ||
| 061 | A 1094900215 | EXHAUST MUFFLER WITH PIPE |
| CENTRAL | ||
| 066 | A 1124920904 | REAR EXHAUST PIPE |
| REAR | ||
| A 1094920204 | REAR EXHAUST PIPE | |
| REAR | ||
| 070 | A 1094920604 | REAR EXHAUST PIPE |
| REAR | ||
| 074 | A 1124913401 | MUFFLER |
| A 1094911901 | MUFFLER | |
| 078 | A 1094910401 | MUFFLER |
| A 1094911401 | MUFFLER | |
| 082 | A 0004920053 | SPACER TUBE |
| 086 | A 0004920183 | INSULATION |
| Repalced by: A 0004920983 | ||
| 086 | A 0004920983 | INSULATION |
| A 0004920383 | INSULATION | |
| Repalced by: A 0004921083 | ||
| A 0004921083 | INSULATION | |
| A 0004920583 | INSULATION | |
| Repalced by: A 0004921183 | ||
| A 0004921183 | INSULATION | |
| 090 | A 1094900143 | BRACKET |
| A 0004920343 | CLAMP | |
| 094 | A 0004920943 | CLAMP |
| 098 | A 0004920043 | CLAMP |
| A 1094900043 | BRACKET | |
| A 1094900443 | BRACKET | |
| 102 | A 0004920843 | CLAMP |
| 106 | N 000127008203 | LOCK WASHER |
| 110 | N 000934008013 | NUT |
| 114 | A 1124921140 | CLAMP |
| Repalced by: A 1124900341 | ||
| 114 | A 1124900341 | CLAMP |
| N 000931008327 | SCREW | |
| Repalced by: N 304017008043 | ||
| N 304017008043 | SCREW | |
| FRONT EXHAUST PIPE TO REAR EXHAUST PIPE | ||
| N 000125008407 | WASHER | |
| FRONT EXHAUST PIPE TO REAR EXHAUST PIPE | ||
| N 000127008203 | LOCK WASHER | |
| FRONT EXHAUST PIPE TO REAR EXHAUST PIPE | ||
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
| FRONT EXHAUST PIPE TO REAR EXHAUST PIPE | ||
| N 071555053502 | CLAMP | |
| FRONT EXHAUST PIPE TO REAR EXHAUST PIPE | ||
| N 000933010105 | SCREW | |
| FRONT EXHAUST PIPE TO REAR EXHAUST PIPE | ||
| N 000934010009 | NUT | |
| Repalced by: N 304032010002 | ||
| N 304032010002 | NUT | |
| FRONT EXHAUST PIPE TO REAR EXHAUST PIPE | ||
| N 912004010102 | LOCK WASHER | |
| FRONT EXHAUST PIPE TO REAR EXHAUST PIPE | ||
| A 1074900141 | CLAMP | |
| Repalced by: A 1074900041 | ||
| A 1074900041 | CLAMP | |
| A 1074900141 | CLAMP | |
| Repalced by: A 1074900041 | ||
| A 1074900041 | CLAMP | |
| N 000931008251 | SCREW | |
| N 000931008327 | SCREW | |
| Repalced by: N 304017008043 | ||
| N 304017008043 | SCREW | |
| N 000125008407 | WASHER | |
| N 000127008203 | LOCK WASHER | |
| N 000934008013 | NUT | |
| A 1094900243 | BRACKET | |
| TOP CENTRAL EXHAUST PIPE SUSPENSION IN TUNNEL | ||
| A 1094900343 | BRACKET | |
| CENTRAL EXHAUST PIPE SUSPENSION IN TUNNEL | ||
| A 1094920343 | CLAMP | |
| BOTTOM CENTRAL EXHAUST PIPE SUSPENSION IN TUNNEL | ||
| A 1094920543 | CLAMP | |
| CENTRAL EXHAUST PIPE SUSPENSION IN TUNNEL | ||
| A 0004920153 | SPACER TUBE | |
| CENTRAL EXHAUST PIPE SUSPENSION IN TUNNEL | ||
| A 0004920053 | SPACER TUBE | |
| CENTRAL EXHAUST PIPE SUSPENSION IN TUNNEL | ||
| A 0004920183 | INSULATION | |
| Repalced by: A 0004920983 | ||
| A 0004920983 | INSULATION | |
| CENTRAL EXHAUST PIPE SUSPENSION IN TUNNEL | ||
| A 0004920483 | INSULATION | |
| Repalced by: A 0004921683 | ||
| A 0004921683 | INSULATION | |
| CENTRAL EXHAUST PIPE SUSPENSION IN TUNNEL | ||
| A 1134920082 | DAMPING PAD | |
| CENTRAL EXHAUST PIPE SUSPENSION IN TUNNEL | ||
| A 1094920082 | DAMPING PAD | |
| CENTRAL EXHAUST PIPE SUSPENSION IN TUNNEL | ||
| N 000934008013 | NUT | |
| CENTRAL EXHAUST PIPE SUSPENSION IN TUNNEL | ||
| N 000127008203 | LOCK WASHER | |
| CENTRAL EXHAUST PIPE SUSPENSION IN TUNNEL | ||
| 120 | A 1074920082 | DAMPING PAD |
| 124 | A 1094900343 | BRACKET |
| 128 | A 0004920483 | INSULATION |
| Repalced by: A 0004921683 | ||
| 128 | A 0004921683 | INSULATION |
| 132 | A 1094920543 | CLAMP |
| 136 | A 1094920082 | DAMPING PAD |
| 141 | A 0004920053 | SPACER TUBE |
| 146 | N 000127008203 | LOCK WASHER |
| 150 | N 000934008013 | NUT |
| 154 | A 1129870140 | RUBBER BUFFER |
| 158 | A 1134920214 | END PIECE |
| A 1234920714 | END PIECE | |
| 162 | A 1094900030 | PROTECTIVE PLATE |
| 162 | A 1094900030 | PROTECTIVE PLATE |
| A 1094900130 | PROTECTIVE PLATE | |
| 166 | N 007976006203 | SHEET METAL SCREW |
| 170 | N 000137006204 | SPRING WASHER |
| 174 | A 0009873841 | RUBBER RING |
| 178 | A 1204200227 | SCREW |
| 182 | N 009021006103 | WASHER |
| Repalced by: N 009021006208 | ||
| 182 | N 009021006208 | WASHER |
| 186 | N 000137006204 | SPRING WASHER |
| 190 | N 000934006007 | NUT |
| A 1084900030 | PROTECTIVE PLATE | |
| AT FRONT FLOOR | ||
| 196 | A 1084920430 | PROTECTIVE PLATE |
| AT FRONT FLOOR | ||
| 196 | A 1084920430 | PROTECTIVE PLATE |
| AT FRONT FLOOR | ||
| N 000087006125 | SCREW | |
| A 0009902036 | SCREW | |
| A 0009902036 | SCREW | |
| 200 | A 1094921030 | PROTECTIVE PLATE |
| N 000933008131 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| N 912004006102 | LOCK WASHER | |
| N 000934006007 | NUT | |
| A 1204200227 | SCREW | |
| A 0009873841 | RUBBER RING | |
| N 000137006204 | SPRING WASHER | |
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| A 1124900830 | PROTECTIVE PLATE | |
| Repalced by: A 1094920530 | ||
| A 1094920530 | PROTECTIVE PLATE | |
| BELOW FIRE WALL | ||
| 204 | A 1094920530 | PROTECTIVE PLATE |
| BELOW FIRE WALL | ||
| 204 | A 1094920530 | PROTECTIVE PLATE |
| BELOW FIRE WALL | ||
| 208 | A 1094920530 | PROTECTIVE PLATE |
| BELOW FIRE WALL | ||
| N 000087006125 | SCREW | |
| A 0009902036 | SCREW | |
| A 0009902036 | SCREW | |
| 211 | A 1084920330 | PROTECTIVE PLATE |
| A 0009902036 | SCREW | |
| 214 | A 1124900530 | PROTECTIVE PLATE |
| A 1124900730 | PROTECTIVE PLATE | |
| Repalced by: A 1114920430 | ||
| 218 | A 1114920430 | PROTECTIVE PLATE |
| 218 | A 1114920430 | PROTECTIVE PLATE |
| A 1124920619 | BRACKET | |
| COVER PLATE TO TRANSMISSION | ||
| 226 | A 1094920119 | BRACKET |
| COVER PLATE TO TRANSMISSION | ||
| 230 | A 3129952420 | CLAMP |
| Repalced by: A 1109950401 | ||
| 230 | A 1109950401 | CLAMP |
| COVER PLATE TO TRANSMISSION | ||
| A 1114921019 | BRACKET | |
| COVER PLATE TO TRANSMISSION | ||
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| COVER PLATE TO TRANSMISSION | ||
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| COVER PLATE TO TRANSMISSION | ||
| N 912004006102 | LOCK WASHER | |
| COVER PLATE TO TRANSMISSION | ||
| N 000934006007 | NUT | |
| COVER PLATE TO TRANSMISSION | ||
| 235 | A 1084900037 | REPAIR KIT |
| EXHAUST PIPE SUSPENSION | ||
| A 1264900337 | REPAIR KIT | |
| EXHAUST PIPE SUSPENSION | ||
| A 1095860049 | REPAIR KIT | |
| EXHAUST PIPE SUSPENSION | ||
| A 1095860149 | REPAIR KIT | |
| EXHAUST PIPE SUSPENSION | ||
| A 1115860049 | REPAIR KIT | |
| EXHAUST PIPE SUSPENSION | ||
