Transporto priemonė: 300 SEL; VIN numerio dalis: 109016
Grupė: 33 FRONT AXLE
| # | Kodas | Pavadinimas |
|---|---|---|

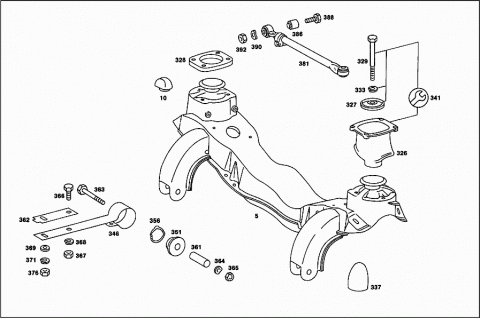

| 005 | A 1113303042 | FRONT SUBFRAME |
| 010 | A 1123330165 | RUBBER BUFFER |
| A 1093300098 | HALF FRONT AXLE | |
| LEFT | ||
| A 1093300298 | HALF FRONT AXLE | |
| Repalced by: A 1093301098 | ||
| A 1093301098 | HALF FRONT AXLE | |
| LEFT | ||
| A 1093300198 | HALF FRONT AXLE | |
| RIGHT | ||
| A 1093300398 | HALF FRONT AXLE | |
| Repalced by: A 1093301198 | ||
| A 1093301198 | HALF FRONT AXLE | |
| RIGHT | ||

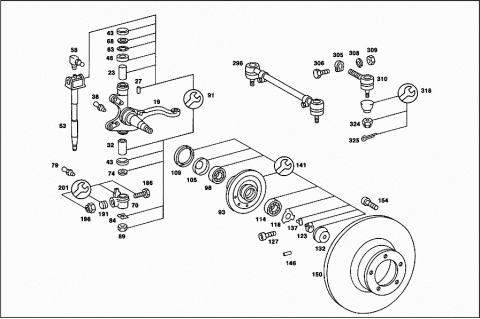

| 019 | A 1083300020 | STEERING KNUCKLE |
| LEFT | ||
| 019 | A 1083300120 | STEERING KNUCKLE |
| RIGHT | ||
| 023 | A 1803320148 | BUSHING |
| 027 | N 000007002208 | CYLINDRICAL PIN |
| 032 | A 1113320148 | BUSHING |
| 038 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 038 | N 071412008102 | GREASE NIPPLE |
| 043 | A 1203320260 | DUST CAP |
| 048 | A 1203320051 | SPACER RING |
| 053 | A 1113320106 | KINGPIN |
| 058 | N 071412008200 | GREASE NIPPLE |
| 063 | A 1203320162 | THRUST WASHER |
| BOTTOM | ||
| 068 | A 1203320262 | THRUST WASHER |
| TOP | ||
| 070 | A 1803330009 | STEERING KNUCKLE SUPPORT |
| 074 | A 1363320852 | SPACER WASHER |
| 1.7 MM AS REQUIRED | ||
| 074 | A 1363320952 | SPACER WASHER |
| 1.9 MM AS REQUIRED | ||
| 074 | A 1363321052 | SPACER WASHER |
| 2.1 MM AS REQUIRED | ||
| 074 | A 1363320052 | SPACER WASHER |
| 2.3 MM AS REQUIRED | ||
| 074 | A 1363320152 | SPACER WASHER |
| 2.5 MM AS REQUIRED | ||
| 074 | A 1363320252 | SPACER WASHER |
| 2.7 MM AS REQUIRED | ||
| 079 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 079 | N 071412008102 | GREASE NIPPLE |
| 084 | A 1819940015 | LOCK |
| 089 | N 000934014019 | NUT |
| Repalced by: N 308673014001 | ||
| 089 | N 308673014001 | NUT |
| 091 | A 1115860033 | REPAIR KIT |
| 093 | A 1123340501 | WHEEL HUB |
| 098 | A 0009815805 | TAPERED ROLLER BEARING |
| 105 | A 1113340064 | RETAINER |
| 109 | A 0039979346 | SEAL RING |
| 114 | A 0009815905 | TAPERED ROLLER BEARING |
| 118 | A 1153340315 | RING |
| 123 | A 1203340772 | NUT |
| 127 | A 1209901320 | SCREW |
| A 1123300057 | HUB CAP | |
| Repalced by: A 1083340025 | ||
| 132 | A 1083340025 | HUB CAP |
| 132 | A 1083340025 | HUB CAP |
| 137 | A 2015470085 | CONTACT SPRING |
| 137 | A 2015470085 | CONTACT SPRING |
| 137 | A 2015470085 | CONTACT SPRING |
| 141 | A 1113300051 | REPAIR KIT |
| Repalced by: A 1073300051 | ||
| 141 | A 1073300051 | REPAIR KIT |
| FRONT WHEEL BEARING | ||
| 146 | N 001474004001 | GROOVED PIN |
| 146 | N 001474004001 | GROOVED PIN |
| 150 | A 1154211112 | BRAKE DISC |
| 150 | A 1094200005 | BRAKE DISC |
| A 1235860042 | REPAIR KIT | |
| BRAKE DISC TO WHEEL HUB | ||
| 154 | A 0009907212 | SCREW |

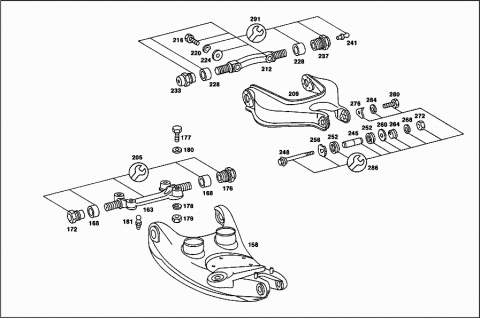

| 158 | A 1123302907 | TRANSVERSE CONTROL ARM |
| BOTTOM LEFT | ||
| 158 | A 1093300207 | TRANSVERSE CONTROL ARM |
| BOTTOM LEFT | ||
| 158 | A 1093300207 | TRANSVERSE CONTROL ARM |
| BOTTOM LEFT | ||
| 158 | A 1123303007 | TRANSVERSE CONTROL ARM |
| BOTTOM RIGHT | ||
| 158 | A 1093300307 | TRANSVERSE CONTROL ARM |
| BOTTOM RIGHT | ||
| 158 | A 1093300307 | TRANSVERSE CONTROL ARM |
| BOTTOM RIGHT | ||
| 163 | A 1113330330 | PIN |
| 168 | A 1203330180 | SEAL RING |
| 172 | A 1113330548 | SCREW COLLAR |
| THREAD O.D. 29.9 MM | ||
| 176 | A 1113330448 | SCREW COLLAR |
| THREAD O.D. 30.9 MM | ||
| 177 | A 1089900801 | SCREW |
| LOWER CONTROL ARMS AND PIVOT PINS TO FRONT SUBFRAME | ||
| 178 | N 912004012100 | LOCK WASHER |
| LOWER CONTROL ARMS AND PIVOT PINS TO FRONT SUBFRAME | ||
| 179 | N 000934012023 | NUT |
| Repalced by: N 308673012002 | ||
| 179 | N 308673012002 | NUT |
| LOWER CONTROL ARMS AND PIVOT PINS TO FRONT SUBFRAME | ||
| 180 | A 1089900840 | WASHER |
| LOWER CONTROL ARMS AND PIVOT PINS TO FRONT SUBFRAME | ||
| 181 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 181 | N 071412008102 | GREASE NIPPLE |
| 186 | A 1203330474 | PIN |
| 191 | A 1813330180 | SEAL RING |
| 196 | A 1819900055 | NUT |
| N 000094003007 | COTTER PIN | |
| 201 | A 1103300318 | REPAIR KIT |
| LOWER CONTROL ARM | ||
| 205 | A 1103300118 | REPAIR KIT |
| PIVOT PIN | ||
| 209 | A 1123303107 | TRANSVERSE CONTROL ARM |
| TOP | ||
| 212 | A 1113330230 | PIN |
| 216 | A 1089900801 | SCREW |
| 220 | A 1109940010 | LOCK |
| 224 | N 000433013005 | WASHER |
| Repalced by: N 000433013010 | ||
| 224 | N 000433013010 | WASHER |
| 228 | A 1203330180 | SEAL RING |
| 233 | A 1203330248 | SCREW COLLAR |
| THREAD O.D. 29.9 MM | ||
| 237 | A 1203330348 | SCREW COLLAR |
| THREAD O.D. 30.9 MM | ||
| 241 | N 071412008200 | GREASE NIPPLE |
| 245 | A 1203330548 | SCREW COLLAR |
| 248 | A 1203330374 | PIN |
| 252 | A 1813330180 | SEAL RING |
| 256 | A 1209903240 | WASHER |
| 260 | A 1209901340 | WASHER |
| 264 | A 1203300187 | ECCENTRIC BUSHING |
| 268 | N 912004010102 | LOCK WASHER |
| 272 | N 000934010009 | NUT |
| Repalced by: N 304032010002 | ||
| 272 | N 304032010002 | NUT |
| 276 | A 1203330073 | LOCK |
| 280 | N 000933006122 | SCREW |
| Repalced by: N 304017006034 | ||
| 280 | N 304017006034 | SCREW |
| 284 | N 912004006102 | LOCK WASHER |
| 286 | A 1103300218 | REPAIR KIT |
| UPPER TRANSVERSE CONTROL ARM | ||
| 291 | A 1103300018 | REPAIR KIT |
| PIVOT PIN | ||
| A 1153300703 | TIE ROD | |
| Repalced by: A 1073300103 | ||
| A 1153300803 | TIE ROD | |
| Repalced by: A 1073300103 | ||
| 296 | A 1073300103 | TIE ROD |
| A 0003383815 | TIE ROD | |
| Repalced by: A 1153300703 | ||
| A 1153300703 | TIE ROD | |
| 305 | A 0009951844 | CLAMP |
| Repalced by: A 0003384245 | ||
| 305 | A 0003384245 | CLAMP |
| 306 | N 000933008171 | SCREW |
| FOR CLAMPS | ||
| 308 | N 000127008203 | LOCK WASHER |
| FOR CLAMPS | ||
| 309 | N 000934008013 | NUT |
| FOR CLAMPS | ||
| A 0003381910 | BALL JOINT | |
| Repalced by: A 0003385210 | ||
| 310 | A 0003385210 | BALL JOINT |
| R.H. THREAD | ||
| 310 | A 0003385510 | BALL JOINT |
| R.H. THREAD | ||
| A 0003382010 | BALL JOINT | |
| Repalced by: A 0003385010 | ||
| 310 | A 0003385010 | BALL JOINT |
| L.H. THREAD | ||
| TO 107 330 01 03 | ||
| 310 | A 0003385310 | BALL JOINT |
| L.H. THREAD | ||
| A 0003380297 | BOOT | |
| Repalced by: A 0003381397 | ||
| A 0003381397 | BOOT | |
| A 0003380963 | CLAMPING RING | |
| BOTTOM | ||
| A 0003381063 | CLAMPING RING | |
| TOP | ||
| 318 | A 0003300485 | REPAIR KIT |
| TIE ROD BOOT | ||
| 324 | A 1209900155 | NUT |
| TO 115 330 07 03,08 03 | ||
| 324 | N 913002010010 | NUT |
| TO 107 330 01 03 | ||
| 325 | N 000094002077 | COTTER PIN |
| 326 | A 1113301575 | RUBBER MOUNTING |
| 327 | A 1113310645 | RETAINER |
| 328 | A 1083310093 | SHIM |
| 329 | N 000960012095 | SCREW |
| 333 | N 912004012100 | LOCK WASHER |
| 337 | A 1123330265 | RUBBER BUFFER |
| 341 | A 1083300275 | REPAIR KIT |
| FRONT SUBFRAME | ||
| A 1095860033 | REPAIR KIT | |
| Repalced by: A 1083300275 | ||
| 346 | A 1123310012 | STRUT |
| 346 | A 1083310012 | LEAF SPRING |
| 351 | A 1123220385 | RUBBER MOUNTING |
| 356 | A 1103220276 | WASHER |
| 361 | A 1113320053 | SPACER TUBE |
| 362 | A 1083310028 | SHIM |
| Repalced by: A 1083200071 | ||
| 362 | A 1083200071 | LOCK |
| 363 | N 000933008145 | SCREW |
| RUBBER MOUNTING TO LEAF SPRINGS | ||
| 364 | N 912004008102 | LOCK WASHER |
| RUBBER MOUNTING TO LEAF SPRINGS | ||
| 365 | N 000934008013 | NUT |
| RUBBER MOUNTING TO LEAF SPRINGS | ||
| 366 | N 000960016138 | SCREW |
| LEAF SPRING TO FRONT SUBFRAME | ||
| 367 | N 000934016011 | NUT |
| Repalced by: N 308673016001 | ||
| 367 | N 308673016001 | NUT |
| LEAF SPRING TO FRONT SUBFRAME | ||
| 368 | N 000137016202 | SPRING WASHER |
| LEAF SPRING TO FRONT SUBFRAME | ||
| 369 | N 000125015004 | WASHER |
| 371 | N 912004014100 | LOCK WASHER |
| 371 | N 000137014201 | SPRING WASHER |
| 376 | N 000934014019 | NUT |
| Repalced by: N 308673014001 | ||
| 376 | N 308673014001 | NUT |
| 381 | A 1113300330 | GUIDE ROD |
| 386 | A 0009883310 | RUBBER MOUNTING |
| 388 | N 000960012225 | SCREW |
| 390 | N 912004012100 | LOCK WASHER |
| 392 | N 000934012023 | NUT |
| Repalced by: N 308673012002 | ||
| 392 | N 308673012002 | NUT |
