Transporto priemonė: 300 SEL; VIN numerio dalis: 109016

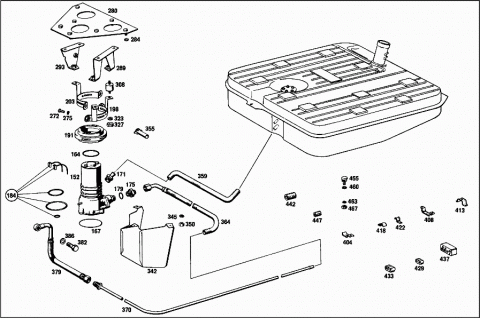

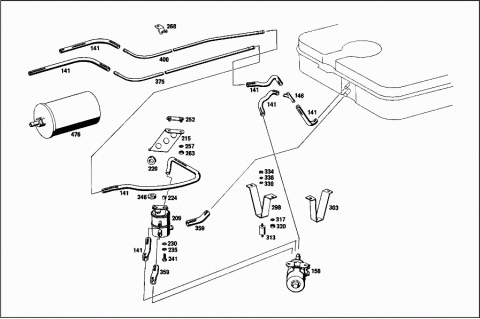

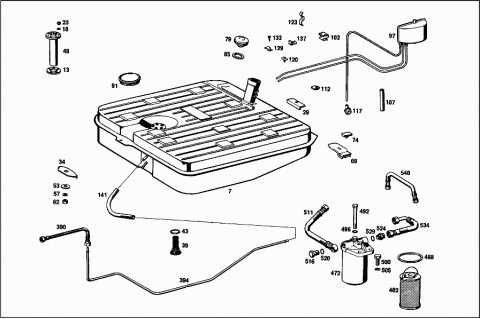

Grupė: 47 FUEL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 007 | A 1094700301 | FUEL TANK |
| 82 L. | ||
| A 1094700501 | FUEL TANK | |
| 105 L. | ||
| 013 | A 1104710180 | GASKET |
| 018 | N 000137005203 | SPRING WASHER |
| 023 | N 000934005008 | NUT |
| 029 | A 1304710222 | REINFORCEMENT |
| REAR | ||
| 034 | A 1304710122 | REINFORCEMENT |
| FRONT | ||
| 039 | A 1114700686 | FUEL STRAINER |
| 043 | A 1109970145 | SEAL RING |
| 048 | A 1105421204 | GAUGE SENDER UNIT |
| A 1095420004 | GAUGE SENDER UNIT | |
| 053 | A 1089900340 | WASHER |
| 057 | N 000127008203 | LOCK WASHER |
| 062 | N 000934008013 | NUT |
| 069 | A 1124700781 | BRACKET |
| 074 | A 1249870740 | RUBBER BUFFER |
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| BRACKET TO BODY | ||
| N 912004006102 | LOCK WASHER | |
| BRACKET TO BODY | ||
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| BRACKET TO BODY | ||
| A 0009909991 | NUT RETAINER | |
| BRACKET TO BODY | ||
| 079 | A 1104700805 | FILLER CAP |
| Repalced by: A 0004716330 | ||
| A 1004700105 | FILLER CAP | |
| Repalced by: A 0004716330 | ||
| A 0004716330 | FILLER CAP | |
| Repalced by: A 1244700005 | ||
| A 1244700005 | FILLER CAP | |
| 085 | A 1104710280 | GASKET |
| TO 110 470 08 05,100 470 01 05 | ||
| A 1154710079 | SEAL RING | |
| TO 000 471 63 30 | ||
| 091 | A 1109870145 | LOCKING CAP |
| A 1114710168 | TANK | |
| Repalced by: A 1154710268 | ||
| A 1114710268 | TANK | |
| Repalced by: A 1154710268 | ||
| 097 | A 1154710268 | TANK |
| 097 | A 1154710268 | TANK |
| 102 | A 0039888178 | CLIP |
| 107 | A 2014761126 | HOSE |
| FOR 5-MM-O.D. PIPE | ||
| A 1074763726 | HOSE | |
| 90 MM | ||
| N 900269008100 | CLAMP | |
| FUEL HOSE TO RESERVOIR | ||
| N 900269010100 | CLAMP | |
| FUEL HOSE TO RESERVOIR | ||
| 112 | A 1119972281 | GROMMET |
| 117 | A 1084710081 | BOOT |
| 120 | A 0009903533 | SCREW |
| VENT PIPE TO FENDER | ||
| 120 | A 0009903533 | SCREW |
| VENT PIPE TO FENDER | ||
| 123 | A 1109950332 | CLAMP |
| VENT PIPE TO FENDER | ||
| 123 | A 1109950332 | CLAMP |
| VENT PIPE TO FENDER | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| VENT PIPE TO FENDER | ||
| N 912004004102 | LOCK WASHER | |
| VENT PIPE TO FENDER | ||
| N 000934004006 | NUT | |
| VENT PIPE TO FENDER | ||
| N 000934004006 | NUT | |
| VENT PIPE TO FENDER | ||
| 129 | N 072571002015 | CLAMP |
| 133 | N 007981004243 | SHEET METAL SCREW |
| Repalced by: N 000000002062 | ||
| 133 | N 000000002062 | SCREW |
| 137 | A 0029884678 | CLIP |
| 141 | A 1104760326 | HOSE |
| Repalced by: A 1149971882 | ||
| A 1149971882 | HOSE | |
| 8 MM | ||
| A 0019976990 | LOOM TIE | |
| 146 | A 1144760125 | INTERMEDIATE PIECE |
| 146 | A 1144760125 | INTERMEDIATE PIECE |
| 146 | A 1144760125 | INTERMEDIATE PIECE |
| 146 | A 1144760125 | INTERMEDIATE PIECE |
| N 916002012000 | CLAMP | |
| A 0010913401 | FUEL PUMP | |
| Repalced by: A 0010915201 | ||
| 152 | A 0010914601 | FUEL PUMP |
| Repalced by: A 0010915201 | ||
| A 0010915201 | FUEL PUMP | |
| ELECTRIC | ||
| A 0010915201 | FUEL PUMP | |
| ELECTRIC | ||
| A 0010915201 | FUEL PUMP | |
| ELECTRIC | ||
| 158 | A 0010917401 | FUEL PUMP |
| ELECTRIC | ||
| A 0010917101 | FUEL PUMP | |
| ELECTRIC | ||
| A 0005480242 | CARBON BRUSH | |
| SET (2 PIECES) | ||
| A 0005450197 | SPRING | |
| 164 | A 0009979145 | SEAL RING |
| 167 | A 0049970445 | SEAL RING |
| 171 | A 0009975972 | FITTING |
| 175 | A 0000910710 | VALVE |
| 179 | N 007603018100 | SEAL RING |
| 184 | A 0005860147 | REPAIR KIT |
| 184 | A 0005860147 | REPAIR KIT |
| 184 | A 0005860147 | REPAIR KIT |
| A 0009941010 | LOCK | |
| CABLE TO ELECTRIC FUEL PUMP | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| CABLE TO ELECTRIC FUEL PUMP | ||
| N 000934004006 | NUT | |
| CABLE TO ELECTRIC FUEL PUMP | ||
| A 1239971681 | GROMMET | |
| CABLE TO ELECTRIC FUEL PUMP | ||
| N 006797004132 | TOOTHED WASHER | |
| CABLE TO ELECTRIC FUEL PUMP | ||
| N 006797005132 | TOOTHED WASHER | |
| CABLE TO ELECTRIC FUEL PUMP | ||
| N 000934005008 | NUT | |
| CABLE TO ELECTRIC FUEL PUMP | ||
| 191 | A 1284780082 | RUBBER RING |
| A 1004700434 | CLAMP | |
| 198 | A 1084700134 | CLAMP |
| 198 | A 1084700134 | CLAMP |
| A 1004700534 | CLAMP | |
| 203 | A 1084700034 | CLAMP |
| 203 | A 1084700034 | CLAMP |
| A 1084700281 | BRACKET | |
| 209 | A 1144700216 | DAMPER CAGE |
| 215 | A 1094700281 | BRACKET |
| A 1074700081 | BRACKET | |
| Repalced by: A 1164700481 | ||
| A 1164700481 | BRACKET | |
| Repalced by: A 1234700381 | ||
| A 1234700381 | BRACKET | |
| 220 | A 0009972281 | GROMMET |
| 224 | A 1144760053 | SPACER TUBE |
| 230 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 230 | N 009021006208 | WASHER |
| 235 | N 912004006102 | LOCK WASHER |
| 241 | N 000933006130 | SCREW |
| 246 | A 0009972881 | GROMMET |
| 252 | A 1094700381 | BRACKET |
| 257 | N 912004006102 | LOCK WASHER |
| 263 | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 263 | N 304032006008 | NUT |
| N 007985005165 | SCREW | |
| PUMP AND FILTER TO BRACKET | ||
| N 912004005100 | LOCK WASHER | |
| PUMP AND FILTER TO BRACKET | ||
| N 000934005008 | NUT | |
| PUMP AND FILTER TO BRACKET | ||
| N 912004005100 | LOCK WASHER | |
| BRACKET TO BRACKET, LEFT AND RIGHT | ||
| N 000934005008 | NUT | |
| BRACKET TO BRACKET, LEFT AND RIGHT | ||
| 268 | A 1089950520 | CLAMP |
| 272 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 272 | N 304017006018 | SCREW |
| 275 | N 912004006102 | LOCK WASHER |
| N 000127005203 | LOCK WASHER | |
| FUEL PUMP TO BRACKET | ||
| N 000934005008 | NUT | |
| FUEL PUMP TO BRACKET | ||
| 280 | A 1124700033 | REINFORCEMENT |
| 284 | A 0009873841 | RUBBER RING |
| 289 | A 1124700481 | BRACKET |
| LEFT | ||
| A 1084780640 | BRACKET | |
| REAR | ||
| A 1084780640 | BRACKET | |
| REAR | ||
| A 1094700081 | BRACKET | |
| LEFT | ||
| 293 | A 1124700581 | BRACKET |
| RIGHT | ||
| A 1084700381 | BRACKET | |
| FRONT | ||
| A 1084700381 | BRACKET | |
| FRONT | ||
| A 1094700181 | BRACKET | |
| RIGHT | ||
| 298 | A 1084780140 | BRACKET |
| FRONT | ||
| A 1084780740 | BRACKET | |
| 303 | A 1084780240 | BRACKET |
| REAR | ||
| A 1084780840 | BRACKET | |
| N 912004006102 | LOCK WASHER | |
| BRACKET TO REINFORCEMENT PLATE | ||
| N 000934006007 | NUT | |
| BRACKET TO REINFORCEMENT PLATE | ||
| 308 | A 1169880511 | BUFFER |
| 313 | A 1269880011 | BUFFER |
| 313 | A 1269880011 | BUFFER |
| 313 | A 1269880011 | BUFFER |
| 313 | A 1269880011 | BUFFER |
| A 1269880011 | BUFFER | |
| 317 | N 000127005203 | LOCK WASHER |
| 320 | N 000934005008 | NUT |
| 323 | N 912004006102 | LOCK WASHER |
| 327 | N 000934006007 | NUT |
| 330 | N 000127005203 | LOCK WASHER |
| 334 | N 000934005008 | NUT |
| 338 | N 000125005306 | WASHER |
| 342 | A 1084700083 | PROTECTIVE PLATE |
| A 1094700083 | PROTECTIVE PLATE | |
| A 1109871444 | EXPANSION PLUG | |
| 345 | N 912004006102 | LOCK WASHER |
| 350 | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 350 | N 304032006008 | NUT |
| 355 | A 1085460185 | PROTECTIVE TUBE |
| 359 | A 1124761226 | HOSE |
| A 1149971882 | HOSE | |
| AT PUMP PRESSURE FITTING AND FILTER ELBOW FITTING | ||
| 140 MM | ||
| A 1149971882 | HOSE | |
| FILTER OUTLET FITTING | ||
| 460 MM | ||
| A 1149971882 | HOSE | |
| FROM RETURN LINE TO FUEL TANK | ||
| 280 MM | ||
| A 0019976990 | LOOM TIE | |
| A 1124761226 | HOSE | |
| AT FUEL PUMP SUCTION FITTING | ||
| 220 MM | ||
| N 916002017100 | CLAMP | |
| A 1089950520 | CLAMP | |
| 364 | A 1114760926 | HOSE |
| A 1369950037 | CLAMP | |
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| N 900269016101 | CLAMP | |
| FUEL HOSE TO FEED LINE | ||
| 370 | A 1094700070 | LINE |
| 370 | A 1094700070 | LINE |
| 370 | A 1094700070 | LINE |
| A 1094700570 | LINE | |
| A 1084700670 | LINE | |
| Repalced by: A 1084761901 | ||
| A 1084761901 | LINE | |
| A 1094700970 | LINE | |
| Repalced by: A 1094761501 | ||
| A 1094761501 | LINE | |
| 375 | A 1094761201 | LINE |
| A 1094761701 | LINE | |
| 379 | A 1094760026 | HOSE |
| 382 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 382 | N 915036010108 | HOLLOW SCREW |
| 386 | N 007603014100 | SEAL RING |
| 390 | A 1094760126 | HOSE |
| 394 | A 1094700170 | LINE |
| A 1094700470 | LINE | |
| A 1094700470 | LINE | |
| A 1094700670 | LINE | |
| A 1084700470 | LINE | |
| Repalced by: A 1084761501 | ||
| A 1084761501 | LINE | |
| A 1094700870 | LINE | |
| Repalced by: A 1094761401 | ||
| A 1094761401 | LINE | |
| 400 | A 1094761301 | LINE |
| Repalced by: A 1084761701 | ||
| A 1084761701 | LINE | |
| A 1084761801 | LINE | |
| N 073379008100 | HOSE | |
| 30 MM | ||
| A 1089950520 | CLAMP | |
| N 007976005203 | SHEET METAL SCREW | |
| A 1084762301 | LINE | |
| A 1084762401 | LINE | |
| REAR | ||
| A 1144762026 | HOSE | |
| Repalced by: A 1149971882 | ||
| A 1149971882 | HOSE | |
| 160 MM | ||
| N 916033012100 | CLAMP | |
| A 0019976990 | LOOM TIE | |
| TO 114 997 18 82 | ||
| A 0019973190 | LOOM TIE | |
| 10 MM | ||
| A 0019974090 | LOOM TIE | |
| 12 MM | ||
| A 0019970390 | LOOM TIE | |
| 17 MM | ||
| 404 | A 1109950022 | CLAMP |
| A 1099950022 | CLAMP | |
| 408 | A 1129950222 | CLAMP |
| 413 | A 1109950015 | CLAMP |
| 418 | A 1539950120 | CLAMP |
| 422 | A 1369950037 | CLAMP |
| A 1809950022 | CLAMP | |
| A 1009950042 | CLAMP | |
| Repalced by: A 1119950042 | ||
| A 1119950042 | CLAMP | |
| Repalced by: A 1409950222 | ||
| A 1409950222 | CLAMP | |
| A 1409950222 | CLAMP | |
| A 1123270084 | SHIM | |
| A 1123270084 | SHIM | |
| 429 | A 1124760584 | DAMPING STRIP |
| 433 | A 1114760384 | DAMPING STRIP |
| 437 | A 1094760084 | DAMPING STRIP |
| A 1124760184 | DAMPING STRIP | |
| A 1104760084 | DAMPING STRIP | |
| 442 | A 1289970182 | HOSE |
| 20 MM | ||
| 447 | N 073379008100 | HOSE |
| 12 MM | ||
| N 007976005203 | SHEET METAL SCREW | |
| N 007976006203 | SHEET METAL SCREW | |
| FUEL LINES TO FRONT SUBFRAME AND TO FRAME FLOOR UNIT | ||
| 455 | A 1204200227 | SCREW |
| FUEL LINES TO FRONT SUBFRAME AND TO FRAME FLOOR UNIT | ||
| A 0019881078 | CLIP | |
| 460 | A 0009873841 | RUBBER RING |
| 463 | N 912004006102 | LOCK WASHER |
| 467 | N 000934006007 | NUT |
| 472 | A 0014773001 | FUEL FILTER |
| A 0014771001 | FUEL FILTER | |
| 476 | A 0000927101 | FILTER |
| Repalced by: A 0000927601 | ||
| A 0000927601 | FILTER | |
| N 007603014100 | SEAL RING | |
| A 1074700279 | INTERMEDIATE PIECE | |
| N 916033012100 | CLAMP | |
| 482 | A 0004776415 | FILTER ELEMENT |
| A 0004776415 | FILTER ELEMENT | |
| 488 | A 1009970040 | SEAL RING |
| 492 | N 000931008251 | SCREW |
| 496 | A 0019979240 | SEAL RING |
| Repalced by: N 007603008109 | ||
| 496 | N 007603008109 | SEAL RING |
| 500 | N 000933010105 | SCREW |
| 505 | N 000137010201 | SPRING WASHER |
| 511 | A 1094760326 | HOSE |
| A 1094760926 | HOSE | |
| 516 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 516 | N 915036010108 | HOLLOW SCREW |
| 520 | N 007603014100 | SEAL RING |
| 524 | N 915013008002 | SCREW FITTING |
| N 915036010204 | HOLLOW SCREW | |
| Repalced by: N 915036010108 | ||
| N 915036010108 | HOLLOW SCREW | |
| N 007603014100 | SEAL RING | |
| 529 | N 007603014100 | SEAL RING |
| A 1004761626 | HOSE | |
| Repalced by: A 1004761326 | ||
| 534 | A 1004761326 | HOSE |
| 540 | A 1094760126 | HOSE |
| A 1284760726 | HOSE | |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
