Transporto priemonė: 300 SEL 6.3; VIN numerio dalis: 109018

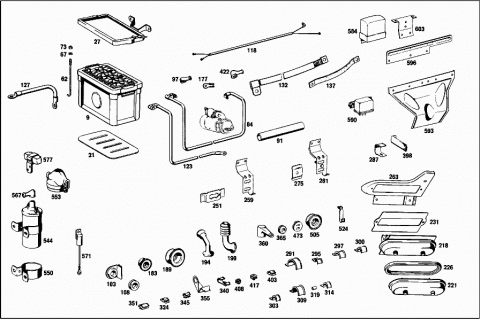

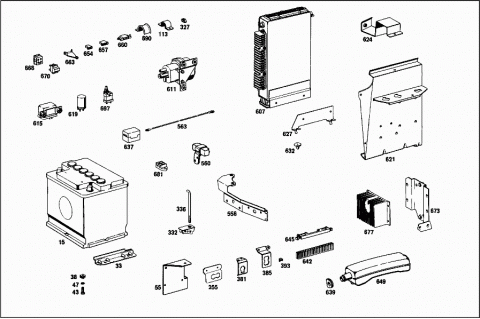

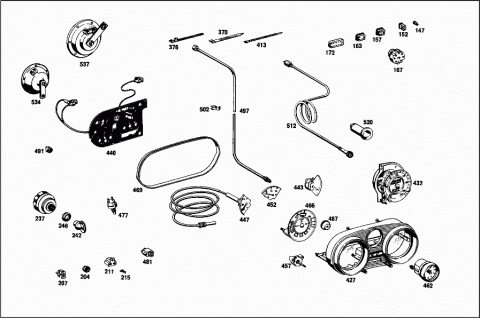

Grupė: 54 ELECTRICAL EQUIPMENT AND INSTRUMENTS
| # | Kodas | Pavadinimas |
|---|---|---|
| 009 | A 0025419901 | BATTERY |
| 12V/70AH | ||
| 009 | A 0025419901 | BATTERY |
| 12V/70AH | ||
| 009 | A 0025419901 | BATTERY |
| 12V/70AH | ||
| A 0035413201 | BATTERY | |
| Repalced by: A 0015418001 | ||
| A 0015418001 | BATTERY | |
| Repalced by: A 0035419201 | ||
| A 0035419201 | BATTERY | |
| Repalced by: A 0045414601 | ||
| A 0045414601 | BATTERY | |
| 88 AH | ||
| Repalced by: A 0055412501 | ||
| A 0055412501 | BATTERY | |
| 88 AH | ||
| A 0009890615 | BATTERY ACID BOTTLE SET | |
| 015 | A 0035413101 | BATTERY |
| 66 AH | ||
| A 0009890415 | BATTERY ACID BOTTLE SET | |
| Repalced by: A 0009891315 | ||
| A 0009891315 | BATTERY ACID BOTTLE SET | |
| A 0005461835 | BOOT | |
| Repalced by: A 0005462335 | ||
| A 0005462335 | BOOT | |
| Repalced by: A 0015460835 | ||
| A 0015460835 | BOOT | |
| 021 | A 1105410135 | BOTTOM |
| BATTERY CASE | ||
| 021 | A 1105410135 | BOTTOM |
| BATTERY CASE | ||
| 027 | A 1085400323 | MOUNTING FRAME |
| BATTERY | ||
| A 1105401123 | MOUNTING FRAME | |
| BATTERY | ||
| A 1085400423 | MOUNTING FRAME | |
| BATTERY | ||
| A 1085400723 | MOUNTING FRAME | |
| BATTERY | ||
| A 1085400723 | MOUNTING FRAME | |
| BATTERY | ||
| A 1095400023 | MOUNTING FRAME | |
| BATTERY | ||
| 033 | A 1145400173 | BRACKET |
| BATTERY MOUNTING | ||
| 033 | A 1145400173 | BRACKET |
| BATTERY MOUNTING | ||
| 038 | A 0009909491 | NUT RETAINER |
| BATTERY MOUNTING | ||
| 038 | A 0009909491 | NUT RETAINER |
| BATTERY MOUNTING | ||
| 043 | N 000933006130 | SCREW |
| BATTERY MOUNTING | ||
| 043 | N 000933006130 | SCREW |
| BATTERY MOUNTING | ||
| 047 | N 912004006102 | LOCK WASHER |
| BATTERY MOUNTING | ||
| 047 | N 912004006102 | LOCK WASHER |
| BATTERY MOUNTING | ||
| N 009021006205 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| BATTERY MOUNTING | ||
| A 0005469641 | CABLE CONNECTOR | |
| 3-POLE | ||
| 055 | A 1095460043 | BRACKET |
| CABLE CONNECTOR | ||
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| BRACKET TO BATTERY FRAME | ||
| N 912004006102 | LOCK WASHER | |
| BRACKET TO BATTERY FRAME | ||
| A 1149970190 | LOOM TIE | |
| BRACKET TO BATTERY FRAME | ||
| N 007985004179 | SCREW | |
| CABLE CONNECTOR TO BRACKET | ||
| N 007985004125 | SCREW | |
| Repalced by: N 007985004107 | ||
| N 007985004107 | SCREW | |
| ELECTRIC CABLE TO CABLE CONNECTOR | ||
| N 912004004102 | LOCK WASHER | |
| CABLE CONNECTOR TO BRACKET | ||
| N 912004004102 | LOCK WASHER | |
| ELECTRIC CABLE TO CABLE CONNECTOR | ||
| N 009021004202 | WASHER | |
| Repalced by: N 009021004207 | ||
| N 009021004207 | WASHER | |
| CABLE CONNECTOR TO BRACKET | ||
| N 007985005125 | SCREW | |
| Repalced by: N 007985005157 | ||
| N 007985005157 | SCREW | |
| ELECTRIC CABLE TO CABLE CONNECTOR | ||
| N 007985006149 | SCREW | |
| Repalced by: N 007985006580 | ||
| N 007985006580 | SCREW | |
| ELECTRIC CABLE TO CABLE CONNECTOR | ||
| N 912004005100 | LOCK WASHER | |
| ELECTRIC CABLE TO CABLE CONNECTOR | ||
| N 912004006102 | LOCK WASHER | |
| ELECTRIC CABLE TO CABLE CONNECTOR | ||
| 062 | A 1865410124 | CLAMPING SCREW |
| BATTERY FRAME TO WHEELHOUSE | ||
| 062 | A 1865410124 | CLAMPING SCREW |
| BATTERY FRAME TO WHEELHOUSE | ||
| 062 | A 1865410124 | CLAMPING SCREW |
| BATTERY FRAME TO WHEELHOUSE | ||
| A 1205410124 | CLAMPING SCREW | |
| BATTERY FRAME TO WHEELHOUSE | ||
| A 1205410124 | CLAMPING SCREW | |
| BATTERY FRAME TO WHEELHOUSE | ||
| A 1205410124 | CLAMPING SCREW | |
| BATTERY FRAME TO WHEELHOUSE | ||
| A 1205410124 | CLAMPING SCREW | |
| BATTERY FRAME TO WHEELHOUSE | ||
| A 1095410024 | CLAMPING SCREW | |
| BATTERY FRAME TO WHEELHOUSE | ||
| 067 | N 912004006102 | LOCK WASHER |
| BATTERY FRAME TO WHEELHOUSE | ||
| 073 | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 073 | N 304032006008 | NUT |
| BATTERY FRAME TO WHEELHOUSE | ||
| A 1879950037 | CLAMP | |
| BATTERY CABLE TO BATTERY CASE | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE GROUP: | ||
| 62 | ||
| A 1085400230 | POSITIVE CABLE | |
| FROM BATTERY POS.POLE TO STARTING MOTOR | ||
| A 1105400230 | POSITIVE CABLE | |
| FROM BATTERY POS.POLE TO STARTING MOTOR | ||
| A 1085400430 | POSITIVE CABLE | |
| FROM BATTERY POS.POLE TO STARTING MOTOR | ||
| 084 | A 1085400730 | POSITIVE CABLE |
| FROM BATTERY POS.POLE TO STARTING MOTOR | ||
| A 1085400530 | POSITIVE CABLE | |
| FROM BATTERY POS.POLE TO STARTING MOTOR | ||
| A 1095400130 | POSITIVE CABLE | |
| FROM BATTERY POS.POLE TO STARTING MOTOR | ||
| A 1005400030 | POSITIVE CABLE | |
| FROM BATTERY POS.POLE TO STARTING MOTOR | ||
| A 1095400530 | POSITIVE CABLE | |
| FROM BATTERY POS.POLE TO STARTING MOTOR | ||
| A 1115400930 | POSITIVE CABLE | |
| FROM BATTERY POS.POLE TO STARTING MOTOR | ||
| A 1115460071 | SCREW | |
| POSITIVE CABLE TO BATTERY | ||
| A 1005460040 | CABLE SHOE | |
| A 1239950320 | CLAMP | |
| STARTING CABLE TO BATTERY SUPPORT | ||
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| STARTING CABLE TO BATTERY SUPPORT | ||
| N 912004006102 | LOCK WASHER | |
| STARTING CABLE TO BATTERY SUPPORT | ||
| A 1879950037 | CLAMP | |
| STARTING CABLE TO BATTERY SUPPORT | ||
| N 007976004216 | SHEET METAL SCREW | |
| STARTING CABLE TO BATTERY SUPPORT | ||
| N 000933006174 | SCREW | |
| AT BATTERY POS. TERMINAL | ||
| N 000125006421 | WASHER | |
| Repalced by: N 000125006449 | ||
| N 000125006449 | WASHER | |
| AT BATTERY POS. TERMINAL | ||
| N 912004006102 | LOCK WASHER | |
| AT BATTERY POS. TERMINAL | ||
| A 1165460006 | ELECTRIC CABLE | |
| FROM ALTERNATOR TO DISTRIBUTOR | ||
| 091 | A 0005462930 | INSULATING HOSE |
| OVER STARTING CABLE AND MAIN CABLE HARNESS | ||
| A 1809971582 | HOSE | |
| OVER STARTING CABLE AND MAIN CABLE HARNESS | ||
| 097 | A 1115460035 | BOOT |
| Repalced by: A 1165460135 | ||
| 097 | A 1165460135 | BOOT |
| POS. CABLE TO STARTING MOTOR | ||
| A 1115460135 | BOOT | |
| POS. CABLE TO STARTING MOTOR | ||
| 103 | A 0005460837 | GROMMET |
| Repalced by: A 0005460937 | ||
| 103 | A 0005460937 | GROMMET |
| STARTING CABLE TO BATTERY FRAME | ||
| 108 | A 0005460837 | GROMMET |
| Repalced by: A 0005460937 | ||
| 108 | A 0005460937 | GROMMET |
| STARTING CABLE TO BATTERY FRAME | ||
| A 0005460937 | GROMMET | |
| STARTING CABLE TO BATTERY FRAME | ||
| A 0005460937 | GROMMET | |
| STARTING CABLE TO BATTERY FRAME | ||
| 113 | A 0009951210 | CLAMP |
| STARTING CABLE | ||
| A 0009951910 | CLAMP | |
| STARTING CABLE | ||
| N 007976004205 | SHEET METAL SCREW | |
| STARTING CABLE | ||
| N 000933005059 | SCREW | |
| Repalced by: N 304017005007 | ||
| N 304017005007 | SCREW | |
| STARTING CABLE | ||
| Repalced by: N 000000002035 | ||
| N 000000002035 | SCREW | |
| STARTING CABLE | ||
| N 912004005100 | LOCK WASHER | |
| STARTING CABLE | ||
| 118 | A 1085406609 | CABLE HARNESS |
| FROM STARTING MOTOR TO CABLE CONNECTOR | ||
| A 1095401109 | CABLE HARNESS | |
| FROM STARTING MOTOR TO CABLE CONNECTOR | ||
| A 1095401709 | CABLE HARNESS | |
| FROM STARTING MOTOR TO CABLE CONNECTOR | ||
| A 1369950137 | CLAMP | |
| STARTING CABLE AND MAIN CABLE HARNESS TO FIRE WALL CENTER | ||
| A 1129950037 | CLAMP | |
| MAIN CABLE HARNESS TO FIRE WALL | ||
| A 1369950420 | CLAMP | |
| STARTING CABLE TO BATTERY FRAME BRACKET | ||
| A 0009970781 | GROMMET | |
| STARTING CABLE TO BATTERY FRAME BRACKET | ||
| N 007976004205 | SHEET METAL SCREW | |
| STARTING CABLE TO BATTERY FRAME BRACKET | ||
| A 1879950037 | CLAMP | |
| MAIN CABLE HARNESS TO RIGHT SIDE MEMBER | ||
| A 1879950037 | CLAMP | |
| MAIN CABLE HARNESS TO RIGHT SIDE MEMBER | ||
| A 1879950037 | CLAMP | |
| MAIN CABLE HARNESS TO RIGHT SIDE MEMBER | ||
| N 007976004205 | SHEET METAL SCREW | |
| MAIN CABLE HARNESS TO RIGHT SIDE MEMBER | ||
| 123 | A 1105400631 | NEG. CABLE |
| GROUND CABLE TO SIDE MEMBER | ||
| A 1005400031 | NEG. CABLE | |
| GROUND CABLE TO SIDE MEMBER | ||
| A 1005400031 | NEG. CABLE | |
| GROUND CABLE TO SIDE MEMBER | ||
| A 1095400031 | NEG. CABLE | |
| GROUND CABLE TO SIDE MEMBER | ||
| 127 | A 1165400231 | NEG. CABLE |
| FROM ENGINE TO FRAME | ||
| A 1165400531 | NEG. CABLE | |
| FROM ENGINE TO FRAME | ||
| A 1165400531 | NEG. CABLE | |
| FROM ENGINE TO FRAME | ||
| A 1005400131 | NEG. CABLE | |
| FROM ENGINE TO FRAME | ||
| 132 | A 1125400141 | GROUND STRAP |
| FROM ENGINE TO RADIATOR | ||
| A 1115400241 | GROUND STRAP | |
| Repalced by: A 1115400041 | ||
| A 1115400041 | GROUND STRAP | |
| Repalced by: A 0005460720 | ||
| A 0005460720 | GROUND STRAP | |
| FROM ENGINE TO RADIATOR | ||
| A 1115400041 | GROUND STRAP | |
| Repalced by: A 0005460720 | ||
| A 0005460720 | GROUND STRAP | |
| FROM ENGINE TO RADIATOR | ||
| 137 | A 1805400441 | GROUND STRAP |
| FROM ENGINE HOOD TO COWL | ||
| A 1805400441 | GROUND STRAP | |
| FROM ENGINE HOOD TO COWL | ||
| N 007976004205 | SHEET METAL SCREW | |
| FROM ENGINE HOOD TO COWL | ||
| N 009021005202 | WASHER | |
| Repalced by: N 009021005205 | ||
| N 009021005205 | WASHER | |
| FROM ENGINE HOOD TO COWL | ||
| N 000933008131 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| NEGATIVE CABLE TO SIDE MEMBER AND TO FIRE WALL | ||
| N 000933010238 | SCREW | |
| Repalced by: N 304017010028 | ||
| N 304017010028 | SCREW | |
| NEGATIVE CABLE TO SIDE MEMBER AND TO FIRE WALL | ||
| N 304017010028 | SCREW | |
| NEGATIVE CABLE TO SIDE MEMBER AND TO FIRE WALL | ||
| N 912004008102 | LOCK WASHER | |
| NEGATIVE CABLE TO SIDE MEMBER AND TO FIRE WALL | ||
| N 912004010102 | LOCK WASHER | |
| NEGATIVE CABLE TO SIDE MEMBER AND TO FIRE WALL | ||
| N 912004010102 | LOCK WASHER | |
| NEGATIVE CABLE TO SIDE MEMBER AND TO FIRE WALL | ||
| N 000125010518 | WASHER | |
| Repalced by: N 000125010532 | ||
| N 000125010532 | WASHER | |
| NEGATIVE CABLE TO SIDE MEMBER AND TO FIRE WALL | ||
| N 000125010532 | WASHER | |
| NEGATIVE CABLE TO SIDE MEMBER AND TO FIRE WALL | ||
| N 000934008013 | NUT | |
| NEGATIVE CABLE TO SIDE MEMBER AND TO FIRE WALL | ||
| A 0009908691 | NUT RETAINER | |
| NEGATIVE CABLE TO SIDE MEMBER AND TO FIRE WALL | ||
| A 1095400005 | CABLE HARNESS | |
| MAIN CABLE HARNESS | ||
| A 1095400205 | CABLE HARNESS | |
| MAIN CABLE HARNESS | ||
| A 1095400105 | CABLE HARNESS | |
| MAIN CABLE HARNESS | ||
| A 1095400305 | CABLE HARNESS | |
| MAIN CABLE HARNESS | ||
| A 1095400505 | CABLE HARNESS | |
| MAIN CABLE HARNESS | ||
| A 1095400405 | CABLE HARNESS | |
| MAIN CABLE HARNESS | ||
| A 1095400705 | CABLE HARNESS | |
| MAIN CABLE HARNESS | ||
| A 1095400605 | CABLE HARNESS | |
| MAIN CABLE HARNESS | ||
| A 1095400905 | CABLE HARNESS | |
| MAIN CABLE HARNESS | ||
| A 1095400805 | CABLE HARNESS | |
| MAIN CABLE HARNESS | ||
| A 1095401105 | CABLE HARNESS | |
| MAIN CABLE HARNESS | ||
| A 1095401005 | CABLE HARNESS | |
| MAIN CABLE HARNESS | ||
| A 1095401905 | CABLE HARNESS | |
| MAIN CABLE HARNESS | ||
| A 1095402205 | CABLE HARNESS | |
| MAIN CABLE HARNESS | ||
| A 1095402005 | CABLE HARNESS | |
| MAIN CABLE HARNESS | ||
| A 1095402605 | CABLE HARNESS | |
| MAIN CABLE HARNESS | ||
| A 1095401405 | CABLE HARNESS | |
| MAIN CABLE HARNESS | ||
| A 1095402405 | CABLE HARNESS | |
| MAIN CABLE HARNESS | ||
| A 1095403205 | CABLE HARNESS | |
| MAIN CABLE HARNESS | ||
| A 1095401305 | CABLE HARNESS | |
| MAIN CABLE HARNESS | ||
| A 1095402505 | CABLE HARNESS | |
| MAIN CABLE HARNESS | ||
| A 1095403605 | CABLE HARNESS | |
| MAIN CABLE HARNESS | ||
| A 1095402805 | CABLE HARNESS | |
| MAIN CABLE HARNESS | ||
| A 1095403405 | CABLE HARNESS | |
| MAIN CABLE HARNESS | ||
| A 1095402905 | CABLE HARNESS | |
| MAIN CABLE HARNESS | ||
| A 1095403705 | CABLE HARNESS | |
| MAIN CABLE HARNESS | ||
| 147 | A 0005454728 | PLUG |
| DOME LIGHTING | ||
| A 0045458528 | PLUG | |
| Repalced by: A 0085452028 | ||
| 147 | A 0085452028 | PIN BUSHING HOUSING |
| 1-POLE | ||
| A 0095451428 | COVER | |
| TO 008 545 20 28 | ||
| A 0015454426 | ROUND PIN BUSHING | |
| TO 008 545 20 28 | ||
| 152 | A 0025454928 | PLUG |
| Repalced by: A 0085453728 | ||
| 152 | A 0085453728 | PIN BUSHING HOUSING |
| STOP LIGHT SWITCH,PNEUM. SWITCH,HAND BRAKE CONTROL,GLOVE COMPARTMENT LAMP | ||
| 152 | A 0085453728 | PIN BUSHING HOUSING |
| HEATING CONTROL | ||
| 152 | A 0085453728 | PIN BUSHING HOUSING |
| KICK-DOWN SWITCH | ||
| 152 | A 0085453728 | PIN BUSHING HOUSING |
| BIPOLAR; ADDITIONAL FAN | ||
| 152 | A 0085453728 | PIN BUSHING HOUSING |
| BACK-UP LIGHT SWITCH; BIPOLAR | ||
| 152 | A 0085453728 | PIN BUSHING HOUSING |
| SELF-LEVELLING DEVICE | ||
| 152 | A 0085453728 | PIN BUSHING HOUSING |
| TACHOMETER | ||
| A 0085453828 | COVER | |
| TO 008 545 37 28 | ||
| A 0035452626 | ROUND PIN BUSHING | |
| TO 008 545 37 28 | ||
| A 0035454728 | PLUG | |
| Repalced by: A 0085450828 | ||
| A 0085450828 | PIN BUSHING HOUSING | |
| BRAKE FLUID CONTROL | ||
| A 0085451128 | COVER | |
| TO 008 545 08 28 | ||
| A 0015454426 | ROUND PIN BUSHING | |
| TO 008 545 08 28 | ||
| A 0045459228 | PLUG | |
| ALTERNATOR,3-POLE | ||
| 157 | A 0045458628 | PLUG |
| Repalced by: A 0075450028 | ||
| 157 | A 0075450028 | PIN BUSHING HOUSING |
| Repalced by: A 0155454928 | ||
| 157 | A 0155454928 | PLUG |
| HEATER BLOWER | ||
| 157 | A 0155454928 | PLUG |
| RELAY; 4-POLE | ||
| 157 | A 0155454928 | PLUG |
| TIME-LAG SWITCH | ||
| 157 | A 0155454928 | PLUG |
| DECLUTCHING START SWITCH | ||
| 157 | A 0155454928 | PLUG |
| WINDSHIELD WASHER PUMP;2-POLE | ||
| A 0095452128 | COVER | |
| TO 007 545 00 28 | ||
| A 0035452626 | ROUND PIN BUSHING | |
| TO 007 545 00 28 | ||
| 163 | A 0055451328 | PLUG |
| Repalced by: A 0065458028 | ||
| 163 | A 0065458028 | PIN BUSHING HOUSING |
| WIPER MOTOR; 6-POLE | ||
| 163 | A 0065458028 | PIN BUSHING HOUSING |
| LIGHTING UNIT | ||
| 163 | A 0065458028 | PIN BUSHING HOUSING |
| HAZARD WARNING LIGHT SWITCH | ||
| 163 | A 0065458028 | PIN BUSHING HOUSING |
| DECLUTCHING START SWITCH | ||
| A 0095453028 | COVER | |
| TO 006 545 80 28 | ||
| A 0045456528 | PLUG | |
| Repalced by: A 0095459428 | ||
| A 0095459428 | PLUG | |
| 5-POLE | ||
| A 0095459528 | PLUG | |
| TO 009 545 94 28 | ||
| A 0045456628 | PIN BUSHING | |
| TO 009 545 94 28 | ||
| 167 | A 0045452628 | PLUG |
| IGNITION/STARTING SWITCH; 8-POLE | ||
| 172 | A 0025453528 | PLUG |
| Repalced by: A 0095452628 | ||
| 172 | A 0095452628 | PIN BUSHING HOUSING |
| TAIL LAMP CABLE HARNESS,12-POLE | ||
| 172 | A 0095452628 | PIN BUSHING HOUSING |
| ENGINE CABLE HARNESS | ||
| A 0095452428 | COVER | |
| TO 009 545 26 28 | ||
| A 0035452626 | ROUND PIN BUSHING | |
| TO 006 545 80 28,009 545 26 28 | ||
| A 0035452728 | PLUG | |
| STEERING COLUMN MOUNTED CABLE HARNESS, 14-POLE | ||
| A 0035453828 | PLUG | |
| Repalced by: A 0095452328 | ||
| A 0095452328 | PIN BUSHING HOUSING | |
| STEERING COLUMN MOUNTED CABLE HARNESS, 14-POLE | ||
| A 0095452328 | PIN BUSHING HOUSING | |
| STEERING COLUMN MOUNTED CABLE HARNESS, 14-POLE | ||
| A 0035454628 | PLUG | |
| Repalced by: A 0105450428 | ||
| A 0105450428 | PIN BUSHING HOUSING | |
| INSTRUMENT CLUSTER;15-POLE | ||
| A 0105450428 | PIN BUSHING HOUSING | |
| INSTRUMENT CLUSTER;15-POLE | ||
| A 0105450528 | COVER | |
| TO 010 545 04 28 | ||
| A 0025459926 | ROUND PIN BUSHING | |
| TO 010 545 04 28 | ||
| 177 | A 0005463440 | CABLE SHOE |
| A 0005464440 | CABLE SHOE | |
| A 0005464240 | CABLE SHOE | |
| A 0005464240 | CABLE SHOE | |
| A 0005463540 | CABLE SHOE | |
| 183 | A 1119970181 | GROMMET |
| SOLENOID SWITCH BRANCH-OFF | ||
| 189 | A 1119971381 | GROMMET |
| A 1159970781 | GROMMET | |
| FIRE WALL | ||
| A 1119971681 | GROMMET | |
| FIRE WALL | ||
| A 1119971681 | GROMMET | |
| FIRE WALL | ||
| A 1159970781 | GROMMET | |
| FIRE WALL | ||
| A 0009972881 | GROMMET | |
| GENERATOR REGULATOR AND CUT-OUT | ||
| A 0009972981 | GROMMET | |
| GENERATOR REGULATOR AND CUT-OUT | ||
| 194 | A 1085460085 | PROTECTIVE TUBE |
| RIGHT HEADLAMP | ||
| 199 | A 1105460085 | PROTECTIVE TUBE |
| LEFT HEADLAMP | ||
| A 0005460845 | INSULATING SLEEVE | |
| THERMO-SWITCH | ||
| 204 | A 0005440486 | PLUG |
| HEADLAMP | ||
| 207 | A 0025452428 | PLUG |
| Repalced by: A 0095454028 | ||
| 207 | A 0095454028 | PLUG HOUSING |
| DOME LAMP | ||
| 211 | A 0025459528 | PIN BUSHING HOUSING |
| REGULATOR AND CUT-OUT | ||
| 215 | A 0005464640 | CABLE SHOE |
| A 0005464340 | PIN BUSHING | |
| THERMO-SWITCH | ||
| A 1085400350 | FUSE BOX | |
| Repalced by: A 1115400050 | ||
| 218 | A 1115400050 | FUSE BOX |
| AT FIRE WALL | ||
| 221 | A 0005451003 | CAP |
| FUSE BOX TO FIRE WALL | ||
| 226 | A 0005450180 | GASKET |
| FUSE BOX COVER | ||
| 231 | A 0005451580 | GASKET |
| FUSE BOX BRACKET | ||
| A 1095400038 | ELECTRIC CABLE | |
| CONTROL CABLE | ||
| 237 | A 0005452804 | SWITCH |
| LIGHT ROTARY SWITCH | ||
| A 0005452904 | SWITCH | |
| LIGHT ROTARY SWITCH | ||
| N 007985004136 | SCREW | |
| ELECTRIC CABLE TO LIGHT ROTARY SWITCH | ||
| N 006797004232 | TOOTHED WASHER | |
| ELECTRIC CABLE TO LIGHT ROTARY SWITCH | ||
| 242 | A 1105451137 | BUTTON |
| LIGHT ROTARY SWITCH | ||
| A 0005453704 | LIGHT SWITCH | |
| LIGHT ROTARY SWITCH | ||
| A 1155400583 | HANDLE | |
| LIGHT ROTARY SWITCH | ||
| A 0005452345 | BOOT | |
| LIGHT SWITCH | ||
| A 0005452245 | BOOT | |
| LIGHT SWITCH | ||
| 246 | A 1105450272 | NUT |
| LIGHT ROTARY SWITCH | ||
| A 0005464940 | CABLE SHOE | |
| A 0005463335 | BOOT | |
| KICK-DOWN SOLENOID VALVE | ||
| 251 | A 1086370614 | BRACKET |
| PLUG CONNECTION | ||
| 255 | A 1235454940 | BRACKET |
| PLUG CONNECTION | ||
| N 007976004205 | SHEET METAL SCREW | |
| BRACKET TO FRONT PANEL PILLAR | ||
| A 1085450240 | BRACKET | |
| Repalced by: A 1085400473 | ||
| 259 | A 1085400473 | BRACKET |
| PLUG CONNECTION | ||
| A 0005458234 | FUSE | |
| Repalced by: N 072581008101 | ||
| N 072581008101 | FUSE | |
| N 072581025100 | FUSE | |
| 263 | A 1085400073 | BRACKET |
| FUSE BOX TO FIRE WALL | ||
| A 1085450140 | BRACKET | |
| FUSE BOX TO FIRE WALL | ||
| N 007985004136 | SCREW | |
| FUSE BOX TO FIRE WALL | ||
| N 000137004202 | SPRING WASHER | |
| FUSE BOX TO FIRE WALL | ||
| 275 | A 1125401173 | BRACKET |
| MAIN CABLE HARNESS TO FRONT CROSS MEMBER | ||
| 275 | A 1125401173 | BRACKET |
| MAIN CABLE HARNESS TO FRONT CROSS MEMBER | ||
| 281 | A 1085400473 | BRACKET |
| PLUG CONNECTION | ||
| 281 | A 1085400473 | BRACKET |
| PLUG CONNECTION | ||
| A 1085451640 | BRACKET | |
| PLUG CONNECTION | ||
| A 1085451640 | BRACKET | |
| PLUG CONNECTION | ||
| 287 | A 1085460243 | BRACKET |
| MAIN CABLE HARNESS TO FRONT CROSS MEMBER | ||
| A 1085460443 | BRACKET | |
| MAIN CABLE HARNESS TO FRONT CROSS MEMBER | ||
| N 007976004205 | SHEET METAL SCREW | |
| BRACKET MOUNTING | ||
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| BRACKET MOUNTING | ||
| N 912004006102 | LOCK WASHER | |
| BRACKET MOUNTING | ||
| 291 | A 1369950137 | CLAMP |
| STARTING CABLE AND MAIN CABLE HARNESS TO FIRE WALL CENTER | ||
| 291 | A 1369950137 | CLAMP |
| MAIN CABLE HARNESS TO FIRE WALL,LEFT | ||
| 291 | A 1369950137 | CLAMP |
| CABLE HARNESS MOUNTING | ||
| 295 | A 1369950037 | CLAMP |
| BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING | ||
| 295 | A 1369950037 | CLAMP |
| BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING | ||
| 297 | A 1369950135 | CLAMP |
| CABLE HARNESS MOUNTING | ||
| 297 | A 1369950135 | CLAMP |
| MAIN CABLE HARNESS TO RIGHT WHEEL ARCH PANEL | ||
| 297 | A 1369950135 | CLAMP |
| MAIN CABLE HARNESS TO FIRE WALL,LEFT | ||
| A 1989950037 | CLAMP | |
| CABLE HARNESS MOUNTING | ||
| A 1239950320 | CLAMP | |
| STARTING CABLE AND MAIN CABLE HARNESS TO FIRE WALL CENTER | ||
| A 1239950320 | CLAMP | |
| STARTING CABLE TO BATTERY FRAME | ||
| 300 | A 1129950120 | CLAMP |
| CABLE HARNESS MOUNTING | ||
| 300 | A 1129950120 | CLAMP |
| MAIN CABLE HARNESS TO FIRE WALL,LEFT | ||
| 300 | A 1129950120 | CLAMP |
| CABLE HARNESS MOUNTING | ||
| 303 | A 1879950037 | CLAMP |
| STARTING CABLE TO BATTERY FRAME BRACKET | ||
| 303 | A 1879950037 | CLAMP |
| STARTING CABLE TO BATTERY FRAME BRACKET | ||
| 303 | A 1879950037 | CLAMP |
| MAIN CABLE HARNESS TO RIGHT SIDE MEMBER | ||
| 303 | A 1879950037 | CLAMP |
| MAIN CABLE HARNESS TO FIRE WALL,RIGHT | ||
| 309 | A 1989950037 | CLAMP |
| CABLE HARNESS MOUNTING | ||
| 314 | A 1369950137 | CLAMP |
| MAIN CABLE HARNESS TO LEFT WHEEL ARCH PANEL | ||
| A 1879950037 | CLAMP | |
| ELECTRIC CABLE OF DECLUTCHING START START SWITCH AND BACK-UP LIGHT SWITCH | ||
| 319 | A 1085460253 | SPACER TUBE |
| N 007976004211 | SHEET METAL SCREW | |
| CABLE HARNESS MOUNTING | ||
| N 007976004205 | SHEET METAL SCREW | |
| CABLE HARNESS MOUNTING | ||
| N 007976004205 | SHEET METAL SCREW | |
| CABLE HARNESS MOUNTING | ||
| N 000933004030 | SCREW | |
| N 912004004102 | LOCK WASHER | |
| N 000934004006 | NUT | |
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| N 000934006013 | NUT | |
| Repalced by: N 304032006008 | ||
| N 304032006008 | NUT | |
| A 0009903891 | NUT RETAINER | |
| Repalced by: A 0009903931 | ||
| A 0009903931 | SCREW | |
| 324 | A 0019881078 | CLIP |
| 327 | A 0009950068 | CLAMP |
| DOUBLE SOLENOID ELECTRIC CABLE | ||
| A 0009957601 | CLAMP | |
| DOUBLE SOLENOID ELECTRIC CABLE | ||
| N 007981004250 | SHEET METAL SCREW | |
| DOUBLE SOLENOID ELECTRIC CABLE | ||
| 332 | A 1095400473 | BRACKET |
| Repalced by: A 0039880878 | ||
| 336 | A 1082950124 | CLAMPING SCREW |
| Repalced by: A 0039880878 | ||
| A 0039880878 | CLIP | |
| MAIN CABLE HARNESS TO BRAKE BOOSTER | ||
| N 912004006102 | LOCK WASHER | |
| MAIN CABLE HARNESS TO BRAKE BOOSTER | ||
| N 000934006013 | NUT | |
| Repalced by: N 304032006008 | ||
| N 304032006008 | NUT | |
| MAIN CABLE HARNESS TO BRAKE BOOSTER | ||
| A 0009883478 | CLIP | |
| A 0009883478 | CLIP | |
| 340 | A 1119880178 | CLIP |
| 340 | A 1119880178 | CLIP |
| 345 | A 0009888978 | CLIP |
| 351 | A 0009881878 | CLIP |
| 355 | A 0029880078 | CLIP |
| 360 | A 0005450745 | BOOT |
| 365 | A 0009972881 | GROMMET |
| 365 | A 0009972881 | GROMMET |
| 370 | A 0019974290 | LOOM TIE |
| Repalced by: A 0019974390 | ||
| 370 | A 0019974390 | LOOM TIE |
| 140 MM | ||
| A 1149970190 | LOOM TIE | |
| 80 MM | ||
| A 0019974190 | LOOM TIE | |
| 100 MM | ||
| 376 | A 1149970290 | LOOM TIE |
| Repalced by: A 1149970590 | ||
| 376 | A 1149970590 | LOOM TIE |
| 160 MM | ||
| A 0019974390 | LOOM TIE | |
| 250 MM | ||
| A 0009873272 | EDGE GUARD SECTION | |
| Repalced by: A 0029873572 | ||
| A 0029873572 | EDGE GUARD SECTION | |
| 381 | A 1095450940 | BRACKET |
| TIME-LAG SWITCH | ||
| N 007976004215 | SHEET METAL SCREW | |
| 385 | A 1095450840 | BRACKET |
| DECLUTCHING-START/BACK-UP-LIGHT SWITCH PLUG CONNECTION | ||
| N 007981004233 | SHEET METAL SCREW | |
| Repalced by: N 000000000460 | ||
| N 000000000460 | SHEET METAL SCREW | |
| N 040621014200 | INSULATING HOSE | |
| A 1095400307 | CABLE HARNESS | |
| TAIL LAMPS | ||
| A 1095400707 | CABLE HARNESS | |
| TAIL LAMPS | ||
| A 1095400407 | CABLE HARNESS | |
| TAIL LAMPS | ||
| A 1095400907 | CABLE HARNESS | |
| TAIL LAMPS | ||
| A 1119971581 | GROMMET | |
| BRANCH-OFF TO LUGGAGE COMPARTMENT TO REAR LID | ||
| A 0025454928 | PLUG | |
| Repalced by: A 0085453728 | ||
| A 0085453728 | PIN BUSHING HOUSING | |
| LUGGAGE COMPARTMENT LIGHTING | ||
| A 0085453828 | COVER | |
| TO 008 545 37 28 | ||
| A 0045458628 | PLUG | |
| Repalced by: A 0075450028 | ||
| A 0075450028 | PIN BUSHING HOUSING | |
| Repalced by: A 0155454928 | ||
| A 0155454928 | PLUG | |
| FUEL GAUGE SENDER UNIT; 4-POLE | ||
| A 0095452128 | COVER | |
| TO 007 545 00 28 | ||
| A 0055451328 | PLUG | |
| Repalced by: A 0065458028 | ||
| A 0065458028 | PIN BUSHING HOUSING | |
| TAIL LAMP CABLE HARNESS COUPLER | ||
| A 0095453028 | COVER | |
| TO 006 545 80 28 | ||
| A 0035452626 | ROUND PIN BUSHING | |
| 4 MM | ||
| A 0025452628 | PLUG | |
| Repalced by: A 0095455428 | ||
| A 0095455428 | PLUG HOUSING | |
| TAIL LAMP CABLE HARNESS,12-POLE | ||
| A 1085402609 | CABLE HARNESS | |
| AUTOMATIC TRANSMISSION | ||
| A 1095401209 | CABLE HARNESS | |
| AUTOMATIC TRANSMISSION | ||
| A 1085402809 | CABLE HARNESS | |
| AUTOMATIC TRANSMISSION | ||
| A 0025454928 | PLUG | |
| Repalced by: A 0085453728 | ||
| A 0085453728 | PIN BUSHING HOUSING | |
| ADDITIONAL CABLE HARNESS TO MAIN CABLE HARNESS | ||
| A 0085453828 | COVER | |
| TO 008 545 37 28 | ||
| A 0065459328 | PLUG | |
| Repalced by: A 0095454228 | ||
| A 0095454228 | PLUG | |
| STARTER NON-REPEAT AND BACK-UP LIGHT SWITCH | ||
| A 0095454328 | COVER | |
| TO 009 545 42 28 | ||
| A 0035452626 | ROUND PIN BUSHING | |
| TO 008 545 37 28,009 545 42 28 | ||
| A 0035457128 | PLUG | |
| Repalced by: A 0065457828 | ||
| A 0065457828 | PLUG HOUSING | |
| ADDITIONAL CABLE HARNESS TO MAIN CABLE HARNESS | ||
| A 0095453028 | COVER | |
| TO 006 545 78 28 | ||
| A 0015453826 | PLUG PIN | |
| TO 006 545 78 28 | ||
| A 1085402509 | CABLE HARNESS | |
| FROM SOLENOID VALVE TO KICK-DOWN SWITCH | ||
| A 1085402709 | CABLE HARNESS | |
| FROM SOLENOID VALVE TO KICK-DOWN SWITCH | ||
| A 0025454928 | PLUG | |
| Repalced by: A 0085453728 | ||
| A 0085453728 | PIN BUSHING HOUSING | |
| KICK-DOWN SWITCH | ||
| A 0085453828 | COVER | |
| TO 008 545 37 28 | ||
| A 0035452626 | ROUND PIN BUSHING | |
| TO 008 545 37 28 | ||
| 393 | A 0003040040 | BRACKET |
| CABLE TO SWITCH SOLENOID VALVE | ||
| N 007985004123 | SCREW | |
| CABLE TO SWITCH SOLENOID VALVE | ||
| 398 | A 1085400273 | BRACKET |
| TAIL LAMP CABLE HARNESS IN THE REAR | ||
| 398 | A 1085400273 | BRACKET |
| TAIL LAMP CABLE HARNESS IN THE REAR | ||
| 398 | A 1085400273 | BRACKET |
| TAIL LAMP CABLE HARNESS IN THE REAR | ||
| N 007976004205 | SHEET METAL SCREW | |
| TAIL LAMP CABLE HARNESS IN THE REAR | ||
| N 007976004205 | SHEET METAL SCREW | |
| TAIL LAMP CABLE HARNESS IN THE REAR | ||
| N 007976004205 | SHEET METAL SCREW | |
| TAIL LAMP CABLE HARNESS IN THE REAR | ||
| A 0009881778 | CLIP | |
| LUGGAGE COMPARTMENT LAMP CABLE | ||
| 403 | A 0009883378 | CLIP |
| LUGGAGE COMPARTMENT LAMP CABLE | ||
| 408 | A 0009883378 | CLIP |
| 413 | A 0019974390 | LOOM TIE |
| 417 | A 0029880278 | CLIP |
| 417 | A 0029880278 | CLIP |
| 417 | A 0029880278 | CLIP |
| A 0029886978 | CLIP | |
| CABLE CONNECTOR TO KICK-DOWN SWITCH | ||
| A 0009882878 | CLIP | |
| 422 | A 0005463335 | BOOT |
| CABLE HARNESS TO ALTERNATOR | ||
| N 000934006013 | NUT | |
| Repalced by: N 304032006008 | ||
| N 304032006008 | NUT | |
| CABLE HARNESS TO ALTERNATOR | ||
| N 000137006204 | SPRING WASHER | |
| CABLE HARNESS TO ALTERNATOR | ||
| A 1122570490 | COVER PLATE | |
| KICK-DOWN SWITCH CABLE TO TOEBOARD | ||
| N 007976004205 | SHEET METAL SCREW | |
| KICK-DOWN SWITCH CABLE TO TOEBOARD | ||
| A 0029884878 | CLIP | |
| KICK-DOWN SWITCH CABLE TO TOEBOARD | ||
| 427 | A 0005421256 | HOUSING |
| INSTRUMENT CLUSTER | ||
| 432 | A 0055428806 | SPEEDOMETER |
| READING IN KILOMETRES | ||
| A 0055429006 | SPEEDOMETER | |
| READING IN KILOMETRES | ||
| A 0065428606 | SPEEDOMETER | |
| READING IN KILOMETRES | ||
| A 0065428606 | SPEEDOMETER | |
| READING IN KILOMETRES | ||
| A 0065429006 | SPEEDOMETER | |
| READING IN KILOMETRES | ||
| A 0065424206 | SPEEDOMETER | |
| READING IN KILOMETRES | ||
| A 0065429606 | SPEEDOMETER | |
| READING IN KILOMETRES | ||
| A 0065429406 | SPEEDOMETER | |
| READING IN KILOMETRES | ||
| A 0065429406 | SPEEDOMETER | |
| READING IN KILOMETRES | ||
| A 0075424306 | SPEEDOMETER | |
| READING IN KILOMETRES | ||
| A 0005427316 | TACHOMETER | |
| A 0005420478 | CONNECTION PLATE | |
| A 0035452728 | PLUG | |
| 440 | A 0005420978 | CONNECTION PLATE |
| 440 | A 0005420978 | CONNECTION PLATE |
| 440 | A 0005420978 | CONNECTION PLATE |
| A 0005421578 | CONNECTION PLATE | |
| A 0005420878 | CONNECTION PLATE | |
| 443 | A 0015424802 | OIL PRESSURE GAUGE |
| GRADUATION IN KG/CM2 | ||
| 443 | A 0015425902 | OIL PRESSURE GAUGE |
| GRADUATION IN KG/CM2 | ||
| 443 | A 0015427102 | OIL PRESSURE GAUGE |
| GRADUATION IN KG/CM2 | ||
| 443 | A 0015427102 | OIL PRESSURE GAUGE |
| GRADUATION IN KG/CM2 | ||
| 447 | A 0035421405 | TEMPERATURE GAUGE |
| CENTIGRADE SCALE | ||
| 452 | A 0005429603 | FUEL GAUGE DASH UNIT |
| 452 | A 0015420303 | FUEL GAUGE DASH UNIT |
| 452 | A 0015420503 | FUEL GAUGE DASH UNIT |
| 452 | A 0015420503 | FUEL GAUGE DASH UNIT |
| 452 | A 0015420803 | FUEL GAUGE DASH UNIT |
| 457 | A 0005421025 | POTENTIOMETER |
| 457 | A 0005421525 | POTENTIOMETER |
| 457 | A 0005421525 | POTENTIOMETER |
| 462 | A 0005420711 | CLOCK |
| 462 | A 1115420411 | CLOCK |
| 466 | A 0005420058 | DIAL FACING |
| IN GERMAN | ||
| 466 | A 0005420458 | DIAL FACING |
| IN GERMAN | ||
| 466 | A 0005421458 | DIAL FACING |
| 466 | A 0005421458 | DIAL FACING |
| 469 | A 1085420080 | GASKET |
| N 000084003104 | SCREW | |
| OIL PRESSURE GAUGE | ||
| N 000084003101 | SCREW | |
| WATER TEMPERATURE GAUGE | ||
| 473 | A 1109970781 | GROMMET |
| 477 | A 0005453509 | SWITCH |
| STOP LIGHT SWITCH | ||
| N 006797012250 | TOOTHED WASHER | |
| STOP LIGHT SWITCH TO PEDAL ASSEMBLY | ||
| A 0009909251 | NUT | |
| STOP LIGHT SWITCH TO PEDAL ASSEMBLY | ||
| 481 | A 0005459611 | SWITCH |
| Repalced by: A 0015450211 | ||
| A 0015450211 | SWITCH | |
| HAND BRAKE TELL-TALE LAMP | ||
| A 0019906751 | NUT | |
| Repalced by: A 0002520372 | ||
| A 0002520372 | NUT | |
| N 000137008204 | SPRING WASHER | |
| Repalced by: N 000137008212 | ||
| N 000137008212 | SPRING WASHER | |
| A 0009881678 | CLIP | |
| CABLE TO BRAKE BOOSTER | ||
| N 000934004006 | NUT | |
| FUEL GAUGE | ||
| N 000433004307 | WASHER | |
| FUEL GAUGE | ||
| N 006797004232 | TOOTHED WASHER | |
| FUEL GAUGE | ||
| 487 | A 1089900057 | NUT |
| 491 | A 0005454019 | SOCKET |
| A 0005446794 | BULB | |
| Repalced by: N 072601012240 | ||
| N 072601012240 | BULB | |
| A 1085400059 | HOSE | |
| Repalced by: A 1085420144 | ||
| 497 | A 1085420144 | PIPE LINE |
| OIL PRESSURE GAUGE | ||
| 497 | A 1085420144 | PIPE LINE |
| OIL PRESSURE GAUGE | ||
| A 1085420544 | PIPE LINE | |
| OIL PRESSURE GAUGE | ||
| A 1085420244 | PIPE LINE | |
| OIL PRESSURE GAUGE | ||
| A 1095420444 | PIPE LINE | |
| OIL PRESSURE GAUGE | ||
| A 1095420544 | PIPE LINE | |
| OIL PRESSURE GAUGE | ||
| A 1095420044 | PIPE LINE | |
| OIL PRESSURE GAUGE | ||
| A 1095420144 | PIPE LINE | |
| OIL PRESSURE GAUGE | ||
| 502 | A 0029886078 | CLIP |
| OIL PRESSURE GAUGE LINE THRU FIRE WALL | ||
| 505 | A 1109971281 | GROMMET |
| OIL PRESSURE GAUGE LINE THRU FIRE WALL | ||
| A 1119971481 | GROMMET | |
| OIL PRESSURE GAUGE LINE THRU FIRE WALL | ||
| A 1109970781 | GROMMET | |
| A 1082700052 | GEAR INDICATOR | |
| A 1092700052 | GEAR INDICATOR | |
| A 1092700052 | GEAR INDICATOR | |
| A 1082700152 | GEAR INDICATOR | |
| A 1092700152 | GEAR INDICATOR | |
| A 1092700152 | GEAR INDICATOR | |
| N 007981004254 | SHEET METAL SCREW | |
| 512 | A 1095420207 | FLEXIBLE SHAFT |
| 1300 MM | ||
| 512 | A 1095420207 | FLEXIBLE SHAFT |
| 1300 MM | ||
| A 1085420307 | FLEXIBLE SHAFT | |
| 1450 MM | ||
| A 1085420007 | FLEXIBLE SHAFT | |
| 1350 MM | ||
| A 1095420307 | FLEXIBLE SHAFT | |
| 1900 MM | ||
| A 1095420307 | FLEXIBLE SHAFT | |
| 1900 MM | ||
| A 1085420107 | FLEXIBLE SHAFT | |
| 2000 MM | ||
| A 1095420507 | FLEXIBLE SHAFT | |
| 1330 MM | ||
| A 1095420707 | FLEXIBLE SHAFT | |
| 2090 MM | ||
| A 1095420407 | FLEXIBLE SHAFT | |
| 1230 MM | ||
| A 1095420407 | FLEXIBLE SHAFT | |
| 1230 MM | ||
| A 1095420607 | FLEXIBLE SHAFT | |
| 2000 MM | ||
| 520 | A 1089970381 | GROMMET |
| SPEEDOMETER CABLE TO FIRE WALL | ||
| A 1119971481 | GROMMET | |
| SPEEDOMETER CABLE TO FIRE WALL | ||
| 524 | A 1109880878 | CLIP |
| FLEXIBLE SHAFT MOUNTING | ||
| A 1099880078 | CLIP | |
| FLEXIBLE SHAFT MOUNTING | ||
| A 1085400473 | BRACKET | |
| A 1085450340 | BRACKET | |
| N 007976004205 | SHEET METAL SCREW | |
| N 009021005202 | WASHER | |
| Repalced by: N 009021005205 | ||
| N 009021005205 | WASHER | |
| N 000137012203 | SPRING WASHER | |
| Repalced by: N 000137012206 | ||
| N 000137012206 | SPRING WASHER | |
| A 1119900057 | NUT | |
| 534 | A 0035421020 | HORN |
| 335 HZ | ||
| 534 | A 0035421620 | HORN |
| 335 HZ | ||
| 537 | A 0035420720 | HORN |
| 400 HZ | ||
| 537 | A 0035421720 | HORN |
| 400 HZ | ||
| N 000084004156 | SCREW | |
| ELECTRIC CABLE TO HORN | ||
| N 912004004102 | LOCK WASHER | |
| ELECTRIC CABLE TO HORN | ||
| N 000933010129 | SCREW | |
| Repalced by: N 304017010002 | ||
| N 304017010002 | SCREW | |
| HORN TO BRACKET | ||
| N 912004010102 | LOCK WASHER | |
| HORN TO BRACKET | ||
| N 000933008131 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| HORN TO STRUT | ||
| N 912004008102 | LOCK WASHER | |
| HORN TO STRUT | ||
| N 000933008131 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| HORN TO REINFORCEMENT ANGLE | ||
| N 912004008102 | LOCK WASHER | |
| HORN TO REINFORCEMENT ANGLE | ||
| N 000934008013 | NUT | |
| HORN TO REINFORCEMENT ANGLE | ||
| 544 | A 0001584903 | IGNITION COIL |
| A 0001582803 | IGNITION COIL | |
| 550 | A 0001580240 | BRACKET |
| N 000084005222 | SCREW | |
| N 000562005000 | NUT | |
| A 0001581185 | SUPPRESSOR HOUSING | |
| 553 | A 0001581185 | SUPPRESSOR HOUSING |
| 556 | A 1161500073 | BRACKET |
| IGNITION COIL | ||
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| IGNITION COIL TO BRACKET AT WHEELHOUSE PANEL | ||
| N 009021005202 | WASHER | |
| Repalced by: N 009021005205 | ||
| N 009021005205 | WASHER | |
| IGNITION COIL TO BRACKET AT WHEELHOUSE PANEL | ||
| N 912004005100 | LOCK WASHER | |
| IGNITION COIL TO BRACKET AT WHEELHOUSE PANEL | ||
| A 2019902201 | SCREW | |
| BRACKET TO LEFT WHEELHOUSE PANEL | ||
| A 0009900848 | WASHER | |
| BRACKET TO LEFT WHEELHOUSE PANEL | ||
| 560 | A 0001581345 | SERIES RESISTOR |
| 0,6 OHM | ||
| N 007985004123 | SCREW | |
| N 912004004102 | LOCK WASHER | |
| 563 | A 1075460103 | ELECTRIC CABLE |
| N 000934005008 | NUT | |
| CABLES TO IGNITION COIL | ||
| N 912004005100 | LOCK WASHER | |
| CABLES TO IGNITION COIL | ||
| 567 | A 0005463335 | BOOT |
| 571 | A 0001569801 | CONDENSER |
| A 0001569701 | CONDENSER | |
| A 0011561801 | CONDENSER | |
| 577 | A 0001580845 | SERIES RESISTOR |
| A 0001581945 | SERIES RESISTOR | |
| A 0001582045 | SERIES RESISTOR | |
| N 007981004243 | SHEET METAL SCREW | |
| Repalced by: N 000000002062 | ||
| N 000000002062 | SCREW | |
| SERIES RESISTOR TO WHEELHOUSE PANEL | ||
| A 1085460003 | ELECTRIC CABLE | |
| FROM SERIES RESISTOR TO IGNITION COIL | ||
| N 007985004149 | SCREW | |
| Repalced by: N 000000001933 | ||
| N 000000001933 | SCREW | |
| CABLE TO SERIES RESISTOR | ||
| N 912004004102 | LOCK WASHER | |
| CABLE TO SERIES RESISTOR | ||
| A 0011544706 | REGULATOR AND CUT-OUT | |
| 584 | A 0021543606 | REGULATOR AND CUT-OUT |
| Repalced by: A 0021547406 | ||
| 584 | A 0021547406 | REGULATOR AND CUT-OUT |
| N 000933006121 | SCREW | |
| Repalced by: N 304017006020 | ||
| N 304017006020 | SCREW | |
| REGULATOR AND CUT-OUT TO BRACKET | ||
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| REGULATOR AND CUT-OUT TO BRACKET | ||
| N 912004006102 | LOCK WASHER | |
| REGULATOR AND CUT-OUT TO BRACKET | ||
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| REGULATOR AND CUT-OUT TO BRACKET | ||
| A 0009902291 | NUT RETAINER | |
| Repalced by: A 0019906791 | ||
| A 0019906791 | NUT RETAINER | |
| REGULATOR AND CUT-OUT TO BRACKET | ||
| N 000934006013 | NUT | |
| Repalced by: N 304032006008 | ||
| N 304032006008 | NUT | |
| REGULATOR AND CUT-OUT TO BRACKET | ||
| A 0009970781 | GROMMET | |
| A 0005463335 | BOOT | |
| A 0001567601 | CONDENSER | |
| TERMINAL | ||
| 51 | ||
| A 0011564601 | CONDENSER | |
| TERMINAL | ||
| 61 | ||
| A 0001567401 | CONDENSER | |
| TERMINAL | ||
| DF | ||
| 590 | A 0005425819 | RELAY |
| MIXTURE CONTROL | ||
| 590 | A 0005425819 | RELAY |
| AUXILIARY FAN | ||
| 593 | A 1085420040 | BRACKET |
| 596 | A 1095410240 | BRACKET |
| 596 | A 1095410240 | BRACKET |
| A 1095420440 | BRACKET | |
| A 1095400673 | BRACKET | |
| A 1095400373 | BRACKET | |
| A 1095420840 | BRACKET | |
| N 007981004318 | SHEET METAL SCREW | |
| N 000933004045 | SCREW | |
| N 912004004102 | LOCK WASHER | |
| N 000934004006 | NUT | |
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| BRACKET TO WHEEL ARCH PANEL | ||
| N 009021006205 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| BRACKET TO WHEEL ARCH PANEL | ||
| N 912004006102 | LOCK WASHER | |
| BRACKET TO WHEEL ARCH PANEL | ||
| A 0009902791 | NUT RETAINER | |
| Repalced by: A 0009902291 | ||
| A 0009902291 | NUT RETAINER | |
| Repalced by: A 0019906791 | ||
| A 0019906791 | NUT RETAINER | |
| BRACKET TO WHEELHOUSE PANEL | ||
| N 007981004342 | SHEET METAL SCREW | |
| RELAY TO BRACKET | ||
| N 007981004342 | SHEET METAL SCREW | |
| RELAY TO BRACKET | ||
| N 007976004211 | SHEET METAL SCREW | |
| BRACKET TO FIRE WALL | ||
| A 1088204015 | ELECTRIC CABLE | |
| AUXILIARY FAN | ||
| A 1088204515 | ELECTRIC CABLE | |
| AUXILIARY FAN | ||
| A 0045458628 | PLUG | |
| Repalced by: A 0075450028 | ||
| A 0075450028 | PIN BUSHING HOUSING | |
| Repalced by: A 0155454928 | ||
| A 0155454928 | PLUG | |
| RELAY; 4-POLE | ||
| A 0095452128 | COVER | |
| TO 007 545 00 28 | ||
| A 0025454928 | PLUG | |
| Repalced by: A 0085453728 | ||
| A 0085453728 | PIN BUSHING HOUSING | |
| BIPOLAR; ADDITIONAL FAN | ||
| A 0085453728 | PIN BUSHING HOUSING | |
| SWITCH | ||
| A 0085453828 | COVER | |
| TO 008 545 37 28 | ||
| A 0035452626 | ROUND PIN BUSHING | |
| TO 007 545 00 28,008 545 37 28 | ||
| A 0045458528 | PLUG | |
| Repalced by: A 0085452028 | ||
| A 0085452028 | PIN BUSHING HOUSING | |
| TEMPERATURE SWITCH,100 DEGS. | ||
| A 0095451428 | COVER | |
| TO 008 545 20 28 | ||
| A 0015454426 | ROUND PIN BUSHING | |
| TO 008 545 20 28 | ||
| 603 | A 1088210614 | BRACKET |
| AUXILIARY FAN | ||
| N 007976004205 | SHEET METAL SCREW | |
| AUXILIARY FAN | ||
| A 0005459901 | FUSE BOX | |
| AUXILIARY FAN | ||
| A 0005458334 | FUSE | |
| AUXILIARY FAN | ||
| A 0005459411 | SWITCH | |
| AUXILIARY FAN | ||
| A 1088210814 | BRACKET | |
| A 1098211714 | BRACKET | |
| N 007981004254 | SHEET METAL SCREW | |
| N 000933004019 | SCREW | |
| N 912004004102 | LOCK WASHER | |
| N 000934004006 | NUT | |
| A 0005463335 | BOOT | |
| N 000933004019 | SCREW | |
| N 912004004102 | LOCK WASHER | |
| N 000934004006 | NUT | |
| A 1119880178 | CLIP | |
| N 007985004125 | SCREW | |
| Repalced by: N 007985004107 | ||
| N 007985004107 | SCREW | |
| N 912004004102 | LOCK WASHER | |
| 607 | A 0005453332 | CONTROL UNIT |
| ELECTRONIC CONTROL BOX | ||
| 611 | A 0025421617 | SENDER UNIT |
| 615 | A 0005428719 | RELAY |
| FUEL PUMP AND ELECTRONIC SYSTEM | ||
| N 007981004342 | SHEET METAL SCREW | |
| 619 | A 0005429719 | RELAY |
| STARTING VALVE AND ADDITIONAL FAN | ||
| 621 | A 1115400080 | COVERING |
| 624 | A 1095400773 | BRACKET |
| 627 | A 1095450540 | BRACKET |
| 632 | A 1099870139 | RUBBER BUFFER |
| 637 | A 0005459901 | FUSE BOX |
| AUXILIARY FAN | ||
| A 0005458334 | FUSE | |
| N 007981004261 | SHEET METAL SCREW | |
| Repalced by: N 000000000454 | ||
| N 000000000454 | SHEET METAL SCREW | |
| A 0019889878 | CLIP | |
| FAN COUPLER TO CONTROL BOX BRACKET | ||
| A 1095401409 | CABLE HARNESS | |
| ELECTRONIC FUEL INJECTION | ||
| A 1095402509 | CABLE HARNESS | |
| ELECTRONIC FUEL INJECTION | ||
| A 1095401509 | CABLE HARNESS | |
| ELECTRONIC FUEL INJECTION | ||
| A 1095402609 | CABLE HARNESS | |
| ELECTRONIC FUEL INJECTION | ||
| 639 | A 0019974681 | GROMMET |
| 642 | A 0135459228 | PLUG |
| 25-POLE | ||
| 645 | A 0005460643 | BRACKET |
| A 0005467040 | CABLE SHOE | |
| 649 | A 0005451945 | BOOT |
| N 007981002222 | SHEET METAL SCREW | |
| 654 | A 0045454828 | PLUG |
| TEMPERATURE SENSOR;2-POLE | ||
| 654 | A 0045454828 | PLUG |
| STARTING VALVE | ||
| 654 | A 0045454828 | PLUG |
| INJECTION VALVE | ||
| 657 | A 0045455028 | PLUG |
| THROTTLE VALVE AND PRESSURE SENSOR | ||
| 660 | A 0065458728 | PLUG |
| IGNITION DISTRIBUTOR | ||
| A 0005466940 | CABLE SHOE | |
| 663 | A 0005461135 | BOOT |
| INJECTION-VALVE PLUG | ||
| A 0005462035 | BOOT | |
| TEMPERATURE-SENSOR/STARTING-VALVE PLUG | ||
| A 0005462035 | BOOT | |
| THROTTLE-VALVE/PRESSURE-SENSOR PLUG | ||
| A 0005461735 | BOOT | |
| 5-PIN PLUG | ||
| 668 | A 0045458628 | PLUG |
| Repalced by: A 0075450028 | ||
| 668 | A 0075450028 | PIN BUSHING HOUSING |
| Repalced by: A 0155454928 | ||
| 668 | A 0155454928 | PLUG |
| STARTING MOTOR RELAY | ||
| A 0095452128 | COVER | |
| TO 007 545 00 28 | ||
| A 0035452626 | ROUND PIN BUSHING | |
| TO 007 545 00 28 | ||
| 670 | A 0065455728 | PLUG |
| Repalced by: A 0095455228 | ||
| 670 | A 0095455228 | PLUG HOUSING |
| 4-POLE | ||
| A 0005460173 | RAIL | |
| A 0055455628 | PLUG | |
| Repalced by: A 0095454428 | ||
| A 0095454428 | PIN BUSHING HOUSING | |
| TEMPERATURE SWITCH,35 DEGS. | ||
| A 0095454528 | COVER | |
| TO 009 545 44 28 | ||
| A 0035452626 | ROUND PIN BUSHING | |
| TO 009 545 44 28 | ||
| 673 | A 1085401273 | BRACKET |
| 677 | A 0005454132 | CONTROL UNIT |
| N 007981004318 | SHEET METAL SCREW | |
| N 007981004325 | SHEET METAL SCREW | |
| A 1095401309 | CABLE HARNESS | |
| TRANSISTORIZED IGNITION CABLE | ||
| A 0045459128 | PLUG | |
| TRANSISTOR | ||
| A 0005461635 | BOOT | |
| TRANSISTOR | ||
| A 0005464640 | CABLE SHOE | |
| TRANSISTOR | ||
| 681 | A 0005467041 | CABLE CONNECTOR |
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| ELECTRONIC SYSTEM GROUND CONNECTION TO RIGHT WHEEL ARCH PANEL | ||
| N 912004006102 | LOCK WASHER | |
| ELECTRONIC SYSTEM GROUND CONNECTION TO RIGHT WHEEL ARCH PANEL | ||
| N 009021006205 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| ELECTRONIC SYSTEM GROUND CONNECTION TO RIGHT WHEEL ARCH PANEL | ||
| N 000934006013 | NUT | |
| Repalced by: N 304032006008 | ||
| N 304032006008 | NUT | |
| ELECTRONIC SYSTEM GROUND CONNECTION TO RIGHT WHEEL ARCH PANEL | ||
| N 000933008130 | SCREW | |
| Repalced by: N 304017008039 | ||
| N 304017008039 | SCREW | |
| ELECTRONIC SYSTEM AND MAIN GROUND TO RIGHT CROSS MEMBER | ||
| N 912004006102 | LOCK WASHER | |
| ELECTRONIC SYSTEM AND MAIN GROUND TO RIGHT CROSS MEMBER | ||
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| CONTROL DEVICE BRACKET TO AIR BAFFLE AT LEFT SIDE MEMBER | ||
| N 912004006102 | LOCK WASHER | |
| CONTROL DEVICE BRACKET TO AIR BAFFLE AT LEFT SIDE MEMBER | ||
| N 000125006421 | WASHER | |
| Repalced by: N 000125006449 | ||
| N 000125006449 | WASHER | |
| CONTROL DEVICE BRACKET TO AIR BAFFLE AT LEFT SIDE MEMBER | ||
| N 007976004215 | SHEET METAL SCREW | |
| CONTROL DEVICE BRACKET TO AIR BAFFLE AT LEFT SIDE MEMBER | ||
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| REGULATOR TO CONTROL UNIT BRACKET | ||
| N 912004006102 | LOCK WASHER | |
| REGULATOR TO CONTROL UNIT BRACKET | ||
| N 007981004296 | SHEET METAL SCREW | |
| PRESSURE SENSOR TO FIRE WALL | ||
| N 000125005317 | WASHER | |
| Repalced by: N 000433005304 | ||
| N 000433005304 | WASHER | |
| PRESSURE SENSOR TO FIRE WALL | ||
| A 0009888978 | CLIP | |
| CABLE HARNESS TO CROSS MEMBER, LEFT AND RIGHT | ||
| N 007985006193 | SCREW | |
| Repalced by: N 000000001146 | ||
| N 000000001146 | SCREW | |
| CONTROL DEVICE BRACKET TO RIGHT AIR BAFFLE | ||
| M 6X16 | ||
| N 912004006102 | LOCK WASHER | |
| CONTROL DEVICE BRACKET TO RIGHT AIR BAFFLE | ||
| N 009021006205 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| CONTROL DEVICE BRACKET TO RIGHT AIR BAFFLE | ||
| 690 | A 1369950137 | CLAMP |
| CABLE HARNESS AND TIME-LAG RELAY TO FIRE WALL | ||
| N 007976004215 | SHEET METAL SCREW | |
| CABLE HARNESS AND TIME-LAG RELAY TO FIRE WALL | ||
| N 912004006102 | LOCK WASHER | |
| BRACKET TO RADIATOR BAFFLE | ||
| N 000934006013 | NUT | |
| Repalced by: N 304032006008 | ||
| N 304032006008 | NUT | |
| BRACKET TO RADIATOR BAFFLE | ||
| N 007985004125 | SCREW | |
| Repalced by: N 007985004107 | ||
| N 007985004107 | SCREW | |
| CONNECTION TO CABLE CONNECTOR | ||
| N 912004004102 | LOCK WASHER | |
| CONNECTION TO CABLE CONNECTOR | ||
| N 000933004067 | SCREW | |
| GROUND CONNECTION TO SWITCHING APPARATUS BRACKET | ||
| N 912004004102 | LOCK WASHER | |
| GROUND CONNECTION TO SWITCHING APPARATUS BRACKET | ||
| N 000934004006 | NUT | |
| GROUND CONNECTION TO SWITCHING APPARATUS BRACKET | ||
| N 009021004202 | WASHER | |
| Repalced by: N 009021004207 | ||
| N 009021004207 | WASHER | |
| GROUND CONNECTION TO SWITCHING APPARATUS BRACKET | ||
| A 0009888978 | CLIP | |
| TRANSISTORIZED CABLE HARNESS TO SIDE MEMBER | ||
| A 1109970781 | GROMMET | |
| THERMOSWITCH BRANCH-OFF THRU TUNNEL, RIGHT | ||
| 697 | A 0005459411 | SWITCH |
| ELECTRICALLY OPERATED FAN | ||
| A 1098212614 | BRACKET | |
| N 000936010010 | NUT | |
| N 000137010201 | SPRING WASHER | |
| N 916033012100 | CLAMP | |
| PRESSURE SENSOR | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
