Transporto priemonė: 300 SEL 6.3; VIN numerio dalis: 109018

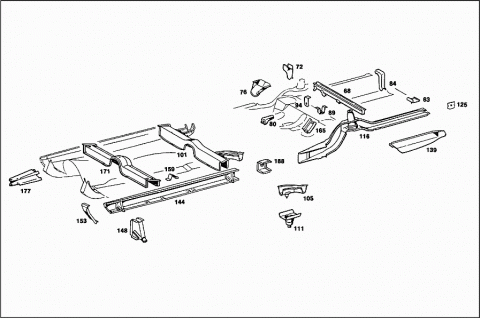

Grupė: 61 FRAME FLOOR UNIT - 001 SUBSTRUCTURE
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 1106100713 | SIDE MEMBER |
| Repalced by: A 1086100113 | ||
| A 1086100113 | SIDE MEMBER | |
| FRONT, LEFT CONNECTION PIECE | ||
| A 1106100813 | SIDE MEMBER | |
| FRONT, RIGHT CONNECTION PIECE | ||
| A 1106160466 | TUNNEL | |
| Repalced by: A 1096160166 | ||
| A 1106160566 | TUNNEL | |
| Repalced by: A 1096160166 | ||
| 011 | A 1096160166 | TUNNEL |
| A 1096160266 | TUNNEL | |
| Repalced by: A 1096160366 | ||
| A 1096160266 | TUNNEL | |
| Repalced by: A 1096160466 | ||
| A 1086160066 | TUNNEL | |
| A 1096160366 | TUNNEL | |
| A 1096160466 | TUNNEL | |
| A 1096160566 | TUNNEL | |
| 017 | A 1106100254 | BRIDGE |
| A 1086100054 | BRIDGE | |
| Repalced by: A 1086100154 | ||
| A 1086100154 | BRIDGE | |
| 022 | A 1106100352 | TAKE-UP DEVICE |
| PROPELLER SHAFT CENTER BEARING, IN TUNNEL, CENTER | ||
| A 1106160220 | MOUNTING | |
| Repalced by: A 1086100053 | ||
| 027 | A 1086100053 | MOUNTING |
| HAND BRAKE INTERMEDIATE LEVER | ||
| 033 | A 1106160128 | GUIDE |
| HAND BRAKE INTERMEDIATE LEVER | ||
| A 1106100311 | PLATE | |
| Repalced by: A 1269840125 | ||
| A 1269840125 | THREADED CHUCK | |
| Repalced by: A 1269840025 | ||
| A 1269840025 | THREADED CHUCK | |
| 036 | A 1106160767 | FLOOR |
| Repalced by: A 1086160167 | ||
| A 1086160167 | FLOOR | |
| LEFT | ||
| A 1106160867 | FLOOR | |
| RIGHT | ||
| 041 | A 1096100061 | FLOOR |
| TAIL, REAR | ||
| A 1106160062 | FLOOR | |
| Repalced by: A 1106160462 | ||
| 047 | A 1106160462 | FLOOR |
| 052 | A 1106160162 | FLOOR |
| A 1086100153 | MOUNTING | |
| LEFT | ||
| 057 | A 1086100253 | MOUNTING |
| RIGHT | ||
| 057 | A 1086100253 | MOUNTING |
| RIGHT AND LEFT | ||
| A 1106100025 | REINFORCEMENT | |
| Repalced by: A 1106100725 | ||
| 063 | A 1106100725 | REINFORCEMENT |
| A 1106100016 | CROSS MEMBER | |
| Repalced by: A 1106100216 | ||
| 068 | A 1106100216 | CROSS MEMBER |
| 072 | A 1106120324 | BRACKET |
| FRONT | ||
| 076 | A 1106100131 | CONSOLE |
| 080 | A 1104271041 | BRACKET |
| 084 | A 1106160022 | BRACKET |
| REAR | ||
| 089 | A 1104200686 | BRACKET |
| 094 | A 1104280340 | BRACKET |
| 101 | A 1106100114 | CROSS MEMBER |
| 105 | A 1106100127 | DIAGONAL GIRDER |
| LEFT | ||
| A 1106100227 | DIAGONAL GIRDER | |
| RIGHT | ||
| 111 | A 1103500633 | BELL HUB |
| A 1106101310 | SIDE MEMBER | |
| Repalced by: A 1106101510 | ||
| A 1106101110 | SIDE MEMBER | |
| Repalced by: A 1106101510 | ||
| 116 | A 1106101510 | SIDE MEMBER |
| Repalced by: A 1096100061 | ||
| A 1096100110 | SIDE MEMBER | |
| Repalced by: A 1096100061 | ||
| 119 | A 1106110321 | TUBE |
| REAR LEFT (SEMI-FINISHED) | ||
| A 1106101410 | SIDE MEMBER | |
| Repalced by: A 1106101610 | ||
| A 1106101210 | SIDE MEMBER | |
| Repalced by: A 1106101610 | ||
| A 1106101610 | SIDE MEMBER | |
| Repalced by: A 1096100061 | ||
| A 1096100210 | SIDE MEMBER | |
| Repalced by: A 1096100061 | ||
| A 1106110821 | TUBE | |
| REAR RIGHT (SEMI-FINISHED) | ||
| A 1096110221 | TUBE | |
| REAR RIGHT (SEMI-FINISHED) | ||
| 125 | A 1106100311 | PLATE |
| Repalced by: A 1269840125 | ||
| 125 | A 1269840125 | THREADED CHUCK |
| Repalced by: A 1269840025 | ||
| 125 | A 1269840025 | THREADED CHUCK |
| A 1106100117 | CROSS MEMBER | |
| Repalced by: A 1106100217 | ||
| 131 | A 1106100217 | CROSS MEMBER |
| 135 | A 1106100158 | CUP |
| 139 | A 1106110140 | END PIECE |
| LEFT | ||
| A 1106110640 | END PIECE | |
| RIGHT | ||
| A 1086110240 | END PIECE | |
| RIGHT | ||
| 144 | A 1106100309 | SUPPORT |
| OUTSIDE LEFT | ||
| A 1106100409 | SUPPORT | |
| OUTSIDE RIGHT | ||
| 148 | A 1116108052 | TAKE-UP DEVICE |
| Repalced by: A 1106100052 | ||
| 148 | A 1106100052 | TAKE-UP DEVICE |
| FRONT FOR LIFTING JACK | ||
| A 1116108152 | TAKE-UP DEVICE | |
| REAR FOR LIFTING JACK | ||
| 153 | A 1106110340 | END PIECE |
| LEFT | ||
| A 1106110440 | END PIECE | |
| RIGHT | ||
| 159 | A 1106160631 | CONSOLE |
| FRONT SEAT | ||
| 165 | A 1084200186 | BRACKET |
| BRAKE POWER REGULATOR | ||
| 171 | A 1106100220 | CROSS MEMBER |
| 171 | A 1106100220 | CROSS MEMBER |
| A 1086100020 | CROSS MEMBER | |
| A 1096100020 | CROSS MEMBER | |
| A 0019895985 | ADHESIVE TAPE | |
| TO SEAL WELDING SEAM AT REAR FLOOR AND LUGGAGE COMPARTMENT FLOOR | ||
| 177 | A 1086110027 | MOUNTING |
| A 1116110227 | MOUNTING | |
| A 1086100553 | MOUNTING | |
| A 1086100653 | MOUNTING | |
| A 1096100053 | MOUNTING | |
| Repalced by: A 1096100153 | ||
| A 1096100153 | MOUNTING | |
| A 1096100353 | MOUNTING | |
| LEFT | ||
| 182 | A 1106110411 | PLATE |
| Repalced by: A 1082420140 | ||
| 188 | A 1126110120 | SIDE MEMBER |
| LEFT INTERMEDIATE PIECE | ||
| A 1126110220 | SIDE MEMBER | |
| RIGHT INTERMEDIATE PIECE | ||
| 193 | A 1126160167 | FLOOR |
| LEFT INTERMEDIATE PIECE | ||
| A 1126160267 | FLOOR | |
| RIGHT INTERMEDIATE PIECE | ||
| 198 | A 1096100052 | TAKE-UP DEVICE |
| PROPELLER SHAFT CENTER BEARING | ||
| 204 | A 1126110126 | WEB |
| LEFT | ||
| A 1126110226 | WEB | |
| RIGHT | ||
| A 1126100553 | MOUNTING | |
| Repalced by: A 1126100753 | ||
| 211 | A 1126100753 | MOUNTING |
| LEFT | ||
| A 1126100653 | MOUNTING | |
| Repalced by: A 1126100853 | ||
| A 1126100853 | MOUNTING | |
| RIGHT | ||
| 217 | A 1096100536 | BRACKET |
| EXHAUST PIPE SUSPENSION, LEFT | ||
| 225 | A 1096100236 | BRACKET |
| EXHAUST PIPE SUSPENSION, RIGHT | ||
| A 1096100636 | BRACKET | |
