Transporto priemonė: 300 SEL 6.3; VIN numerio dalis: 109018

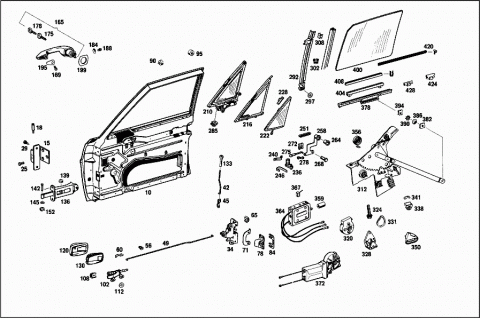

Grupė: 72 FRONT DOORS - 001 DOORS
| # | Kodas | Pavadinimas |
|---|---|---|
| A 1097200305 | DOOR SHELL | |
| Repalced by: A 1097200705 | ||
| A 1097200705 | DOOR SHELL | |
| LEFT | ||
| A 1097200405 | DOOR SHELL | |
| Repalced by: A 1097200805 | ||
| 010 | A 1097200805 | DOOR SHELL |
| RIGHT | ||
| A 1087230141 | HINGE PLATE | |
| Repalced by: A 1087200137 | ||
| A 1087230241 | HINGE PLATE | |
| Repalced by: A 1087200137 | ||
| A 1087230341 | HINGE PLATE | |
| Repalced by: A 1087200137 | ||
| A 1087200038 | HINGE | |
| Repalced by: A 1087200137 | ||
| A 1087200137 | HINGE | |
| LEFT | ||
| 015 | A 1087200237 | HINGE |
| Repalced by: A 1087200137 | ||
| 015 | A 1087200137 | HINGE |
| RIGHT | ||
| A 0009970488 | GREASE NIPPLE | |
| 018 | A 1087230052 | HINGE PIN |
| N 070616010003 | NUT | |
| A 1089900022 | SCREW | |
| Repalced by: A 1089900122 | ||
| 025 | A 1089900122 | SCREW |
| A 1089900017 | SCREW | |
| Repalced by: A 0009900517 | ||
| N 000127008203 | LOCK WASHER | |
| Repalced by: A 0009900517 | ||
| 029 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 029 | N 304017008034 | SCREW |
| A 1087200735 | LOCK | |
| LEFT WITH DOOR INNER LOCK | ||
| A 1087200835 | LOCK | |
| RIGHT, WITH DOOR INNER LOCK | ||
| A 1157200135 | LOCK | |
| LEFT WITH DOOR INNER LOCK | ||
| 034 | A 1157200235 | LOCK |
| RIGHT, WITH DOOR INNER LOCK | ||
| A 1087200935 | LOCK | |
| LEFT, LESS DOOR INNER LOCK | ||
| A 1087201035 | LOCK | |
| RIGHT, LESS DOOR INNER LOCK | ||
| A 1157200335 | LOCK | |
| LEFT, LESS DOOR INNER LOCK | ||
| A 1157200435 | LOCK | |
| RIGHT, LESS DOOR INNER LOCK | ||
| 042 | A 1087230039 | LOCKING ROD |
| 045 | A 1009940160 | LOCK |
| A 1087200092 | ROD | |
| 049 | A 1087200292 | ROD |
| Repalced by: A 1087230269 | ||
| A 1087230269 | PULL ROD | |
| A 1209870137 | MOLDED PIECE | |
| Repalced by: A 0029888378 | ||
| 056 | A 0029888378 | CLIP |
| Repalced by: A 0069886378 | ||
| 056 | A 0069886378 | CLIP |
| 060 | A 1009940160 | LOCK |
| A 0009904191 | NUT RETAINER | |
| Repalced by: A 0009908391 | ||
| 065 | A 0009908391 | NUT RETAINER |
| Repalced by: A 0009907191 | ||
| 065 | A 0009907191 | NUT RETAINER |
| A 0009903330 | SCREW | |
| N 007988006124 | SCREW | |
| A 1087230124 | EDGING | |
| LEFT | ||
| 071 | A 1087230224 | EDGING |
| RIGHT | ||
| N 007988004103 | SCREW | |
| A 1087200304 | LOCKING EYE | |
| LEFT | ||
| A 1087200404 | LOCKING EYE | |
| RIGHT | ||
| A 1157200104 | LOCKING EYE | |
| Repalced by: A 1157200504 | ||
| A 1157200504 | LOCKING EYE | |
| LEFT | ||
| A 1157200204 | LOCKING EYE | |
| Repalced by: A 1157200604 | ||
| 078 | A 1157200604 | LOCKING EYE |
| RIGHT | ||
| A 1157200504 | LOCKING EYE | |
| LEFT | ||
| A 1157200604 | LOCKING EYE | |
| RIGHT | ||
| 084 | A 1007230311 | PLATE |
| A 1007230211 | PLATE | |
| A 1157230211 | PLATE | |
| Repalced by: A 1157230511 | ||
| A 1157230511 | PLATE | |
| A 1157230311 | PLATE | |
| Repalced by: A 1157230611 | ||
| A 1157230611 | PLATE | |
| A 0009903330 | SCREW | |
| A 1156370011 | PLATE | |
| 090 | A 1119871040 | RUBBER BUFFER |
| A 1119871140 | RUBBER BUFFER | |
| A 1119871240 | RUBBER BUFFER | |
| A 1119871440 | RUBBER BUFFER | |
| 095 | A 1089870340 | RUBBER BUFFER |
| A 1087600161 | INTERIOR HANDLE ASSEMBLY | |
| Repalced by: A 1087600561 | ||
| A 1087600261 | INTERIOR HANDLE ASSEMBLY | |
| Repalced by: A 1087600661 | ||
| A 1087600561 | INTERIOR HANDLE ASSEMBLY | |
| LEFT | ||
| 102 | A 1087600661 | INTERIOR HANDLE ASSEMBLY |
| RIGHT | ||
| N 007985006132 | SCREW | |
| A 0009904191 | NUT RETAINER | |
| Repalced by: A 0009908391 | ||
| 108 | A 0009908391 | NUT RETAINER |
| Repalced by: A 0009907191 | ||
| 108 | A 0009907191 | NUT RETAINER |
| 112 | A 0009940510 | LOCK |
| A 1009940160 | LOCK | |
| A 1087660311 | ESCUTCHEON | |
| Repalced by: A 1087660511 | ||
| A 1087660411 | ESCUTCHEON | |
| Repalced by: A 1087660611 | ||
| A 1087660511 | ESCUTCHEON | |
| LEFT | ||
| 120 | A 1087660611 | ESCUTCHEON |
| RIGHT | ||
| A 1157660098 | SEAL | |
| N 007987004119 | SCREW | |
| N 006797004333 | TOOTHED WASHER | |
| A 1087660190 | INSERT | |
| LEFT | ||
| A 1087660290 | INSERT | |
| RIGHT | ||
| A 1087660390 | INSERT | |
| LEFT | ||
| 130 | A 1087660490 | INSERT |
| RIGHT | ||
| 133 | A 1107600565 | KNOB |
| 136 | A 1087200016 | DOOR CHECK |
| 139 | A 0009840758 | ROLLER |
| Repalced by: A 3147230068 | ||
| 139 | A 3147230068 | ROLLER |
| 142 | A 1089910007 | PIN |
| 145 | A 1089900140 | WASHER |
| A 1089900240 | WASHER | |
| 152 | N 912001006002 | LOCK |
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| DOOR CHECK TO FRONT DOOR | ||
| N 912004006102 | LOCK WASHER | |
| DOOR CHECK TO FRONT DOOR | ||
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| DOOR CHECK TO FRONT DOOR | ||
| N 006797006145 | TOOTHED WASHER | |
| DOOR CHECK TO FRONT DOOR | ||
| N 000934006007 | NUT | |
| DOOR CHECK TO FRONT DOOR | ||
| A 0029894185 | ADHESIVE TAPE | |
| 2 X 15 X 660 | ||
| A 1087661101 | DOOR HANDLE | |
| OUTSIDE LEFT | ||
| A 1087661201 | DOOR HANDLE | |
| OUTSIDE RIGHT | ||
| A 1087601559 | DOOR HANDLE | |
| LEFT;WORKSHOP VERSION,WITH KEY;ANY LOCK | ||
| A 1087601659 | DOOR HANDLE | |
| RIGHT;WORKSHOP VERSION,WITH KEY; ANY LOCK | ||
| A 1087601159 | DOOR HANDLE | |
| LESS KEY,LEFT | ||
| 165 | A 1087601259 | DOOR HANDLE |
| LESS KEY,RIGHT | ||
| 169 | A 1207660015 | PIN |
| A 0007662306 | KEY | |
| Repalced by: A 1087600206 | ||
| A 1087600206 | KEY | |
| A 0007662406 | KEY | |
| Repalced by: A 1087600206 | ||
| A 1087600206 | KEY | |
| A 0007663506 | KEY | |
| Repalced by: A 0007600406 | ||
| 175 | A 0007600406 | KEY |
| MASTER KEY | ||
| HUF | ||
| A 0007665106 | KEY | |
| BLANK (MASTER KEY) | ||
| HUF | ||
| A 0007663606 | KEY | |
| Repalced by: A 0007600506 | ||
| 178 | A 0007600506 | KEY |
| SECONDARY KEY | ||
| HUF | ||
| A 0007665206 | KEY | |
| BLANK (SECONDARY KEY) | ||
| HUF | ||
| A 0007664406 | KEY HEAD | |
| MASTER KEY | ||
| A 0007664506 | KEY HEAD | |
| SECONDARY KEY | ||
| 184 | A 1119930026 | DISC SPRING |
| Repalced by: A 1087230074 | ||
| A 1087230074 | CAP | |
| 188 | A 1109900012 | SCREW |
| Repalced by: N 000912006095 | ||
| 188 | N 000912006095 | SCREW |
| A 1119930026 | DISC SPRING | |
| A 1087660105 | PAD | |
| Repalced by: A 1087660205 | ||
| A 1087660205 | PAD | |
| FRONT LEFT | ||
| A 1087660205 | PAD | |
| FRONT RIGHT | ||
| A 1087660705 | PAD | |
| REAR LEFT | ||
| A 1087660805 | PAD | |
| REAR RIGHT | ||
| A 1087660905 | PAD | |
| Repalced by: A 1087661005 | ||
| 195 | A 1087661005 | PAD |
| FRONT | ||
| A 1087661105 | PAD | |
| REAR LEFT | ||
| 199 | A 1087661205 | PAD |
| REAR RIGHT | ||
| A 1087200155 | VENTILATOR WINDOW | |
| Repalced by: A 1087201755 | ||
| A 1087200955 | VENTILATOR WINDOW | |
| Repalced by: A 1087201755 | ||
| A 1087201555 | VENTILATOR WINDOW | |
| Repalced by: A 1087201755 | ||
| A 1087201755 | VENTILATOR WINDOW | |
| LEFT | ||
| A 1087200255 | VENTILATOR WINDOW | |
| Repalced by: A 1087201855 | ||
| A 1087201055 | VENTILATOR WINDOW | |
| Repalced by: A 1087201855 | ||
| A 1087201655 | VENTILATOR WINDOW | |
| Repalced by: A 1087201855 | ||
| 210 | A 1087201855 | VENTILATOR WINDOW |
| RIGHT | ||
| A 1087250124 | SEAL | |
| LEFT | ||
| 216 | A 1087250224 | SEAL |
| RIGHT | ||
| A 1087200355 | VENTILATOR WINDOW | |
| Repalced by: A 1087201955 | ||
| A 1087201955 | VENTILATOR WINDOW | |
| LEFT | ||
| A 1087200455 | VENTILATOR WINDOW | |
| Repalced by: A 1087202055 | ||
| 222 | A 1087202055 | VENTILATOR WINDOW |
| RIGHT | ||
| A 1087250153 | MOUNTING | |
| TOP LEFT | ||
| A 1087200327 | MOUNTING | |
| TOP LEFT | ||
| 228 | A 1087250253 | MOUNTING |
| TOP RIGHT | ||
| A 1087200427 | MOUNTING | |
| TOP RIGHT | ||
| N 007982003216 | SHEET METAL SCREW | |
| Repalced by: N 007982003209 | ||
| N 007982003209 | SHEET METAL SCREW | |
| 236 | A 1087200127 | MOUNTING |
| INSIDE | ||
| 240 | A 1007250064 | SPRING |
| N 000091006126 | SCREW | |
| 246 | A 1007250264 | SPRING |
| N 007985004140 | SCREW | |
| 251 | A 1087250118 | PLATE |
| A 1087200166 | FASTENER | |
| Repalced by: A 1087200966 | ||
| A 1087200966 | FASTENER | |
| LEFT | ||
| A 1087200266 | FASTENER | |
| Repalced by: A 1087201066 | ||
| 258 | A 1087201066 | FASTENER |
| RIGHT | ||
| A 1007250078 | KNOB | |
| A 1087250178 | KNOB | |
| Repalced by: A 1087200066 | ||
| 264 | A 1087200066 | FASTENER |
| N 912003005000 | DUO CLIP | |
| Repalced by: N 912010005001 | ||
| N 912010005001 | LOCK PLATE | |
| N 912010005001 | LOCK PLATE | |
| 268 | A 1087250015 | PIN |
| N 900055008002 | SPRING WASHER | |
| 272 | N 912002008001 | LOCK |
| Repalced by: N 912002008003 | ||
| 272 | N 912002008003 | LOCK |
| 275 | A 1087200192 | ROD |
| 278 | A 1089940060 | LOCK |
| N 007981004318 | SHEET METAL SCREW | |
| N 000125004311 | WASHER | |
| Repalced by: N 000125004319 | ||
| N 000125004319 | WASHER | |
| A 0029882378 | CLIP | |
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| A 0009904191 | NUT RETAINER | |
| Repalced by: A 0009908391 | ||
| 285 | A 0009908391 | NUT RETAINER |
| Repalced by: A 0009907191 | ||
| 285 | A 0009907191 | NUT RETAINER |
| A 1087250198 | SEAL | |
| Repalced by: A 0019875646 | ||
| A 0009894585 | ADHESIVE TAPE | |
| Repalced by: A 0019875646 | ||
| A 0029894185 | ADHESIVE TAPE | |
| Repalced by: A 0019875646 | ||
| A 0019875646 | SEALING CORD | |
| 650 MM | ||
| A 1087200115 | GUIDE RAIL | |
| LEFT | ||
| 292 | A 1087200215 | GUIDE RAIL |
| RIGHT | ||
| N 000933006122 | SCREW | |
| Repalced by: N 304017006034 | ||
| N 304017006034 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| 297 | A 0009940510 | LOCK |
| A 0009852030 | SEALING SECTION | |
| Repalced by: A 0009852930 | ||
| 302 | A 0009852930 | SEALING SECTION |
| 2290 MM | ||
| 308 | A 0029882378 | CLIP |
| A 1097200546 | WINDOW REGULATOR | |
| LEFT | ||
| 312 | A 1097200646 | WINDOW REGULATOR |
| RIGHT | ||
| A 1097201146 | WINDOW REGULATOR | |
| LEFT | ||
| A 1097201246 | WINDOW REGULATOR | |
| RIGHT | ||
| 320 | A 0008202907 | GEARING |
| 324 | A 0009902922 | SCREW |
| A 0008203007 | GEARING | |
| Repalced by: A 0008203107 | ||
| 328 | A 0008203107 | GEARING |
| 331 | A 0008241398 | SEAL |
| A 0009903622 | SCREW | |
| Repalced by: N 914114006006 | ||
| N 914114006006 | SCREW | |
| A 0007680375 | STOP | |
| LEFT | ||
| 338 | A 0007680475 | STOP |
| RIGHT | ||
| 341 | A 0007680175 | STOP |
| A 0007680775 | STOP | |
| LEFT | ||
| A 0007680875 | STOP | |
| RIGHT | ||

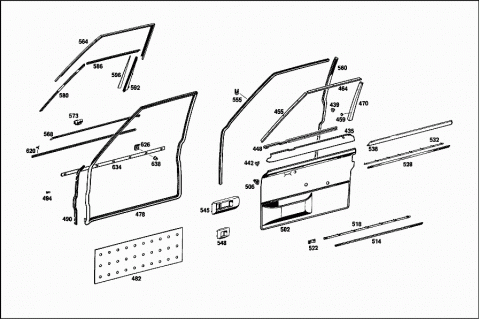

| A 0007680575 | HOUSING | |
| Repalced by: A 0007680975 | ||
| A 0007680675 | HOUSING | |
| Repalced by: A 0007681075 | ||
| 350 | A 0007680975 | HOUSING |
| STOP, LEFT | ||
| A 0007681075 | HOUSING | |
| STOP, RIGHT | ||
| A 0009903622 | SCREW | |
| Repalced by: N 914114006006 | ||
| N 914114006006 | SCREW | |
| A 0009907822 | SCREW | |
| Repalced by: N 914114006007 | ||
| N 914114006007 | SCREW | |
| A 0009900457 | NUT | |
| 356 | A 0007680505 | SPRING |
| 359 | A 0008210226 | CONNECTOR |
| A 0008201042 | ELECTRIC MOTOR | |
| Repalced by: A 0008201142 | ||
| 364 | A 0008201142 | ELECTRIC MOTOR |
| 367 | A 0008242175 | CARBON BRUSH SET |
| Repalced by: A 0008352575 | ||
| 367 | A 0008352575 | CARBON BRUSH SET |
| A 0008201642 | ELECTRIC MOTOR | |
| Repalced by: A 0018200542 | ||
| A 0018200542 | ELECTRIC MOTOR | |
| LEFT | ||
| A 0008201742 | ELECTRIC MOTOR | |
| Repalced by: A 0018200442 | ||
| 372 | A 0018200442 | ELECTRIC MOTOR |
| RIGHT | ||
| A 0009903622 | SCREW | |
| Repalced by: N 914114006006 | ||
| N 914114006006 | SCREW | |
| MOTOR TO WINDOW REGULATOR | ||
| A 1097200145 | WINDOW REGULATOR RAIL | |
| LEFT | ||
| 378 | A 1097200245 | WINDOW REGULATOR RAIL |
| RIGHT | ||
| 382 | A 1139840037 | SLIDE |
| Repalced by: A 1155860072 | ||
| 386 | A 0009842456 | WASHER |
| Repalced by: A 1155860072 | ||
| 390 | A 0009900548 | WASHER |
| Repalced by: A 1155860072 | ||
| A 0009940360 | LOCK | |
| Repalced by: A 1155860072 | ||
| A 1155860072 | REPAIR KIT | |
| Repalced by: A 1237200114 | ||
| A 1237200114 | REPAIR KIT | |
| WINDOW REGULATOR | ||
| N 912004006102 | LOCK WASHER | |
| 394 | A 0009940510 | LOCK |
| N 000934006007 | NUT | |
| A 1087250110 | GLASS PANE | |
| LEFT | ||
| 400 | A 1087250210 | GLASS PANE |
| RIGHT | ||
| 404 | A 1107200047 | RETAINING RAIL |
| 408 | A 0019874257 | RUBBER MOULDING |
| 340 MM | ||
| N 000933006122 | SCREW | |
| Repalced by: N 304017006034 | ||
| N 304017006034 | SCREW | |
| CRANK OPERATED WINDOW TO WINDOW REGULATOR RAIL | ||
| N 006797006145 | TOOTHED WASHER | |
| CRANK OPERATED WINDOW TO WINDOW REGULATOR RAIL | ||
| A 1087250098 | SEAL | |
| Repalced by: A 1157251298 | ||
| A 1157251298 | SEAL | |
| Repalced by: A 1167250198 | ||
| A 1167250198 | SEAL | |
| A 0009850330 | SEALING SECTION | |
| Repalced by: A 1217250166 | ||
| A 1217250166 | SEAL | |
| Repalced by: A 1157250965 | ||
| 420 | A 1157250965 | SEALING RAIL |
| 2200 MM | ||
| 424 | A 1089880378 | CLIP |
| 428 | A 1089880278 | CLIP |
| Repalced by: A 1159880078 | ||
| A 1159880078 | CLIP | |
| A 1097200151 | PANELLING | |
| Repalced by: A 1097200551 | ||
| A 1097200551 | PANELLING | |
| LEFT | ||
| A 1097200251 | PANELLING | |
| RIGHT | ||
| A 1097200551 | PANELLING | |
| LEFT | ||
| A 1097200651 | PANELLING | |
| RIGHT | ||
| A 1097201551 | PANELLING | |
| Repalced by: A 1087202551 | ||
| A 1087202551 | PANELLING | |
| LEFT | ||
| 435 | A 1097201651 | PANELLING |
| Repalced by: A 1087202651 | ||
| 435 | A 1087202651 | PANELLING |
| RIGHT | ||
| 439 | A 1087250070 | ESCUTCHEON |
| 442 | A 0019882878 | CLIP |
| Repalced by: A 0029884578 | ||
| 442 | A 0029884578 | CLIP |
| A 1097250182 | GARNISH MOULDING | |
| LEFT | ||
| 448 | A 1097250282 | GARNISH MOULDING |
| RIGHT | ||
| N 007983002221 | SHEET METAL SCREW | |
| A 1097200751 | PANELLING | |
| FRONT LEFT | ||
| 455 | A 1097200851 | PANELLING |
| FRONT RIGHT | ||
| N 007983002303 | SHEET METAL SCREW | |
| 459 | A 0009850962 | WASHER |
| A 1097200951 | PANELLING | |
| TOP LEFT | ||
| 464 | A 1097201051 | PANELLING |
| TOP RIGHT | ||
| N 007983002303 | SHEET METAL SCREW | |
| A 0009850962 | WASHER | |
| A 1097201151 | PANELLING | |
| REAR LEFT | ||
| 470 | A 1097201251 | PANELLING |
| REAR RIGHT | ||
| N 007983002315 | SHEET METAL SCREW | |
| N 007983002305 | SHEET METAL SCREW | |
| A 0009850962 | WASHER | |
| A 1087200178 | WEATHERSTRIP | |
| Repalced by: A 1087200378 | ||
| A 1087200378 | WEATHERSTRIP | |
| LEFT | ||
| 478 | A 1087200278 | WEATHERSTRIP |
| Repalced by: A 1087200478 | ||
| A 1087200478 | WEATHERSTRIP | |
| RIGHT | ||
| 482 | A 1117275290 | INSULATION |
| Repalced by: A 1237270090 | ||
| 482 | A 1237270090 | INSULATION |
| Repalced by: A 1107270390 | ||
| 482 | A 1107270390 | INSULATION |
| Repalced by: A 2106820008 | ||
| 482 | A 2106820008 | INSULATION |
| Repalced by: A 1686820308 | ||
| 482 | A 1686820308 | INSULATION |
| A 1087270135 | RAIL | |
| Repalced by: A 1087270335 | ||
| A 1087270235 | RAIL | |
| Repalced by: A 1087270435 | ||
| A 1087270335 | RAIL | |
| LEFT | ||
| 490 | A 1087270435 | RAIL |
| RIGHT | ||
| N 007983003335 | SHEET METAL SCREW | |
| 494 | A 0009871015 | PLUG |
| A 1097201770 | PANELLING | |
| LEFT | ||
| A 1097201870 | PANELLING | |
| RIGHT | ||
| A 1097205170 | PANELLING | |
| LEFT | ||
| A 1097205270 | PANELLING | |
| RIGHT | ||
| A 1097208370 | PANELLING | |
| LEFT | ||
| A 1097208470 | PANELLING | |
| RIGHT | ||
| A 1097201970 | PANELLING | |
| LEFT | ||
| A 1097202070 | PANELLING | |
| RIGHT | ||
| A 1097205370 | PANELLING | |
| LEFT | ||
| A 1097205470 | PANELLING | |
| RIGHT | ||
| A 1097208570 | PANELLING | |
| LEFT | ||
| A 1097208670 | PANELLING | |
| RIGHT | ||
| A 1097201362 | PANELLING | |
| LEFT | ||
| 502 | A 1097201462 | PANELLING |
| RIGHT | ||
| 506 | A 0029884578 | CLIP |
| A 0029883478 | CLIP | |
| Repalced by: A 0029887078 | ||
| A 0029885978 | CLIP | |
| Repalced by: A 0029887078 | ||
| A 0029887078 | CLIP | |
| A 0029885978 | CLIP | |
| Repalced by: A 0039884178 | ||
| A 0039884178 | TRIM CLIP | |
| Repalced by: A 0089885778 | ||
| A 0089885778 | CLIP | |
| Repalced by: A 0109886178 | ||
| A 0109886178 | CLIP | |
| 514 | A 1087270082 | GARNISH MOULDING |
| 518 | A 1087270072 | RAIL |
| 522 | A 0009942245 | LOCK |
| A 1097270182 | GARNISH MOULDING | |
| TOP LEFT | ||
| 528 | A 1097270282 | GARNISH MOULDING |
| TOP RIGHT | ||
| 532 | A 1097270172 | RAIL |
| A 1097200122 | GARNISH MOULDING | |
| TOP LEFT | ||
| 538 | A 1097200222 | GARNISH MOULDING |
| TOP RIGHT | ||
| N 007982002219 | SHEET METAL SCREW | |
| Repalced by: N 007982002212 | ||
| N 007982002212 | SHEET METAL SCREW | |
| A 1097270032 | FRAME | |
| A 1097270132 | FRAME | |
| 545 | A 1097200030 | FRAME |
| 548 | A 1097200730 | FRAME |
| A 1087200197 | EDGE GUARD SECTION | |
| Repalced by: A 1087200397 | ||
| 555 | A 1087200297 | EDGE GUARD SECTION |
| Repalced by: A 1087200497 | ||
| A 1087200397 | EDGE GUARD SECTION | |
| LEFT | ||
| A 1087200497 | EDGE GUARD SECTION | |
| RIGHT | ||
| A 1087270331 | SEAL | |
| LEFT | ||
| 560 | A 1087270431 | SEAL |
| RIGHT | ||
| A 1097200530 | FRAME | |
| LEFT | ||
| 564 | A 1097200630 | FRAME |
| RIGHT | ||
| A 1087280130 | GARNISH MOULDING | |
| DOOR EDGE,LEFT | ||
| 568 | A 1087280230 | GARNISH MOULDING |
| DOOR EDGE,RIGHT | ||
| A 1087280297 | PAD | |
| A 1089880278 | CLIP | |
| Repalced by: A 1159880078 | ||
| A 1159880078 | CLIP | |
| 573 | A 1159880678 | CLIP |
| Repalced by: A 1159881078 | ||
| A 1159881078 | CLIP | |
| N 007983002200 | SHEET METAL SCREW | |
| A 1097280331 | GARNISH MOULDING | |
| Repalced by: A 1087280131 | ||
| A 1087280131 | GARNISH MOULDING | |
| FRONT LEFT | ||
| A 1097280431 | GARNISH MOULDING | |
| Repalced by: A 1087280231 | ||
| 580 | A 1087280231 | GARNISH MOULDING |
| FRONT RIGHT | ||
| A 1097280531 | GARNISH MOULDING | |
| Repalced by: A 1087280331 | ||
| A 1087280331 | GARNISH MOULDING | |
| TOP LEFT | ||
| A 1097280631 | GARNISH MOULDING | |
| Repalced by: A 1087280431 | ||
| 586 | A 1087280431 | GARNISH MOULDING |
| TOP RIGHT | ||
| A 1097280731 | GARNISH MOULDING | |
| Repalced by: A 1087280531 | ||
| A 1087280531 | GARNISH MOULDING | |
| REAR LEFT | ||
| A 1097280831 | GARNISH MOULDING | |
| Repalced by: A 1087280631 | ||
| 592 | A 1087280631 | GARNISH MOULDING |
| REAR RIGHT | ||
| A 1087280080 | SEAL | |
| Repalced by: A 1087280180 | ||
| 596 | A 1087280180 | SEAL |
| Repalced by: A 1087380180 | ||
| 596 | A 1087380180 | SEAL |
| N 007981003254 | SHEET METAL SCREW | |
| N 000433004303 | WASHER | |
| Repalced by: N 000433004307 | ||
| N 000433004307 | WASHER | |
| A 1087200180 | GARNISH MOULDING | |
| Repalced by: A 1087202180 | ||
| A 1087201580 | GARNISH MOULDING | |
| Repalced by: A 1087202180 | ||
| A 1087201780 | GARNISH MOULDING | |
| Repalced by: A 1087202180 | ||
| A 1087201980 | GARNISH MOULDING | |
| Repalced by: A 1087202180 | ||
| A 1087202180 | GARNISH MOULDING | |
| BEADED EDGE,LEFT | ||
| A 1087200280 | GARNISH MOULDING | |
| Repalced by: A 1087202280 | ||
| A 1087201680 | GARNISH MOULDING | |
| Repalced by: A 1087202280 | ||
| A 1087201880 | GARNISH MOULDING | |
| Repalced by: A 1087202280 | ||
| A 1087202080 | GARNISH MOULDING | |
| Repalced by: A 1087202280 | ||
| A 1087202280 | GARNISH MOULDING | |
| BEADED EDGE,RIGHT | ||
| A 1087200185 | WELT | |
| Repalced by: A 1087200585 | ||
| A 1087200385 | WELT | |
| Repalced by: A 1087200585 | ||
| A 1087200585 | WELT | |
| LEFT | ||
| A 1087200785 | WELT | |
| Repalced by: A 1087202180 | ||
| A 1087202180 | GARNISH MOULDING | |
| LEFT | ||
| A 1087200285 | WELT | |
| Repalced by: A 1087200685 | ||
| A 1087200485 | WELT | |
| Repalced by: A 1087200685 | ||
| 620 | A 1087200685 | WELT |
| RIGHT | ||
| A 1087200885 | WELT | |
| Repalced by: A 1087202280 | ||
| A 1087202280 | GARNISH MOULDING | |
| RIGHT | ||
| 626 | A 0009884381 | FASTENER BUTTON |
| A 0009886081 | FASTENER BUTTON | |
| A 1087280097 | PAD | |
| Repalced by: A 1087280397 | ||
| 634 | A 1087280397 | PAD |
| 638 | A 0009881581 | GROMMET |
| Repalced by: A 0019882081 | ||
| 638 | A 0019882081 | FASTENER BUTTON |
| Repalced by: A 0089970381 | ||
| 638 | A 0089970381 | GROMMET |
| Repalced by: A 0019882081 | ||
| 638 | A 0019882081 | FASTENER BUTTON |
| Repalced by: A 0019887681 | ||
| 638 | A 0019887681 | FASTENER BUTTON |
| LOWER PART | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
